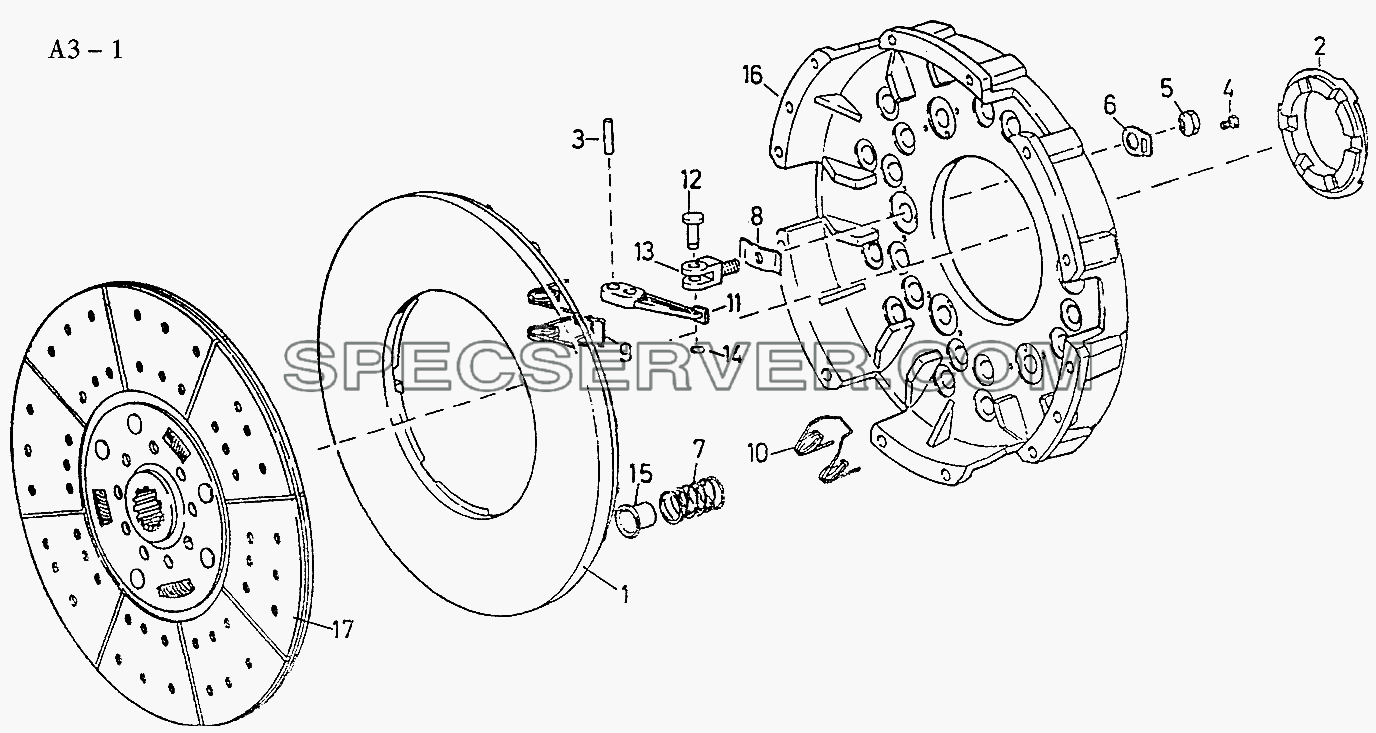

№		Номер детали	Наименование запчасти
-		BZ1560160013 [Platen C]	Platen C
-		BZ1560161090 [Platen C]	Platen C
-		BZ1560161116 [Platen spring]	Platen spring
-		BZ1560161116 [Platen spring]	Platen spring
1		BZ1560161093 [Platen]	Platen
2		BZ1560161212 [Thrust collar]	Thrust collar
3		BZ1560161100 [Plug]	Plug
4		BZ1560161119 [Hex 8crew]	Hex 8crew
5		BZ1560161112 [Nut]	Nut
6		BZ1560161113 [Locker]	Locker
7		BZ1560161114 [Platen spring]	Platen spring
7		BZ1560161115 [Platen spring]	Platen spring
8		BZ1560161097 [Spring disc]	Spring disc
9		BZ1560161081 [Spring C]	Spring C
10		BZ1560161084 [Release lever spring]	Release lever spring
11		BZ1560161096 [Release lever C]	Release lever C
12		BZ1560161114 [Connecting pin]	Connecting pin
13		BZ1560161108 [Adjustment fork]	Adjustment fork
14		Q43710 [Washer]	Washer
15		BZ1560161117 [Spring holder]	Spring holder
16		BZ1560161125 [Clutch housing]	Clutch housing
17		WG1560161130 [Driven disc C]	Driven disc C

THE OPERATION SYSTEM OF Ф420MM CLUTCH (B3-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		190003933200 [Nut]	Nut
-		190003934235 [Circlip]	Circlip
-		199100230073 [Flance]	Flance
-		199100230085 [Bearing]	Bearing
-		Q150B1045 [Screw]	Screw
-		Q33210 [Nut]	Nut
1		1681 270244 [Pedal seal]	Pedal seal
2		WG81270245 [Sleeve]	Sleeve
3		199100230076 [Push rod]	Push rod
3		WG9100230004 [Push rod]	Push rod
4		AZ9114230065 [Clutch pedal lever]	Clutch pedal lever
4		AZ9232230015 [Clutch pedal lever]	Clutch pedal lever
5		1880 230031 [Footboard rubber]	Footboard rubber
6		11700 230009 [Bolt]	Bolt
7		Q33208 [Nut]	Nut
8		Q40308 [Spring washer]	Spring washer
9		AZ9100230166 [Bracket C]	Bracket C
10		190003963114 [Grease nipple]	Grease nipple
11		AZ9100230135 [Bracket C]	Bracket C
11		AZ9232230011 [Bracket C]	Bracket C
12		Q150B1020 [Screw]	Screw
13		Q41210 [Toothed washer]	Toothed washer
14		Q150B1025 [Screw]	Screw
15		190003881336 [Nut]	Nut
16		1680 250092 [Lever C]	Lever C
16		199112230098 [Lever C]	Lever C
17		199100230008 [Gasket]	Gasket
18		Q5500622 [Key]	Кеу
19		Q150B0835 [Screw]	Screw
20		Q40308 [Spring washer]	Spring washer
21		1-99-960-010 [Damping rubber]	Damping rubber
22		1680 350096 [Spring]	Spring
22		199100230063 [Spring]	Spring
23		WG9114230021 [Drive cyl.]	Drive cyl.
24		Q150B0825 [Screw]	Screw
25		Q33208 [Nut]	Nut
26		190003903181 [Bolt]	Bolt
27		Q40110 [Washer]	Washer
28		Q5003216 [Split pit]	Split pit
29		WG9100230191 [Oilcan]	Oilcan
30		Q150B0612 [Screw]	Screw
31		Q40306 [Spring washer]	Spring washer
32		AZ9114230016 [Bracket]	Bracket
33		Q151B1425 [Screw]	Screw
34		Q40314 [Spring washer]	Spring washer
35		12054230100 [Spring]	Spring
36		AZ9114230008 [Spring bracket]	Spring bracket
37		WG9114230023 [Operating cyl.]	Operating cyl.
37		WG9114230029 [Operating cyl.]	Operating cyl.
38		Q150B0825 [Screw]	Screw
39		Q40308 [Spring washer]	Spring washer
40		Q340B08 [Nut]	Nut
41		Q40108 [Washer]	Washer
42		199112230033 [Release shaft]	Release shaft
43		AZ9114230004 [Release lever]	Release lever
44		Q41310 [Sprig washer]	Sprig washer
45		Q340B10 [Nut]	Nut
46		AZ9160230272 [Screw]	Screw
47		Q350B10 [Nut]	Nut
48		Q340B10 [Nut]	Nut
49		190003962627 [Scresw]	Scresw
50		WG9100270119 [Hose joint]	Hose joint
51		Q72316T5F [Gasket]	Gasket
52		190003179781 [Plastic pipe]	Plastic pipe
53		WG9014230016 [Hose joint]	Hose joint
54		190003962621 [Screw]	Screw
55		Q72314T5F [Gasket]	Gasket
56		1406 070015 [Gasket]	Gasket
57		190003171697 [Plastic strap]	Plastic strap
58		WG9632230010 [High pressure hose]	High pressure hose
58		WG9632230020 [High pressure hose]	High pressure hose
59		WG9114230010 [Oil pipe]	Oil pipe
60		190003989300 [Hose collar]	Hose collar
61		Q72314T5F [Gasket]	Gasket
62		190003559483 [Nozzle]	Nozzle
63		190003559514 [Nut]	Nut
64		190003559558 [Cutting ring]	Cutting ring
65		199014280041 [Sleeve]	Sleeve

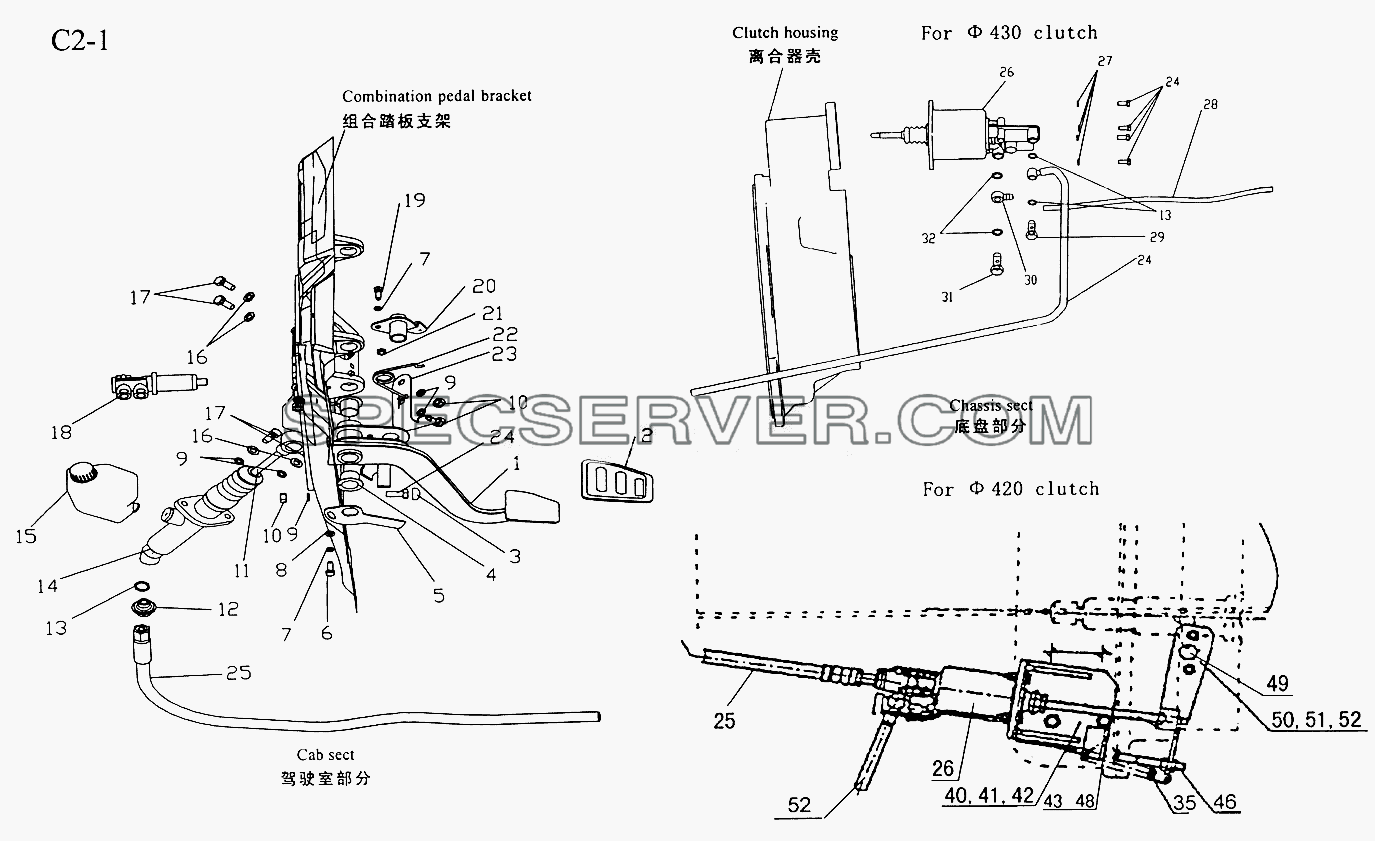

CLUTCH OPERATION SYSTEM (C2-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ9719360050 [Combination bracket]	Combination bracket
-		AZ9719360051 [Shaft]	Shaft
1		AZ9719230045 [Clutch pedal]	Clutch pedal
1		AZ9719230070 [Clutch pedal]	Clutch pedal
2		AZ9123230226 [Rubber footboard]	Rubber footboard
3		AZ9123360067 [Plug]	Plug
4		AZ9719360060 [Bush]	Bush
5		AZ9719230019 [Stop bracket]	Stop bracket
6		Q150B0620 [Screw]	Screw
7		Q40306 [Spring washer]	Spring washer
8		Q40106 [Washer]	Washer
9		Q40308 [Spring washer]	Spring washer
10		Q340B08 [Nut]	Nut
11		AZ9719230016 [Push rod]	Push rod
12		AZ9160230092 [Connector]	Connector
13		Q72314T5F [Gasket]	Gasket
14		WG9719230015 [Driving cylinder]	Driving cylinder
15		WG9719230014 [Clutch oil tank]	Clutch oil tank
16		Q40108 [Washer]	Washer
17		Q150B0820 [Screw]	Screw
18		WG9719230011 [Clutch brake valve]	Clutch brake valve
19		Q150B0615 [Screw]	Screw
20		AZ9719230012 [Bracket C.]	Bracket C.
21		Q340B06 [Nut]	Nut
22		AZ9719230009 [Spring]	Spring
23		AZ9719230007 [Spring bracket]	Spring bracket
24		Q150B0830 [Screw]	Screw
25		WG9123230026 [High pressure hose]	High pressure hose
25		WG9632230010 [High pressure hose]	High pressure hose
25		WG9719230027 [High pressure hose]	High pressure hose
26		WG9114230018 [Operating cylinder]	Operating cylinder
26		WG9114230023 [Operating cylinder]	Operating cylinder
26		WG9114230029 [Operating cylinder]	Operating cylinder
26		WG9719230030 [Operating cylinder]	Operating cylinder
27		Q41208 [Washer]	Washer
28		190003179781 [Plastic pipe]	Plastic pipe
29		190003962621 [Female screw]	Female screw
30		WG99100270119 [Hose connector]	Hose connector
31		190003962627 [Female screw]	Female screw
32		Q72316T5F [Gasket]	Gasket
40		AZ9114230016 [Bracket]	Bracket
41		Q151B1425 [Screw]	Screw
42		Q40314 [Spring washer]	Spring washer
43		12054230100 [Spring]	Spring
44		AZ9114230039 [Bracket]	Bracket
45		Q150B0825 [Screw]	Screw
46		Q340B08 [Nut]	Nut
47		Q40108 [Washer]	Washer
48		Q40308 [Spring washer]	Spring washer
49		199112230033 [Release shaft]	Release shaft
50		AZ9114230004 [Release lever]	Release lever
51		Q40310 [Spring washer]	Spring washer
52		Q340B10 [Nut]	Nut
53		AZ9160230272 [Screw]	Screw
54		Q41810 [Washer]	Washer
55		Q340B10 [Nut]	Nut

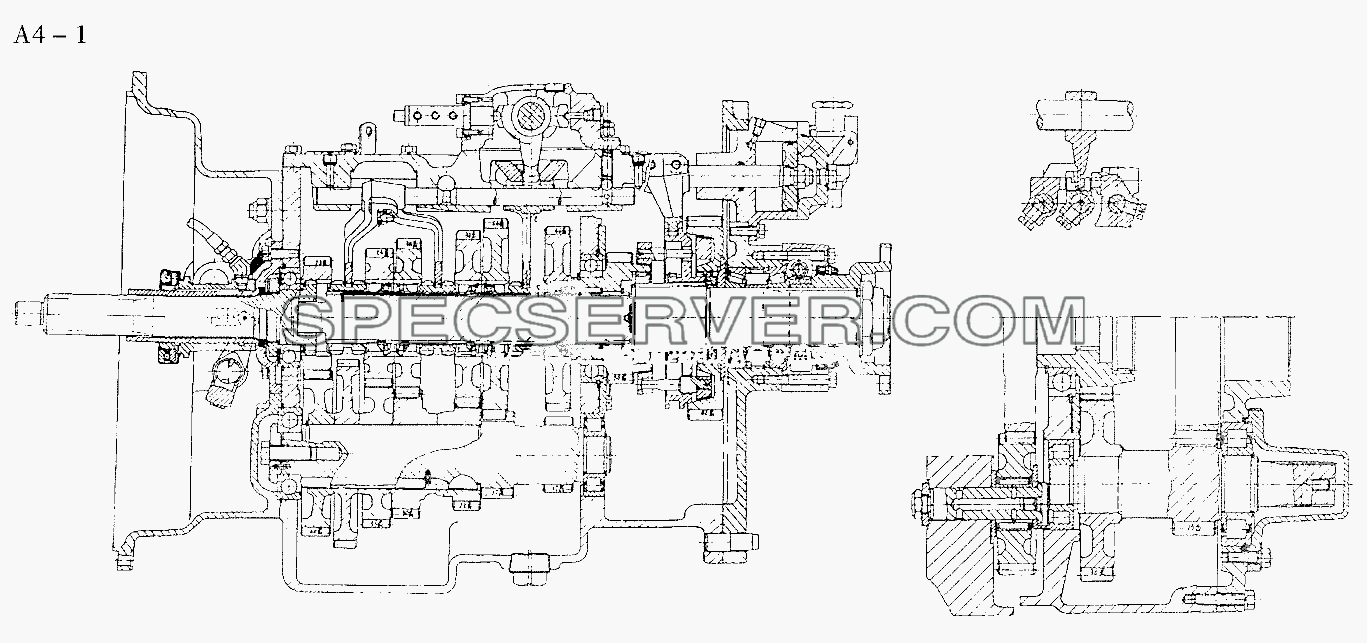

Fuller GEARBOX (A4-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		RT-11509C [9 - gear gearbox]	9 - gear gearbox
2		RT-11609A [9 - gear gearbox]	9 - gear gearbox
3		RT0-11609B [9 - gear gearbox with overdrive]	9 - gear gearbox with overdrive
4		RT0-11609E [9 - gear gearbox with overdrive]	9 - gear gearbox with overdrive
5		9JS150 [9 - gear gearbox with overdrive]	9 - gear gearbox with overdrive
6		9JS180 [9 - gear gearbox]	9 - gear gearbox
7		9JS180A [9 - gear gearbox with overdrive]	9 - gear gearbox with overdrive
8		8JS100 [8 - gear gearbox]	8 - gear gearbox
9		8JS100T [8 - gear synchromesh gearbox]	8 - gear synchromesh gearbox
10		8JS100TA [8 - gear synchromesh gearbox with overdrive]	8 - gear synchromesh gearbox with overdrive
11		8JS130T [8 - gear synchromesh gearbox]	8 - gear synchromesh gearbox
12		8JS130TA [8 - gear synchromesh gearbox with overdrive]	8 - gear synchromesh gearbox with overdrive
13		8JS180T [8 - gear synchromesh gearbox]	8 - gear synchromesh gearbox
14		7JS100A [7 - gear gearbox with overdrive]	7 - gear gearbox with overdrive
15		7JS100 [7 - gear gearbox]	7 - gear gearbox

Fuller CLUTCH HOUSING, GEARBOX HOUSING (A4-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
2		19481 [Joint]	Joint
3		15410 [Clutch housing]	Clutch housing
3		A-3674 [Clutch housing C (Inc.25, 26)]	Clutch housing C (Inc.25, 26)
3		JS100-1015-1 [Clutch housing C]	Clutch housing C
3		JS180A-1601015 [Clutch housing C]	Clutch housing C
3		JS180A-1601015-5 [Clutch housing C]	Clutch housing C
4		14310 [Gasket]	Gasket
5		18420 [Cover]	Cover
10		14373 [O magnet]	O magnet
11		M16x1.5 [Nut]	Nut
12		Q40316 [Washer]	Washer
13		Q1231630 [Bolt]	Bolt
14		14334 [Pin]	Pin
15		18686 [Transmission housing]	Transmission housing
15		JS100-1701015 [Transmission housing]	Transmission housing
16		Q61412 [Plug]	Plug
17		Q61304 [Plug]	Plug
18		16920 [Gasket]	Gasket
19		16595 [Cover]	Cover
19		JS130T-1701020 [Cover]	Cover
20		M12x22 [Screw]	Screw
21		Q1231642 [Bolt]	Bolt
22		Q40316 [Waster]	Waster
23		M16x1.5 [Nut]	Nut
24		X-14558 [Plug]	Plug
25		8677 [Bush]	Bush
26		16374 [Plug]	Plug
27		M8x12 [Screw]	Screw
28		1565 [Cover]	Cover
29		Q16401 [Plug]	Plug
30		Q70170 [Grease nipple]	Grease nipple
31		Q70001 [Grease nipple (opt)]	Grease nipple (opt)
35		11203 [Release bearing holder]	Release bearing holder
36		996914 [Release bearing]	Release bearing
37		12817 [Release fork]	Release fork
38		X-6-11 [Spring]	Spring
39		X-7-603 [Bolt]	Bolt
40		14311 [Joint]	Joint
41		F500A-1802191 [Gasket]	Gasket
41		F91410 [Gasket]	Gasket
42		51016 [Hose]	Hose
43		4425 [Spring]	Spring
44		9293 [Spring]	Spring
45		1/8" [Grease cup]	Grease cup
46		M10x32 [Bolt]	Bolt
47		F91409 [Bearing seat]	Bearing seat
47		JS180A-1701040 [Bearing seat]	Bearing seat
47		T116E-1701040 [Bearing seat]	Bearing seat

Fuller LAY SHAFT, WHEELS (A4-3) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		M16x1.5x45 [Bolt]	Bolt
2		19668 [Retainer]	Retainer
3		62511 [Flexibility roll pin]	Flexibility roll pin
4		192309 [Bearing]	Bearing
4		192309E [Bearing]	Bearing
4		370309Y [Bearing]	Bearing
5		19198 [Snap ring]	Snap ring
6		19552 [C/S driven gear]	C/S driven gear
6		19615 [C/S driven gear]	C/S driven gear
6		19631 [C/S driven gear]	C/S driven gear
6		JS100-170156 [C/S driven gear]	C/S driven gear
6		JS100A-1701056 [C/S driven gear]	C/S driven gear
6		JS100T-1701056 [C/S driven gear]	C/S driven gear
6		JS100TA-1701056 [C/S driven gear]	C/S driven gear
6		JS130T-1701056 [C/S driven gear]	C/S driven gear
6		JS150-1701054 [C/S driven gear]	C/S driven gear
6		JS180T-1701056 [C/S driven gear]	C/S driven gear
6		T116E-1701056 [C/S driven gear]	C/S driven gear
7		15953 [Left power take off gear]	Left power take off gear
7		20840 [Right power take off gear]	Right power take off gear
8		16749 [Gear C/S 3rd gear]	Gear C/S 3rd gear
8		19243 [Gear C/S 3rd gear]	Gear C/S 3rd gear
8		19639 [Gear C/S overdrive gear]	Gear C/S overdrive gear
8		JS100-1701051 [Gear C/S 3rd gear]	Gear C/S 3rd gear
8		JS100A-1701051 [Gear C/S 4th gear]	Gear C/S 4th gear
8		JS100TA-1701051 [Gear C/S 4th gear]	Gear C/S 4th gear
8		JS130T-1701051 [Gear C/S 3rd gear]	Gear C/S 3rd gear
8		JS130TA-1701051 [Gear C/S 4th gear]	Gear C/S 4th gear
8		JS130TA-1701056 [Gear C/S 3rd gear]	Gear C/S 3rd gear
8		JS150-1701053 [Gear C/S overdrive gear]	Gear C/S overdrive gear
8		JS180T-1701051 [Gear C/S 3rd gear]	Gear C/S 3rd gear
8		T115F-1701052 [Gear C/S overdrive gear]	Gear C/S overdrive gear
8		T115F-1701052 [Gear left C/S overdrive gear]	Gear left C/S overdrive gear
8		T116E-1701053 [Gear right C/S overdrive gear]	Gear right C/S overdrive gear
9		16751 [Gear C/S 2nd gear]	Gear C/S 2nd gear
9		19615 [Gear C/S 2nd gear]	Gear C/S 2nd gear
9		19623 [Gear C/S 2nd gear]	Gear C/S 2nd gear
9		JS100T-1701050 [Gear C/S 2nd gear]	Gear C/S 2nd gear
9		JS10T-1701050 [Gear C/S 2nd gear]	Gear C/S 2nd gear
9		JS150-1701052 [Gear C/S 2nd gear]	Gear C/S 2nd gear
9		JS180T-1701050 [Gear C/S 2nd gear]	Gear C/S 2nd gear
10		19247 [Gear C/S 1st gear]	Gear C/S 1st gear
10		19629 [Gear C/S 1st gear]	Gear C/S 1st gear
10		19753 [Gear C/S 1st gear]	Gear C/S 1st gear
10		JS100-1701049 [Gear C/S 1st gear]	Gear C/S 1st gear
10		JS150-1701051 [Gear C/S 1st gear]	Gear C/S 1st gear
11		19673 [Cotter]	Cotter
11		JS130T-1701055 [Cotter]	Cotter
12		X-6-E [Key]	Кеу
13		19549 [Countershaft]	Countershaft
13		JS100-1701048 [Countershaft]	Countershaft
13		JS130T-1701048 [Countershaft]	Countershaft
14		102308E [Bearing]	Bearing
15		14317 [Snap ring]	Snap ring
15		C01021 [Stop ring]	Stop ring
