№		Номер детали	Наименование запчасти
-		WG9100770028 [Bellows]	Bellows
-		WG9112190001-1 [Filter]	Filter
1		WG9100190120 [Aif filter]	Aif filter
1		WG9112190001 [Air filter C]	Air filter C
2		WG1200190040 [Switch]	Switch
3		199114190151 [Bracket]	Bracket
3		AZ9632190005 [Bracket]	Bracket
4		Q150B1440 [Screw]	Screw
5		Q33214 [Nut]	Nut
6		WG9012190130 [Strap]	Strap
7		199100190065 [Stiffening plate]	Stiffening plate
8		1280 550027 [Bolt]	Bolt
9		1280 550028 [Bolt]	Bolt
10		1280 550029 [Tension screw]	Tension screw
11		WG7017190037 [Air hose]	Air hose
12		190003989316 [Clamp]	Clamp
12		190003989318 [Clamp]	Clamp
12		199112190055 [Clamp]	Clamp
13		199114190078 [Siphon]	Siphon
14		WG9100190045 [Air duct]	Air duct
15		199100190070 [Joint]	Joint
16		199100190018 [Fastening strip]	Fastening strip
17		199100190019 [Fastening strip]	Fastening strip
18		Q150B0820TF2 [Screw]	Screw
19		Q40208 [Washer]	Washer
20		Q33208 [Nut]	Nut
21		WG9014540007 [Round buffer]	Round buffer
22		199112190055 [Palte]	Palte
23		AZ9112190098 [Suction pipe]	Suction pipe
24		AZ9112190096 [Bracket]	Bracket
25		Q150B0830 [Screw]	Screw
26		Q341B08 [Nut]	Nut
27		Q40308 [Spring washer]	Spring washer
29		Q40208 [Washer]	Washer

AIR FILTER FOR CAB WITH MED, HIGH ROOF (B1-16) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9100770028 [Bellows]	Bellows
-		WG9112190001-1 [Filter]	Filter
1		WG9100190120 [Horizontal air filter]	Horizontal air filter
1		WG9112190001 [Air filter]	Air filter
2		WG1200190040 [Switch]	Switch
3		199114190151 [Bracket]	Bracket
3		AZ9112190050 [Bracket]	Bracket
3		AZ9112190151 [Bracket]	Bracket
3		AZ9632190005 [Bracket hor.]	Bracket hor.
4		Q151B1450 [Screw]	Screw
5		190003888458 [Nut]	Nut
6		AZ9100190026 [Strap]	Strap
6		WG9012190130 [Strap]	Strap
7		199100190065 [Stiffening plate]	Stiffening plate
8		1280 550027 [Bolt]	Bolt
8		1280 550028 [Bolt]	Bolt
9		1280 550029 [Tension screw]	Tension screw
10		WG7017190037 [Air hose]	Air hose
10		WG9100190082 [Air hose]	Air hose
10		WG9112190065 [Air hose]	Air hose
10		WG9112190153 [Air hose]	Air hose
11		190003989318 [Clamp]	Clamp
11		199112190065 [Clamp]	Clamp
12		Q150B0820 [Screw]	Screw
13		Q33208 [Nut]	Nut
14		WG9112190085 [Air duct]	Air duct
15		JN162-1109070 [Silentbloc]	Silentbloc
16		Q150B0816 [Screw]	Screw
17		Q40208 [Washer]	Washer
18		WG9100190148 [Suction pipe]	Suction pipe
19		Q150B0835Q [Screw]	Screw
20		Q40208 [Washer]	Washer
21		AZ9112190095 [Siphon]	Siphon
22		190003989365 [Clamp]	Clamp
22		AZ9003980026 [Clamp]	Clamp
23		AZ9112190093 [Bracket]	Bracket
24		Q151B1030 [Screw]	Screw
25		Q40310 [Spring washer]	Spring washer
26		Q341B10 [Nut]	Nut
27		WG9100360134 [Ring]	Ring

AIR FILTER FOR DESERT (B1-17) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9100190160-1 [Filter]	Filter
1		WG9100190160 [Air filter]	Air filter
1		WG9100190162 [Air filter]	Air filter
2		WG1200190040 [Switch]	Switch
3		AZ9100190140 [Bracket and Strap]	Bracket and Strap
3		AZ9100190286 [Bracket]	Bracket
4		199112190055 [Plate]	Plate
5		Q150B0835Q [Screw]	Screw
5		Q150B1445 [Screw]	Screw
6		Q33208 [Nut]	Nut
6		Q33210 [Nut]	Nut
7		WG9100190050 [Air hose]	Air hose
7		WG9100190081 [Air hose]	Air hose
8		190003989316 [Clamp]	Clamp
8		190003989318 [Clamp]	Clamp
8		199112190065 [Clamp]	Clamp
9		199114190078 [Siphon]	Siphon
10		WG9100190045 [Air duct]	Air duct
11		199100190070 [Joint]	Joint
12		199100190018 [Fastening strip]	Fastening strip
13		199100190019 [Fastening strip]	Fastening strip
14		Q150B0820TF2 [Screw]	Screw
15		Q40208 [Washer]	Washer
16		Q33208 [Nut]	Nut
17		WG9014540007 [Round buffer]	Round buffer
18		AZ9112190098 [Suction pipe]	Suction pipe
19		AZ9112190096 [Bracket]	Bracket
20		Q150B0830 [Screw]	Screw
21		Q341808 [Nut]	Nut
22		Q40208 [Washer]	Washer

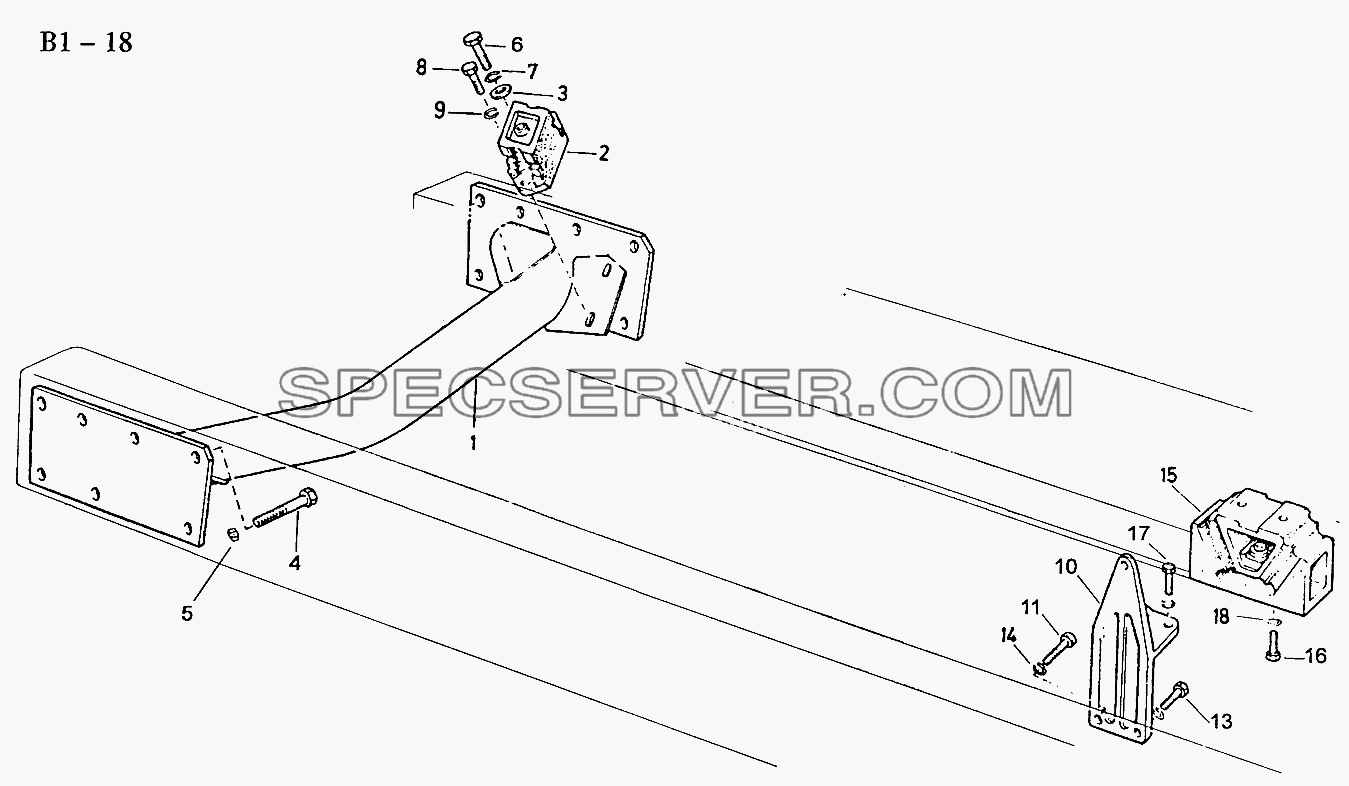

SUSPENSION FOR ENGINE (B1-18) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ9132590051 [Bracket r.]	Bracket r.
-		AZ9132590062 [Bracket r.]	Bracket r.
-		AZ9638590002 [Bracket l.]	Bracket l.
-		AZ9638590004 [Bracket r.]	Bracket r.
-		WG9100590033 [Bracket r.]	Bracket r.
-		WG9100590126 [Bracket r.]	Bracket r.
1		WG9100590001 [Crossbar]	Crossbar
1		WG9118590001 [Crossbar]	Crossbar
2		WG1680590095 [Suppout]	Suppout
3		1480A 360058 [Washer]	Washer
4		Q151B1650 [Screw]	Screw
4		Q151B1660 [Screw]	Screw
5		190003888459 [Nut]	Nut
6		Q150B1225 [Screw]	Screw
7		Q40312 [Spring]	Spring
8		Q150B0816 [Screw]	Screw
9		Q40308 [Spring washer]	Spring washer
10		199100590020 [Bracket]	Bracket
10		AZ9124590001 [Bracket]	Bracket
10		AZ9132590050 [Bracket l.]	Bracket l.
10		AZ9132590061 [Bracket l.]	Bracket l.
10		AZ9638590001 [Bracket l.]	Bracket l.
10		AZ9638590003 [Bracket l.]	Bracket l.
10		WG9100590032 [Bracket l.]	Bracket l.
10		WG9100590034 [Bracket]	Bracket
10		WG9100590125 [Bracket l.]	Bracket l.
11		Q151B1440 [Screw]	Screw
12		Q151B1435 [Screw]	Screw
13		Q151B1450 [Screw]	Screw
14		Q40314 [Spring washer]	Spring washer
15		199112590102 [Bearing]	Bearing
15		WG9100590031 [Bearing]	Bearing
16		Q151C1230 [Screw]	Screw
17		Q151C1235 [Screw]	Screw
18		Q40312 [Spring washer]	Spring washer

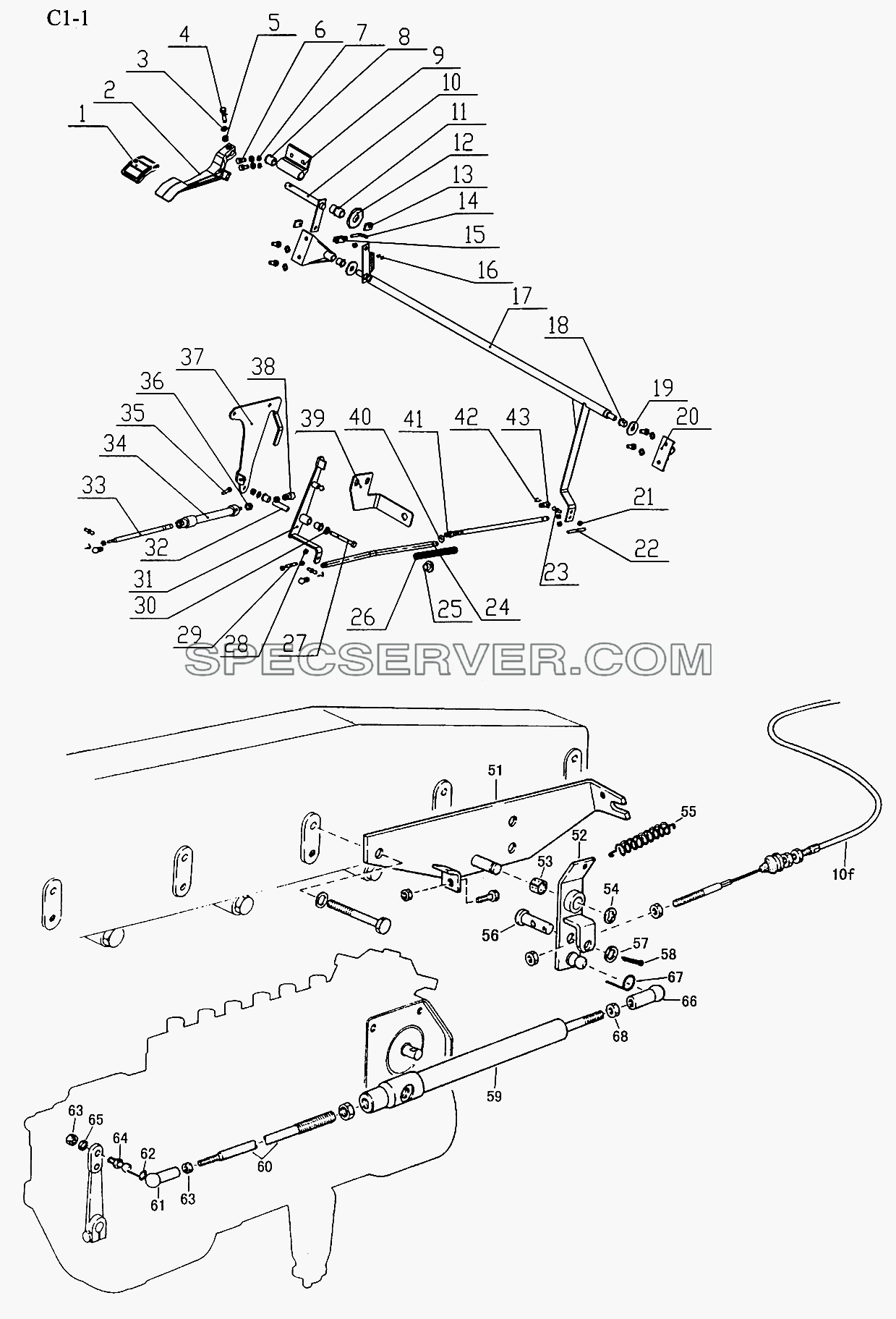

OPERATION DEVICE (C1-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1288 570057 [Spring]	Spring
-		1680 580023 [Clip]	Clip
-		AZ9719570073 [Bracket]	Bracket
-		AZ9719570085 [Plate]	Plate
-		Q150B0640 [Screw]	Screw
-		Q340B06 [Nut]	Nut
-		Q350B06T15 [Nut]	Nut
-		WG972557000 [Control cable]	Control cable
1		AZ9719570001 [Rubber footboard]	Rubber footboard
2		AZ9719470002 [Pedal]	Pedal
3		Q40108 [Washer]	Washer
4		Q150B0835 [Screw]	Screw
5		Q340B08 [Nut]	Nut
6		Q150B0820 [Screw]	Screw
7		Q40308 [Spring washer]	Spring washer
8		AZ9719570006 [Bush]	Bush
9		AZ9719570007 [Bracket]	Bracket
10		WG9719570003 [Control shaft]	Control shaft
10		WG9719570085 [Control shaft]	Control shaft
11		AZ9719570008 [Bush]	Bush
12		AZ9719570009 [Rubber ring]	Rubber ring
13		AZ9719570012 [Plastic clamp]	Plastic clamp
14		AZ9719570011 [Adjusting screw]	Adjusting screw
15		190003964412 [Fork head]	Fork head
16		Q43650 [Snap ring]	Snap ring
17		WG9719570015 [Lever]	Lever
18		AZ9719570023 [Bush]	Bush
19		Q40212 [Washer]	Washer
20		AZ9719570010 [Bracket]	Bracket
21		Q340B06 [Nut]	Nut
22		AZ9719570051 [Threaded bar]	Threaded bar
23		190003963313 [Ball pivot]	Ball pivot
24		AZ9719570040 [Brace rod]	Brace rod
25		AZ9719570060 [Sleeve]	Sleeve
26		AZ9719570061 [Spring]	Spring
27		Q150B0870 [Screw]	Screw
28		Q33206 [Nut]	Nut
29		AZ9719570052 [Threaded bar]	Threaded bar
30		AZ9719570034 [Rubber pad]	Rubber pad
31		AZ9719570029 [Lever]	Lever
32		AZ9719570033 [Spacer]	Spacer
33		199012570062 [Threaded rod]	Threaded rod
34		WG9100570002 [Operating cylinder]	Operating cylinder
35		Q150B0625 [Screw]	Screw
36		Q340B10 [Nut]	Nut
37		AZ9719570026 [Bracket]	Bracket
38		1900003963623 [Ball cup]	Ball cup
39		AZ9719570062 [Bracket]	Bracket
40		Q40206 [Washer]	Washer
41		AZ9719570045 [Brace rod]	Brace rod
42		190003936513 [Clip]	Clip
43		WG92570025 [Ball cup]	Ball cup
51		AZ9118570011 [Bracket]	Bracket
52		199100570018 [Lever]	Lever
53		WG99014180012 [Bush]	Bush
54		Q43680 [Snap ring]	Snap ring
55		199100570065 [Spring]	Spring
56		199012570084 [Bolt]	Bolt
57		Q40110 [Washer]	Washer
58		Q5003216 [Split pin]	Split pin
59		WG9100570002 [Operating cylinder]	Operating cylinder
60		AZ9118570003 [Threaded rod]	Threaded rod
61		WG92570025 [Ball cup]	Ball cup
62		190003936513 [Clip]	Clip
63		Q340B06 [Nut]	Nut
64		190003963313 [Ball pivot]	Ball pivot
65		Q40506 [Spring washer]	Spring washer
66		190003963623 [Ball cup]	Ball cup
67		190003936514 [Clip]	Clip
68		Q340B08 [Nut]	Nut

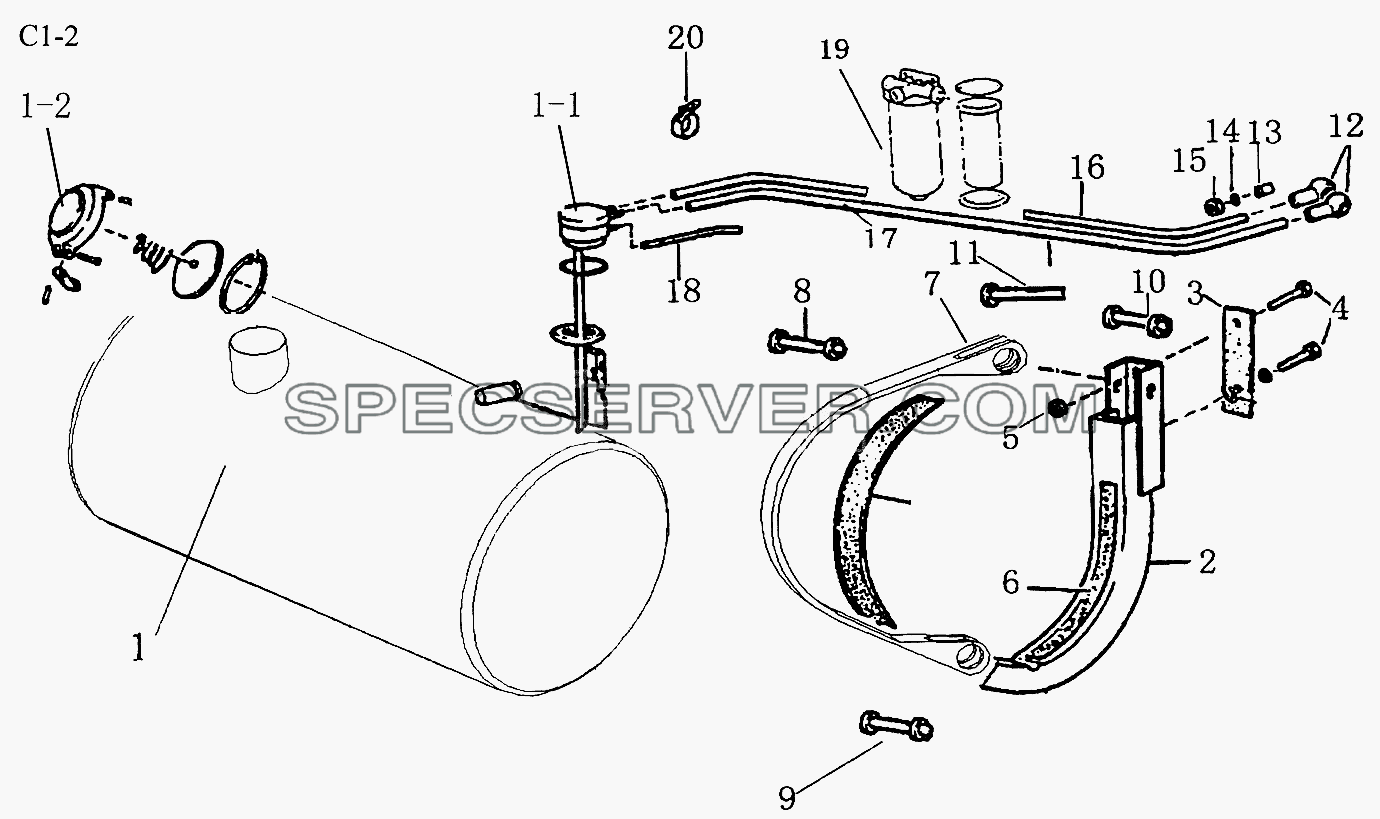

350L, 380L FUEL AL-TANK (C1-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1397 350169 [Angle]	Angle
-		AZ9112550210-1 [Fuel gauge]	Fuel gauge
-		AZ9112550210-2 [Cover]	Cover
-		Q340B06 [Nut]	Nut
-		Q40106 [Washer]	Washer
-		WG9100360134 [Clamp]	Clamp
-		WG9725550002-1 [Prefilter element]	Prefilter element
-		ZW9725550001-1 [Cover]	Cover
-		ZW9725550001-1 [Fuel gauge]	Fuel gauge
1		AZ9112550210 [380L Fuel tank]	380L Fuel tank
1		ZW9725550001 [350L Fuel tank]	350L Fuel tank
2		AZ9112550220 [Support]	Support
3		199112550128 [Plate]	Plate
4		Q151B1650TF2 [Screw]	Screw
5		190003888627 [Nut]	Nut
6		AZ9112550226 [Base]	Base
7		AZ9112550225 [Strap]	Strap
8		AZ9112550227 [Tension bolt]	Tension bolt
9		AZ9112550228 [Tension bolt]	Tension bolt
10		AZ9112550229 [Tension bolt]	Tension bolt
11		AZ9112550230 [Screw]	Screw
12		WG9014230017 [Hose connector]	Hose connector
13		190003962621 [Female screw]	Female screw
14		Q72314T5F [Washer]	Washer
15		Q33210 [Nut]	Nut
16		AZ9112550120 [Suction line]	Suction line
17		AZ9112550120 [Return line]	Return line
18		AZ9112550121 [Pipe]	Pipe
19		WG9725550002 [Fuel prefilter C]	Fuel prefilter C
20		190003171697 [Cable binder]	Cable binder
