№		Номер детали	Наименование запчасти
10		61560060070 [Tension pulley]	Tension pulley
11		61560060071 [Pin]	Pin
12		61560060072 [Cover]	Cover
13		61560060073 [Spacer]	Spacer
14		61560050074 [Ring]	Ring
15		90093310067 [Ball bearing]	Ball bearing

WD615 OIL PUMP, OIL FILTER I (A1-12) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		614 070130 [Valve cone]	Valve cone
-		614 070131 [Valve spring]	Valve spring
-		61500070024 [Rear covet]	Rear covet
-		61500070029 [Front cover]	Front cover
-		61500070098 [Valve body]	Valve body
-		681 270027 [Washer]	Washer
-		90003800441 [Screw]	Screw
-		90003800458 [Screw]	Screw
-		90003800465 [Screw]	Screw
-		90003871252 [Nut]	Nut
-		90003901420 [Pin]	Pin
-		AZ1500070015 [Housing]	Housing
-		AZ1500070019 [Gear]	Gear
-		AZ1500070020 [Gear]	Gear
-		AZ90003860010 [Screw]	Screw
-		AZ9003930011 [Circlip]	Circlip
1		61500070082 [Suction pipe]	Suction pipe
2		614 070055 [Gasket]	Gasket
3		614 070061 [Idler gear]	Idler gear
4		614 0756 [Axle]	Axle
5		614 070155 [O-ring]	O-ring
6		614 0749 [Ring]	Ring
7		614 0778 [Joint]	Joint
8		90003800551 [Screw]	Screw
9		90003802527 [Screw]	Screw
10		90003802578 [Screw]	Screw
11		90003802523 [Screw]	Screw
12		90003931122 [Washer]	Washer
13		90003934732 [Circlip]	Circlip
14		90003311410 [Ball bearing]	Ball bearing
15		AZ1500070021 [Oil pump]	Oil pump
24		61500070099 [Release valve C]	Release valve C

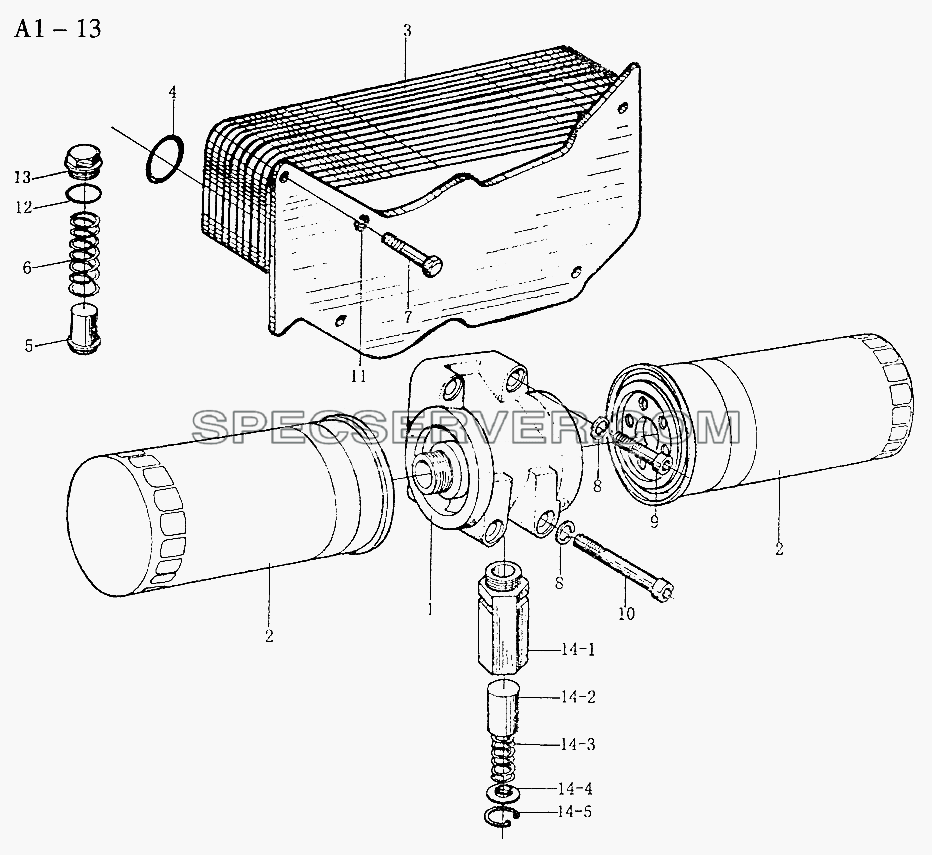

WD615 OIL PUMP, OIL FILTER II (A1-13) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		407 070032 [Piston]	Piston
-		407 070034 [Spring sopport]	Spring sopport
-		4139070059 [Spring]	Spring
-		AZ1500070096 [Valve body]	Valve body
-		AZ90003930012 [Circlip]	Circlip
1		61500070051 [Filter head]	Filter head
2		61000070005 [Filter elemevot]	Filter elemevot
3		61500010334 [Oil radiator]	Oil radiator
4		81400010032 [Joint]	Joint
5		614 070069 [Valve cone]	Valve cone
6		614 070068 [Spring]	Spring
7		90003802455 [Screw]	Screw
8		90003932023 [Spring washer]	Spring washer
9		90003862443 [Screw]	Screw
10		90003862482 [Screw]	Screw
11		90003430261 [Gasket]	Gasket
12		90003098086 [Gasket]	Gasket
13		90003962051 [Screw]	Screw
14		AZ1500070097 [Control valve C]	Control valve C

WD615 INJECTION PUMP, INJECTION LINES (A1-14) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		614080719 [Fuel feed pump]	Fuel feed pump
-		61560080276-1 [Injection nozzle]	Injection nozzle
-		61560080278 [Injection pipe set]	Injection pipe set
-		61560080305-1 [Injection nozzle]	Injection nozzle
1		61560080278-1 [Injection pipe]	Injection pipe
2		61560080278-2 [Injection pipe]	Injection pipe
3		61560080278-3 [Injection pipe]	Injection pipe
4		61560080278-4 [Injection pipe]	Injection pipe
5		61560080278-5 [Injection pipe]	Injection pipe
6		61560080278-6 [Injection pipe]	Injection pipe
7		612600081075 [Injection pump]	Injection pump
7		612600081082 [Injection pump]	Injection pump
7		612600082115 [Injection pipe with adjusting governor C]	Injection pipe with adjusting governor C
7		612600083075 [Injection pump]	Injection pump
7		612600087075 [Injection pump]	Injection pump
7		61560080302 [Injection pipe with adjusting governor C]	Injection pipe with adjusting governor C
8		61560080276 [Nozzle holder]	Nozzle holder
8		61560080305 [Nozzle holder]	Nozzle holder
9		61560080275 [Spacer]	Spacer
10		61560080261 [Flange]	Flange
11		614 080074B [Bracket]	Bracket
12		61500080090 [Hollow screw]	Hollow screw
13		61500080094A [Pressure clip]	Pressure clip
14		AZ1560070026 [Lubricating oil reversal]	Lubricating oil reversal
15		614 080060 [Clamp]	Clamp
16		614 080061 [Clamp]	Clamp
17		61560080173 [Clamp]	Clamp
18		61560080174 [Clamp]	Clamp
19		90003098015 [Gasket]	Gasket
20		90003930271 [Washer]	Washer
21		90003862566 [Screw]	Screw
22		90003802455 [Screw]	Screw
23		90003901600 [Dowel]	Dowel
24		90003802321 [Screw]	Screw
25		90003871232 [Nut]	Nut
26		90003098018 [Gasket]	Gasket
27		90003559844 [Screwing]	Screwing
28		90003802312 [Screw]	Screw
29		614 080082 [Gasket]	Gasket
30		90003802650 [Screw]	Screw
31		609 070080 [Gasket]	Gasket
32		61560080172 [Support plate]	Support plate
33		612600080213 [Valve]	Valve

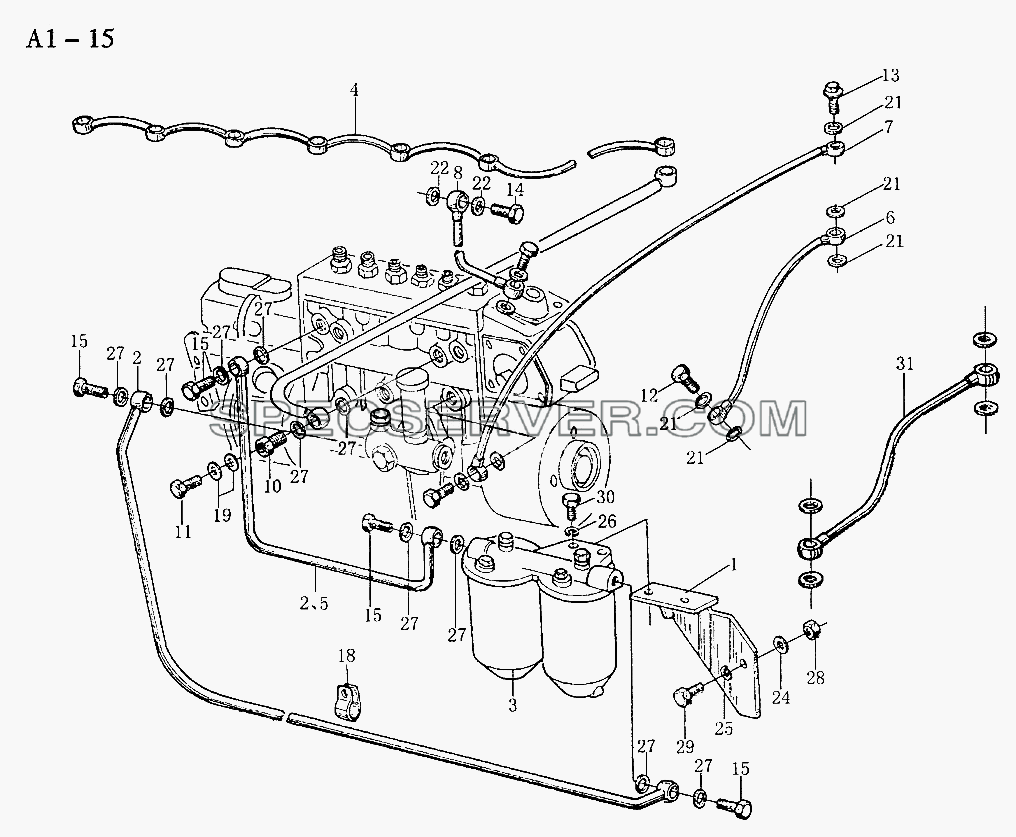

WD615 FUEL LINE (A1-15) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		614 080739 [Fine filter element]	Fine filter element
-		614 080740 [Pre filter element]	Pre filter element
-		90003802527 [Screw (Bosch)]	Screw (Bosch)
1		61560080094 [Bracket]	Bracket
2		AZ1560080017 [Hose]	Hose
3		614 080295A [Fuel filter C]	Fuel filter C
4		61500080095 [Fuel line (out)]	Fuel line (out)
5		AZ1560080018 [Hose (Bosch)]	Hose (Bosch)
6		61560070011 [Oi lline]	Oi lline
7		61560070012 [Oi lline]	Oi lline
8		61560080159 [Air line]	Air line
10		609 0837 [Female screw]	Female screw
11		90003962603 [Female screw]	Female screw
12		90003952607 [Female screw]	Female screw
13		81500070054 [Female screw (Bosch)]	Female screw (Bosch)
14		90003962612 [Female screw (Bosch)]	Female screw (Bosch)
15		90003962621 [Female screw (Bosch)]	Female screw (Bosch)
19		90003098008 [Gasket]	Gasket
21		90003098010 [Gasket]	Gasket
22		90003098012 [Gasket (Bosch)]	Gasket (Bosch)
24		90003930012	Шайба
25		90003932024 [Spring washer]	Spring washer
26		90003932016 [Spring washer]	Spring washer
27		612600080200 [Gasket]	Gasket
28		90003888452 [Hexagon nut]	Hexagon nut
29		90003802523 [Screw]	Screw
30		90003802627 [Screw (Bosch)]	Screw (Bosch)

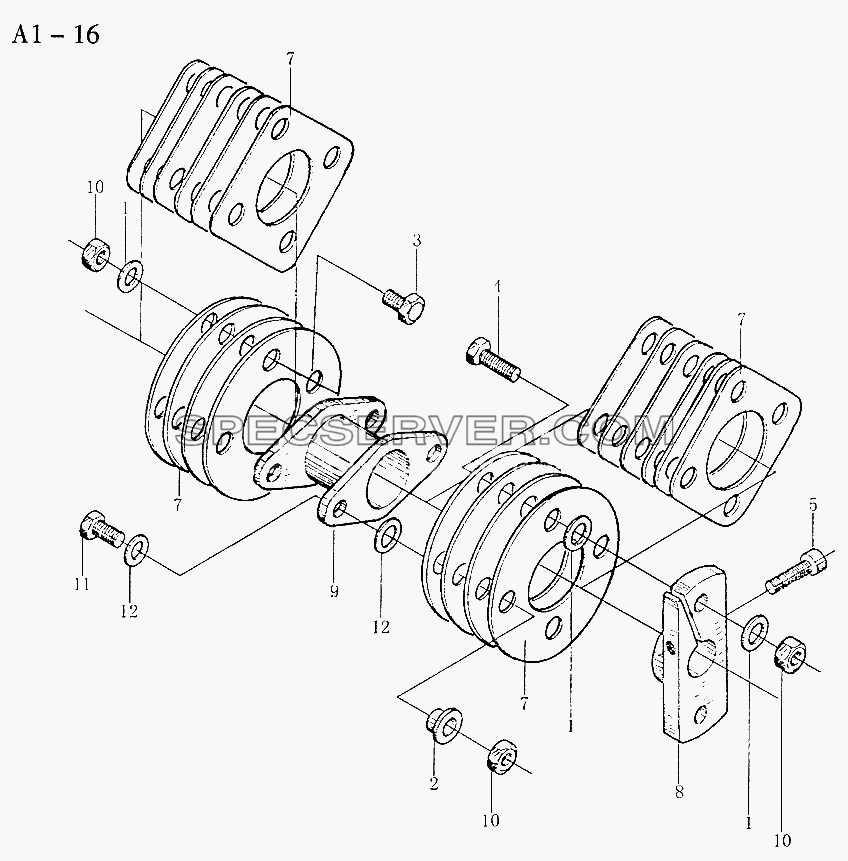

WD615 INJECTION PUMP COUPLING (A1-16) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		81560080271 [Washer]	Washer
2		81560080273 [Bush]	Bush
3		90003802637 [Screw]	Screw
4		90003800160 [Screw]	Screw
5		AZ1560080001 [Screw]	Screw
7		61560080219 [Clamp]	Clamp
8		61560080194 [Clutch half]	Clutch half
9		61560080275 [Spacer]	Spacer
10		90003871344 [Nut]	Nut
11		90003802639 [Screw]	Screw
12		90003930282 [Washer]	Washer
