№		Номер детали	Наименование запчасти
1		61200020024 [Crank shaft]	Crank shaft
1		61500020012 [Crank shaft]	Crank shaft
1		61500020071 [Crank shaft C]	Crank shaft C
1		61560020029 [Crank shaft C]	Crank shaft C
2		61500020046 [Screw]	Screw
3		61560020016 [Belt pulley]	Belt pulley
3		61560020017 [Belt pulley]	Belt pulley
4		61560020010 [Vibration damper]	Vibration damper
5		61560020041 [Fly wheel C]	Fly wheel C
6		81400020015 [Ring gear]	Ring gear
7		90003802558 [Screw]	Screw
8		90003871305 [Nut]	Nut
9		90003813571 [Stud]	Stud
10		90003311416 [Ball bearing]	Ball bearing
11		90003934310 [Circlip]	Circlip
12		61500020070 [Flange]	Flange
13		614 020038 [Crank shaft wheel]	Crank shaft wheel
14		90003961504 [Cylinderical pin]	Cylinderical pin
15		90003960569 [Key]	Кеу
16		90003932024 [Spring, washer]	Spring, washer
17		90003800579 [Screw]	Screw
18		81500060228 [V-belt-water pump]	V-belt-water pump
19		90003901418 [Cylinderical pin]	Cylinderical pin

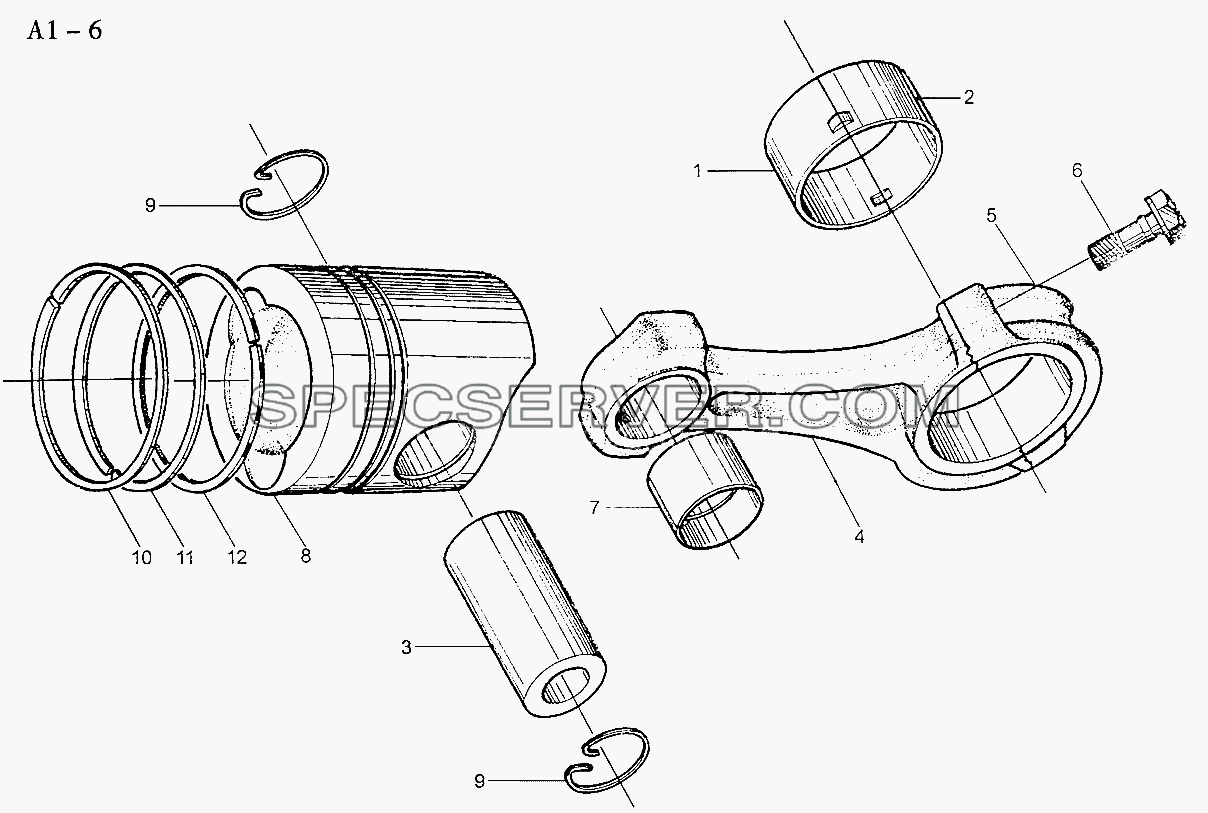

WD615 CONNECTING ROD, PISTON (A1-6) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		61500030008 [Connecting rod]	Connecting rod
-		61500030022 [Connecting cover]	Connecting cover
-		61500030067 [Bush]	Bush
-		61560030043 [Piston]	Piston
-		61560030045 [Spiral spring oil ring]	Spiral spring oil ring
-		61560030047 [Double ladderring]	Double ladderring
-		61560030078 [Conical ring]	Conical ring
-		81500030023 [Screw]	Screw
-		81560030012 [Bolt]	Bolt
1		61560030033 [Sheel pin]	Sheel pin
2		61560030034 [Sheel pin]	Sheel pin
3		61560030013 [Bolt]	Bolt
4		61500030009 [Connecting rod assembly]	Connecting rod assembly
8		61560030042 [Piston assembly]	Piston assembly

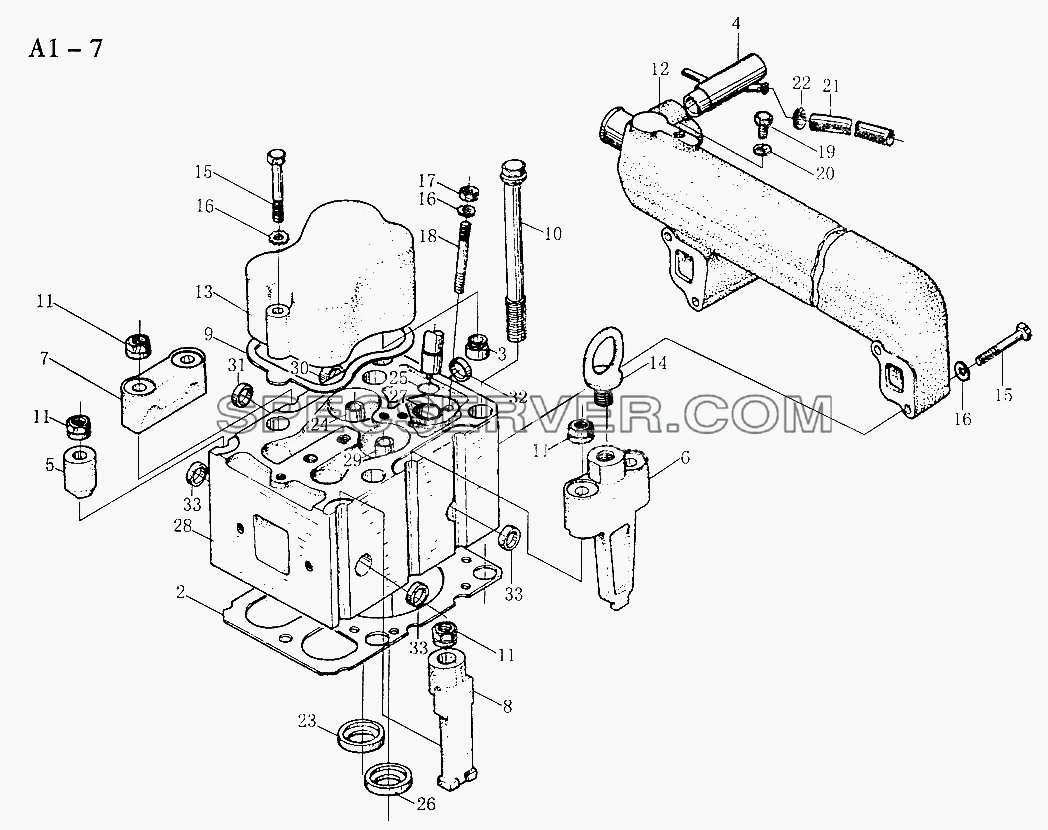

WD615 CYLINDER HEAD (A1-7) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		61500040058 [Cylinder head]	Cylinder head
2		61500040049 [Joint]	Joint
3		61560040032 [Scraper]	Scraper
4		61500060045 [Connecting piece]	Connecting piece
5		61200040023 [Clip]	Clip
6		61500040012 [Clip]	Clip
7		61500040009 [Clip]	Clip
8		61200040027 [Clip]	Clip
9		61560040039 [Joint]	Joint
10		61500040023 [Screw]	Screw
11		61200040034 [Nut]	Nut
12		61500040102 [Pipe]	Pipe
13		614 040065 [Cover]	Cover
14		614 010388 [Screw]	Screw
15		90003800466 [Screw]	Screw
16		90003932023 [Spring washer]	Spring washer
17		90003871252 [Nut]	Nut
18		90003813471 [Stud]	Stud
23		61560040057 [Ring]	Ring
24		61560040051 [Valve guide]	Valve guide
25		406 060010 [Gasket]	Gasket
26		81560040037 [Valve-seat ring]	Valve-seat ring
27		61560040049 [Nozzle holder]	Nozzle holder
28		61500040040 [Cylinder head]	Cylinder head
29		61500040014 [Spring base]	Spring base
30		90003989277 [Cover plug]	Cover plug
31		90003989721 [Cover plug]	Cover plug
32		90003989725 [Cover plug]	Cover plug
33		90003989294 [Cover plug]	Cover plug

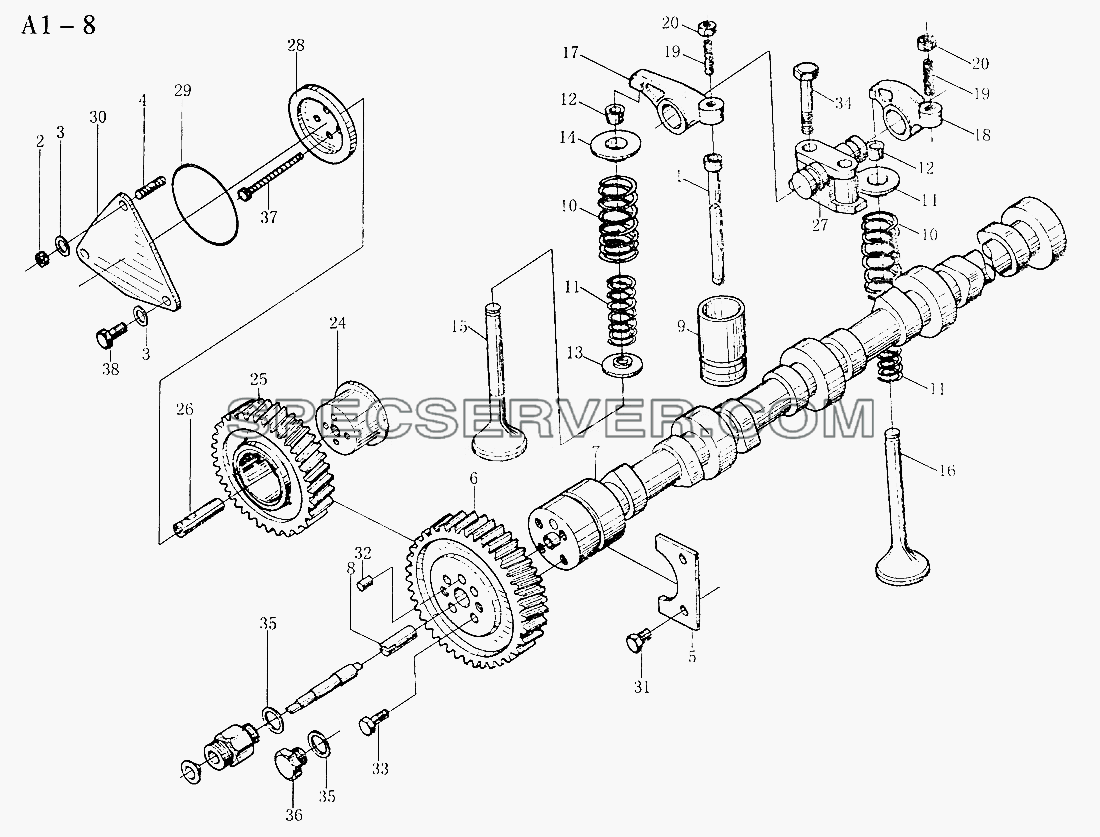

WD615 VALVE DISTRIBUTING MECHANISM (A1-8) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		90003862419 [Screw]	Screw
1		614 050058C [Push rod]	Push rod
1		81500050070 [Push rod]	Push rod
2		90003871252 [Nut]	Nut
3		90003932023 [Spring washer]	Spring washer
4		90003813414 [Stud]	Stud
5		614 050133 [Flange]	Flange
6		614 050053 [Camshaft gear]	Camshaft gear
7		61500050096 [Camshaft]	Camshaft
7		61560050004 [Camshaft]	Camshaft
8		614 050079 [Driver]	Driver
8		90003901409 [Pin]	Pin
9		61500050032 [Push rod]	Push rod
10		61500050002 [Outer valve spring]	Outer valve spring
11		61500050001 [Inner valve spring]	Inner valve spring
12		61500050025 [Valve cone]	Valve cone
12		81500050021 [Valve cone]	Valve cone
13		614 050017 [Spring base]	Spring base
14		61500050109 [Spring base]	Spring base
15		61460050007 [Intake valve]	Intake valve
15		61560050042 [Intake valve]	Intake valve
16		61560050041 [Exhaust valve]	Exhaust valve
17		614 050048 [Rocker arm]	Rocker arm
18		614 050049 [Rocker arm]	Rocker arm
19		614 050010 [Screw]	Screw
20		2130050065 [Nut]	Nut
24		61560050044 [Idle gear shaft]	Idle gear shaft
25		61560050053 [Idle gear]	Idle gear
26		61560050058 [Shaft]	Shaft
27		614 050119 [Rockorarm support]	Rockorarm support
28		61560050045 [Cover]	Cover
29		90003120602 [Seal ring]	Seal ring
30		61560050046A [Cover]	Cover
31		90003802411 [Screw]	Screw
32		90003901409 [Dowel]	Dowel
33		90003802443 [Screw]	Screw
34		90003802655 [Screw]	Screw
37		61560050059 [Screw]	Screw
38		61500050105 [Air valve cap]	Air valve cap
39		90003862419 [Bolt]	Bolt

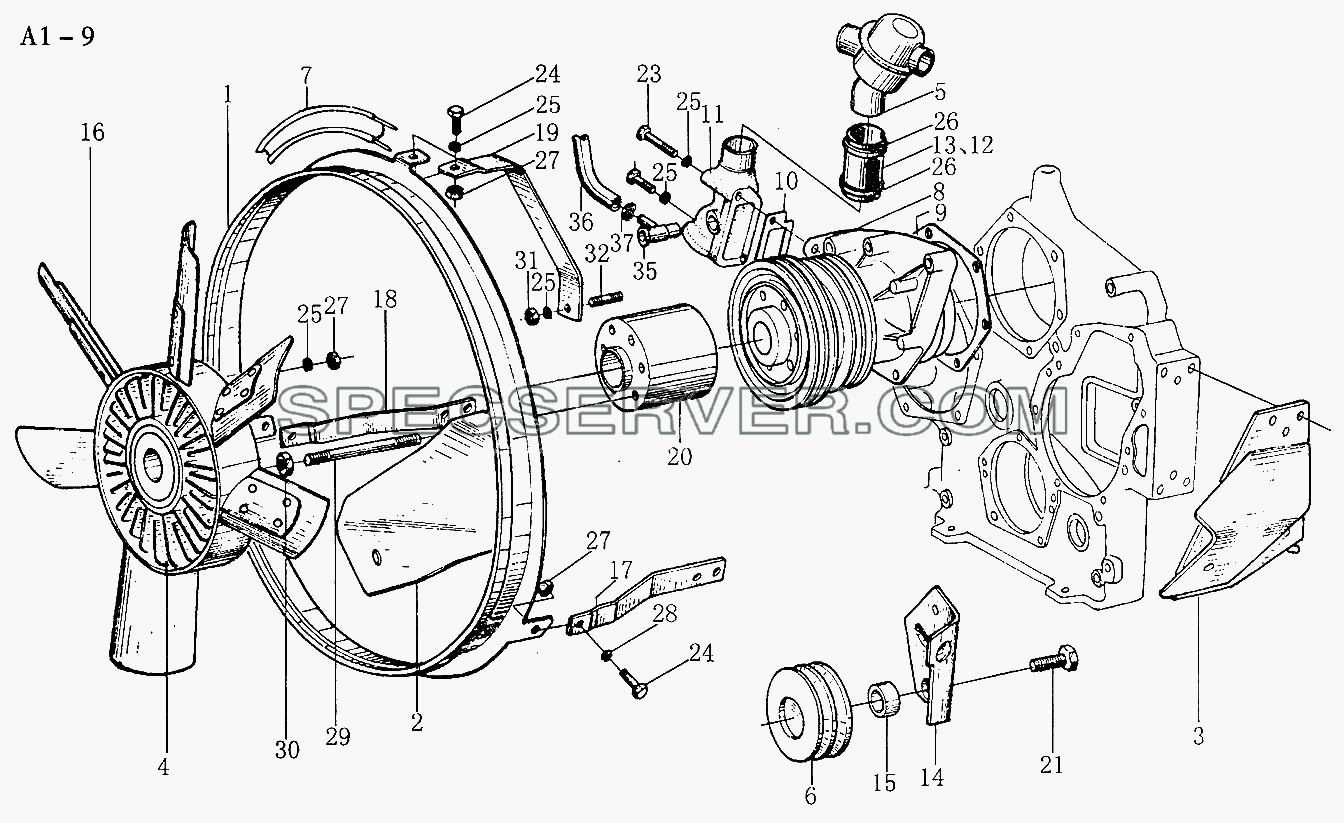

WD615 WATER PUMP, VENTILATOR (A1-9) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		90003930261 [Washer]	Washer
1		61560060004 [Ring]	Ring
2		99100590006 [Bracket L.]	Bracket L.
3		99100590009 [Bracket R.]	Bracket R.
4		61500060226 [Visw hub]	Visw hub
5		614 060135 [Thermostate]	Thermostate
5		61500060116 [Thermostate 71C]	Thermostate 71C
6		61560060069 [Roll C]	Roll C
7		AZ1560060016 [Siphon]	Siphon
8		61500060229 [Water pump C]	Water pump C
9		614 060008 [Joint]	Joint
10		614 060024 [Joint]	Joint
11		61560060022A [Nozzle]	Nozzle
12		61000060262 [Hose]	Hose
13		61000060276 [Hose]	Hose
14		61560060021 [Lashing]	Lashing
15		614 060160 [Sleeve]	Sleeve
16		61500060131 [Fan]	Fan
17		61560060010 [Support]	Support
18		61560060011 [Support]	Support
19		61560060012 [Support]	Support
20		61500060239 [Flange]	Flange
21		90003802672 [Screw]	Screw
23		90003800467 [Screw]	Screw
24		90003802424 [Screw]	Screw
25		90003932023 [Spring washer]	Spring washer
26		90003989306 [Strap]	Strap
27		90003888451 [Nut]	Nut
28		90003937283 [Washer]	Washer
29		90003810020 [Stud]	Stud
30		90003888452 [Nut]	Nut
31		90003871252 [Nut]	Nut
32		90003811420 [Stud]	Stud
35		AZ1560060001 [Connector]	Connector
36		612600130025 [Hose]	Hose
37		90003989336 [Strup]	Strup

WD615 612600060260, 61500060229 WATER PUMP C (A1-10) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		61500060124 [Belt pulley]	Belt pulley
2		61500060234 [Housing]	Housing
3		61500060249 [Bottom roller]	Bottom roller
6		61200062034 [Joint]	Joint
7		61500060251 [Pipe]	Pipe
8		612600060192 [Butter cup assembly]	Butter cup assembly
10		90003934311 [Circlip]	Circlip
11		90003311179 [Ball bearing]	Ball bearing
12		90003320110 [Cyl roller bear]	Cyl roller bear
13		61500060248 [Shaft]	Shaft
