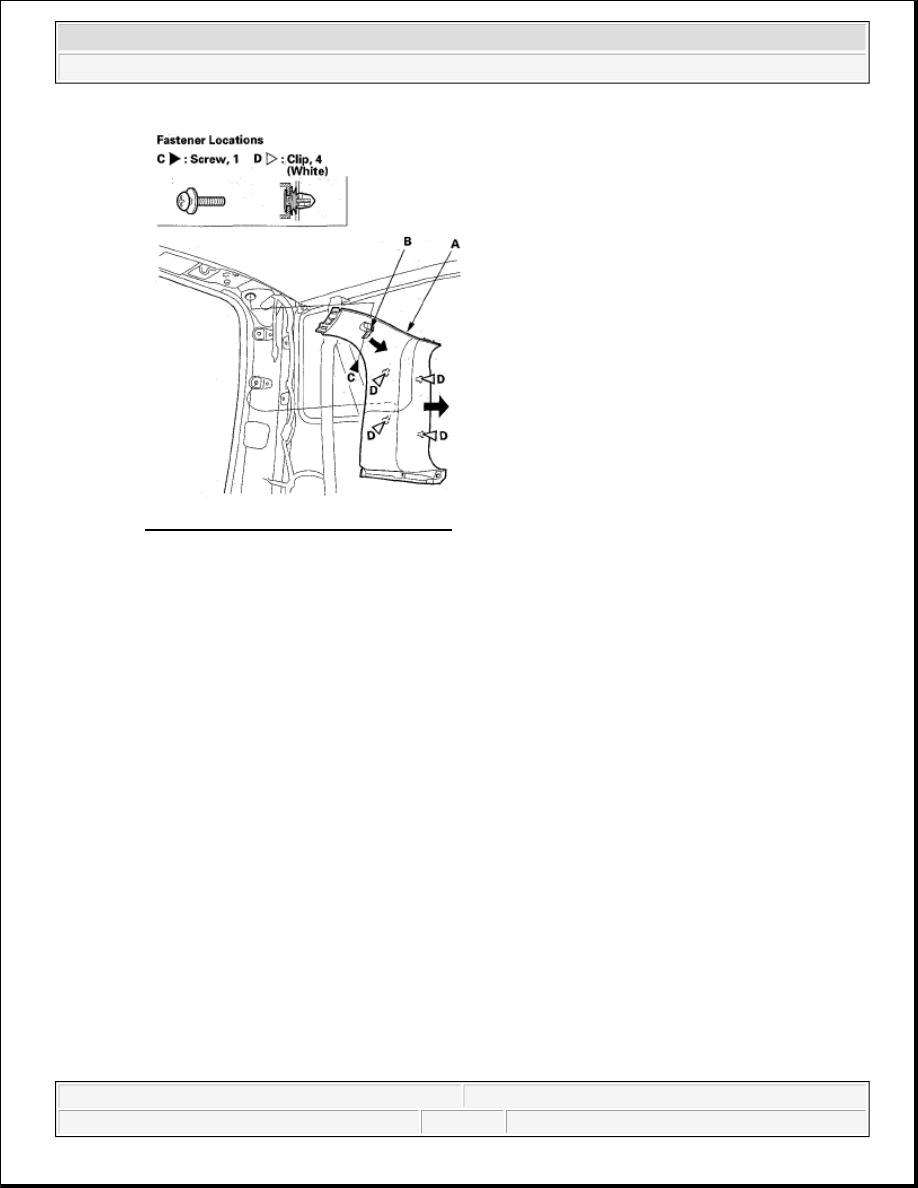

Fig. 23: Identifying D-Pillar Trim Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install the trim in the reverse order of removal, and note these items:



Check if the clips (A) are damaged or stress-whitened, and if necessary, replace them with new
ones.



To prevent the side curtain airbag from deploying improperly and possibly causing injury, inspect
the trim and replace it if it has any of these types of damage:



Any cracks, deformations, or stress-whitening in the D-pillar trim (B), rear roof trim (C), and
hooks (D)



Any cracks or stress-whitened areas in the clips seating surfaces (E)



Replace any damaged parts with new ones.



Push the clips and hooks into place securely.



Make sure the top of the trim overlaps with the headliner correctly.



Make sure the rear ceiling light connector is plugged in properly.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Interior Trim - Element

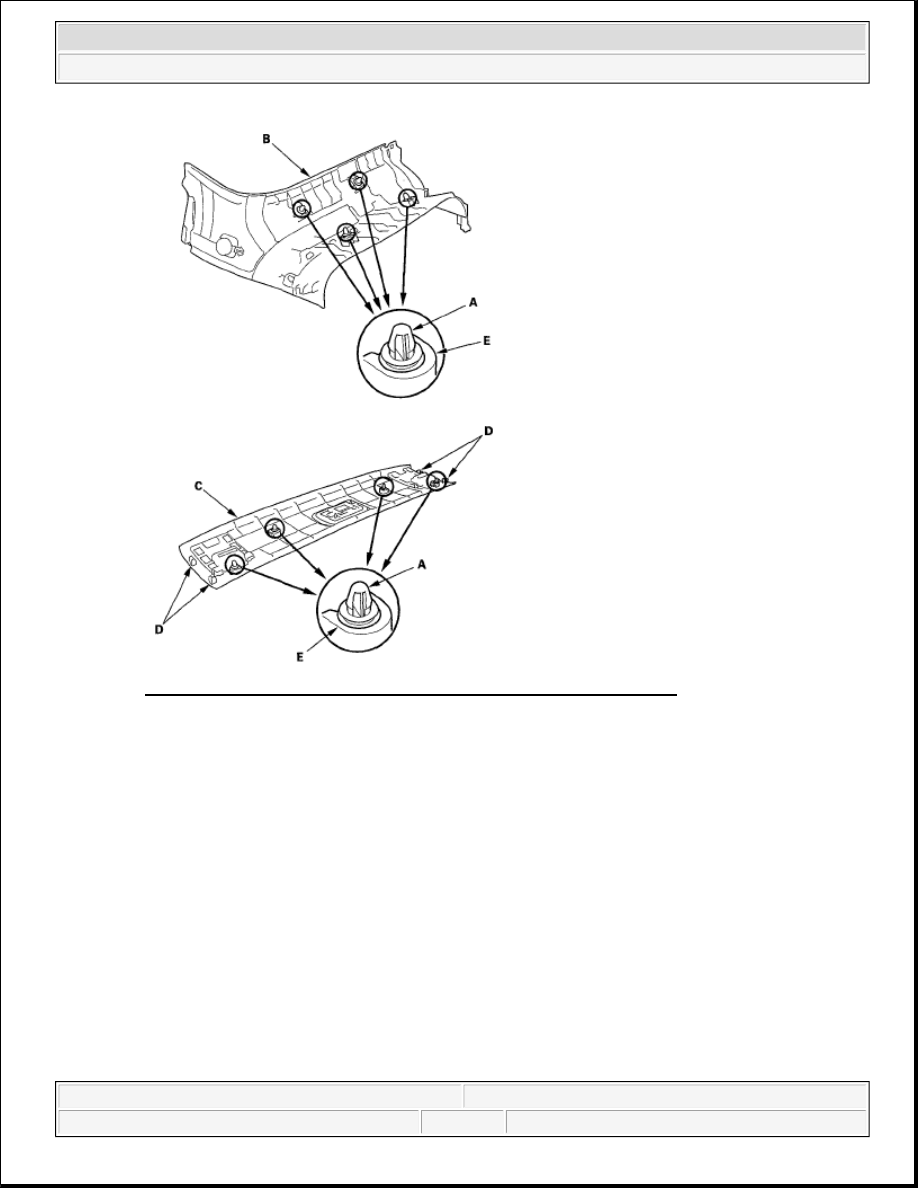

Fig. 24: Identifying Clips, D-Pillar Trim, Rear Roof Trim And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.

TRIM REMOVAL/INSTALLATION - HATCH AREA

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

1. Remove the trim as shown.

2. Install the trim in the reverse order of removal, and note these items:

NOTE:



Put on gloves to protect your hands.



Use the appropriate tool from the KTC trim tool set to avoid damage when
prying components.



Take care not to bend or scratch the trim and panels.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Interior Trim - Element





Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.



Make sure the rear window defogger wire harness on each side is not pinched.



Push the clips into place securely.

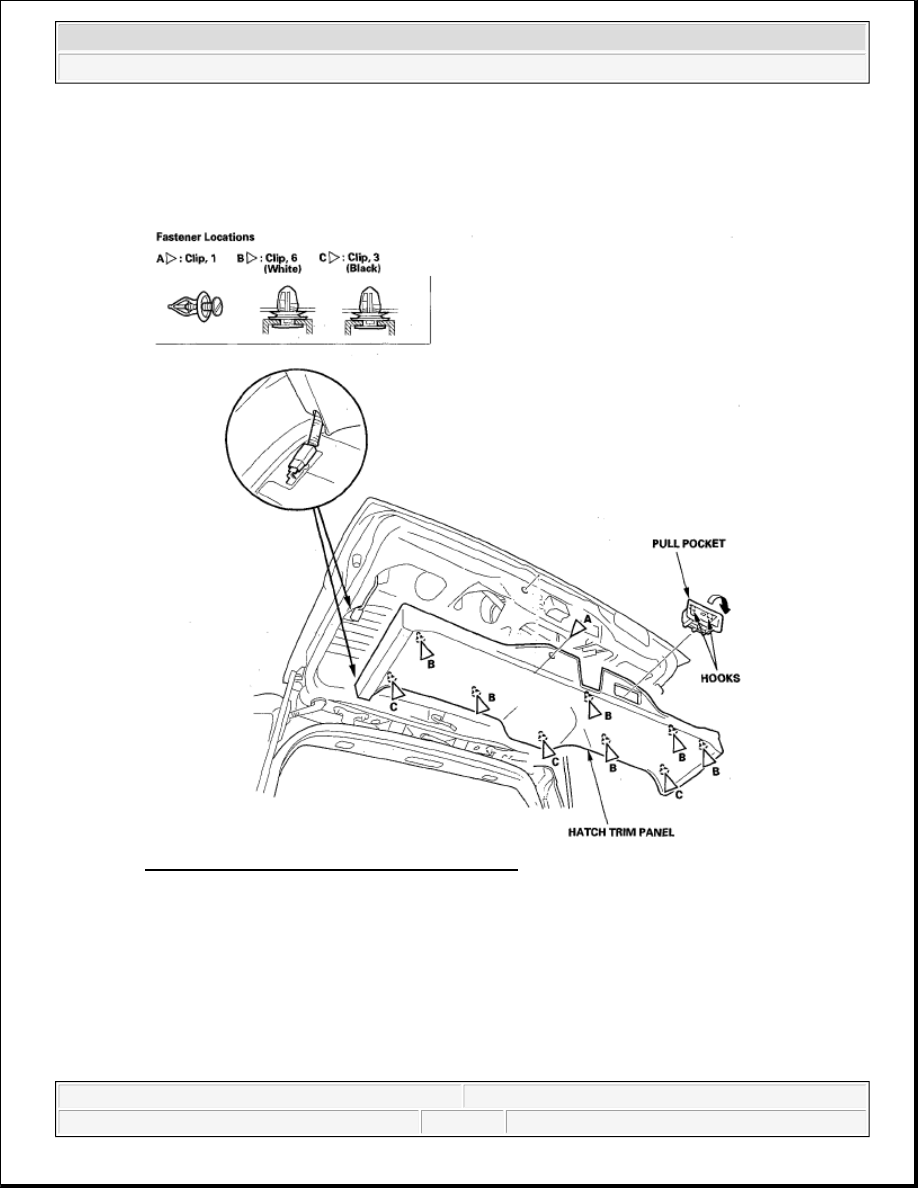

Fig. 25: Trim Removal/Installation - Hatch Area
Courtesy of AMERICAN HONDA MOTOR CO., INC.

TRIM REMOVAL/INSTALLATION - TAILGATE AREA

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Interior Trim - Element



1. Remove the tailgate weatherstrip as needed (see TAILGATE WEATHERSTRIP REPLACEMENT ).

2. Remove the tailgate handle knob (A), and remove the screw.

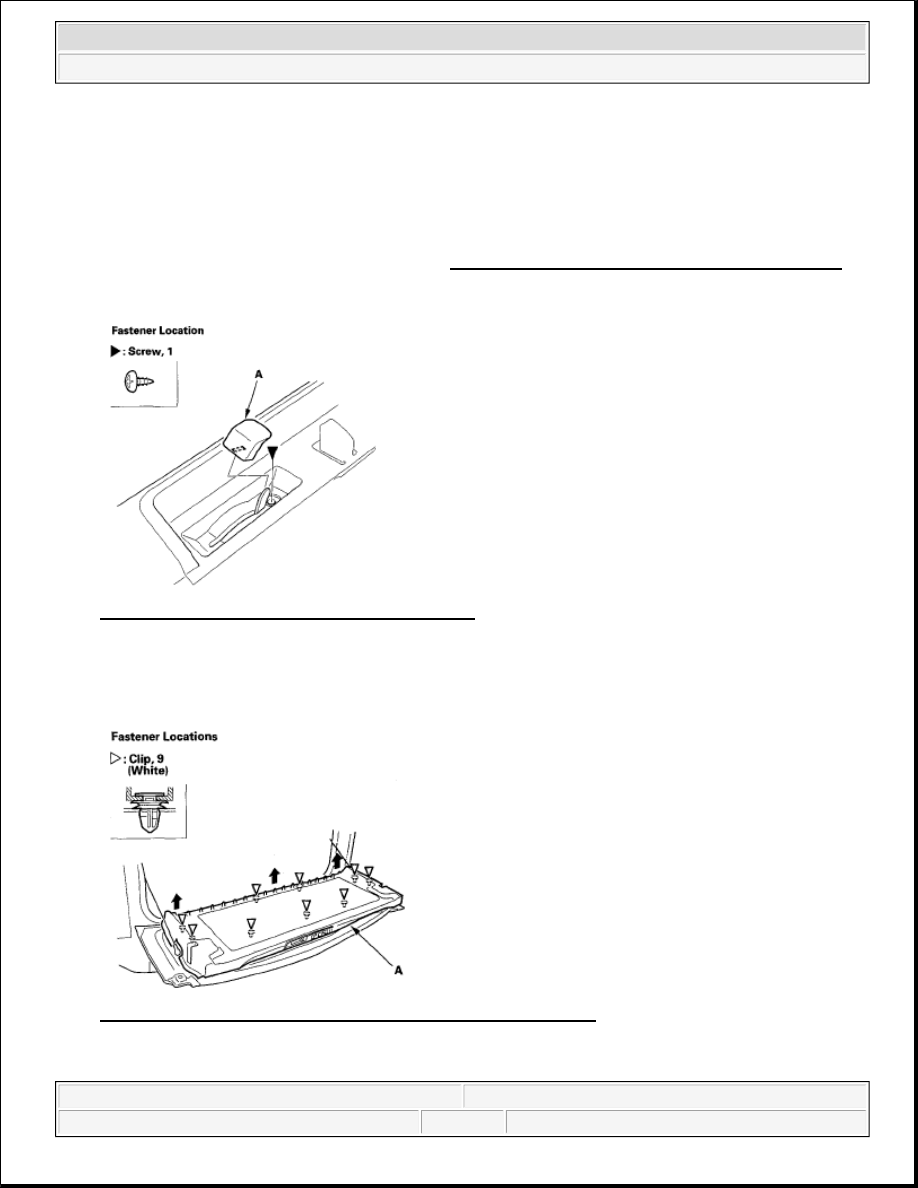

Fig. 26: Identifying Tailgate Handle Knob Screw
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Open the tailgate. Starting at the bottom edge on the tailgate lower trim panel (A), pull the trim panel up

to detach the clips.

Fig. 27: Identifying Bottom Edge On Tailgate Lower Trim Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Close the tailgate half-way and hold it there to loosen the tailgate support cables (A) on both sides. Pull

NOTE:



Put on gloves to protect your hands.



Use the appropriate tool from the KTC trim tool set to avoid damage when
prying components.



Take care not to bend or scratch the trim and panels.
