FRAME BRACE REPLACEMENT

FRONT STRUT BRACE AND STEERING GEARBOX ROD TORQUE

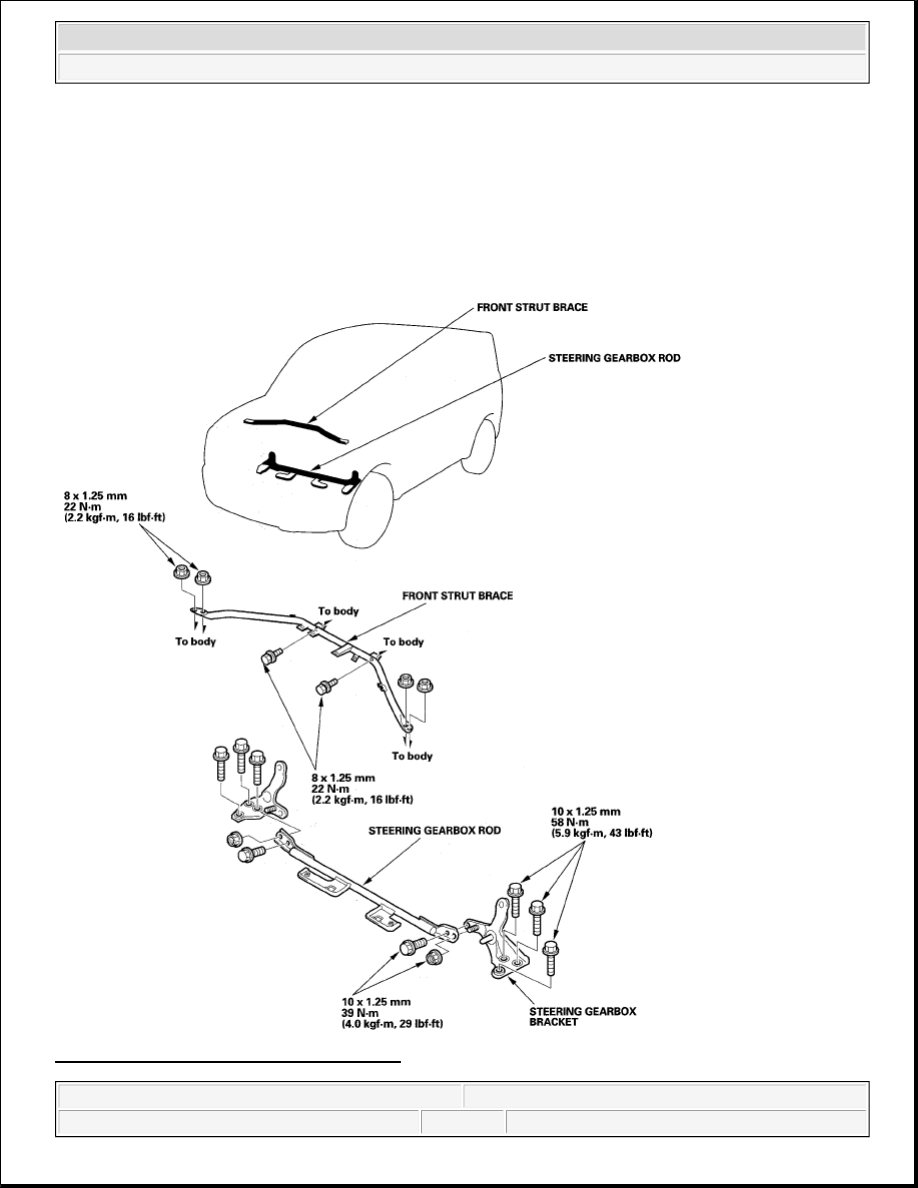

Fig. 1: Identifying Frame Brace Components



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Frame - Element





2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Frame - Element



SUBFRAME REPLACEMENT

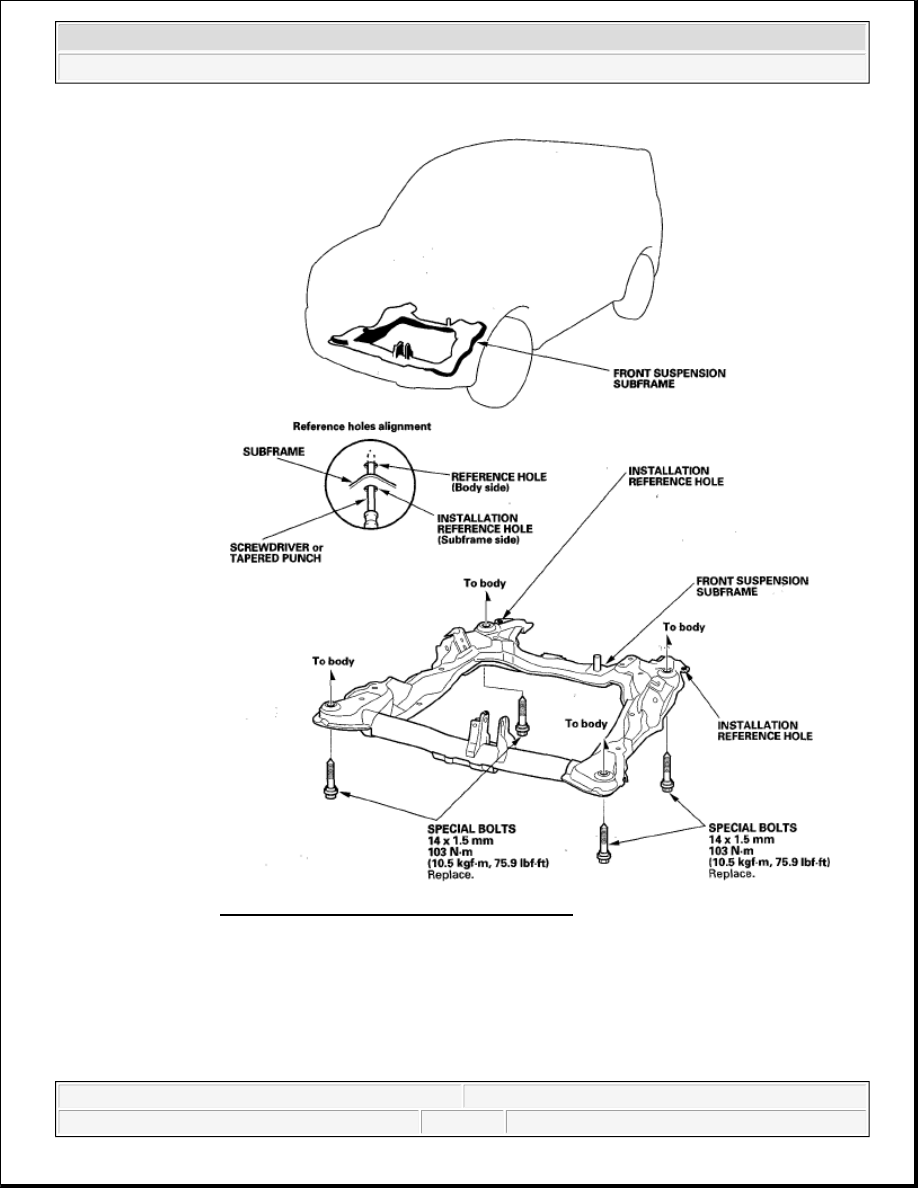

FRONT SUBFRAME TORQUE

NOTE:



After loosening the subframe mounting bolts, be sure to replace them with
new ones.



When installing, align both installation reference holes in the subframe
with both reference holes in the body using a screwdriver or tapered
punch as a guide.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Frame - Element



REAR SUBFRAME TORQUE

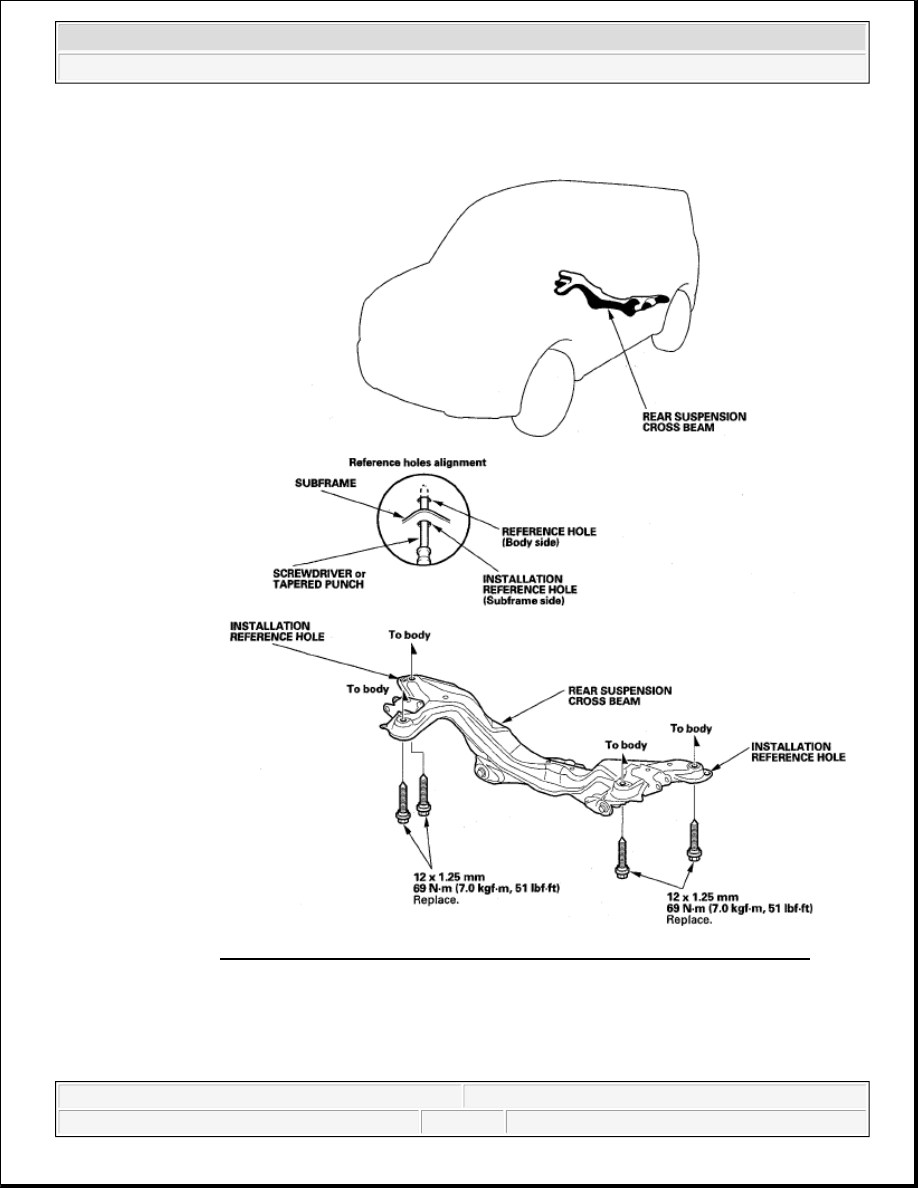

Fig. 2: Identifying Subframe Components

NOTE:



After loosening the subframe mounting bolts, be sure to replace them with
new ones.



When installing, align both installation reference holes in the subframe
with the reference holes in the body using a screwdriver or tapered punch



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Frame - Element



FRAME REPAIR CHART

TOP VIEW

as a guide.

Fig. 3: Identifying Subframe Components With Torque Specifications
