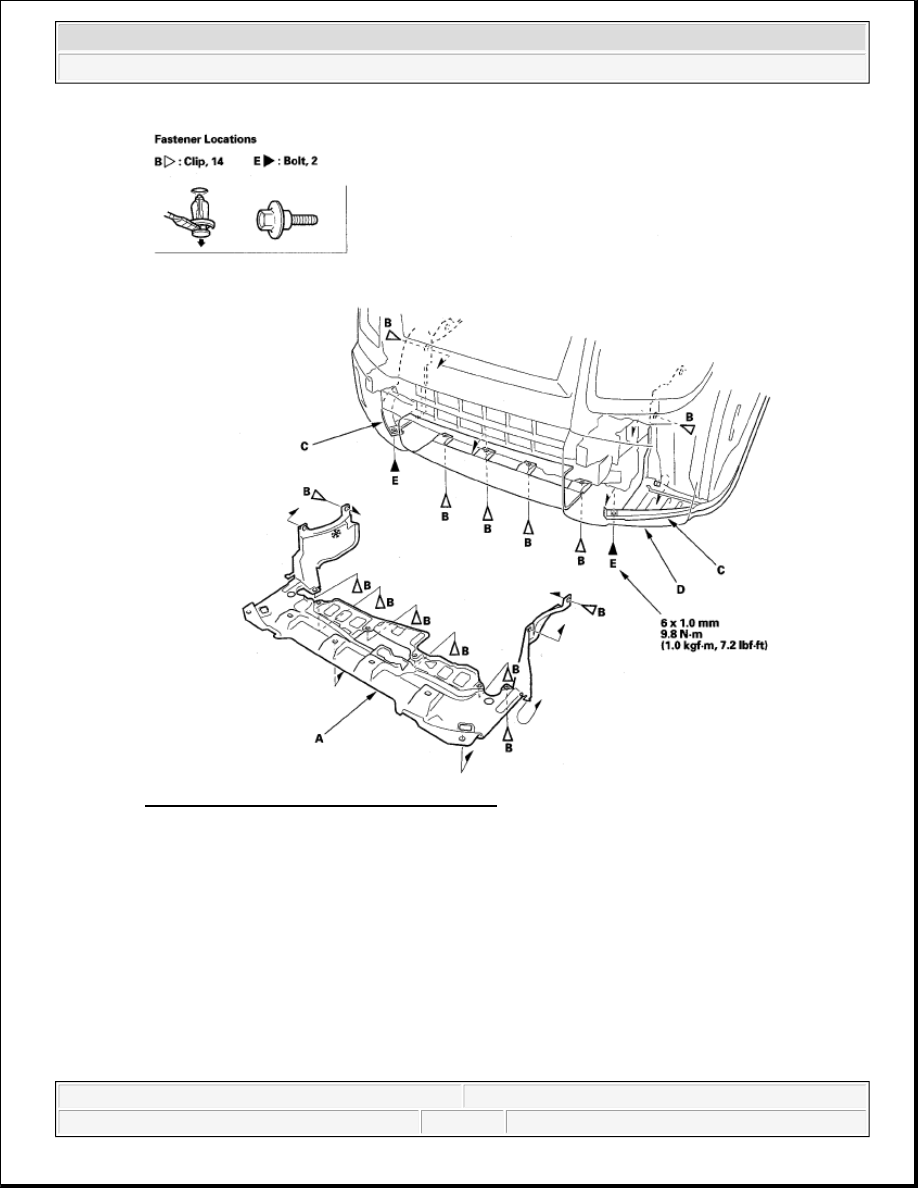

Fig. 1: Identifying Splash Shield Replacement

2. Install the splash shield in the reverse order of removal, and note these items:



Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.



Push the clips into place securely.

FRONT INNER FENDER REPLACEMENT

1. Remove the front inner fender (A).

-1 On the back of the wheel arch, remove the screws (B, C).

-2 From under the front bumper (D), remove the bolts (E) securing the front bumper, splash shield

NOTE:

Take care not to scratch the body.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Fenderwell - Element



(F), and front inner fender.

-3 From the wheel arch, remove the clips (G, H) securing the front inner fender, front cladding (I)
(and splash shield) on the body.

-4 Release the hook (J) of the splash shield from the front inner fender.

-5 From the wheel arch, pull the front inner fender out from between the body and front cladding,
then remove the front inner fender.

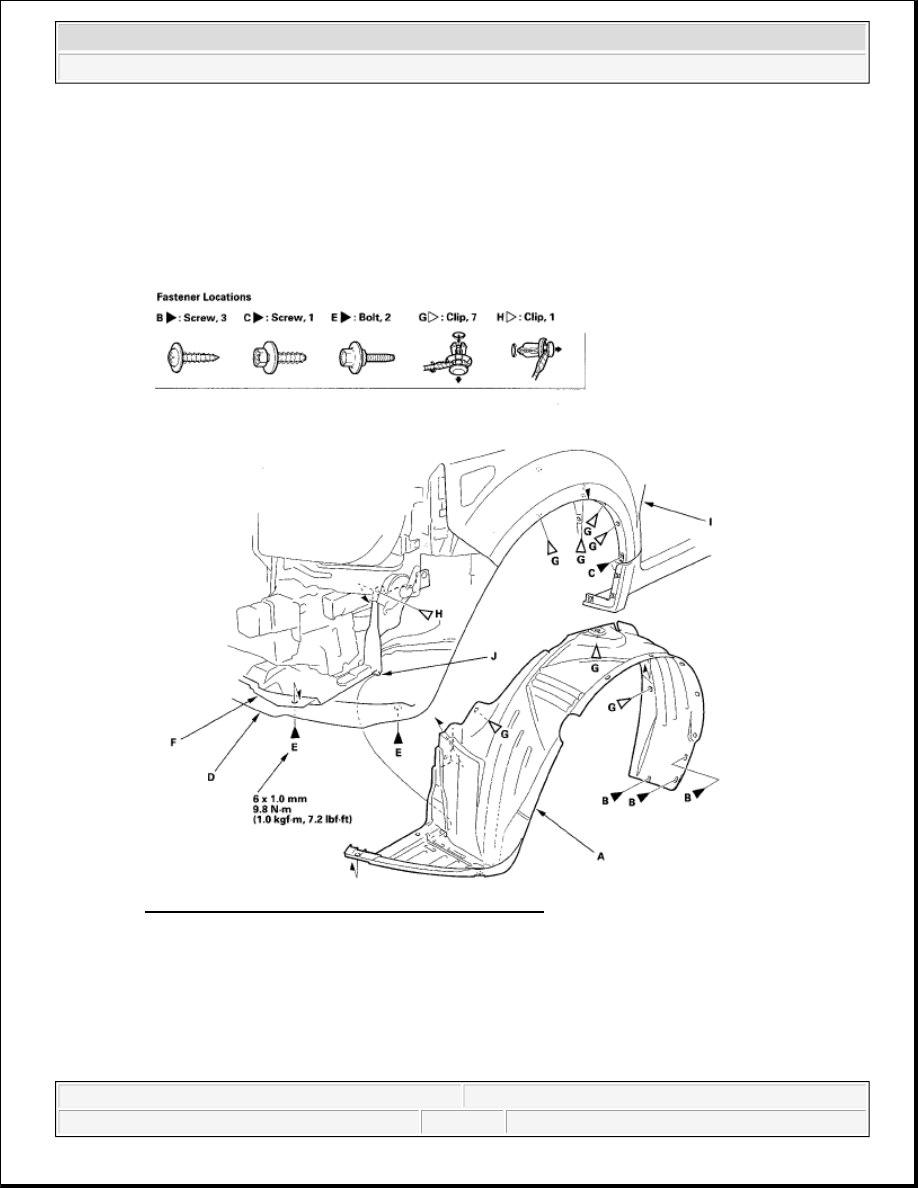

Fig. 2: Identifying Front Inner Fender Replacement

2. Install the inner fender in the reverse order of removal, and note these items:



Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.



Push the clips into place securely.

FUEL PIPE PROTECTOR REPLACEMENT



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Fenderwell - Element



1. Remove the clips, then remove the fuel pipe protector (A). Take care not to scratch the body.

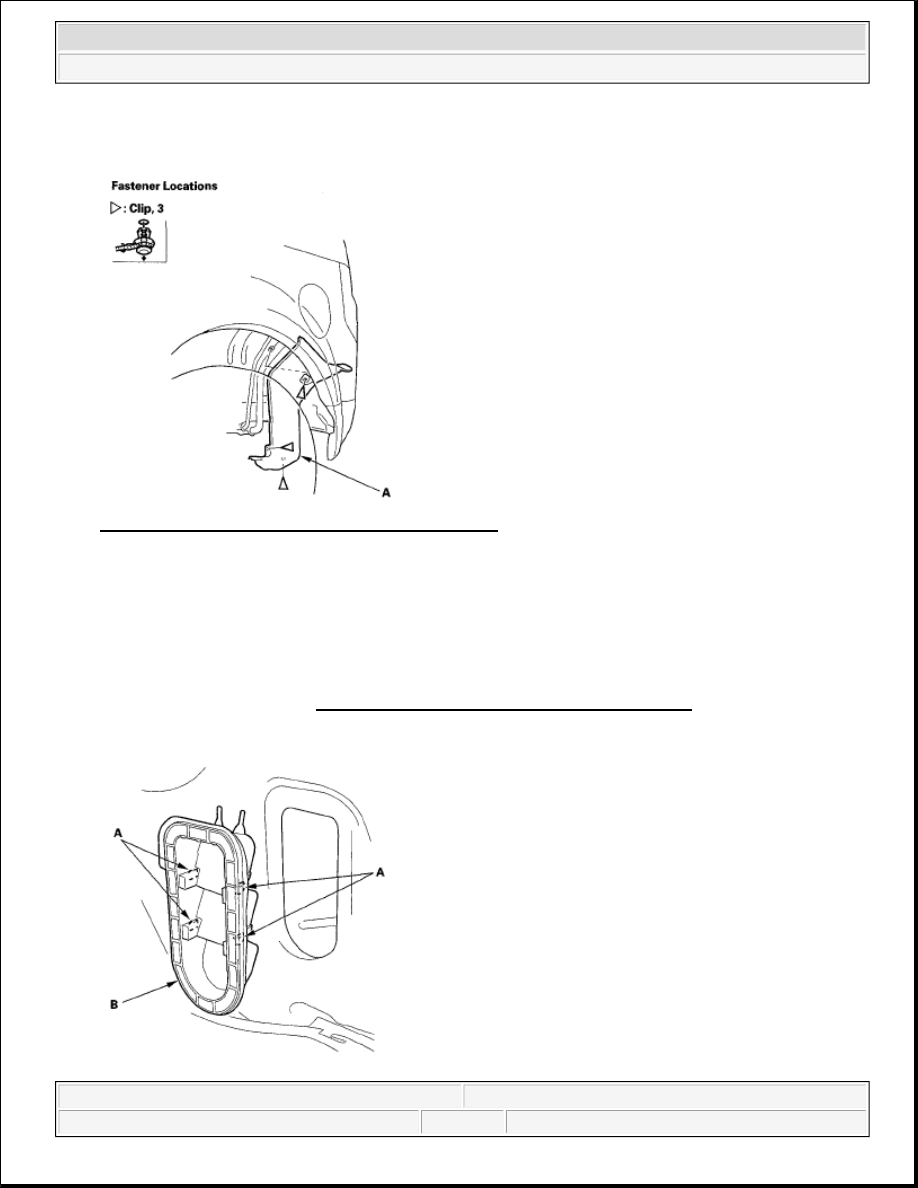

Fig. 3: Identifying Fuel Pipe Protector Replacement

2. Install the protector in the reverse order of removal, and note these items:



Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.



Push the clips into place securely.

REAR AIR OUTLET REPLACEMENT

1. Remove the rear bumper (see REAR BUMPER REMOVAL/INSTALLATION ).

2. Detach the hooks (A), then remove the rear air outlet (B). Take care not to scratch the body.

Fig. 4: Identifying Rear Air Outlet Replacement



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Fenderwell - Element



3. Install the air outlet by pushing on the hook portions until the hooks snap into place.
