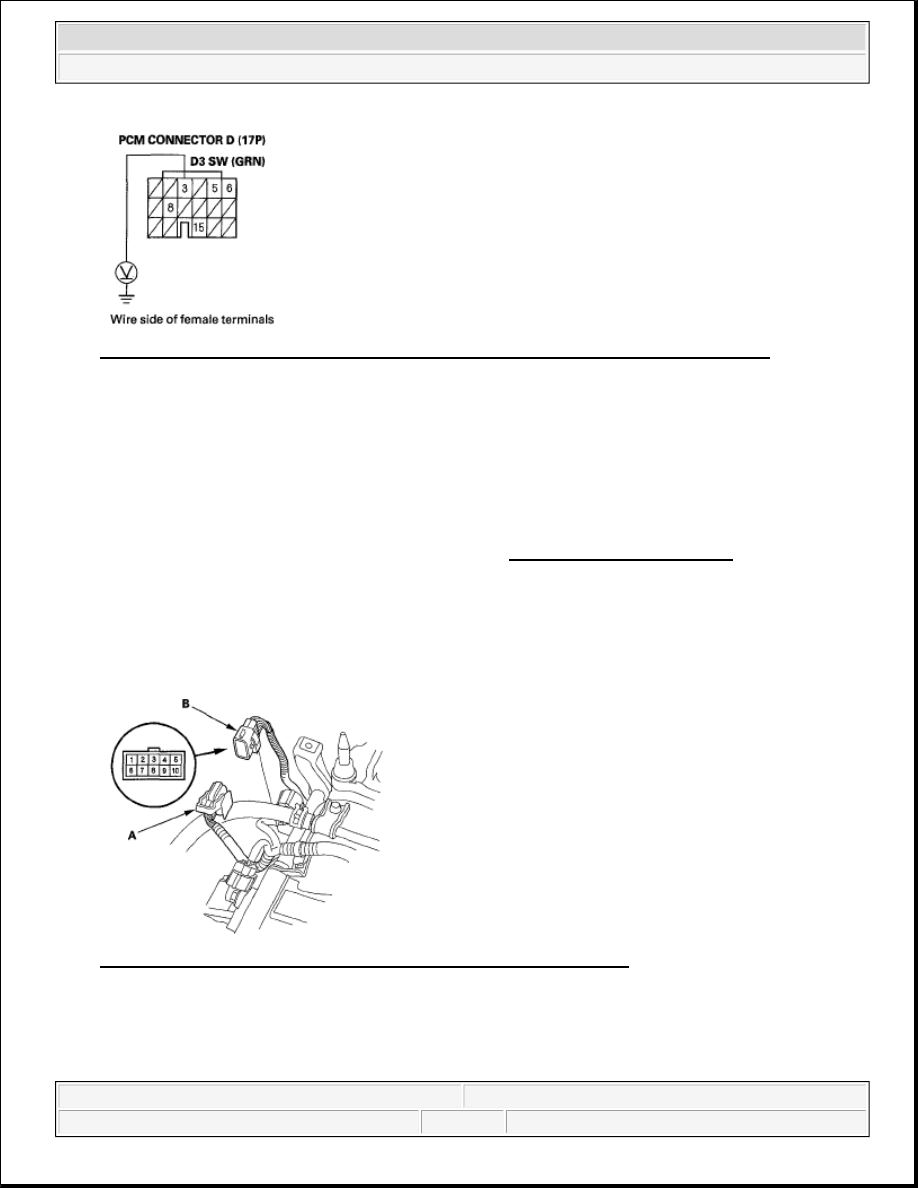

Fig. 334: Measuring Voltage Between PCM Connector Terminal D3 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Repair open or short in the wire between PCM connector terminal D3 and the D3 switch/shift lock
solenoid connector.

NO -Check for a short in the wire between PCM terminal D3 and the D3 switch/shift lock solenoid
connector. Check for loose or poor connections at PCM connector terminal D3. If the wire and
connections are OK, substitute a known-good PCM (see SUBSTITUTING THE PCM ) and recheck.

TRANSMISSION RANGE SWITCH TEST

1. Disconnect the transmission range switch harness connector (A), then remove the connector (B) from its

bracket.

Fig. 335: Identifying Transmission Range Switch Harness Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Check for continuity between terminals at the harness connector. There should be continuity between the

terminals in each switch position as shown in the table follow.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



Transmission Range Switch Harness Connector

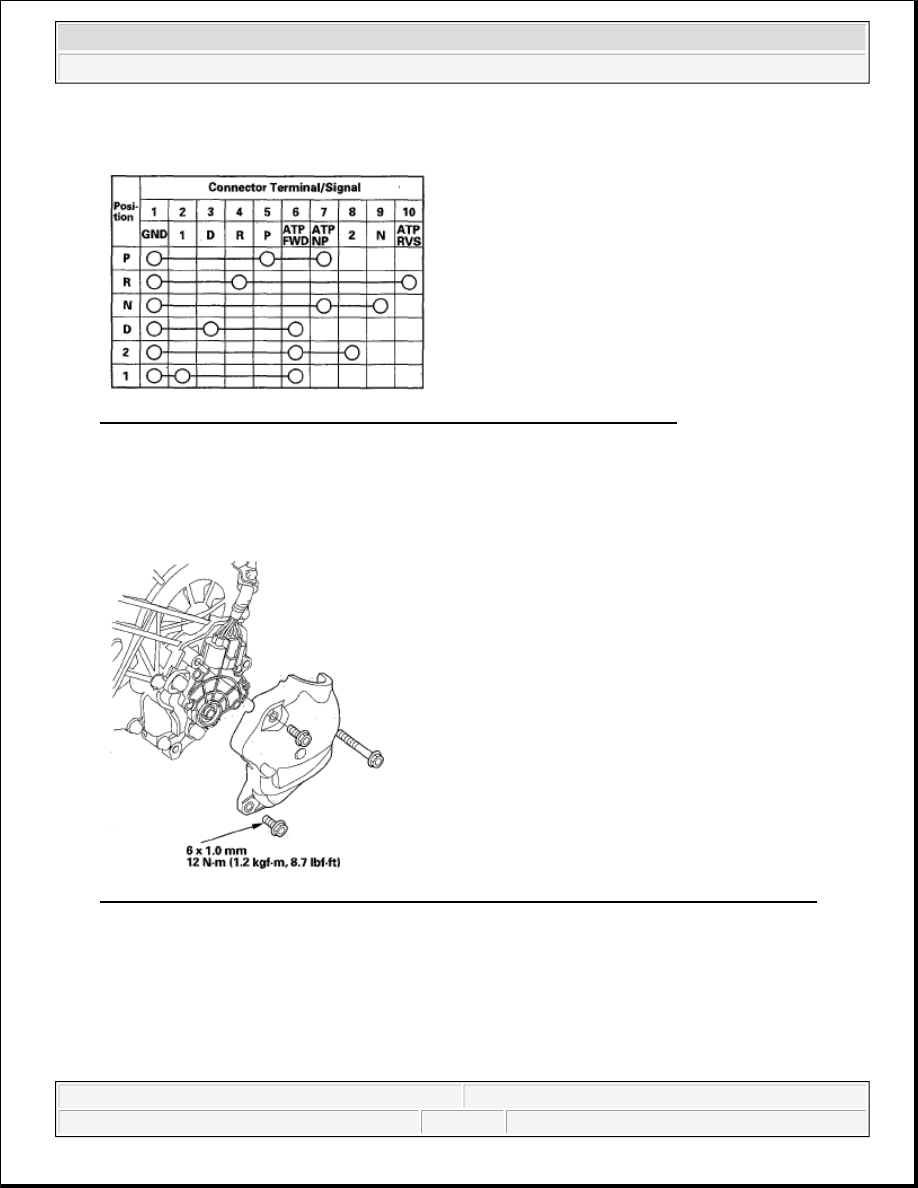

Fig. 336: Transmission Range Switch Harness Connector Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. The transmission range switch test is finished if the test results are OK. If there is no continuity between

any terminals, go to step 4.

4. If there is no continuity between any terminals, remove the transmission range switch cover.

Fig. 337: Identifying Transmission Range Switch Cover And Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Disconnect the transmission range switch connector.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



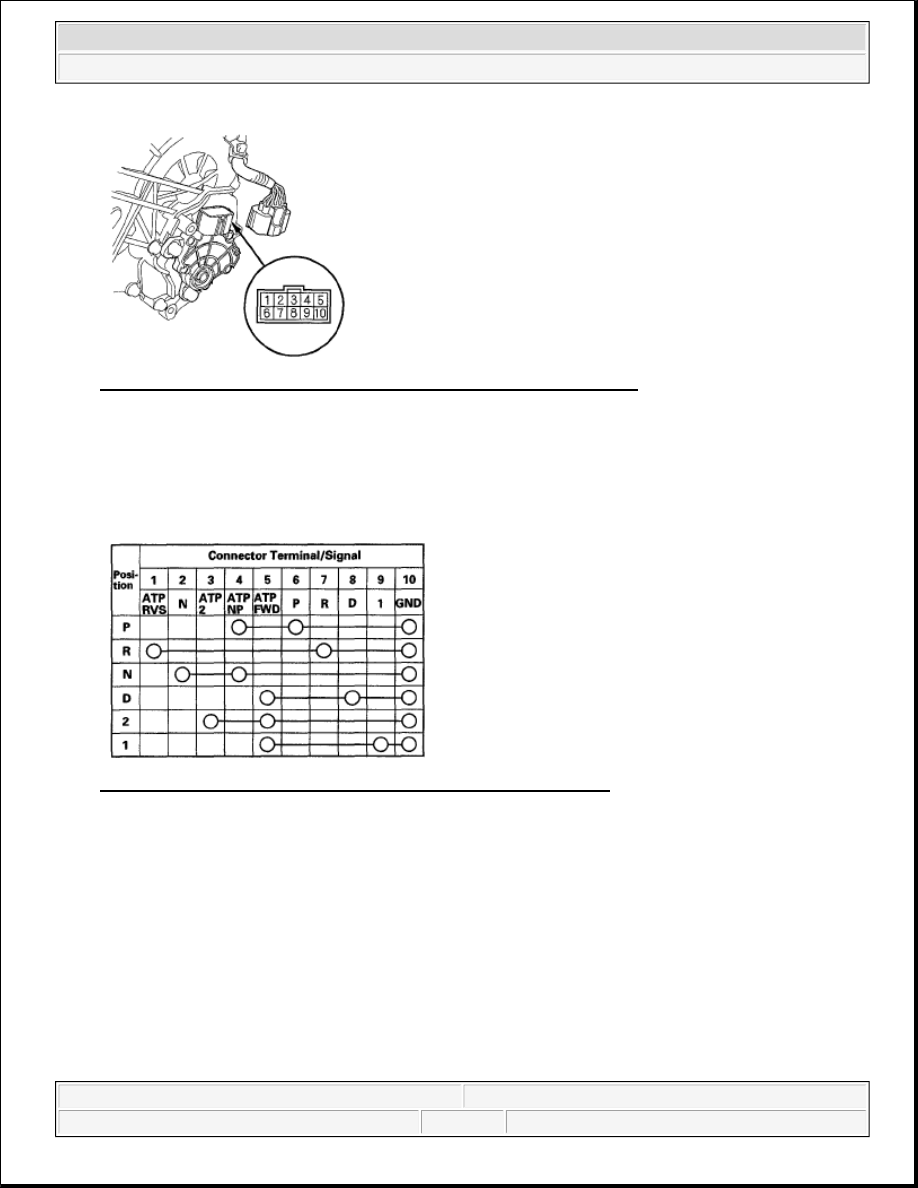

Fig. 338: Identifying Transmission Range Switch Connector Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Check for continuity between terminals at the switch connector. There should be continuity between the

terminals in each switch position as shown in the table follow.

Transmission Range Switch Connector

Fig. 339: Transmission Range Switch Connector Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. If the transmission range switch continuity check is OK, replace the faulty transmission range switch

harness.

8. If there is no continuity between any terminals, remove the transmission range switch, and check the end

of the selector control shaft (A).

Select Control Shaft:



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



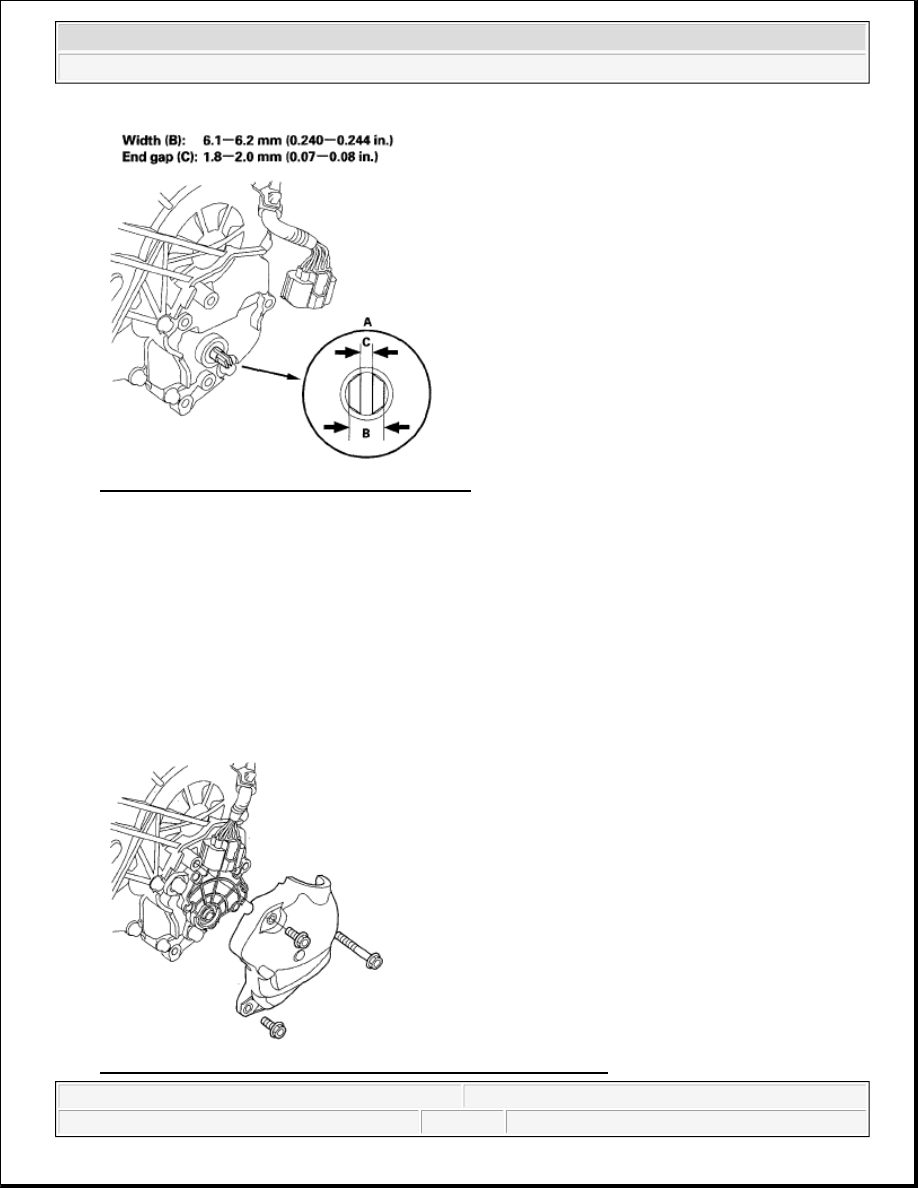

Fig. 340: Identifying Selector Control Shaft Gap
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. If the measurement of the selector control shaft end is within the standard, replace the transmission range

switch. If the measurement is out of the standard, repair the selector control shaft end, and recheck the
transmission range switch continuity.

TRANSMISSION RANGE SWITCH REPLACEMENT

1. Raise the vehicle on a lift, and make sure it is securely supported.

2. Shift to the N position.

3. Remove the transmission range switch cover.

Fig. 341: Identifying Transmission Range Switch Cover And Bolts
