COMPONENT LOCATION INDEX

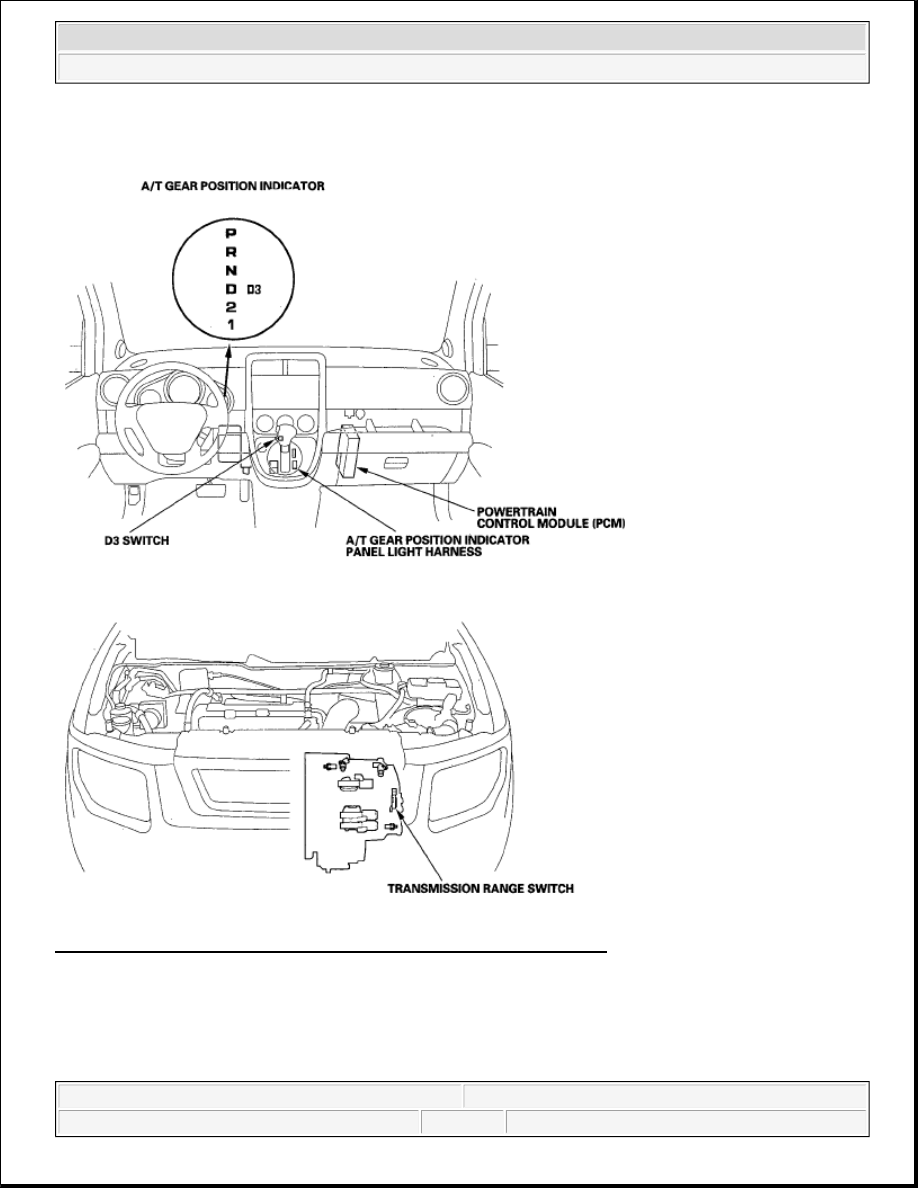

Fig. 328: Identifying A/T Gear Position Indicator Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CIRCUIT DIAGRAM



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element

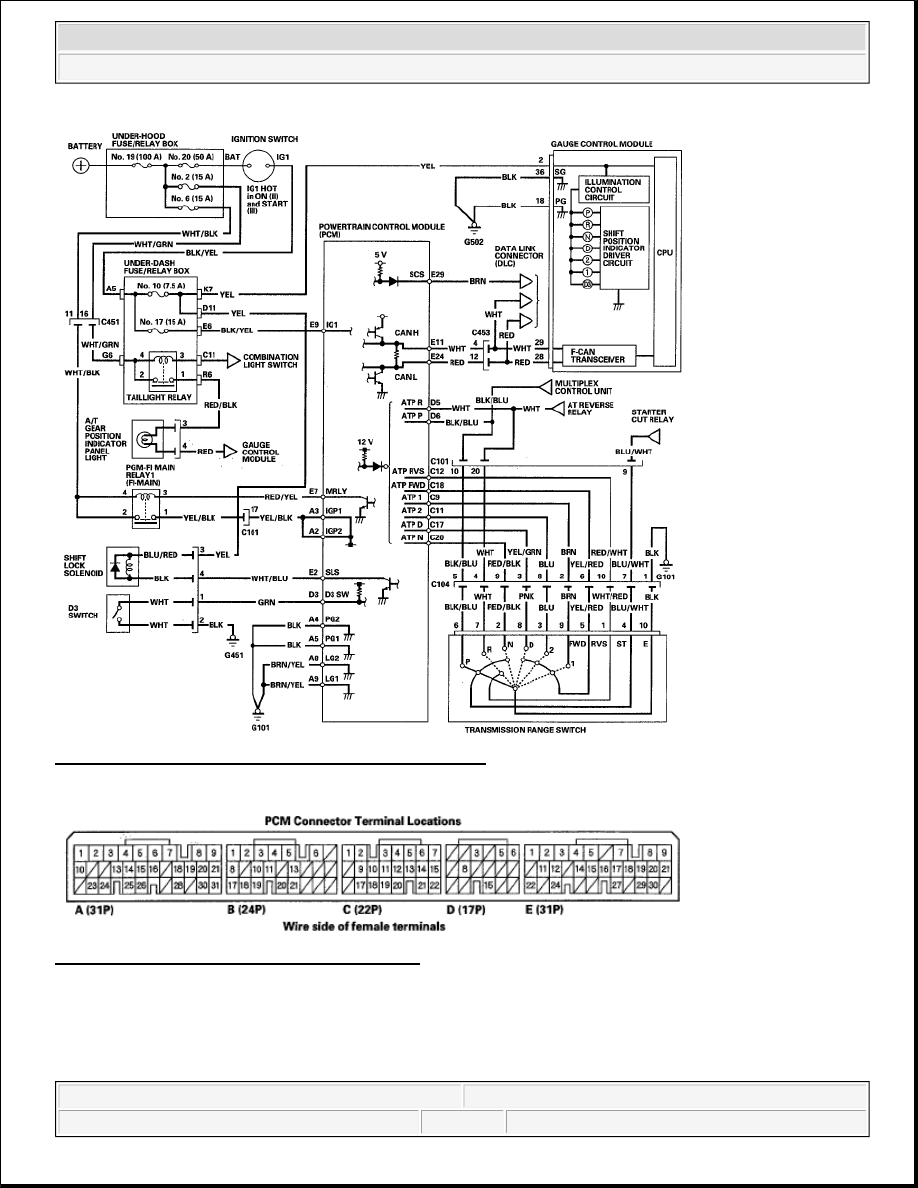

Fig. 329: A/T Gear Position Indicator - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig. 330: Identifying PCM Connector Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

D3 SWITCH CIRCUIT TROUBLESHOOTING

1. Turn the ignition switch ON (II).



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



2. Shift to the D position and select D3 driving mode by pressing the D3 switch, and watch the D3 indicator.

Does the D3 indicator come on?

YES -The system is OK at this time.

NO -Go to step 3.

3. Check the PGM-FI DTCs with the HDS.

Are DTC U0028 or U0155 indicated?

YES -Troubleshoot the indicated DTC, then recheck.

NO -Go to step 4.

4. Turn the ignition switch OFF.

5. Disconnect the D3 switch/shift lock solenoid connector.

6. Check for continuity between D3 switch/shift lock solenoid connector terminals No. 1 and No. 2 while

pressing the switch and when the switch is released.

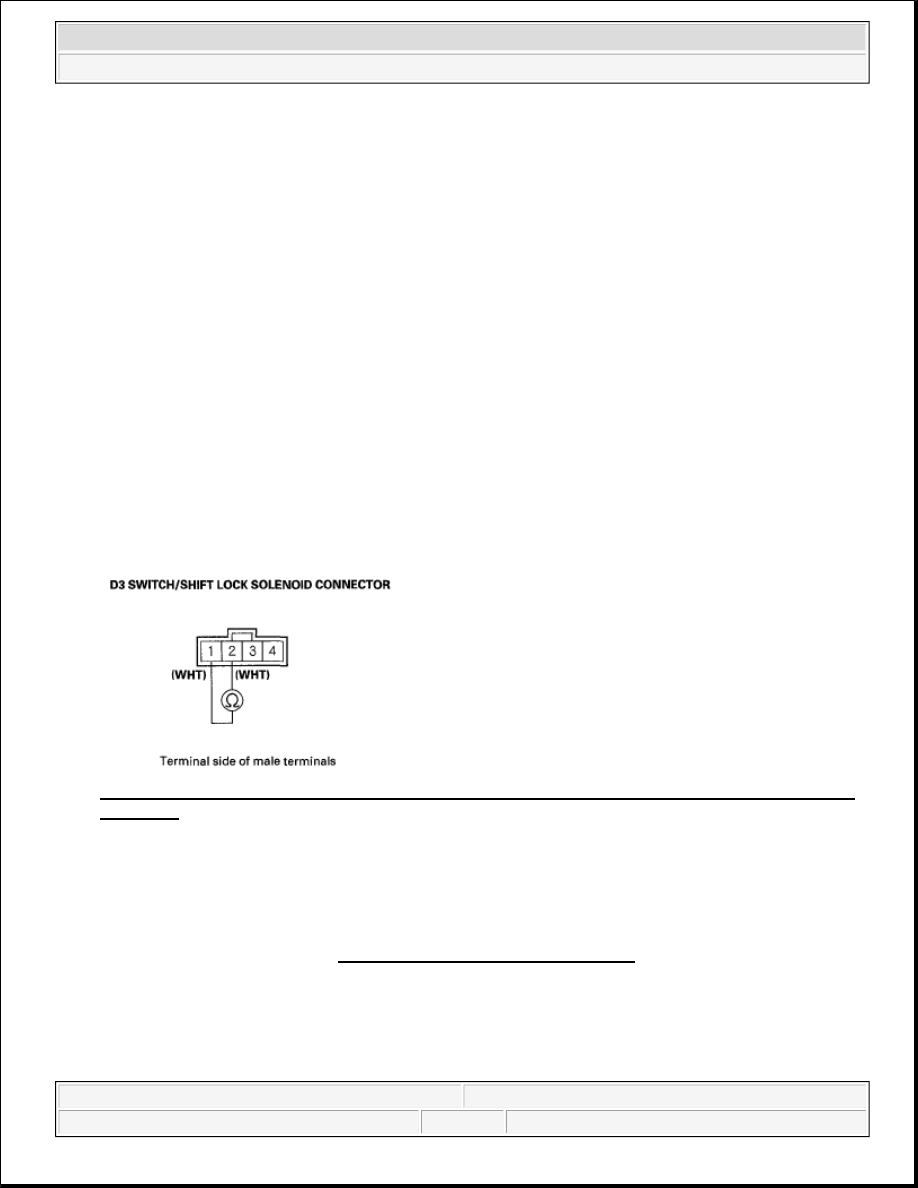

Fig. 331: Checking Continuity Between D3 Switch/Shift Lock Solenoid Connector Terminals No. 1
And No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity while pressing the D3 switch, and no continuity when the D3 switch is released?

YES -Go to step 7.

NO -Replace the D3 switch (see D3 SWITCH TEST/REPLACEMENT ).

7. Turn the ignition switch ON (II).

8. Shift the shift lever to the D position.

9. Measure the voltage between D3 switch/shift lock solenoid connector terminals No. 1 and No. 2.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



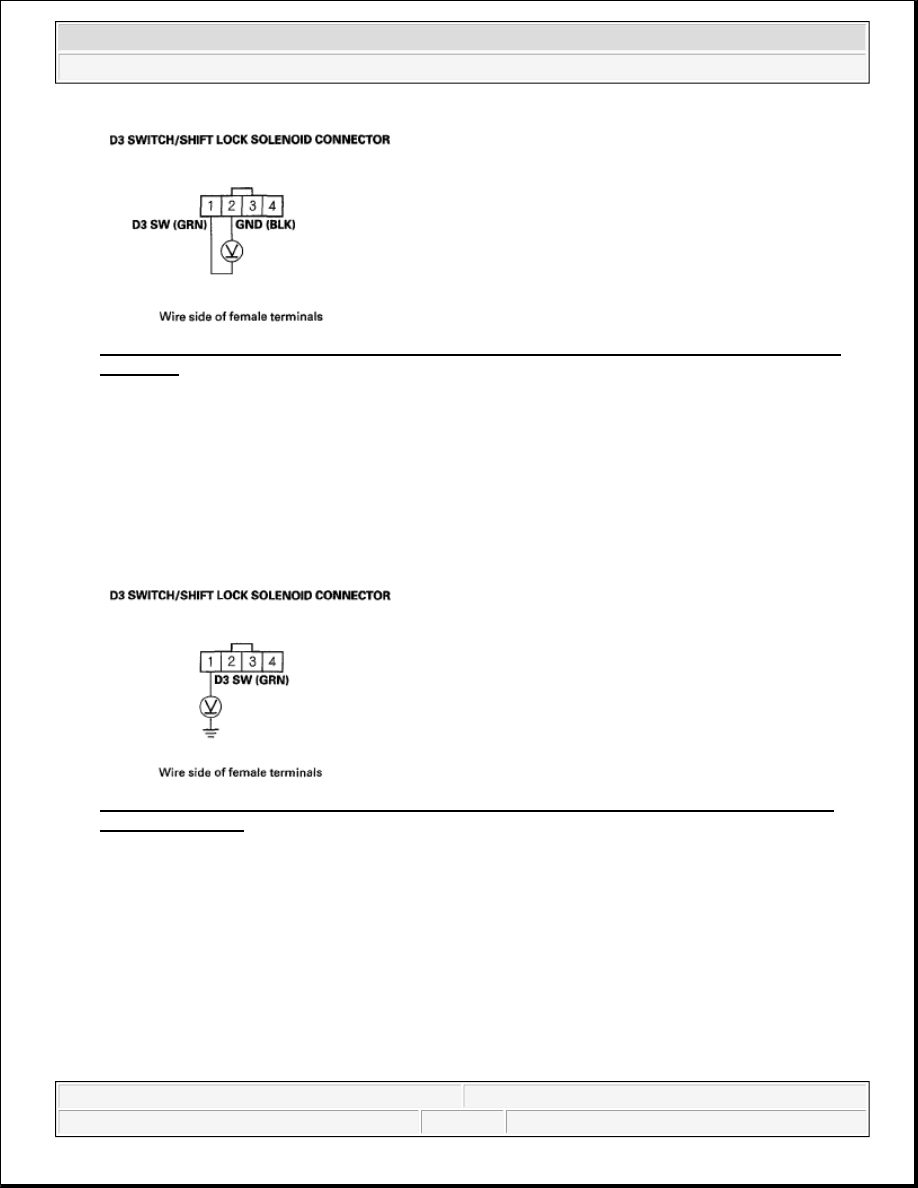

Fig. 332: Measuring Voltage Between D3 Switch/Shift Lock Solenoid Connector Terminals No. 1
And No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -D3 switch circuit is OK. Check for loose terminals.

NO -Go to step 10.

10. Measure the voltage between D3 switch/shift lock solenoid connector terminal No. 1 and body ground.

Fig. 333: Measuring Voltage Between D3 Switch/Shift Lock Solenoid Connector Terminal No. 1
And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Repair open in the wire between D3 switch/shift lock solenoid connector terminal No. 2 and
ground (G451), or repair poor ground (G451).

NO -Go to step 11.

11. Measure the voltage between PCM connector terminal D3 and body ground.
