Connect the copper gasket seal and tighten the hollowbolttospecified

     torque.

     Tightening force: 50

5N

m

6. Discharge the air in front brake system

(refer to relevant chapter)

Remarks: It must discharge the air in the rear brake system if

disassemble the right upper arm.

7. Check the brake fluid for leakage

8. Tighten the upper arm front shaft nut to the specified

     torque

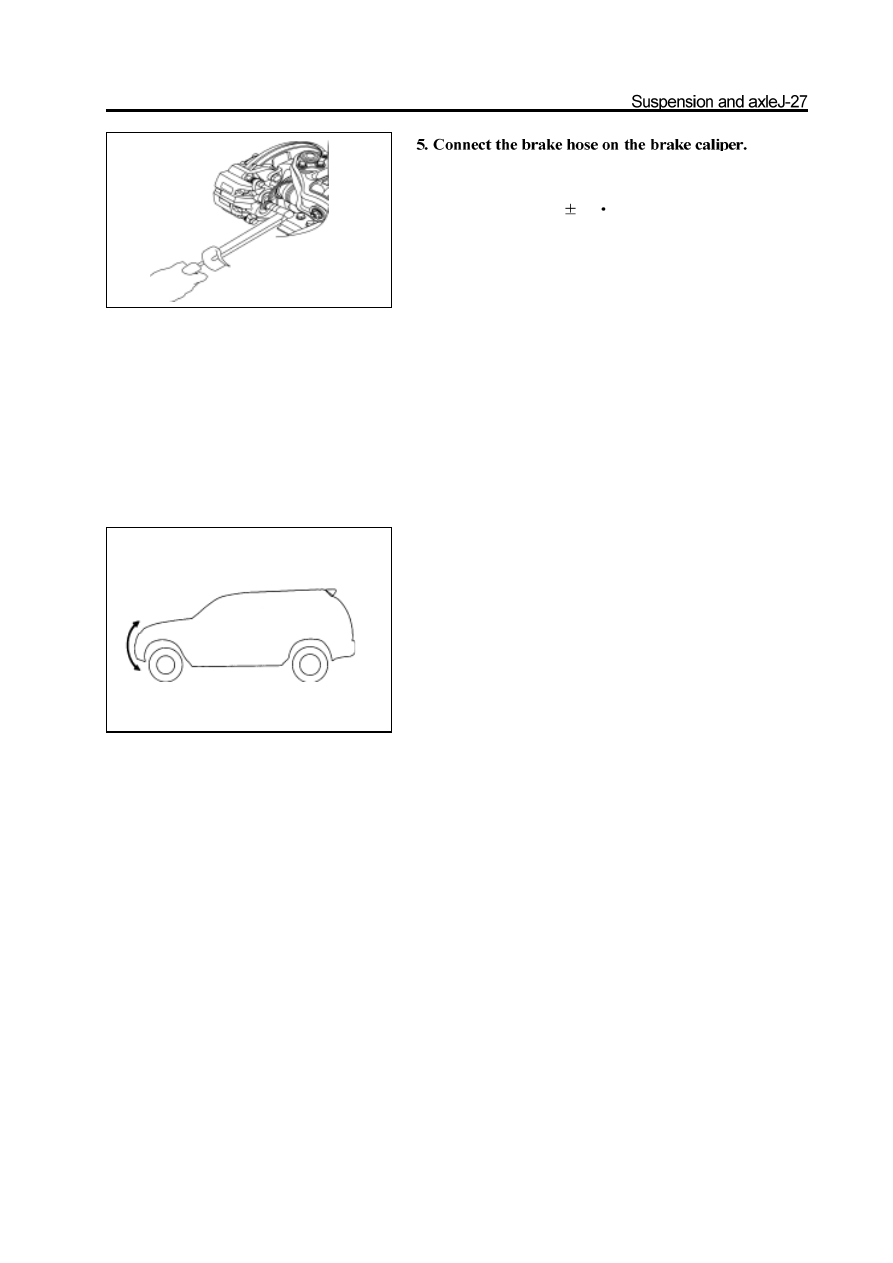

       Install the wheel, remove the bracket and bounce the vehicle for

       several times to make the vibration damper enters into the stable

       status.

9. Check the wheel alignment parameter

(Refer to 4-Wheel Alignment)

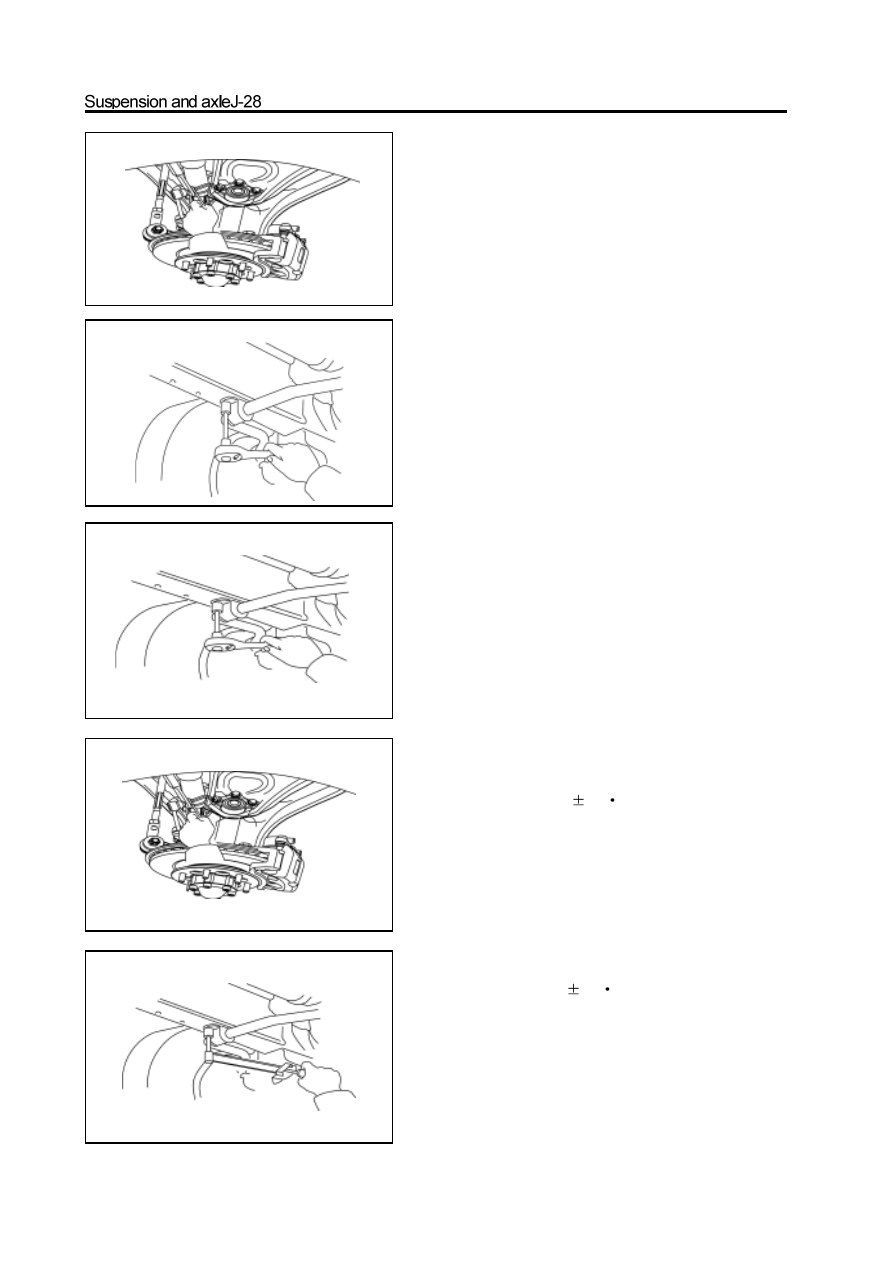

Stabilizer bar

Disassembly of stabilizer bar

1. Disconnect the connecting bar which supports both

    ends of the stabilizer bar form the stabilizer bar.

     Use the inner hexagon spanner to fix the ball pin; remove the self-

      locking nut.

2. Remove the bush and clip of stabilizer bar; remove

    the stabilizer bar

Installation of stabilizer bar

1. Install the stabilizer bar on the carriage

Place the stabilizer bar in position; install the stabilizer bar bush

and clip on the carriage. Screw on and pretighten the bolt.

2. Connect the stabilizer bar to the connecting bar



Installand tighten the new nut to the specified torque

Tightening force: 63

5N

m



3. Tighten the clip position bolt to specified torque.

Tightening force: 23

3N

m

N

m:     specified torque

Used component which can not be used any more.

precoated component

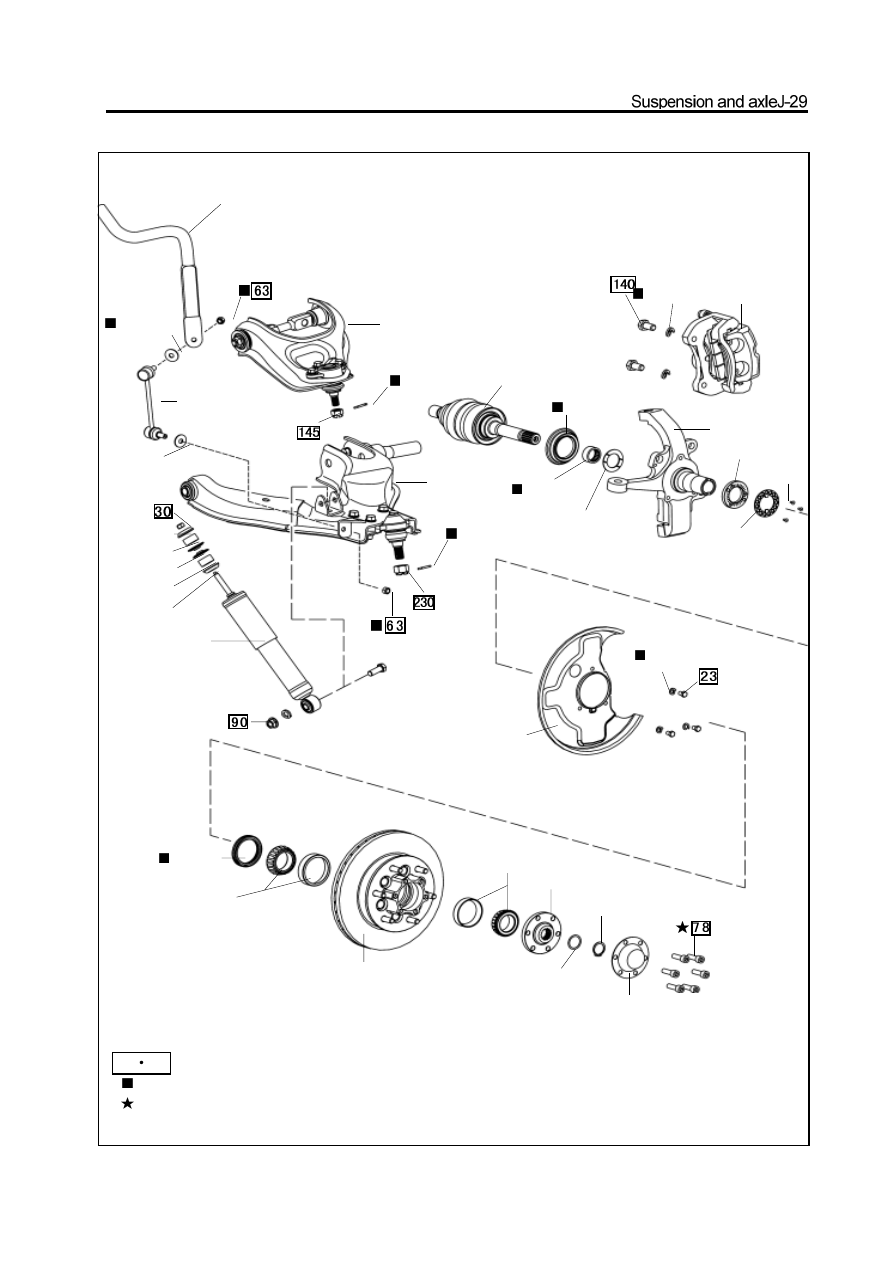

Front hub and steering knuckle (4WD)

stabilizer bar

flat shim

connecting rod

of stabilizer bar

hub and brake disc

flange

adjusting washer

circlip

hub cap

spring shim disc brake

split pin

lower suspen-

sion arm

split pin

upper suspension arm

drive shaft

oil seal

n e e d l e

bearing

lock washer

steering knuckle

lock nut

lock washer

screw

brake cover

spring shim

flat shim

disk shim

Shim

fill block

fill block

disk shim

oil seal

bearing

bearing

shock absorber

special tools

diagram of

special tools

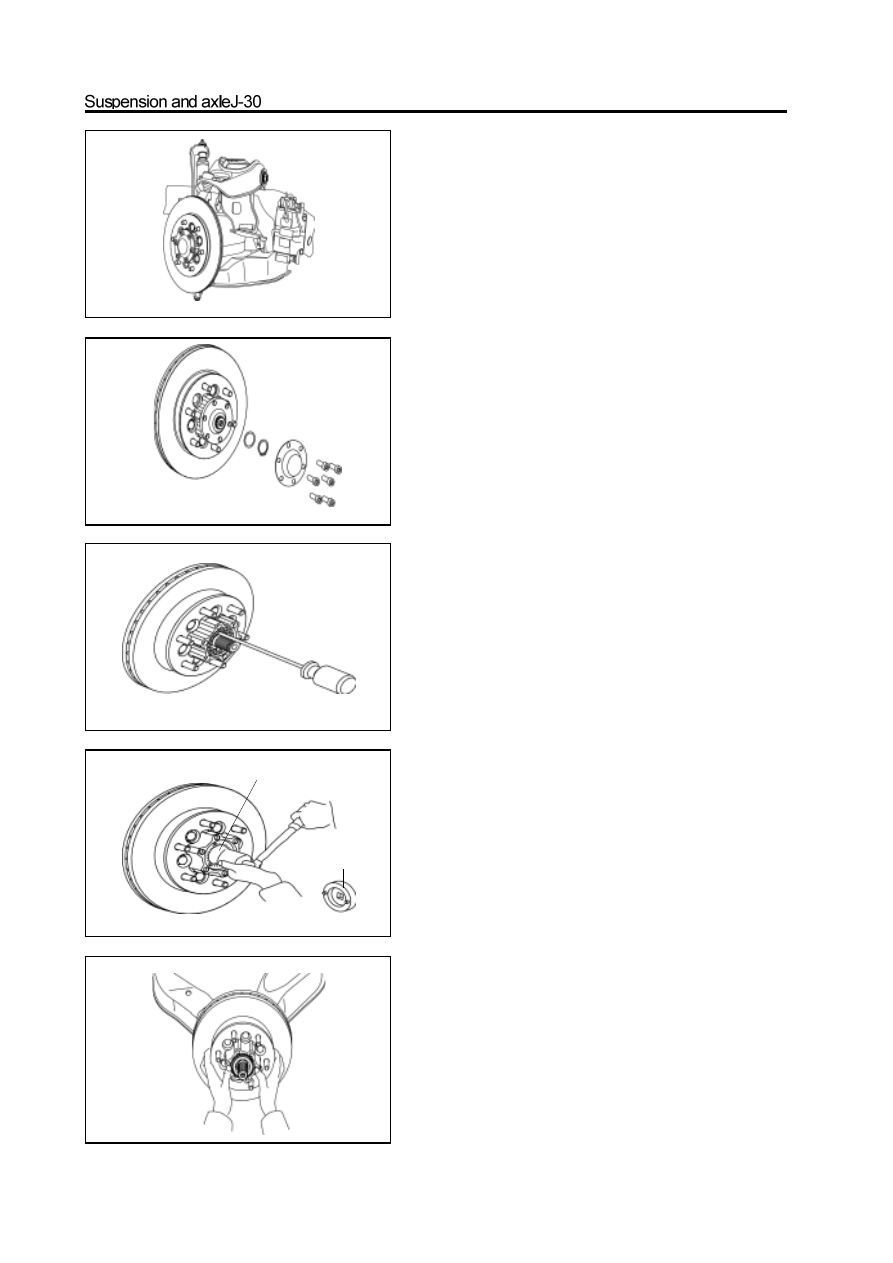

Front hub

Disassembly of front hub

1. Remove the disc brake

Remove the brake caliper and hang it by steel cable.

Remarks: Do not remove the brake pipe and brake hose.

2. Remove the hub cap and flange

a. Use the inner hexagon spanner to screw off the fastening blot

and remove the hub cap.

b. Use the pliers to remove the circlip and remove the adjusting

washer.

c. Remove the flange.

3. Remove the hub and brake disc

a. Use the Philips screwdriver to screw off the tight screw;

remove the lock washer.

b. Use the special tools to remove the lock nut.

c.   Remove the hub and brake disc with the outer bearing.
