GWFLORID Maintenance Manual

198

TFT display screen common faults and solutions

Symptoms

Causes

Solutions

No image is shown on the

display screen, only a warning


Parking control wire "PRK SW" is not

properly connected

Please refer to the "Equipment connection

drawing" to correct the connection

Abnormal display status, like

pulsing lines, appear in the


The DVD output image format does not

match the display screen format

Change the screen format to automatic

Some non-genuine discs’ actual display

format do not match the labeled format Use a genuine disc
Video wire is damaged

Replace the video wire

Video wire connection error

Please refer to the "Equipment connection

drawing" to correct the connection

Displayed characters are

messed up or displayed

incorrectly

Incorrect operation

Shutoff and restart, or switch to another

source and then try again

Symptoms

Causes

Solutions

Poor lock channel effect

Automatic antenna fails to extend

Check if the radio reception automatic

antenna's  control  wire ANT.CONT  is

properly connected. Please refer to the

"Equipment connection drawing"

Failure to connect the radio reception

antenna

Properly  connect  the  radio  reception

antenna. Please refer to the "Equipment

connection drawing"

Local search function is in the on-state  Switch off the local search function, please

refer to the "Local search"

Radio reception failure and solution

DVD playing faults and solutions

Symptoms

Causes

Solutions

Cannot insert disc

There is a disc in the player

Eject the disc from the inside of the player

and insert a new one

Disc is unable to play

Disc is scratched and unable to be read Replace the disc
Disc is too dirty or wet

Clean the disc with a soft cloth

Laser head is dirty

Clean the laser head with a laser head

cleaning disc

The disc is not supported by this player Check the disc type
Child lock grade too high

Chang the child lock settings

The read side of the disc is inserted

upside-down

Insert the disc into the player with its label

side up

The region code of the disc does not

match the region code of the player

Use discs that have a region code identical

to this player's

Subtitle does not display

The disc does not contain a subtitle file Use discs containing a subtitle file

Language or subtitle switch

does not work

The disc only has one type of language

or subtitle

Use discs containing multi-channel voice

or subtitle files

Multi-angle switch does not

work

The disc only has one visual angle

Use discs that support multi-angle play

The section in play does not support

multi-angle

Select a section that supports multi-angle

play

199

Electrical Accessories

Symptoms

Causes

Solutions

Image is blurred and distorted The disc is copy protected

The player is compatible with the copy

system, so if the disc is copy protected, it

may not be able to play, and is not a problem

with the player

PBC function has no effect

when playing a VCD disc

The disc contains no PBC function

Use discs that support the PBC function

Repeat function and album/

time search are unavailable

PBC is set to on

Turn off the PBC function

Symptoms

Causes

Solutions

Cannot play MP3

Disc is scratched or dirty

Clean the disc with soft cloth

Laser head is dirty

Clean the laser head with a laser head

cleaning disc

The disc is not supported by this player Please use discs supported by this player
The read side of the disc is inserted

upside-down

Insert the disc into the player with its label

side up

The sound is not smooth when

playing MP3

The disc is too dirty or scratched

Clean or replace the disc

Partial content is damaged

Replace the disc

Bad record condition

Re-record the disc

Name of MP3 file is not

displayed normally

Irregular file name

Do not use Chinese names

MP3 playing faults and solution

GWFLORID Maintenance Manual

200

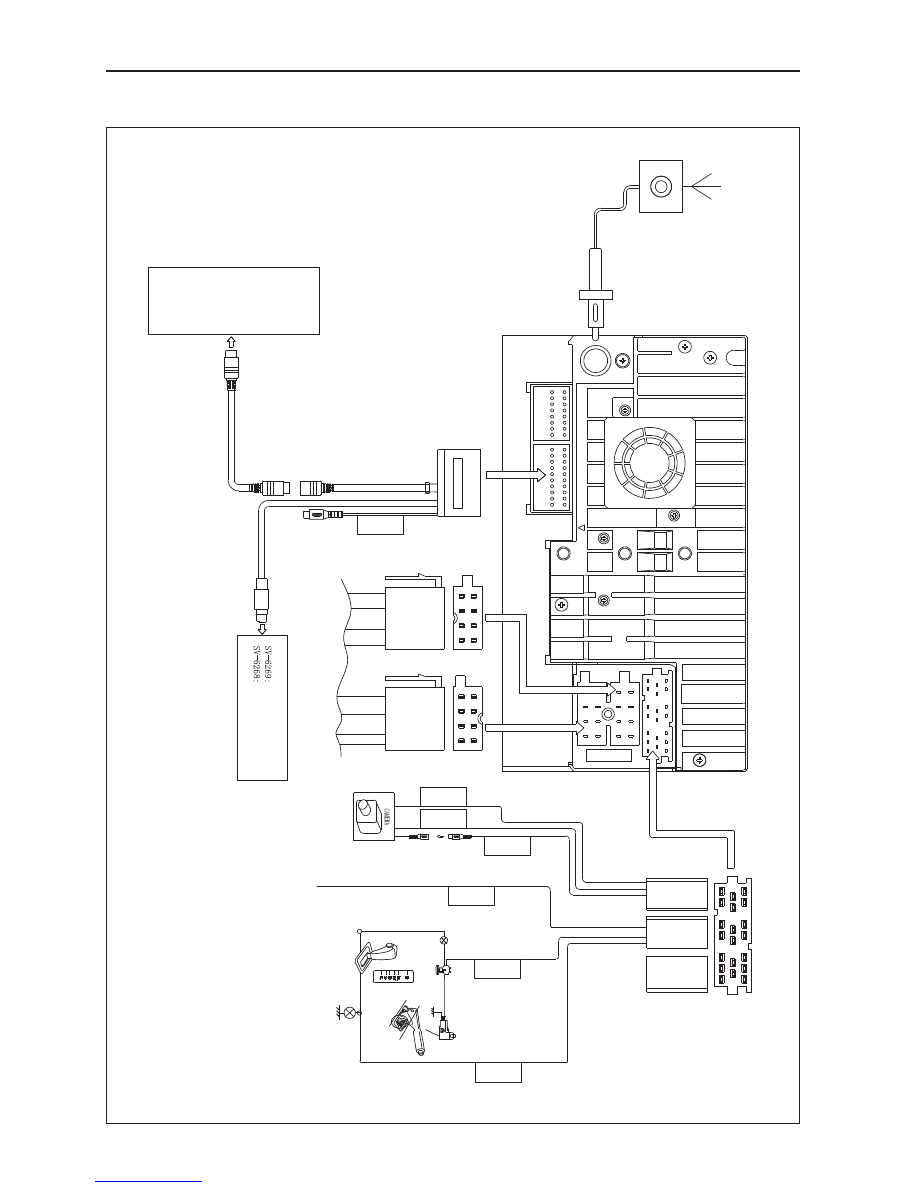

Equipment connection drawing

Navigator

Antenna

Yellow

 AUX IN/Karaoke J/B

 AUX IN J/B

Red

Black

Yellow

Green

Blue

Blue & white

Green & white

Pink

Reverse shift switch

Yellow

Rear view mirror

power supply

ground wire

CAMERA—B+

Rear view mirror

power supply

ground wire

CAMERA—GND

Rear view mirror

audio input

CAMERA—VIDEO

Power amplifier

control

P.CONT

Brake diagnosis

P.CONT

Reverse detect

REVERSE

Rear view mirror

power supply

ground wire

AUX IN VIDEO

201

Electrical Accessories

1.  This player is used on vehicles with a 12 V battery and negative ground. If this player is to be installed

on a vehicle with a 24 V battery, please install voltage reduction equipment.

2.  To avoid short circuiting the electrical system, cut off the battery negative end's connection wire before

installation.

3.  Please arrange the connection wires at fixed locations, as to make sure they will not make contact

with any portable parts, such as the parking brake control mechanism assembly, gear lever, the seat's

fixed track, and so on. Please do not arrange the wires in a heat source area, like near the discharge

outlet of the heater, etc. Otherwise the heat source will cause the insulating layer to melt or wear out,

and then lead to a short circuit between the connection wire and the vehicle body.

4.  Do not put the power cord through the mounting hole into the engine box and then connect it to the

battery. Otherwise it might damage the power cord and then lead to a short circuit between the power

cord and the vehicle body.

5.  When changing the fuse, please use the specified 15 A fuse. Fuses with an unmatched size will lead

to abnormal operation, and even damage the player or cause a fire hazard.

6.  Please do not share the player's power supply with other equipment, otherwise it might lead to a

malfunction due to overloading.

7.  Please wrap up the exposed places of the wire with insulating cement to avoid short circuiting.

8.  Bind up all the connection wires well to avoid any connecting term inal  touching  the  player  or  other

mental parts of the vehicle body and leading to a short circuit.

9.  When switching the player's power on, the external connection amplifier's controlling signal will output

through the lead wire P.CONT. If the player is connected with an external connection amplifier, please

do not connect the lead wire P.CONT to the amplifier's supply terminal, otherwise it will cause a

malfunction.

10. The player's outputting terminal must not be grounded, otherwise the amplifier may burn out. Please

do not use a 3-wire type speaker system which shares the ground cable. Please do not connect the

speaker wire to the vehicle body.

11. The maximum rated power of the speaker connected to this player is 50 W, resistance value is 4 Ω.

Control wire connection areas of importance
