GWFLORID Maintenance Manual

150

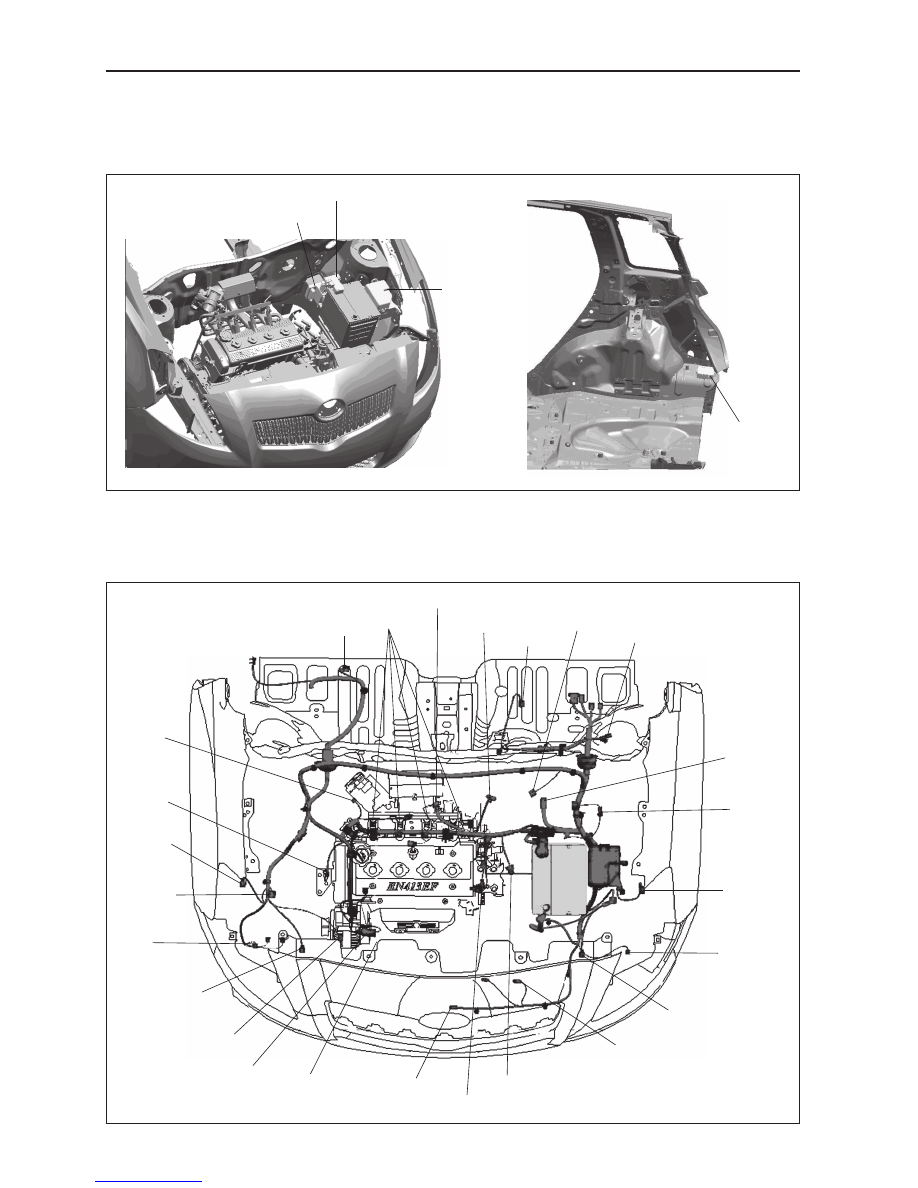

Overall Vehicle’s Grounding Point Schematics

G01

G02

G03

G04

G05

G06

G07

G08

151

Vehicle Body Electronic System

G09

Number

Grounding position

Remark

G01, G02

Inside the engine compartment's

left side fender

Engine compartment's wire harness

G03

Inside the engine compartment's

right side fender

Engine compartment's wire harness

G04, G05

Wire harness fixture un-

der the right A-pillar

Engine & dashboard wire harness

G06

Wire harness fixture un-

der the left A-pillar

Meter wire harness

G06

On the dashboard brace reinforcement

Meter wire harness

G07

Rear fender trim LH

Vehicle body wire harness

G08

Near rear combination lamp RH

Vehicle body wire harness

G09

Near rear wiper motor

Trunk door wire harness assembly

G10

Airbag grounding point

Meaning of each number representation:

Key Electrical Component’s Module Schematics for the Overall
Vehicle

Theft deterrent ECU

Central lock controller

No.1 fuse box

Airbag ECU assembly

Engine ECU

G10

GWFLORID Maintenance Manual

152

Engine ECU Injector

Starter, starter excitation, knock sensor

Speed sensor

Brake switch

Brake fluid level switch

Clutch switch

ABS ECU

Front wiper

motor

Front

combination

lamp LH

Front fog

lamp LH

Radiator fan

High & low pitched horn

Crankshaft position sensor

Front & rear

oxygen sensor

Condenser fan

motor

Compressor

clutch

Alternator, alternator

regulator

Tristate pressure switch

Front fog

lamp RH

Washer

motor

Wheel speed

sensor

Front

combination

lamp RH

Camshaft

position sensor

Throttle

position sensor

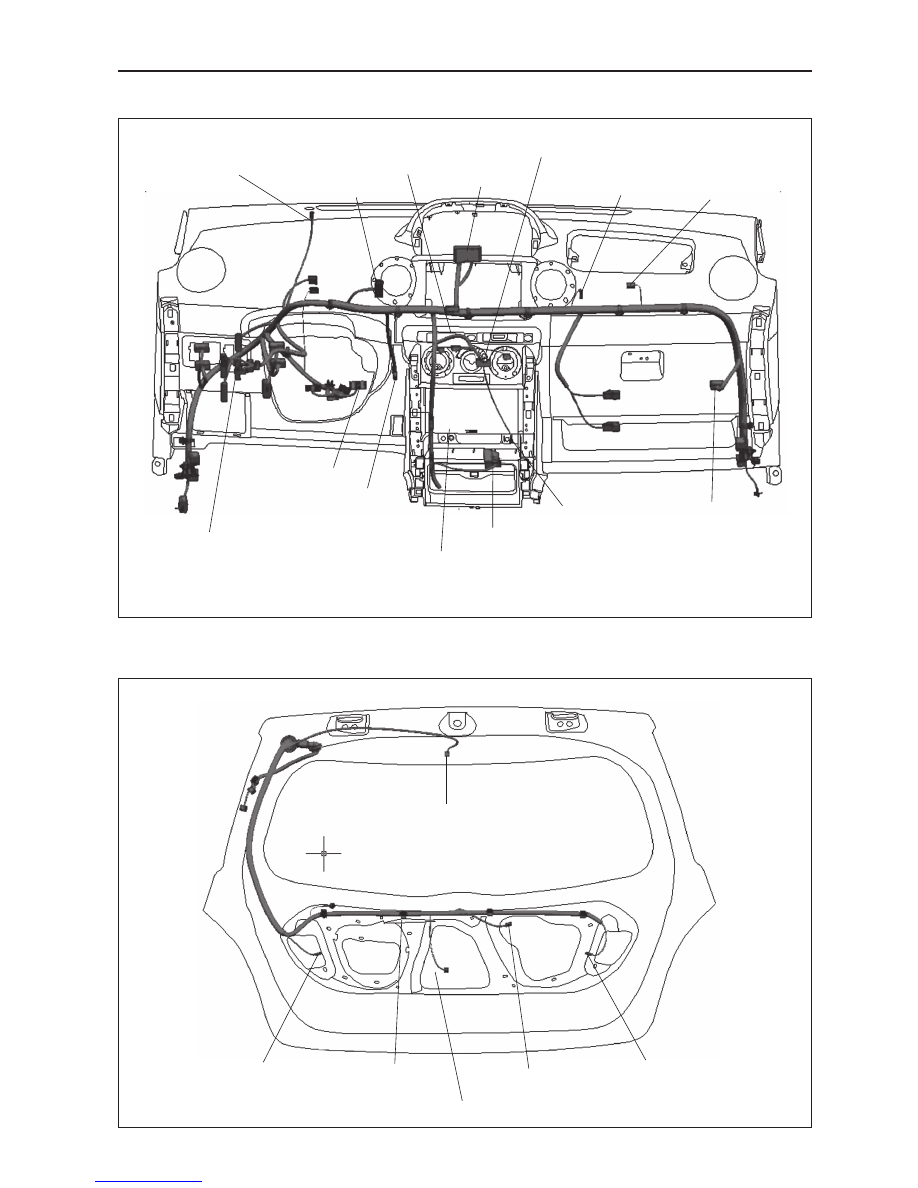

Wire Harness Distribution Chart for the Overall Vehicle

Engine compartment wire harness

ABS ECU

Positive fuse box

No. 2 fuse box

Reverse sensor

ECU

Key Electrical Component’s Module Schematics for the Overall
Vehicle (Continued)

153

Vehicle Body Electronic System

High mounted brake lamp

Rear defroster positive

Rear wiper motor

Trunk lock motor, door lamp switch

Opener switch

Rear defroster negative

Theft deterrent indicator lamp

Combination meter

CD/DVD

Air conditioner speed adjuster, AC

switch, rear defroster switch

Air conditioner

temperature sensor

Front  Passenger  side

airbag assembly

Blower

Glove box lighting

Cigarette lighter and lighting

Airbag ECU assembly 2

Diagnostic port

Acceleration pedal

Power rearview mirror switch, light

brightness regulator

Trunk door wire harness

Central lock controller

Dashboard wire harness
