b

a

NL12-0038b



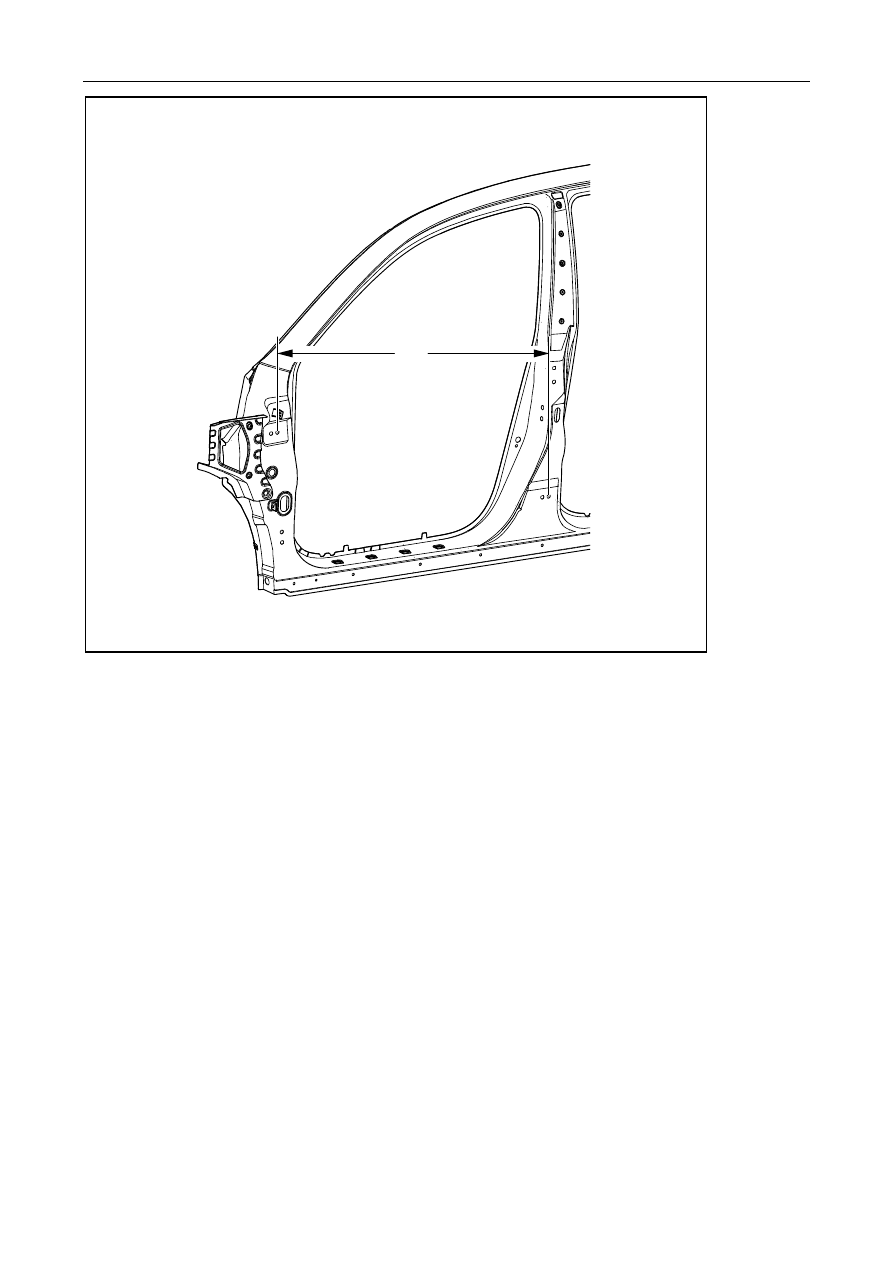

Size between front door upper hinge mounting hole and front door buckle mounting hole

Size a=1071mm (42 in)

Size between front door lower hinge mounting hole and front door buckle mounting hole

Size b=1091mm (43in)

2807




b

a

NL12-0039b



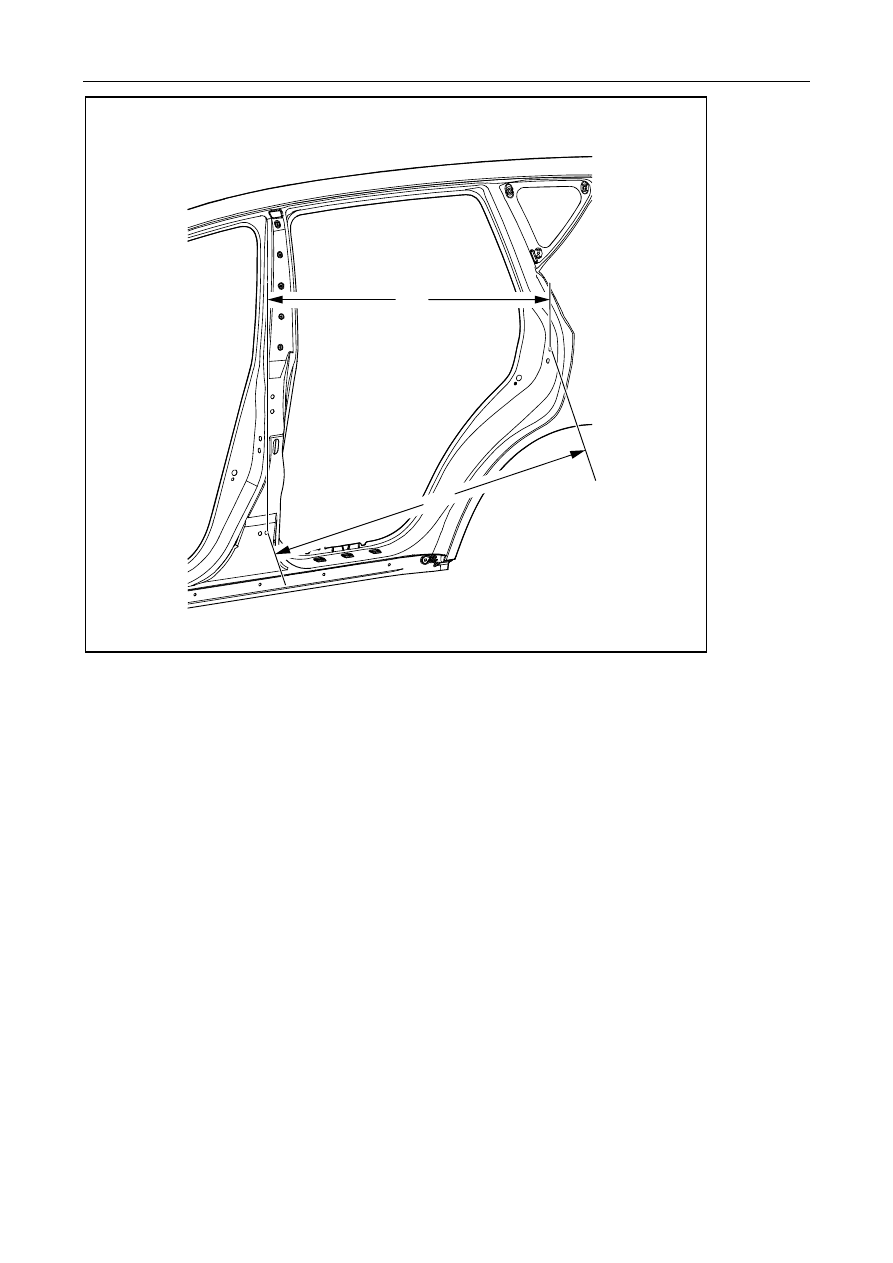

Size between upper hinge mounting hole of rear door and buckle mounting hole of rear door

Size a=1064mm (42 in)

Size between lower hinge mounting hole of rear door and buckle mounting hole of rear door

Size b=1180mm (46 in)

2808




a

NL12-0040b



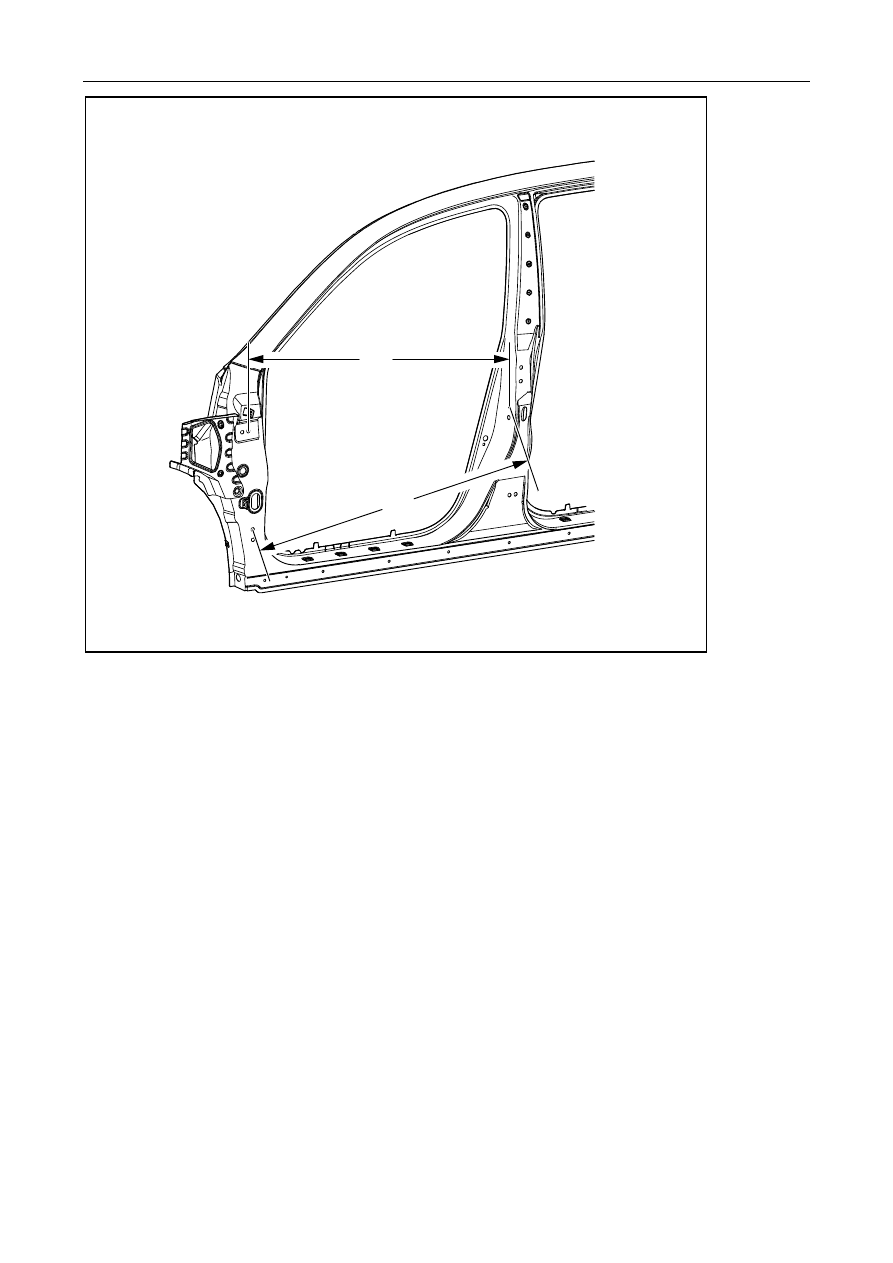

Size between the front door upper hinge mounting hole and rear door lower hinge mounting hole a=1,148mm (45
in)

2809




NL12-0035b

d

b

c

a



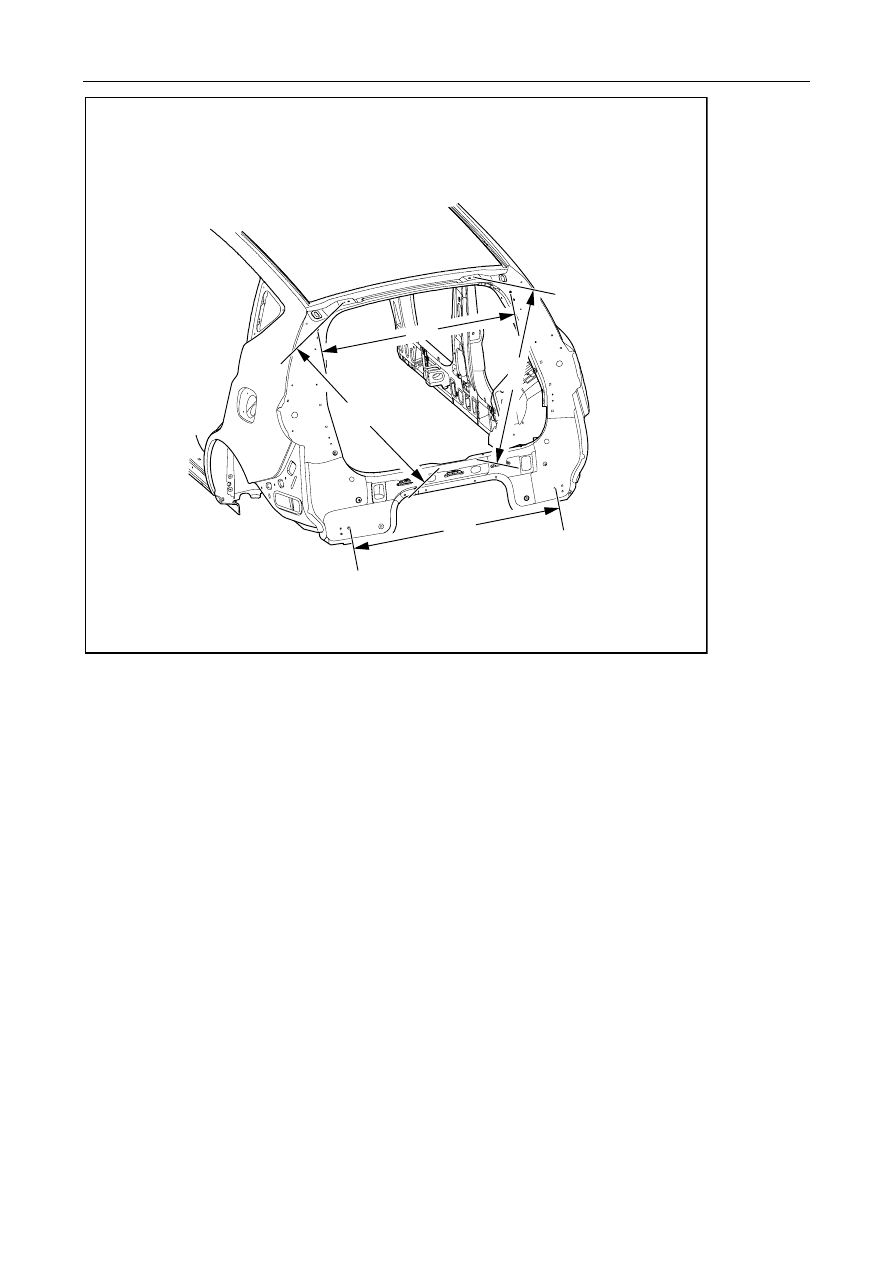

Distance between back door pneumatic jack installation holes

Size a=1029mm (41 in)

Size between the left back door hinge mounting hole (left hole) and rear door lock catch mounting hole (right
hole)

Size  ｂ=965mm (38 in)

Size between the right back door hinge mounting hole (right hole) and rear door lock catch mounting hole (right
hole)

Size c=950mm (37 in)

Size between rear frame plate positioning holes

Size d=1097mm (43in)

2810
