b

a

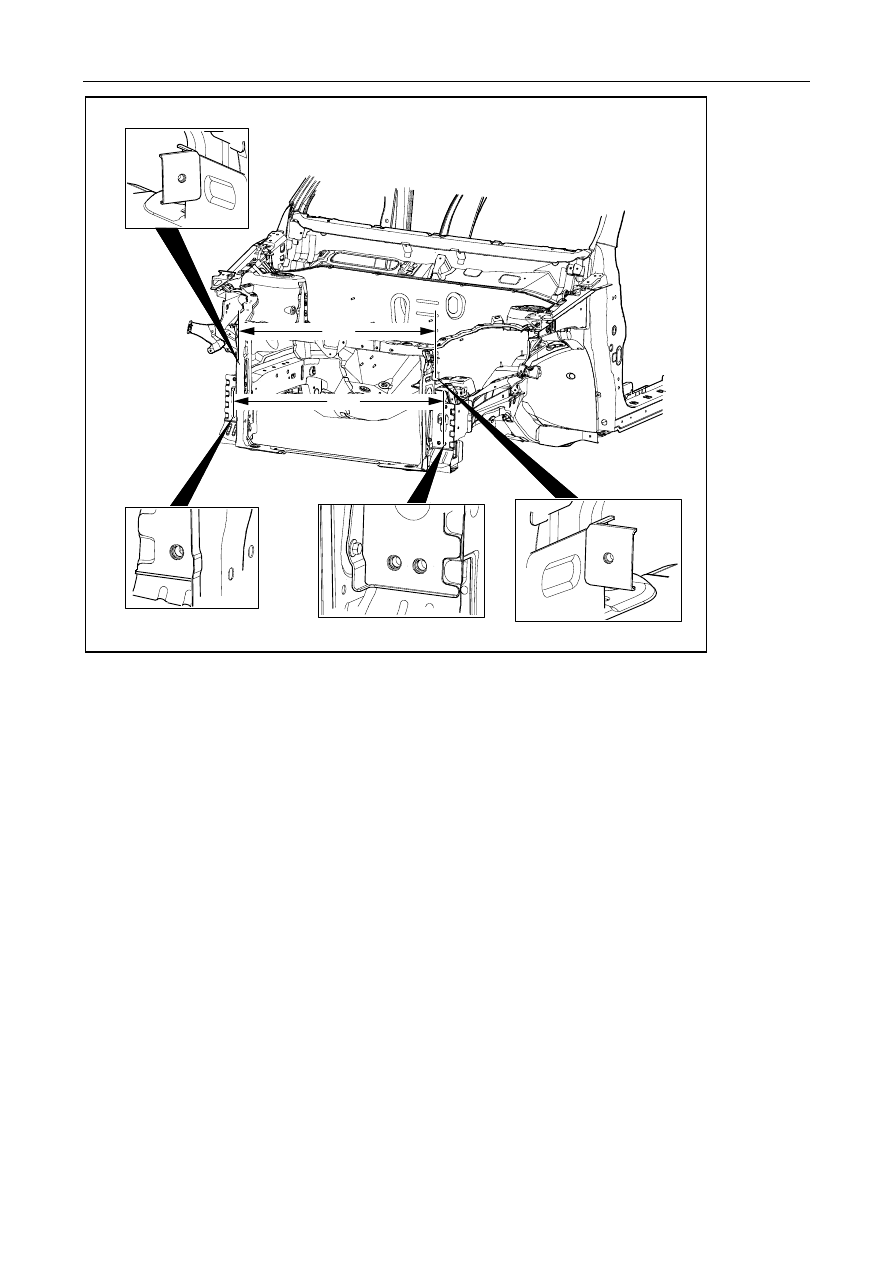

NL12-0041b



Size between the mounting holes of the radiator

Size a=738mm (29in)

Size between the front damper seat plate center holes

Size b=1198.5mm (47in)

2803




a

b

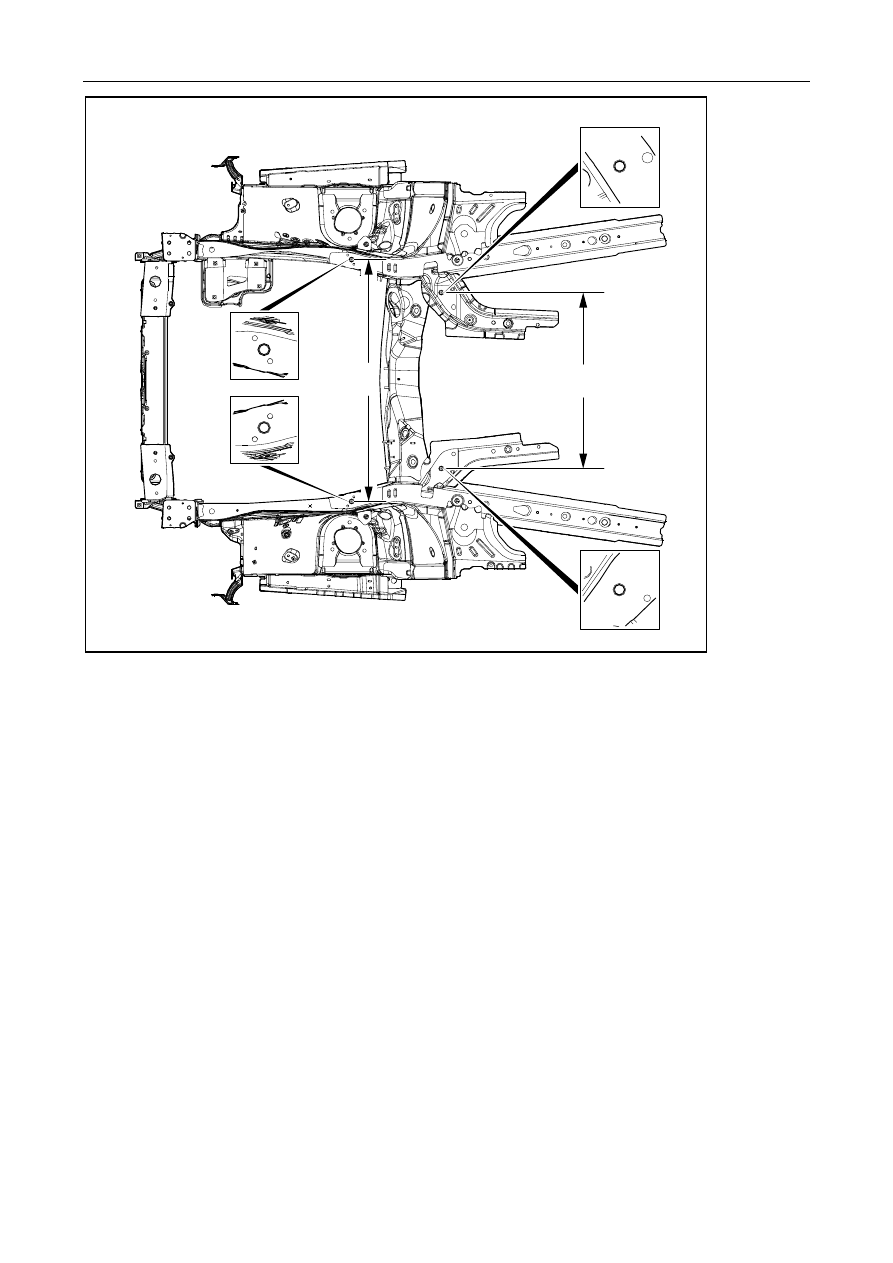

NL12-0042b



Size among front suspension mounting holes (front)

Size a=902mm (36 in)

Size among front suspension mounting holes (rear)

Size b=656mm (26 in)

2804




b

a

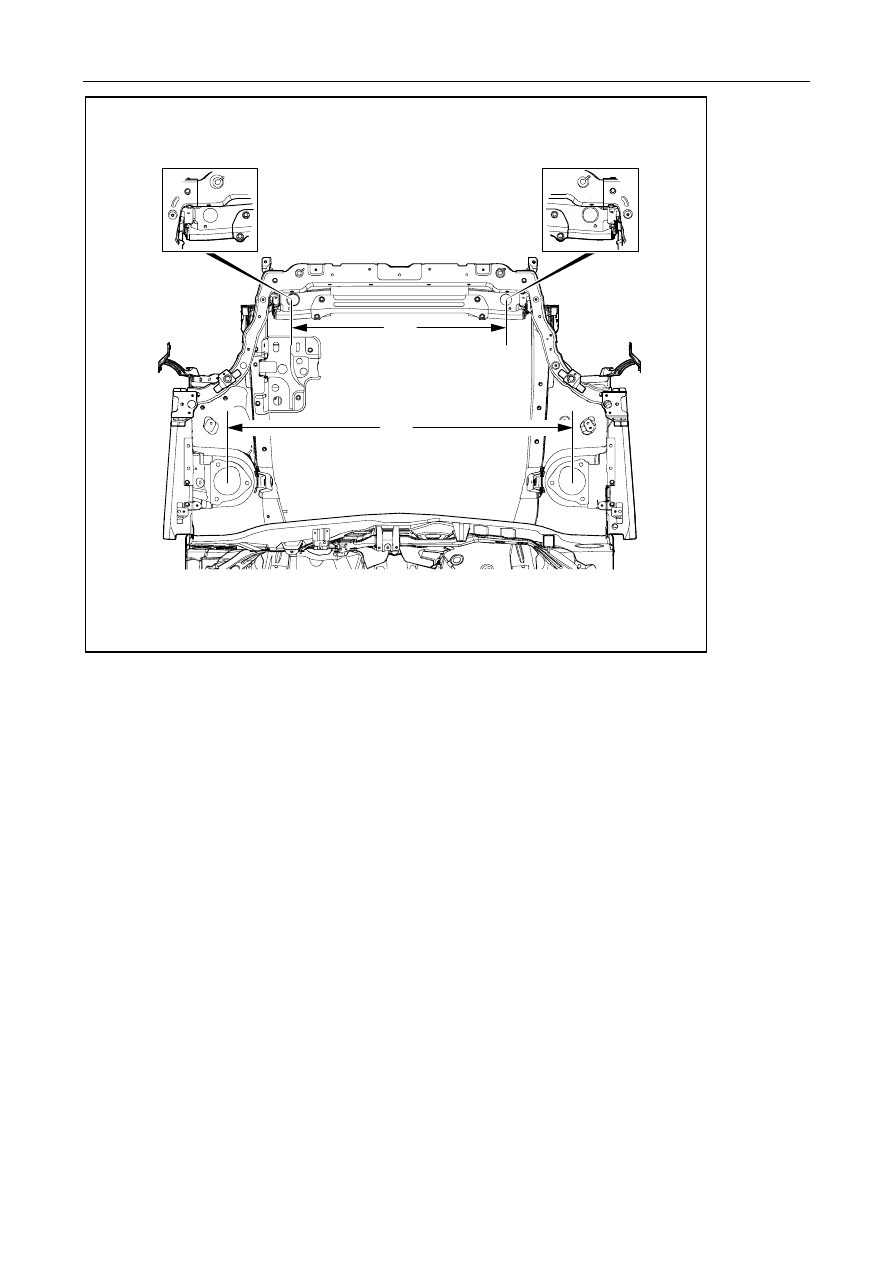

NL12-0034b



Size between the mounting holes of the front combination lamp

Size a=922mm (39in)

Size between the mounting holes of the front beam

Size b=1006mm (39.6 in)

2805




c

b

a

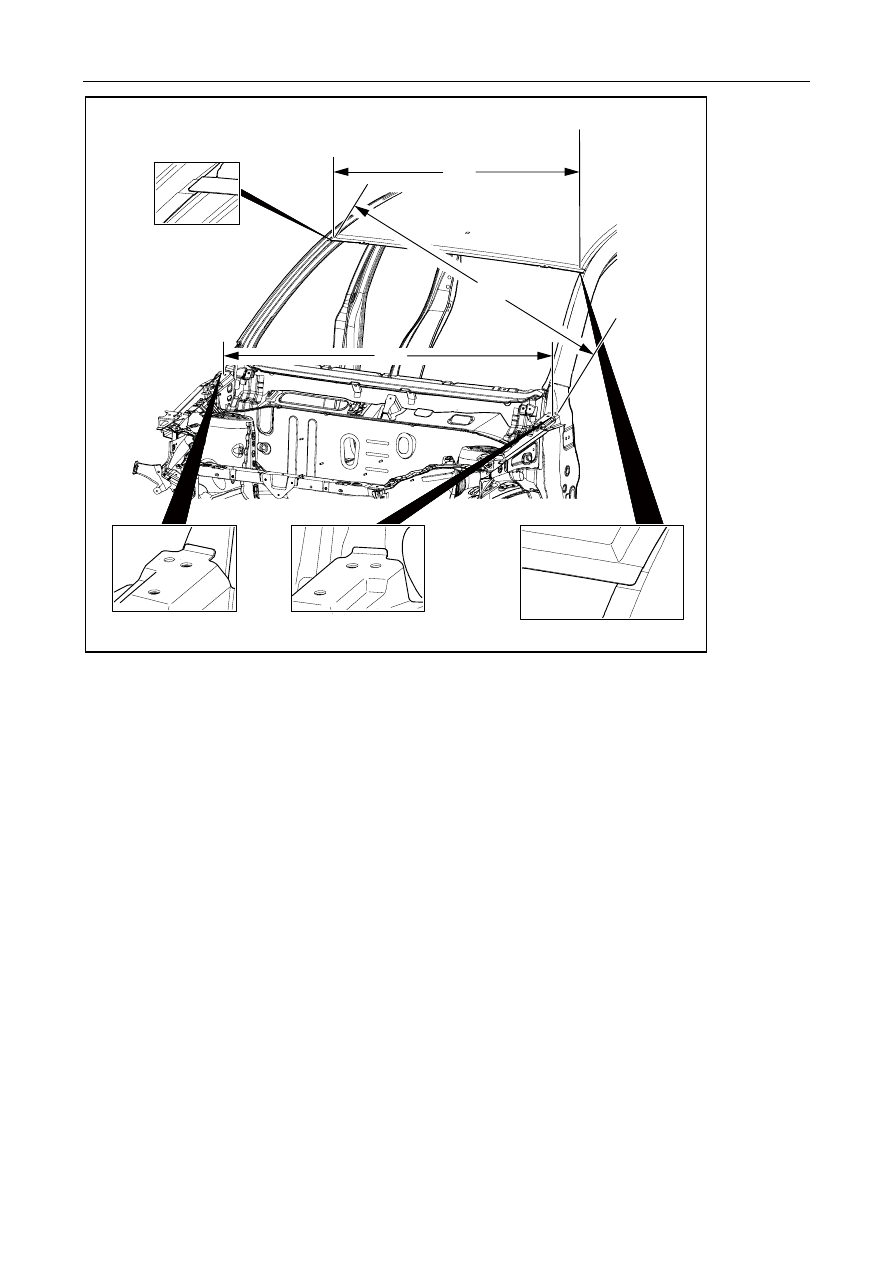

NL12-0033b



Size of clearance between side wall / top of front wall connection position.

Size a=1556mm (61 in)

Size of clearance between side wall /front wall connection position and side wall /roof connection position.

Size b=1580mm (62in)

Size of clearance between the side wall/roof connection position.

Size c=1161mm (46in)

2806
