11.15.6 Removal and installation

11.15.6.1 Cigarette lighter replacement

Dismantlement procedure

Warning!

Warning: refer to warning on battery
disconnection in warnings and
precautions.

1.  Dismantle battery negative

cable , refer to 2.11.8.1
Disconnect connecting process of
battery cable

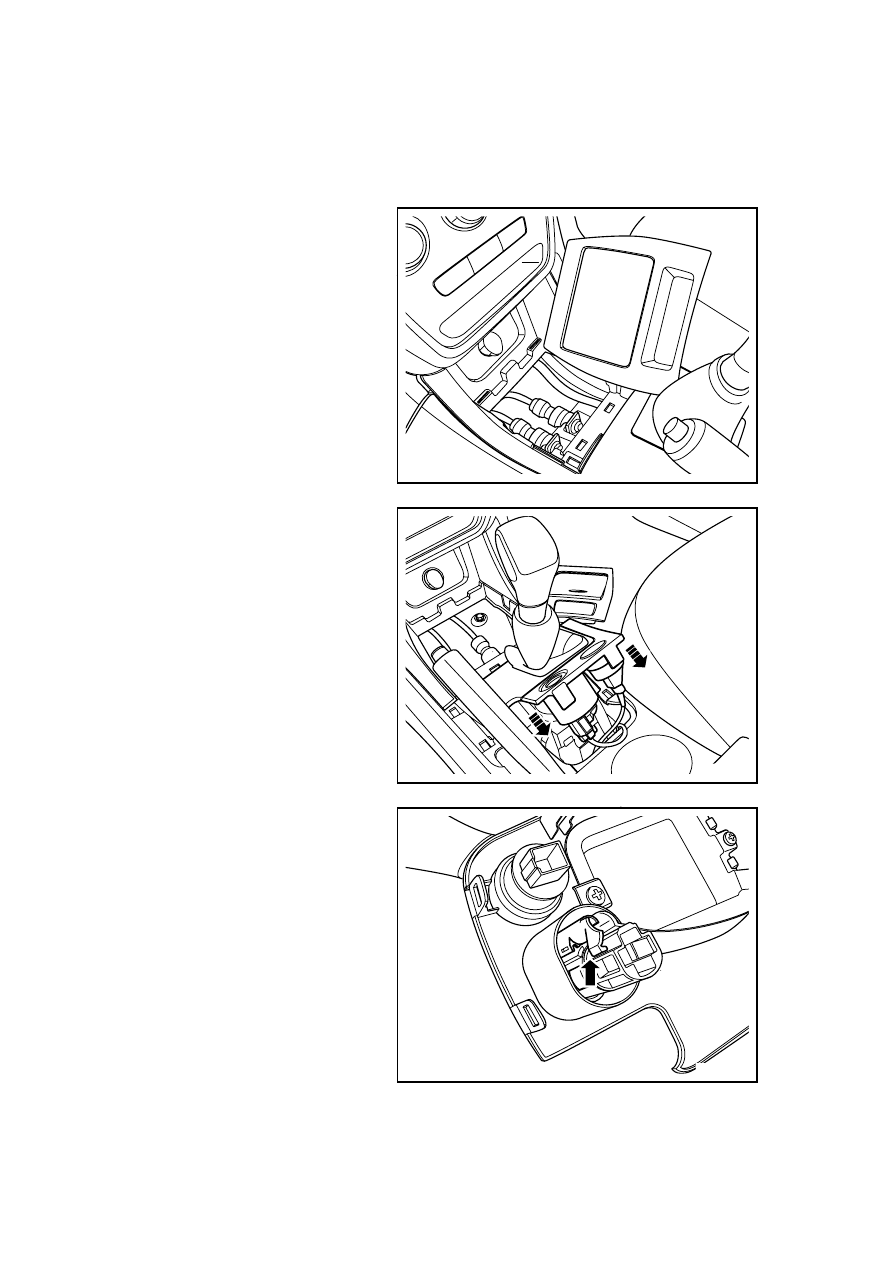

2.  Dismantle front ashtray panel of

auxiliary instrument panel.

NL11-0112b

3.  Separate gearshifting handle

assembly from auxiliary
instrument panel.

4.  Disconnect the harness connector

between the cigarette lighter and
locking switch.

5.  Loosen the shift lever ball and

remove the shift lever.

NL11-0113b

6.  Detach the clamp from the

cigarette lighter.

NL11-0114b

2603

7.  Dismantle the cigarette lighter.

NL11-0115b

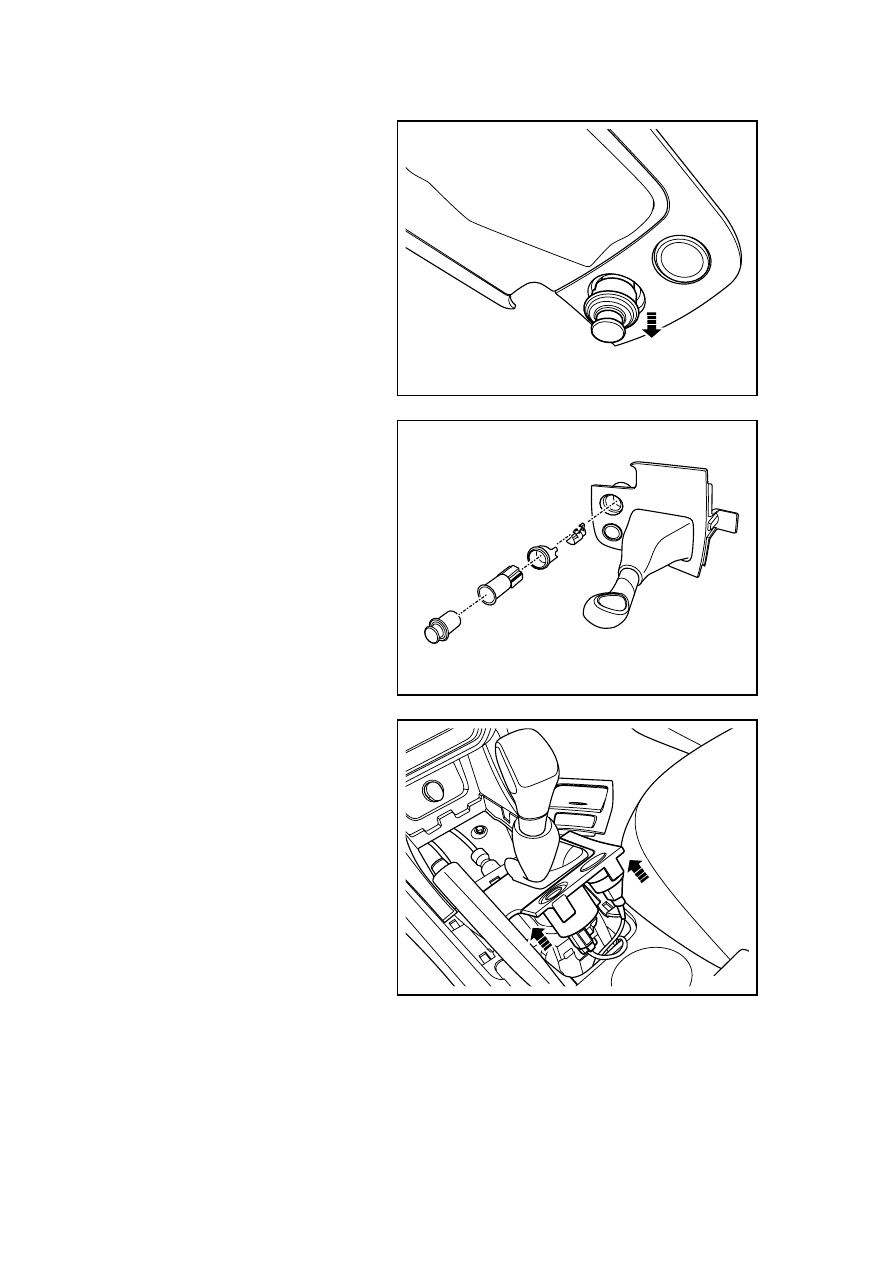

Installation procedure:

1. Install

cigar

lighter.

NL11-0116b

2.  Tighten gearshifting rod ball

head.

3.  Connect cigar lighter and lock

switch wire harness connector.

4.  Install gearshifting handle

assembly.

NL11-0117b

2604

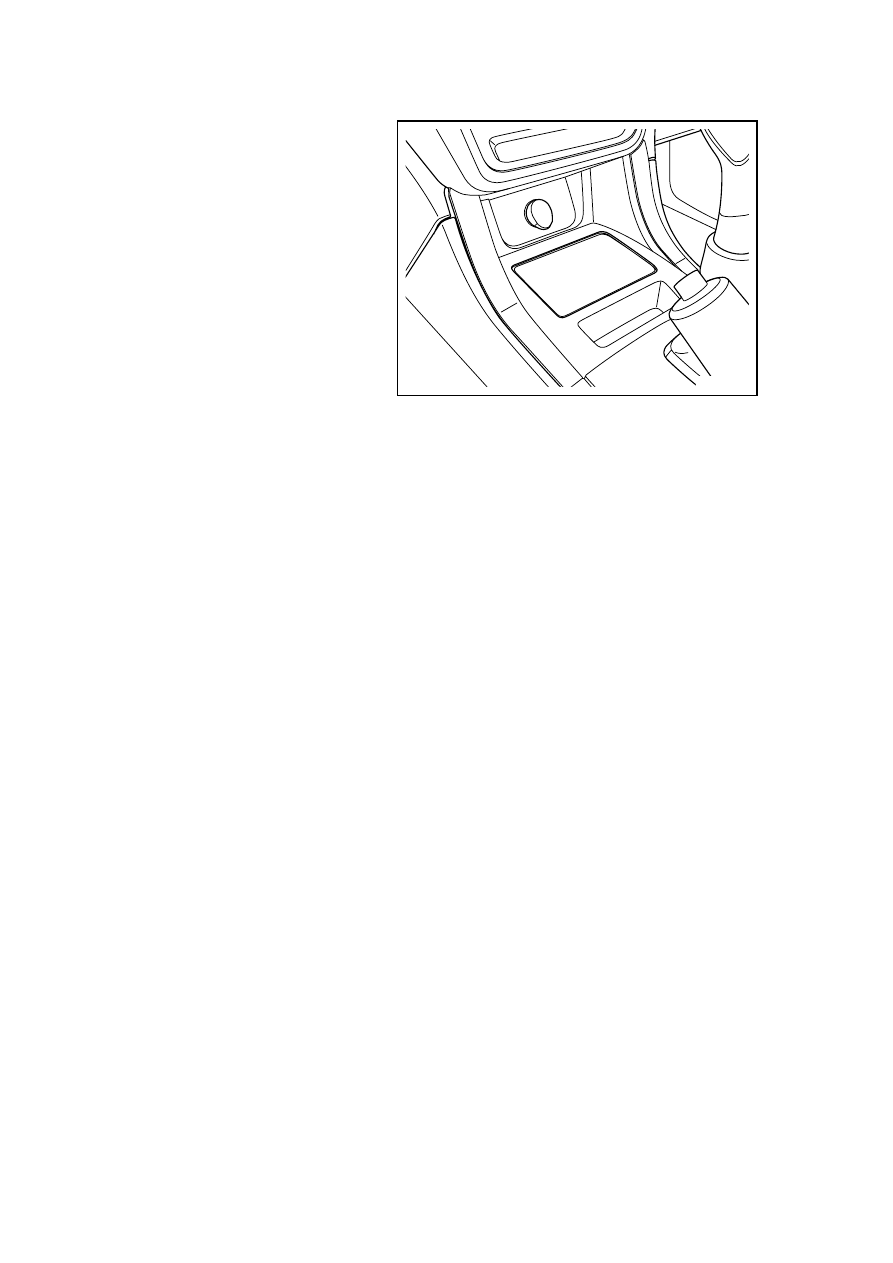

5.  Install front ashtray panel of

auxiliary instrument

6.  Connect the battery negative

cable.

NL11-0118b

2605



11.15.6.2 Standby power supply replacement

Dismantlement procedure

Warning!

Warning: refer to warning on battery
disconnection in warnings and
precautions.

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

2.  Dismantle ashtray panel of

auxiliary instrument table.

NL11-0112b

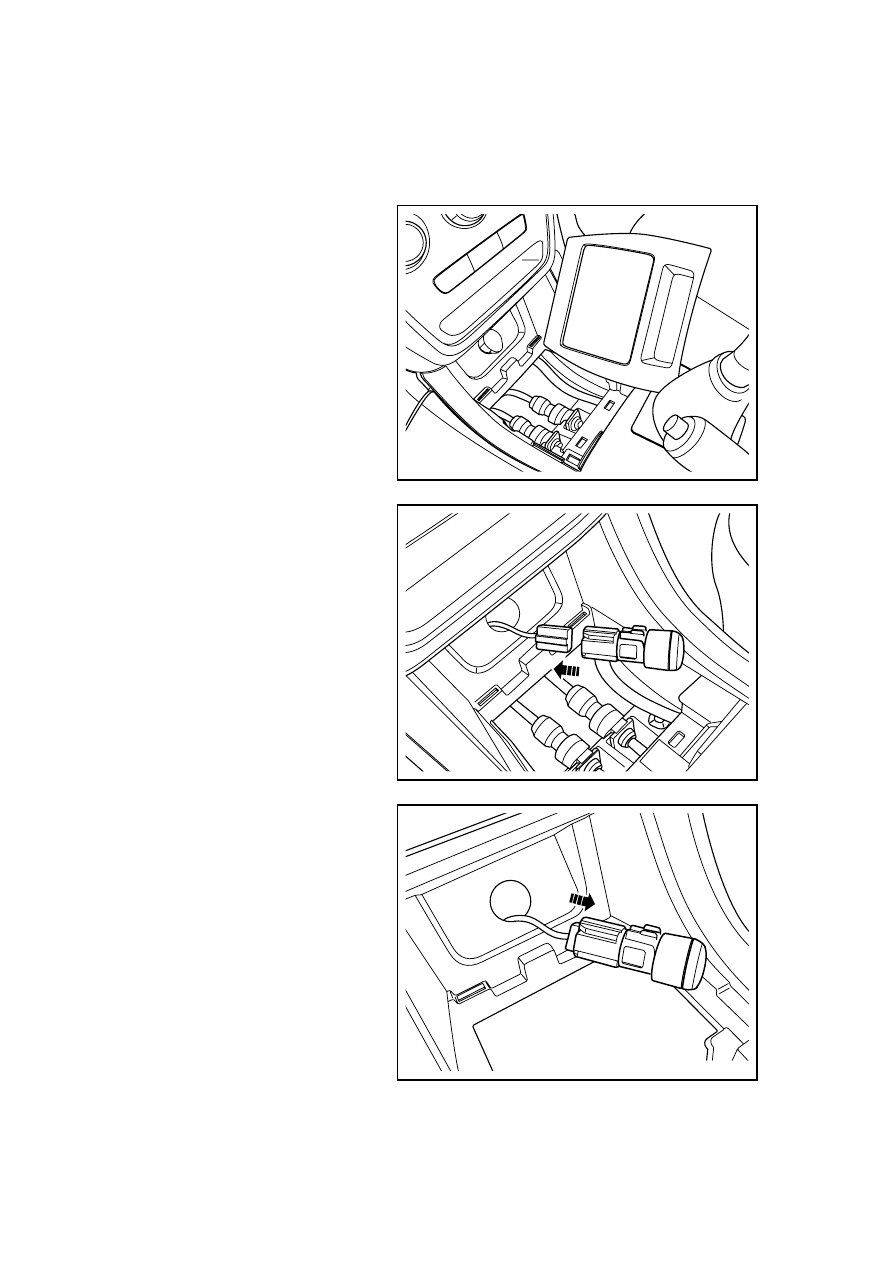

3.  Push out standby power supply

from inside section.

4.  Disconnect standby power supply

wire harness connector.

5.  Remove the backup power

supply.

NL11-0119b

Installation procedure:

1.  Connect the backup power

supply harness connector.

NL11-0120b

2606
