Test Items

Specified Value

SO32(31)—S050(1)Resistance value

Less than 1Ω

SO32(32)—S050(3)Resistance value

Less than 1Ω

SO32(13)—S050(2)Resistance value

Less than 1Ω

S050(1)—effective grounding voltage value

10 kΩ or higher

S050(3)—effective grounding voltage value

10 kΩ or higher

S050(2)—effective grounding voltage value

10 kΩ or higher

S050(1)—effective grounding voltage value

0V

S050(3)—effective grounding voltage value

0V

S050(2)—effective grounding voltage value

0V

S050(1, 2, 3)Inter-voltage value

10 kΩ or higher

Are all tests normal?



3

Inspect the power and grounding circuit of the parking radar control module.

(a)  Refer to 11.12.6.10 System can't self-inspect (buzz doesn't make a sound)

Confirm whether the circuit is normal.



4

Replace left side sensor

(a)  Replace left side sensor. Refer to11.12.7.2 parking motor sensor replacement.



5

Inspect the parking radar self-inspection function to confirm the fault has been
removed.

Next

No

Repair or replace the harness.

Yes

No

Repair or replace the harness.

Yes

2571

11.13.6.18 Right front sensor fault

Diagnostic steps:

Notes:

Inhibit starting the vehicle when performing this inspection step; otherwise, the damage to the
vehicle and personal injury may be caused.

1

Perform the following initial inspection.

A.  Check that the sensor surface must not be covered by foreign matters.

B.  Check that the sensor surface is free from breakage.

C.  Incorrectly painting the rear bumper will cause excessive paint coating to be accumulated on

the sensor surface. Check whether this abnormality exists.

Is the sensor surface checked OK?



2

Check harness and connector.



(a)  Rotated ignition switch to "OFF"

position.

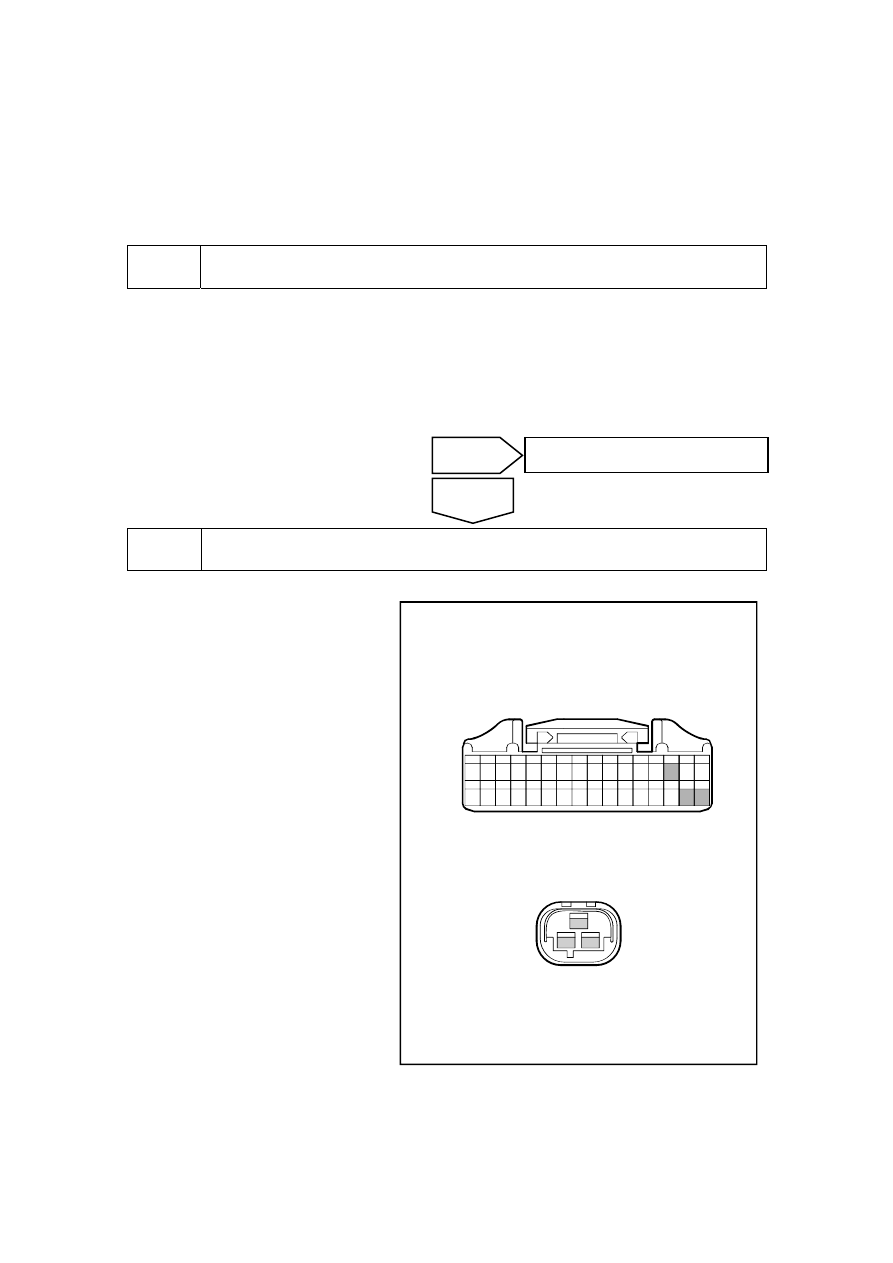

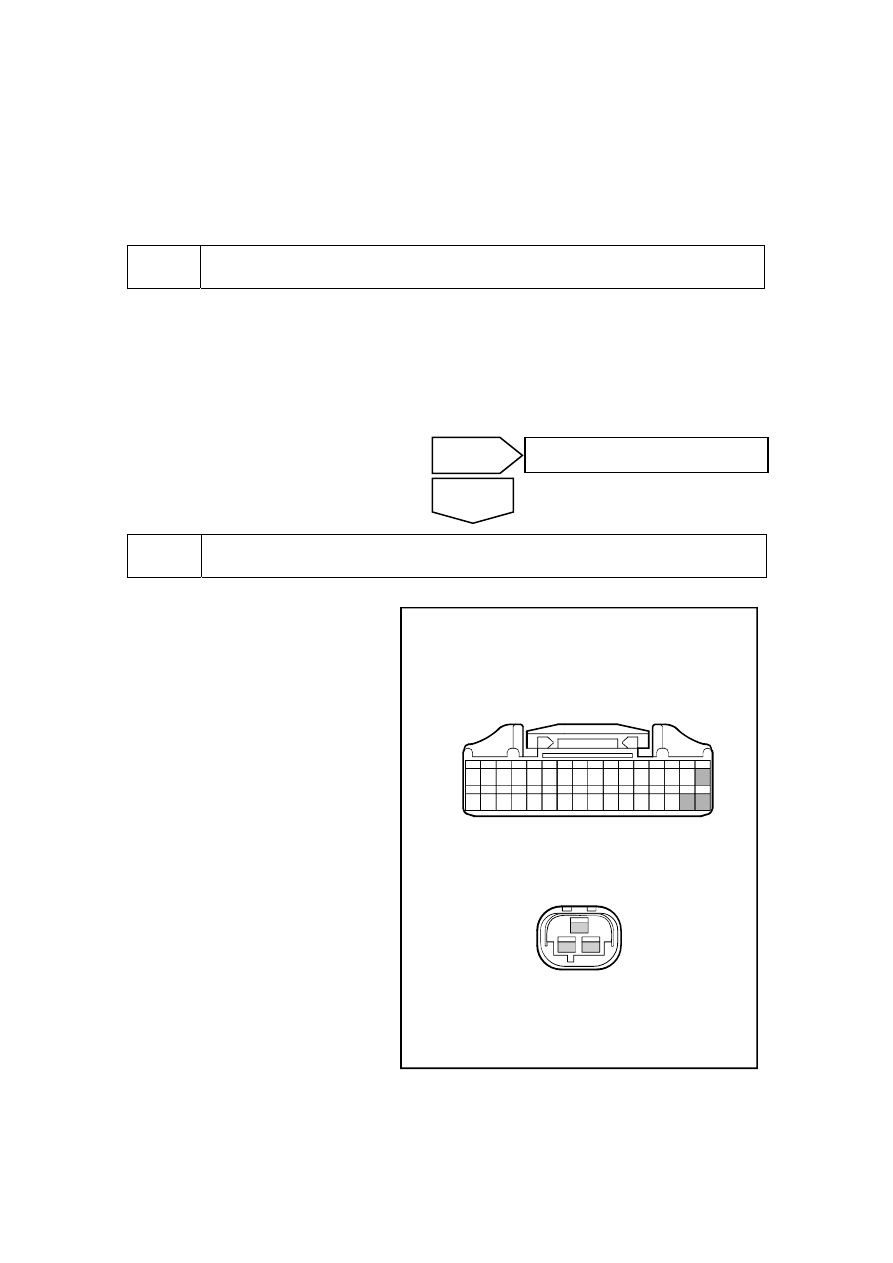

(b)  Disconnect parking motor control

module harness connector SO32.

(c)  Disconnect parking motor right

side sensor CA30.

(d)  Measure the connection situation

of each terminal in the following
table.

2

1

3

1 2 3 4 5 6 7 8 9 10 11 12

27 28 29 30 31 32

13 14 15 16

17 18 19 20 21 22 23 24 25 26

NL11-8005b



No

Clean the surface of the sensor and replace
the sensor if necessary.

Yes

SO32 reverse radar control module harness

connector

CA30 reverse radar Right front Sensor

harness connector

2572

Test Items

Specified Value

SO32(3)—CA30(1)Resistance value

Less than 1Ω

SO32(4)—CA30(3)Resistance value

Less than 1Ω

SO32(5)—CA30(2)Resistance value

Less than 1Ω

CA30(1)—effective grounding voltage value

10 kΩ or higher

CA30(3)—effective grounding voltage value

10 kΩ or higher

CA30(2)—effective grounding voltage value

10 kΩ or higher

CA30(1)—effective grounding voltage value

0V

CA30(3)—effective grounding voltage value

0V

CA30(2)—effective grounding voltage value

0V

CA30(1, 2, 3)Inter-voltage value

10 kΩ or higher

Are all tests normal?



(a)  Refer to 11.12.6.10 System can't self-inspect (buzz doesn't make a sound)

Confirm whether various tests are normal.



4

Replace right side sensor.

(a)  Replace right side sensor, refer to11.12.7.2 parking motor sensor replacement.



3

Inspect the power and grounding circuit of the parking radar control module.

5

Inspect the parking radar self-inspection function to confirm the fault has been
removed.

Next

No

Repair or replace the harness.

Yes

No

Repair or replace the harness.

Yes

2573

11.13.6.19 Left front sensor fault

Diagnostic steps:

Notes:

Inhibit starting the vehicle when performing this inspection step; otherwise, the damage to the
vehicle and personal injury may be caused.

1

Perform the following initial inspection.

A.  Check that the sensor surface must not be covered by foreign matters.

B.  Check that the sensor surface is free from breakage.

C.  Incorrectly painting the rear bumper will cause excessive paint coating to be accumulated on

the sensor surface. Check whether this abnormality exists.

Is the sensor surface checked OK?





(a)  Rotated ignition switch to "OFF"

position.

(b)  Disconnect parking motor control

module harness connector SO32.

(c)  Disconnect parking motor right

side sensor CA29.

(d)  Measure the connection situation

of each terminal in the following
table.

2

1

3

1 2 3 4 5 6 7 8 9 10 11 12

27 28 29 30 31 32

13 14 15 16

17 18 19 20 21 22 23 24 25 26

NL11-8006b



2

Check harness and connector.

No

Clean the surface of the sensor and replace
the sensor if necessary.

Yes

SO32 reverse radar control module harness

connector

CA29 reverse radar left front Sensor

harness connector
