(a)  Repair circuit fault points between parking radar indicator lamp wire harness connector IP10

terminal No. 6 and combined instrument wire harness connector IP01 terminal No. 7.

(b)  Connect to parking motor indicator lamp harness connector IP10.

(c)  Connect to instrument cluster harness connector IP01.

(d)  Turn on ignition switch.

(e)  Place gearbox to "R" position.

Confirm whether the parking radar buzzer works normally.



6

Inspect whether the other warning sound of the combination instrument is normal.

(a)  Ensure whether other warning lamp sound of combined instrument is normal.

Confirm whether the parking radar buzzer is normal.



(a)  Replace the combination instrument and refer to 11.6.7.1 Replacement of Combination

Instrument Assembly.

Confirm whether the parking radar buzzer is normal.



8

Replace parking motor control module.

Replace parking motor control module, refer to11.12.7.1 replace parking radar module .

Confirm the completion of repair.



9 Troubleshooting

7

Replace instrument cluster,

Next

Yes

The system is normal.

No

Yes

Go to step 8

No

Yes

The system is normal.

No

2563



11.13.6.14 When shift lever is in the R gear, buzzer is always sound

Notes:

Inhibit starting the vehicle when performing this inspection step; otherwise, the damage to the
vehicle and personal injury may be caused.

Diagnostic steps:

1

Inspect the parking radar module buzzer driving circuit.



(a)  Rotated ignition switch to "OFF"

position.

(b) Disconnect

parking

motor

indicator harness connector IP10.

(c)  Disconnect the combination

instrument p harness
connectorIP01.

(d)  Measure resistance between

parking radar indicator lamp wire
harness connector IP10 terminal
No. 6 and reliable grounding.

(e)  Turn ignition switch to "ON"

position.

(f)  Measure voltage between parking

radar indicator lamp wire harness
connector IP10 terminal No. 6
and reliable grounding.

Standard Value:

1

2

3

4

5

6

16

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

17

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18

IP01 组合仪表线束连接器

SO33 倒车雷达控制模块线束连接器

5

7

NL11-3003 b



Test items

Specified conditions

IP10(6)——grounding

10 kΩ or higher

IP10(6)——grounding

0V

Are the values specified values?



2

Repair the parking radar module buzzer driving circuit.

Yes

Go to step 3

No

SO33 reverse radar control module harness

connector

IP01 combination instrument harness

connector

2564

(a)  Repair parking radar buzz drive circuit.

(b)  Connect reversing radar indicator lamp wire harness connector IP10.

(c)  Connect to instrument cluster harness connector IP01.

(d)  Turn on ignition switch to ON position.

Confirm whether the parking radar buzzer works normally.



(a)  Refer to 11.12.6.10 System can't self-inspect (buzz doesn't make a sound)

Confirm whether the parking radar buzzer works normally.



4

Replace parking motor control module.

(a)  Refer to 11.12.7.1 Replacement of parking radar module.

Confirm the completion of repair.



5

Verify the maintenance effect.



6 Troubleshooting



3

Inspect the power circuit of the parking radar control module.

Next

Next

Yes

The system is normal.

No

Yes

The system is normal.

No

2565



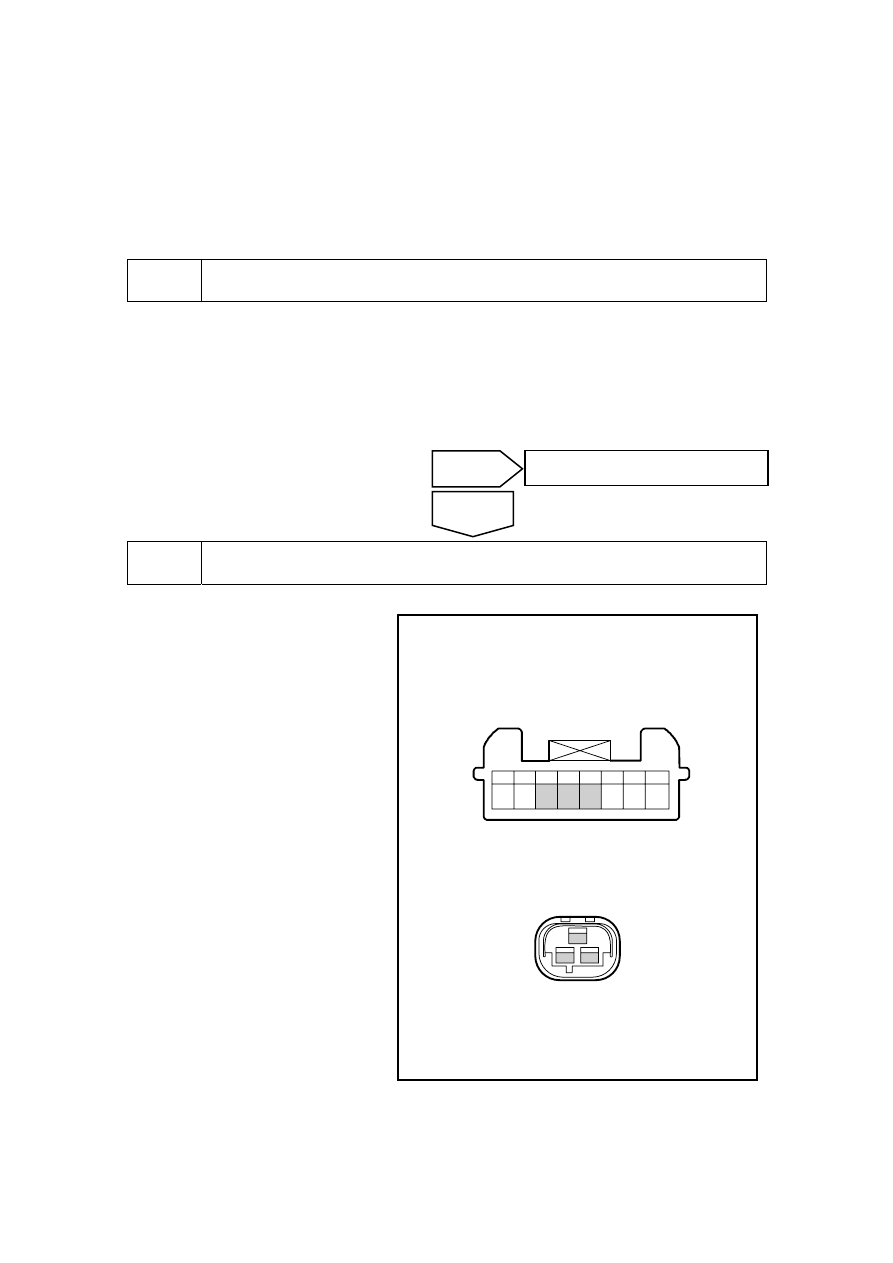

11.13.6.15 Right side sensor fault

Diagnostic steps:

Notes:

Inhibit starting the vehicle when performing this inspection step; otherwise, the damage to the
vehicle and personal injury may be caused.

1

Perform the following initial inspection.

(a)  Inspect and ensure that the surface of sensor can't be covered by foreign matters.

(b)  Inspect and make sure that the sensor surface has no damage or other situations.

(c)  For painting process of rear bumper which may cause large deposit of sensor, inspect

whether there is any abnormal condition.

Is the sensor surface checked OK?



2

Check harness and connector



(a)  Rotated ignition switch to "OFF"

position.

(b)  Disconnect parking motor control

module harness connector SO32.

(c)  Disconnect parking motor right

side sensor SO49.

(d)  Measure the connection situation

of each terminal in the following
table.

1

2

3

4

5

6

7

8

2

1

3

SO32 倒车雷达控制模块线束连接器

SO49 倒车雷达右侧传感器线束连接器

NL11-3004 b



No

Clean the surface of the sensor and replace
the sensor if necessary.

Yes

SO32 reverse radar control module harness

connector

SO49 reverse radar right side Sensor

harness connector

2566
