11.13.5 Electrical schematic diagram

11.13.5.1 Electrical schematic diagram

NL11-2999b

左侧传感器

摄像头

中间传感器

右侧传感器

倒车开关

倒

车

雷

达

模

块

组

合

仪

表

导

航

仪



11.13.5.2 Parking motor control module terminal list

1

2

3

4

5

6

7

8

SO32 倒车雷达控制模块线束连接器

NL11-3000b





Left side

sensor

Intermediate

sensor

Rightsensor

Reverse

switch










Reverse radar

module

Camera




Navigator





Combination

instrument

SO32 reverse radar control module harness

connector

2555

Terminal

No .

Signal

type

Description

Terminal

No .

Signal type

Description

1

IGN

Ignition signal

17

GND

Power ground

2 NC No

Connect 18

KEY-IN

Key Input (active for

reserved 12V high

level)

3

Speed IN

Speed pulse signal

19

NC

No Connect

4

R-DANG

Reversing signal

20

NC

No Connect

5

P-DANG

Parking signal

21

NC

No Connect

6 Data

Out

Standard serial

port signal (0-12V)

22 NC  No

Connect

7

NC

No Connect

23

NC

No Connect

8

R Sensor

Right rear sensor

24

NC

No Connect

9

NC

No Connect

25

NC

No Connect

10 C

Sensor

Rear intermediate

sensor

26 NC  No

Connect

11

NC

No Connect

27

NC

No Connect

12

NC

No Connect

28

NC

No Connect

13

L Sensor

Rear left sensor

29

NC

No Connect

14

FR Sensor

Front right sensor

30

NC

No Connect

15

NC

No Connect

31

PGND

Sensor grounding

16

FL Sensor

Front left sensor

32

SEN POWER

Sensor +8V power

supply

2556



11.13.6 Diagnostic information and procedures

11.13.6.1 Diagnosis descriptions

Refer to 11.13.2 Description and Operation, get familiar with the system functions and operation
before starting system diagnosis, so that it will help to determine the correct diagnostic steps, more
importantly, it will also help to determine whether the situation described by the customer is
normal.

11.13.6.2 Visual inspection

–

Inspect the after-sales optional device which may affect the normal operation of parking
radar system.

–

Inspect components easy to access system to identify whether there is a significant damage
that may lead to the fault.

–

Inspect the installation of parking radar control unit and whether the wire harness connector
is installed properly.

11.13.6.3 Sensor fault diagnosis

Starting for self-checking

Head unit energized automatically detects whether the system function is normal; the system
energized delays for about 0.6s, with self-check for about 0.2s; if all sensors have no failure,
self-check data of about 0.5 s is sent to the dashboard, with data packet interval of 0.1s, all
indicator lamps turn on for 0.5s after the reception of the dashboard, meanwhile, the buzzer beeps
for 0.5s; there is sensor in five sensors damaged or in poor contact, the self-check data of about 2s
is sent to the dashboard, with data packet interval of 0.1s; the indicator lamp corresponding to the
fault sensor turns on for 2s after the reception of the dashboard, and meanwhile, the buzzer beeps
for 2s.

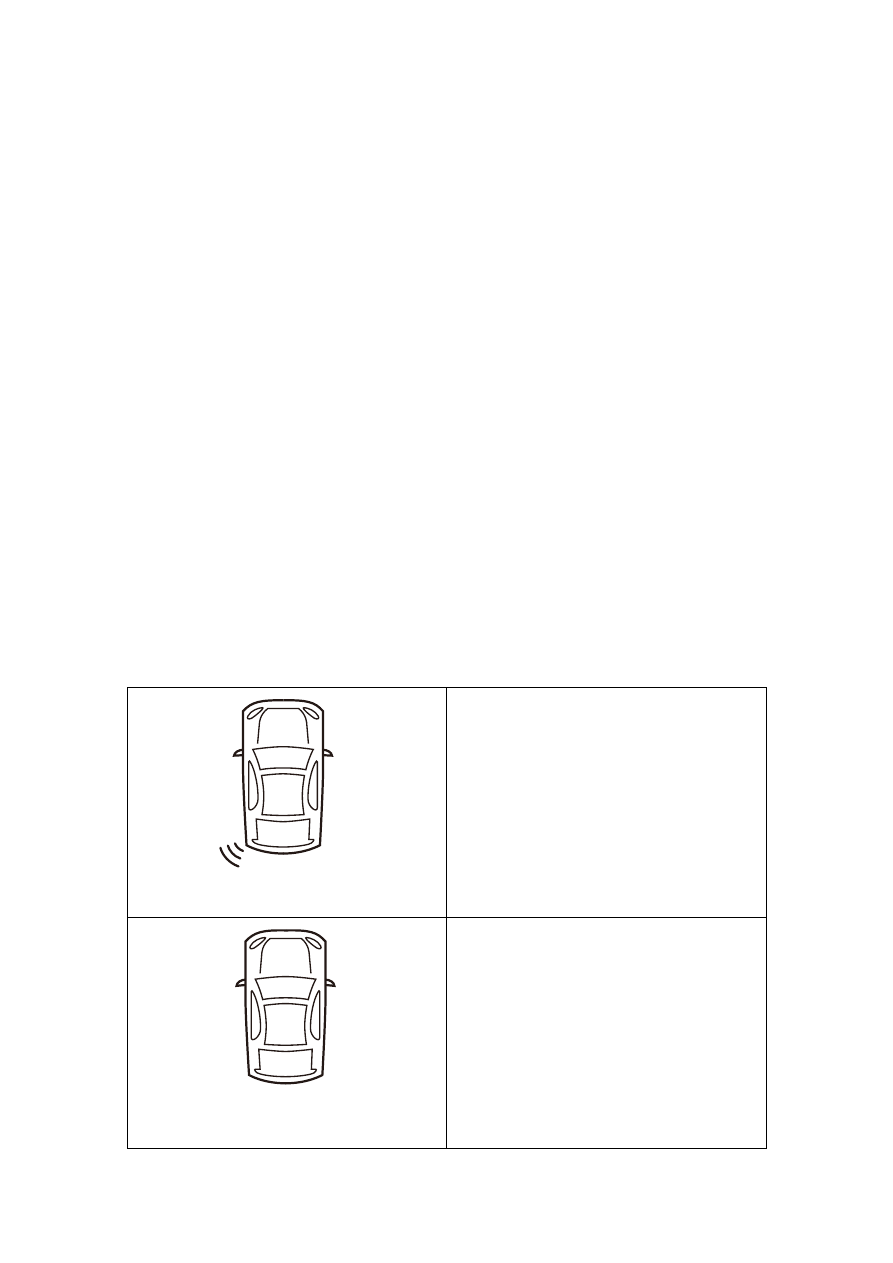

Fault figure



Sensorfault

If electrified, the rear sensor works normally, as

shown in the figure, the "logistics trolley" body

displays to prompt "sensor fault" in Chinese.

Rear left sensor direction indicator lamp turns

on for 2s; at the same time, the buzzer beeps for

2s, which indicates left sensor error.



Good-working



If electrified, 5 sensors work normally, as

shown in the figure, the "logistics trolley" body

displays to prompt "normal operation" in

Chinese; all sensor indicator lamps turn on for

0.5s; meanwhile, the buzzer beeps for 0.5s,

which indicates all sensor normally work.

2557



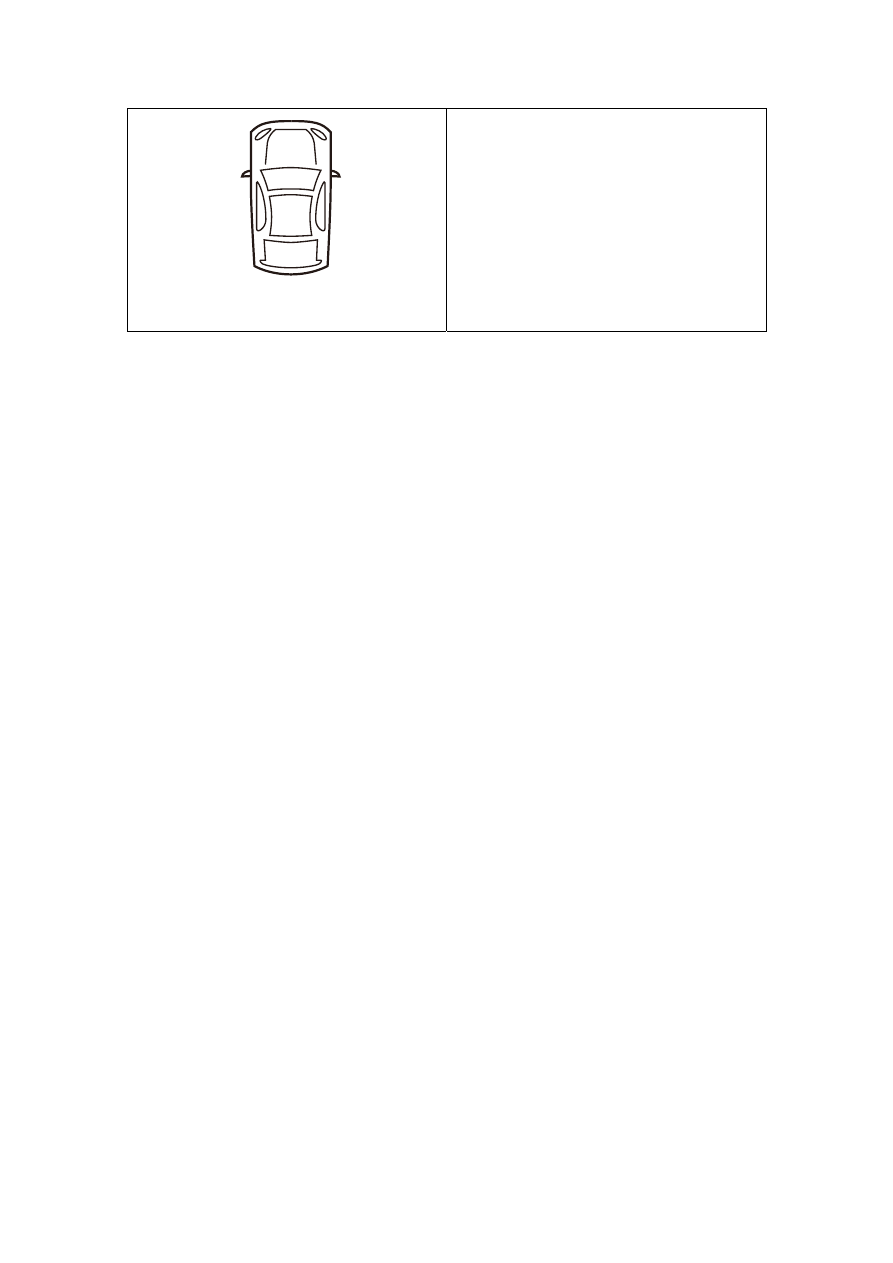

Radar communication fault



If the body harness or the reverse radar system

is damaged to cause that the dashboard can not

receive the data from the reverse radar system,

display as shown in the left figure: in this state,

the "logistics trolley" body displays "radar

communication failure" in Chinese; and five

sensor indicator lamps do not display.

Reasons for System may be not work [properly

1.  When external decoration outside sensor is frozen.

2.  Sensor surface has snow or water drips, etc.

Reasons for Sensor detecting ability may drop

1.  When snow or water drops into the probe of sensor.

2.  Under extreme hot or cold weather.

3.  Obstacle diameter is less than 14cm(5.5in) and length is less than 1m(39in)。

11.13.6.6 Possible reason of error warming for system

1.  On unflat road, pebble road and grass road.

2.  System is near other ultrasonic wave source, such as vehicle horn, motorcycle engine noise,

commercial vehicle air brake interference, etc.

3.  Heavy rain and splashing water.

4.  Approach such radio equipment as walkman, etc.

5.  When the sensor is covered by snow.

11.13.6.7 System can not detect the object as follow

1.  Object with sharp angle .rope and so on

2.  It can absorb ultrasonic wave matters, such as cotton, snow and sponge, etc.

11.13.6.8 Condition may be occur

1.  According to vehicle speed and shape of barrier, warning level may be incontinuous.

2

Whne height of sensor and rear bumper changes or vehicle loading article is located on
detection area, system may send error warning.

3.  Attention should be paid that the system can't detect metter which is more than 30cm (11.8in)

away from sensor.

4.  When sensor error is detected, inspect whether there is dust, snow and water, etc. on the

surface of sensor, if yes, remove dust, snow and water from the surface.

5.  Avoid the sensor surface from being compressed, impacted and scratched.

6.  Inform another user of this vehicle lent to him of these instructions.

11.13.6.9 Possible cause for visual back-up system unworn

1.  No core navigation damaged or part damaged (video module damaged, incapable of
