11.9.8.2 Anti-theft indicator lamp replacement

Dismantlement procedure

Warning!

Warning: refer to warning on battery
disconnection in warnings and
precautions.

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

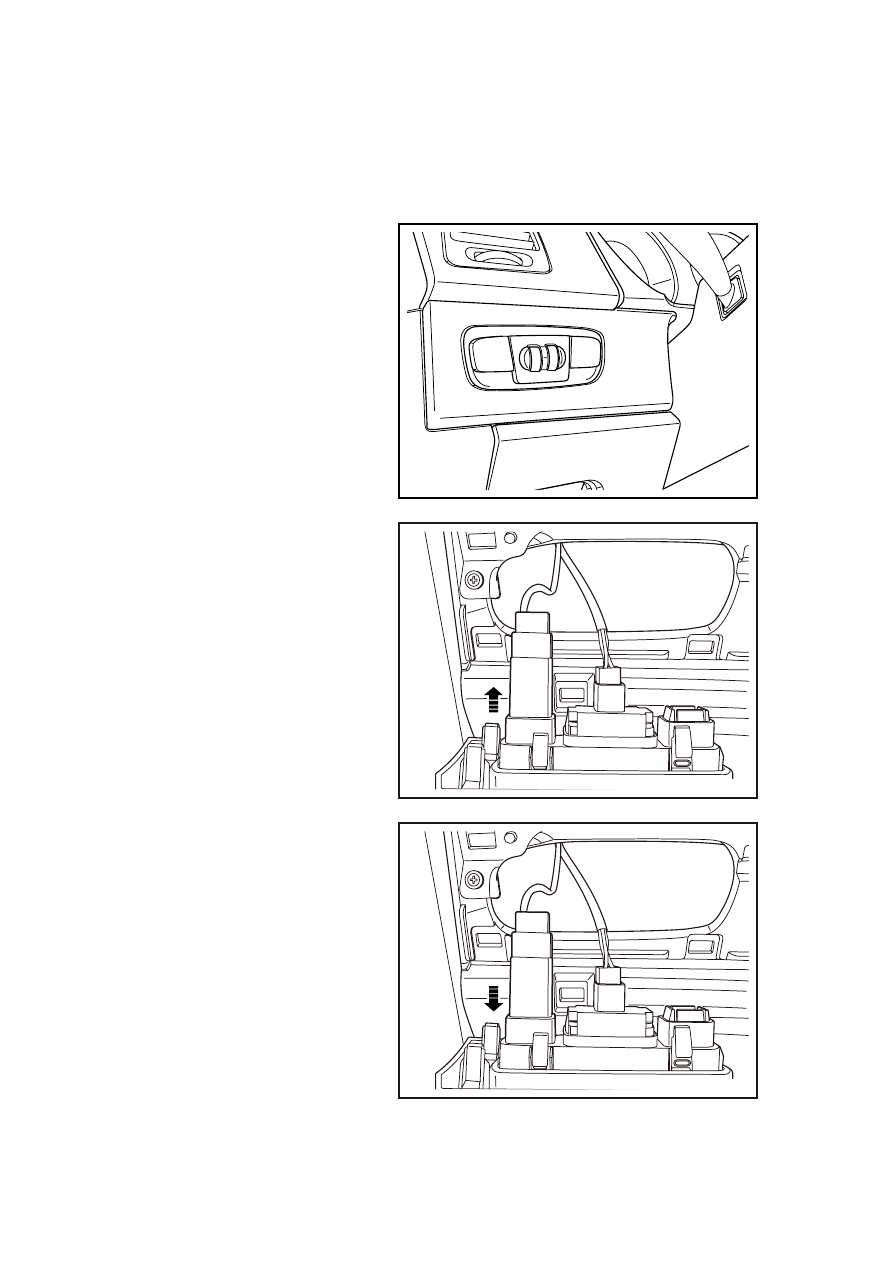

2. Dismantle  instrument  panel

switch group assembly.

NL11-0193b

3. Disconnect anti-theft indicator

lamp harness connector.

4.  Remove the anti-theft indicator

lamp.

NL11-0194b

Installation procedure:

1. Install

anti-theft indicator lamp

on instrument panel switch
assembly.

2. Connect

anti-theft indicator lamp

wire harness connector.

NL11-0600b

2487

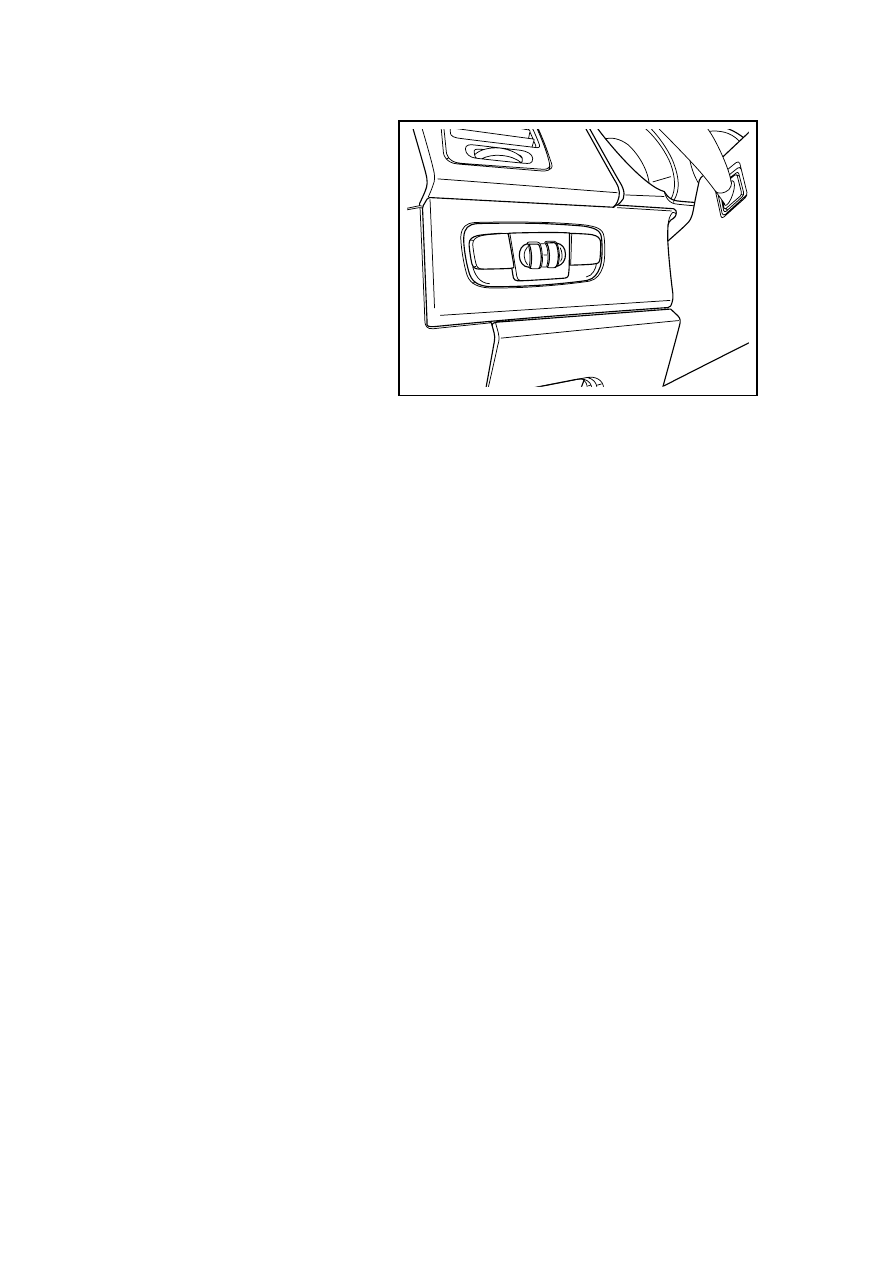

3.  Install instrument panel switch

onto instrument table.

NL11-0193b



2488



11.9.8.3 Door contact switch replacement

Dismantlement procedure

Warning!

Warning: refer to “warning on battery
disconnection” in “warnings and
precautions”.

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

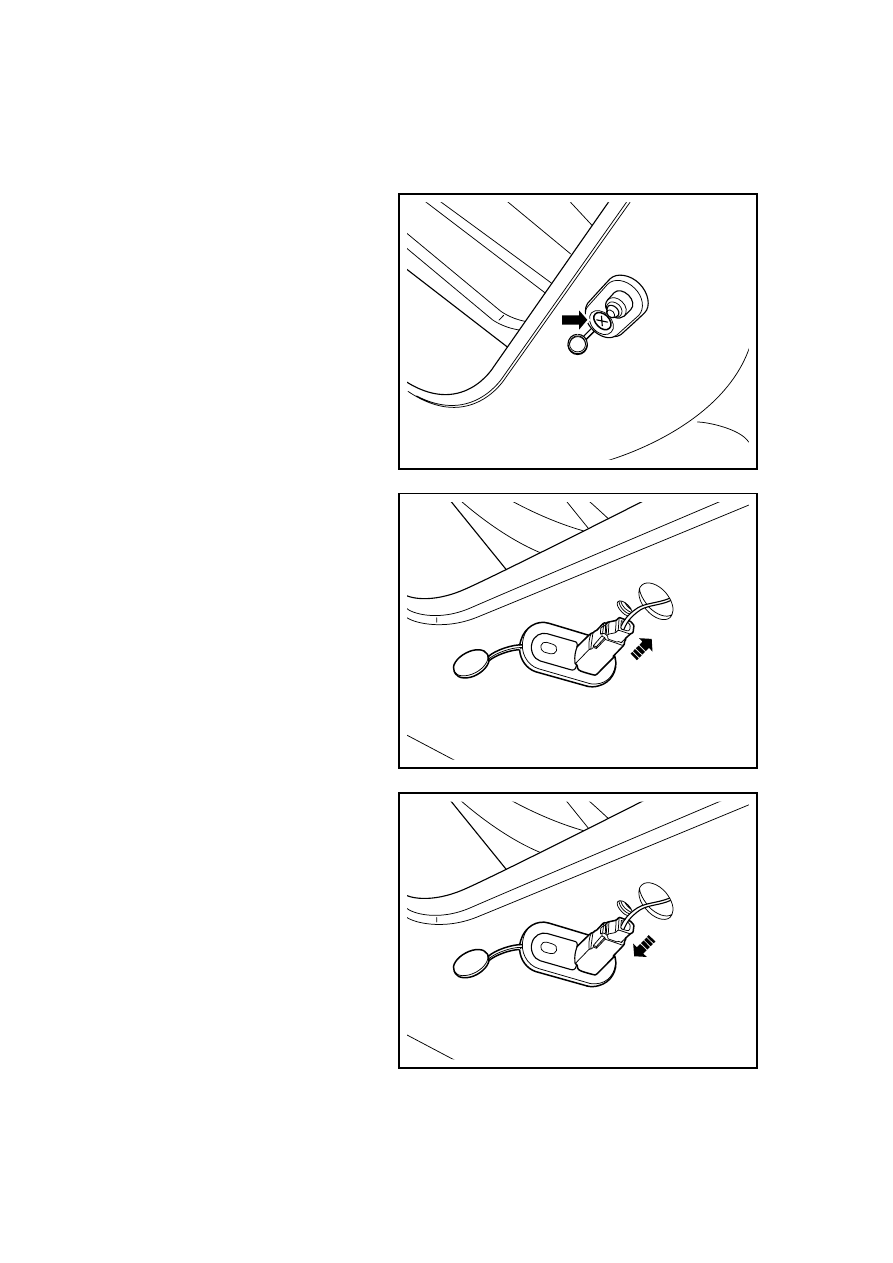

2.  Dismantle fixing bolt of door

contact switch.

NL11-0195b

3.  Disconnect door contact switch

harness connector.

NL11-0196b

Installation procedure:

1.  Connect to door contact switch

harness connector.

NL11-0197b

2489

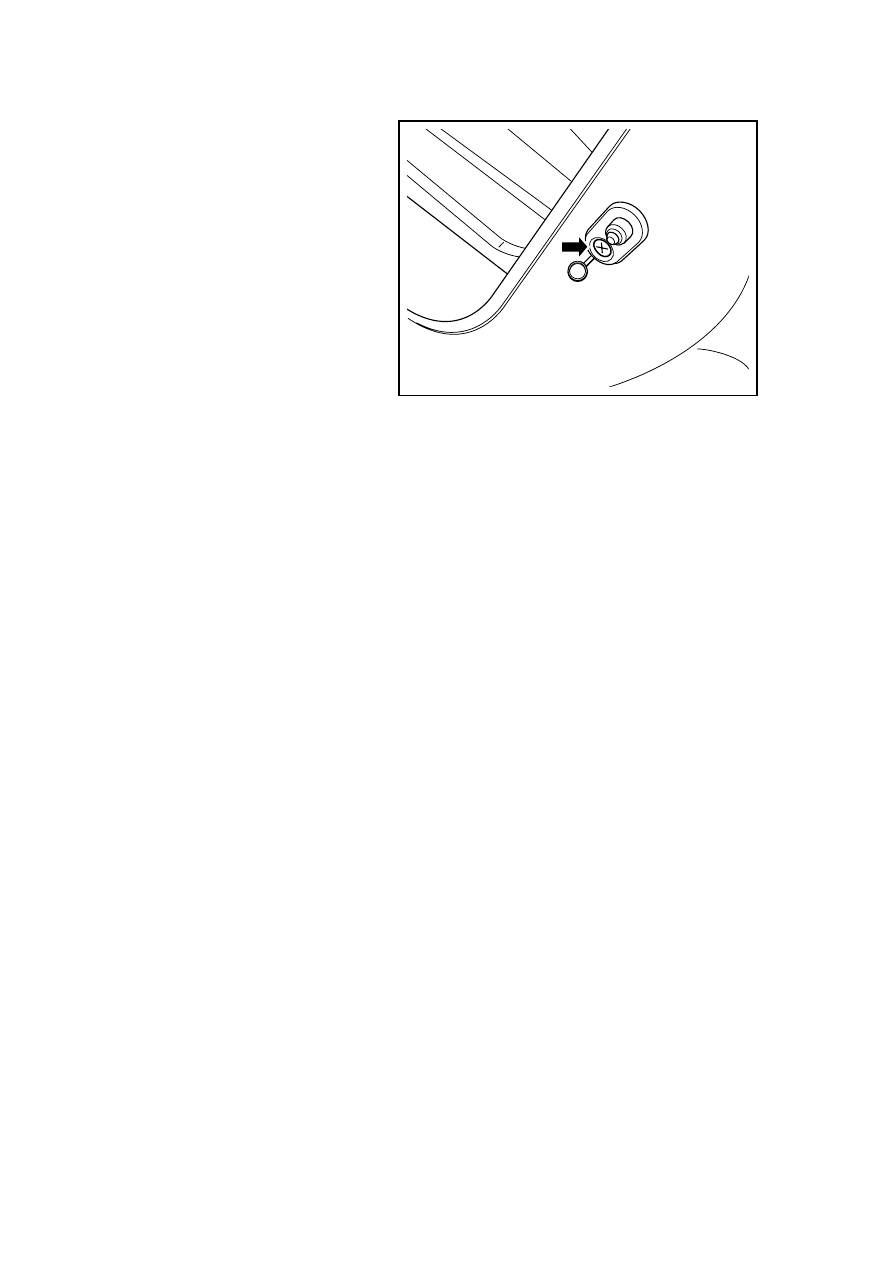

2.  Install and tighten fixing bolt of

door contact switch.

Torque:10Nm(Metric) 7.4lb-ft(English
system)

3.  Connect the battery negative

cable.

NL11-0195b
