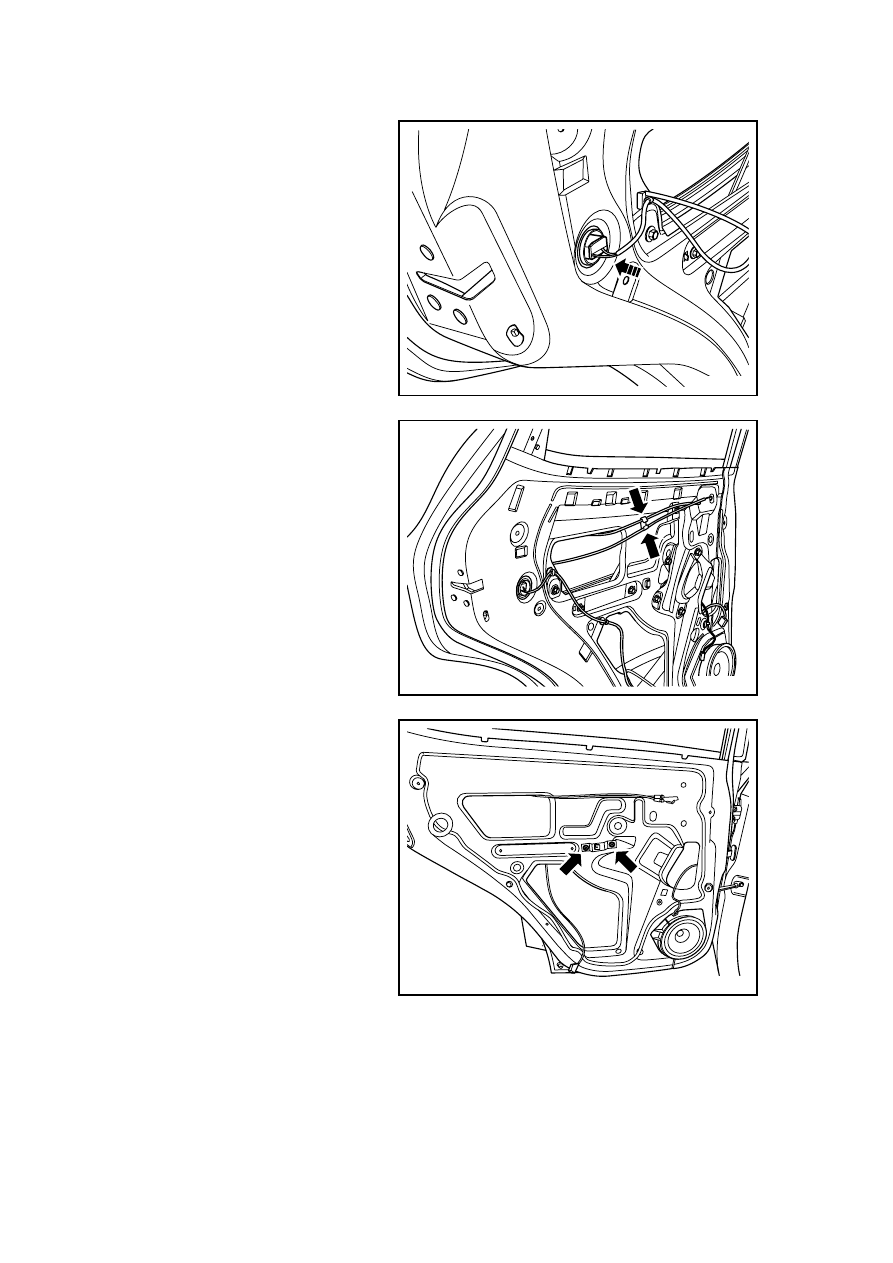

3.  Connect wire harness connector

of rear door lock assembly.

NL11-0304b

4.  Fix rear door lock block cable

assembly.

NL11-0305b

5.  Paste the retaining membrane.

6.  Install the rear door window lifter

switch bracket.

Torque: 5Nm(Metric) 4lb-ft(English
system)

7.  Install the rear door internal trim

panel.

8.  Connect the battery negative

cable.

NL11-0298b



2463

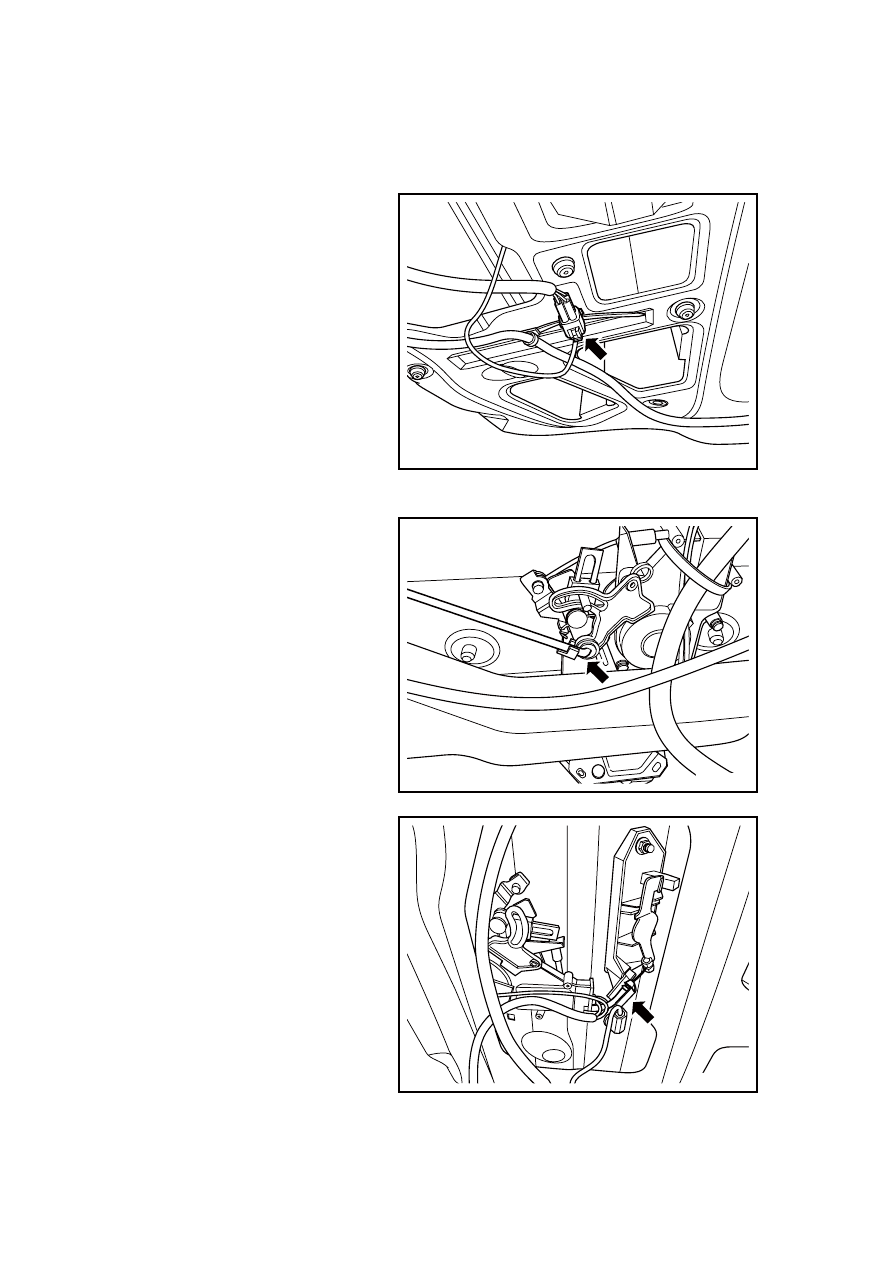

11.9.7.3 Back door lock assembly replacement

Dismantlement procedure

Warning!

Warning: refer to warning on battery
disconnection in warnings and
precautions.

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

2.  For dismantling of back door

trimming plate, refer to 12.9.1.10
Replacement of back door
trimming plate.

3. Disconnect back door lock

assembly harness connector.

NL11-0306b

4. Dismantle back door lock

opening pull rod.

NL11-0307b

5.  Detach the control cable of the

external back door handle.

NL11-0308b

2464

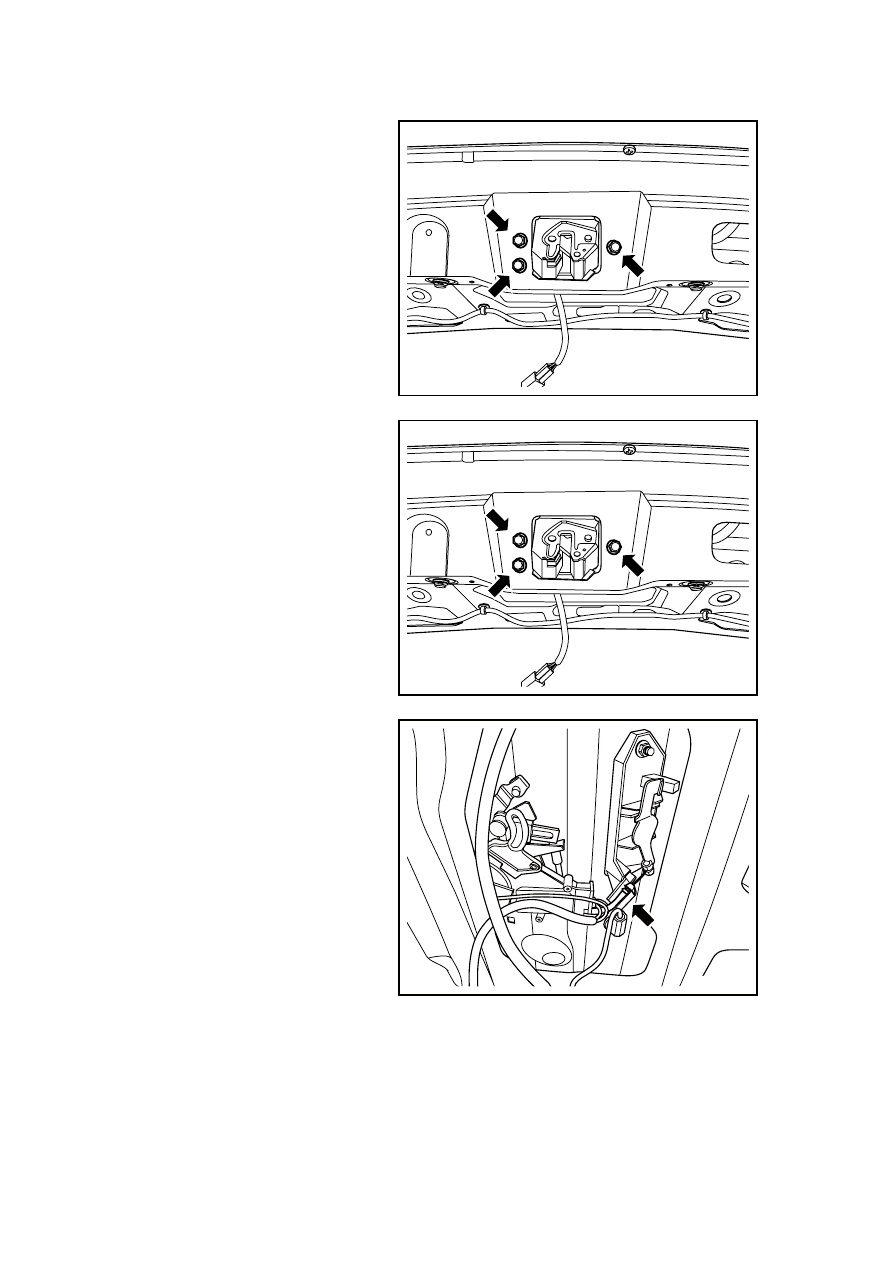

6.  Remove the fixing bolt for the

back door locking dog.

NL11-0309b

Installation procedure:

1.  Install back door lock block

fixing bolt.

Torque :10Nm(Metric) 7lb-ft(English
system)

NL11-0309b

2.  Install outer opening handle cable

of back door.

NL11-0308b

2465

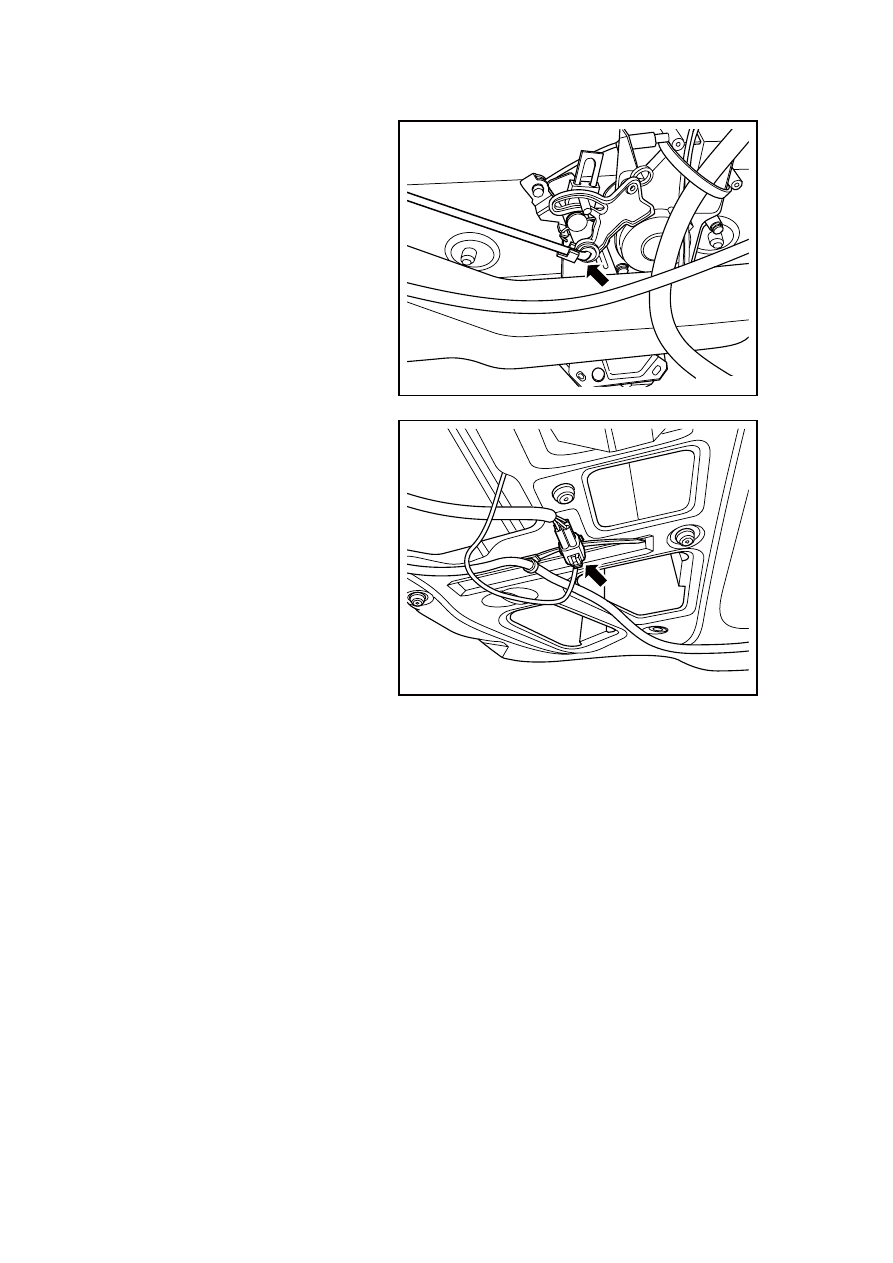

3.  Install opening pulling rod of

back door lock cylinder

NL11-0307b

4.  Connect the harness connector

for the back door lock assembly.

5.  Install the back door trim panel.

6.  Connect the battery negative

cable.

NL11-0306b



2466
