11.3.7 Dismantle and install

11.3.7.1 GPS antenna replacement

Dismantlement procedure

Warning!

Warning about disconnection of battery shown in "warning and cautions"

1.  Disconnect the battery

negative cable. Refer
to

2.11.8.1 battery

cable
disconnection/connecti
on procedures.

2. For

dismantling

of

navigation main host,
refer to

11.2.7.4

Replacement of main
host of sound
equipment.

3. Disconnect

GPS

antenna harness
connector.

4. For

dismantling

of

upper cover of
instrument panel, refer
to

12.8.3.1

Replacement of
instrument panel.

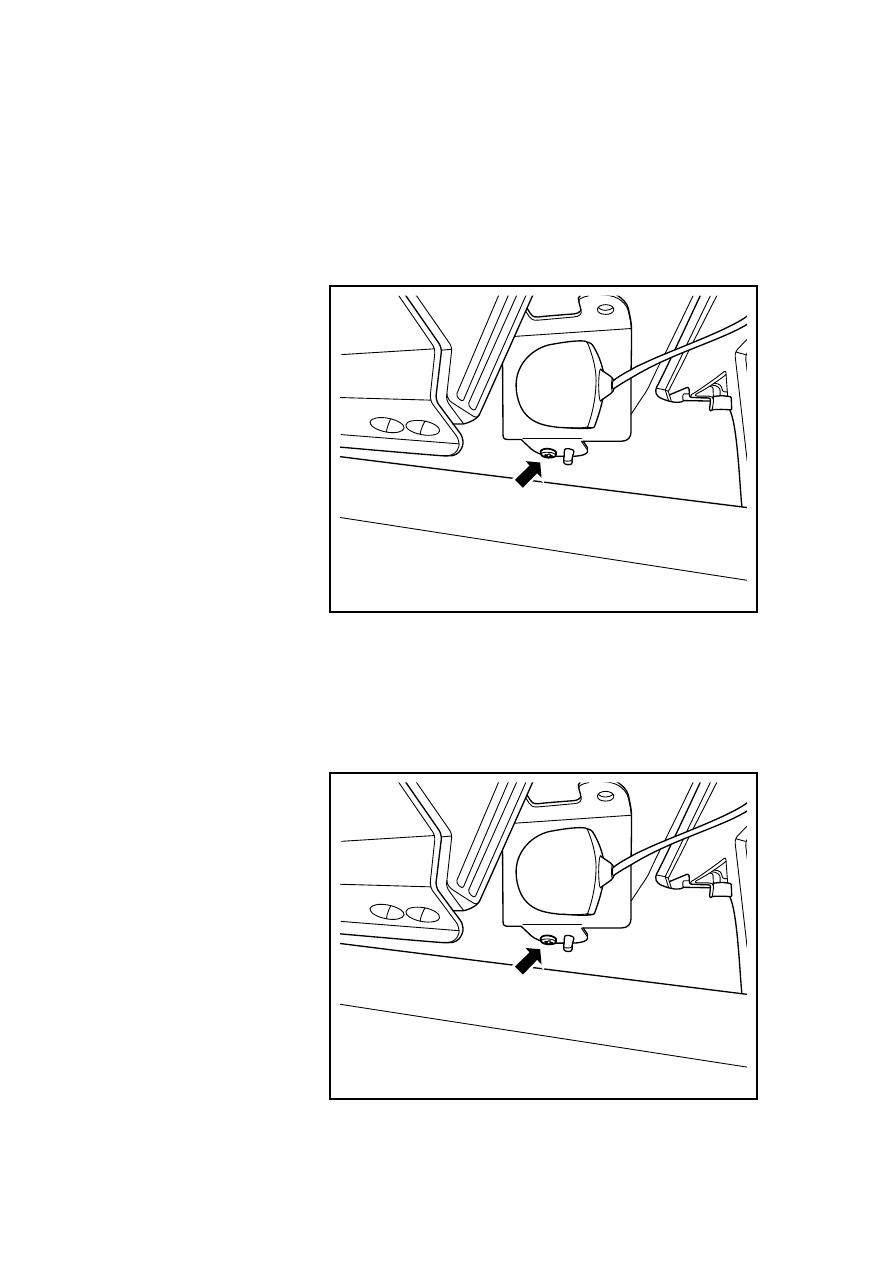

5.  Remove the GPS

antenna fixing screws.

NL11-0103b

Installation procedure:

1.  Install GPS antenna,

and tighten fixing
screw.

Torque :4Nm(Metric)
3lb-ft(English system)

2.  Install Upper cover of

instrument desk.

3.  Connect GPS antenna

wire harness
connector.

4.  Install main host of

navigation.

5.  Connect the battery

negative cable.

NL11-0103b

2051

11.3.7.2 Speaker replacement

See "replacement of front door loudspeaker".

See "replacement of rear door loudspeaker".

11.3.7.3 Radio antenna replacement

See "Replacement of receiver antenna".

11.3.7.4 Navigation main machine replacement

See "Replacement of audio unit".

2052



11.4 Lighting system

11.4.1 Specification

11.4.1.1 Bulb specification

Component name

Bulb name Bulb

model  Power

High beam

H7

12v 55w

Low beam

Halogen bulb

12v 55w

Steering lamp

License lamp

12v 21w

Front combination lamp

assembly

Front position

lamp

Turn on the following

lights: turn head lamp/turn

signal light lever.

12v 5w

Brake lamp

Ceiling lamp

---

Rear position lamp

Ceiling lamp

---

Rear steering lamp

License lamp

12v 21w

Rear combination lamp

assembly

Reverse lamp

W16w

12v 16w

Front fog lamp

H11

12v 55w

Front fog lamp assembly

Daytime running

light

- -

Rear fog lamp assembly

Rear fog lamps

The indicator will be on

when all the lights on.

12v 21w

High brake light assembly

High mounted

brake lamp

Ceiling lamp

---

License plate lamp

assembly

License lamp

Turn on the following

lights: turn head lamp/turn

signal light lever.

12v 5w

Left side reading

lamp

Turn on the following

lights: turn head lamp/turn

signal light lever.

12v 5w

Front indoor dome light

assembly

Right side reading

lamp

Turn on the following

lights: turn head lamp/turn

signal light lever.

12v 5w

Intermediate indoor dome

Left side reading

C5w(regardless of and left
and right ,only has one

12v 5w

2053

lamp bulb)

Right side reading

lamp

- -

light assembly

Door control lamp

-

-

Glove compartment lamp

assembly

Glove box lamp

-

-

Trunk lamp assembly

Trunk lamp

Turn on the following

lights: turn head lamp/turn

signal light lever.

12v 5w

Door lamp seat

Door lamp

W3w

12v 3w



11.4.1.2 Fastener specifications

Torque range

Fastener name

Model

Metric (N.m)

English system

(lb-ft)

Fixing bolt of left/right front combination

lamp assembly

M6×16 7-9

5.2-6.7

Fixing nut of left/right rear combination

lamp assembly

ST4.8×16

4-6

3-4.4

Self tapping screw of left/right front fog

lamp assembly

ST4.8×16

4-6

3-4.4

Left/right rear fog lamp assembly self

tapping screw

ST4.8×13

4-6

3-4.4

Self-tapping screw of front reading lamp

assembly

ST4.2×16

2-4

1.5-3

Self-tapping screw of rear reading lamp

assembly

ST4.2×16

3-5

2-4

Self-tapping screw of high braking lamp

assembly

ST4.8×13

4-6

3-4.4
