11.3.6 Diagnostic information and steps

11.3.6.1 Visual inspection

–

Inspect installed aftermarket equipment that may affect the operation of the audio system.

–

Inspect components easy to access system to identify whether there is a significant damage
that may lead to the fault.

–

For the fault that all speakers don’t work, the inspection can emphasize on some positions of
speaker circuit which are easy to create short-circuit to the ground

–

If a single speaker is inoperative, it may because the audio channel is shielded, causing a
single channel inoperative. It is not an audio system malfunction. Refer to the audio system
instructions in the user manual.

–

For the fault which can’t be guided into the navigation interface, it may be caused by the
situation that the customer doesn’t install SD card with navigation map data, or the card is
not special for the purpose use. Firstly, check whether the performance of the SD card and
the internal data are normal.

11.3.6.2 System diagnostic description

1.  When vehicle is running, it is strictly forvbidden to operate this navigation system to avoid

traveling safety caused by distracting attention.

2.  When vehicle is running on unflat road, huge jolt may cause sound jumping.

3.  GPS positioning of vehicle entertainment navigation system may be affected by weather

condition and application places (high building/ tunnel/ basement/ forest), and most of GPS
can't be used indoor and basement, and GPS signal also can't penetrate high-story buildings
and vehicle heat insulation film or similar products containing metal element.

4.  The GPS results provided by the vehicle entertainment and navigation system is only for the

driver's reference. If it is abnormal, please travel on the actual road conditions.

5.  The electronic navigation geo data provided by the vehicle entertainment and navigation

system is only for common reference and cannot provide high accuracy positioning and route
planning. The voice prompts and intersection information are the recommendation result
calculated in the best path based on the electronic map database for pilot reference only; and
the driver must abide by the local traffic rules.

6.  When driving, keep the voice instruction volume at the appropriate level to ensure you can

perceive the road and vehicle conditions for guarantee safe travelling.

7.  Avoid excessive moisture and dust. Do not have the navigation unit get in contact with water.

This will cause electric shock, firing or other damages.

8.  A too high or too low temperature will interfere with the normal functioning. If the vehicle is

closed and the engine parks for a long time in direct sunlight or cold place, the vehicle
becomes particularly hot or cold; moreover, the entertainment navigation system may work
abnormally in this environment. Once the in-vehicle temperature returns to the normal range,
the normal function can be restored. If beyond recovery, please contact with the after-sale
service center authorized by Geely Automobile for maintenance.

9.  If the vehicle entertainment and navigation system malfunctions (power failure, no image and

no sound) or is in an abnormal status (containing foreign matters, water permeation, smoke
leak or abnormal smell), do not open the casing, disassemble the unit or lubricate the
movable parts. Immediately cut off the power and contact with the service center authorized
by Geely Automobile for inspection.

2039

11.3.6.3 Navigation usage precaution

1.  Due to there is difference between each vehicle, when initially using navigation system, there

should have a period for correction, so that the vehicle can be positioned more accurately. In
the traveling process, the system will automatically and dynamically corrects.

2.  If start vehicle after the vehicle stops for a long time, the time navigation system receives

GPS signal and re-positioning is longer. Generally, positioning can be successfully finished
within 3 min in signal strong area.

3.  If GPS in located in places where GPS signal receiving may be affected: such as high

buildings on both sides of road, big tree besides road, place under overpass, underground
parking garage, place inside tunnel. At this moment, GPS signal can't be received, and
positioning effect may also has error.

4.  Sometimes the chip security module may fail to identify whether the vehicle is on an elevated

road or the ground. After a period of time, the vehicle will be repositioned correctly after the
road is branched.

5.  If the vehicle runs on one of two parallel roads close to each other which run in the same

direction (e.g. main road and auxiliary road), the vehicle may be positioned as runnign on the
other road. After a period of time, the vehicle will be repositioned correctly after the road is
branched.

6.  A high turning speed or travelling on areas other than the middle may result in slight lagged

or intermittent positioning. If the turned road has side road, it may be positioned on the side
road. After a period of time, the vehicle will be repositioned correctly after the road is
branched. Keep running at a lower constant speed when turning, thereby reducing the
occurrence of such problems.

7.  To avoid excessive no-effect voices and the failure to give out voice prompt at some curves:

no fork junction exists at this turning point or the class of the turning point is excessively
different from that of the fork junction.

8.  During the turning process, the navigator will ask you to "turn to y at the xth crossing" to

help the vehicle select the correct route if the road to be accessed is neighbored with other
parallel roads in the same direction. One condition easily incurred is side road; at this time,
prompt to regard the side road as the road junction.

9.  To avoid plugging and removing the SD card when the navigation system is not turned off

which will result in the damage and loss of the map file system on the SD card and in turn the
failure of the navigation system to normally read the map file for navigation, it is prohibited
to plug and remove the SD card when the navigation system is still on.

2040



11.3.6.4 Localization revision of special road condition under the navigation non-fault status

Notes:

The following situations listed are not the fault phenomenon of navigation; if meeting the similar
problem during maintenance, do a reasonable explanation to customer after commissioning
validation.

Diagnostic steps:

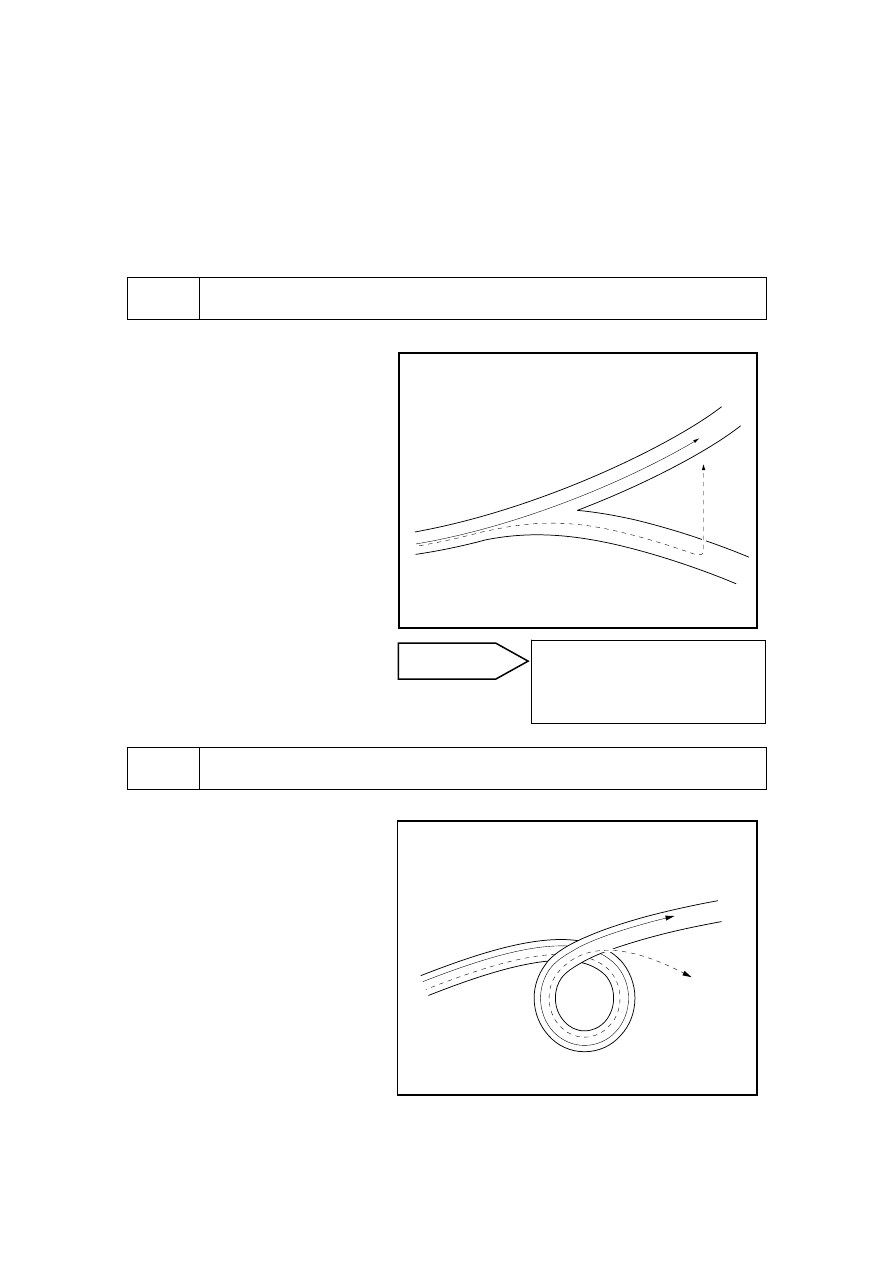

1

Y fork in the road



On Y-shaped fork road or similar
transition fork road, the error
accumulated by the sensor in the
running direction may result in the
current position mark present to the
error road.

NL11-2025b



2

Replace the spiral road.



When driving on the larger and
continual spiral road (such as annular
overpass and the like), the error of
angle of turn will be accumulated, and
the position mark may be deviated
from the current position.

NL11-2026b

Repair method

When continually running for a
period of time, the vehicle will
be correctly positioned again
after the road is branched.



Y fork in the road

Spiral road

2041





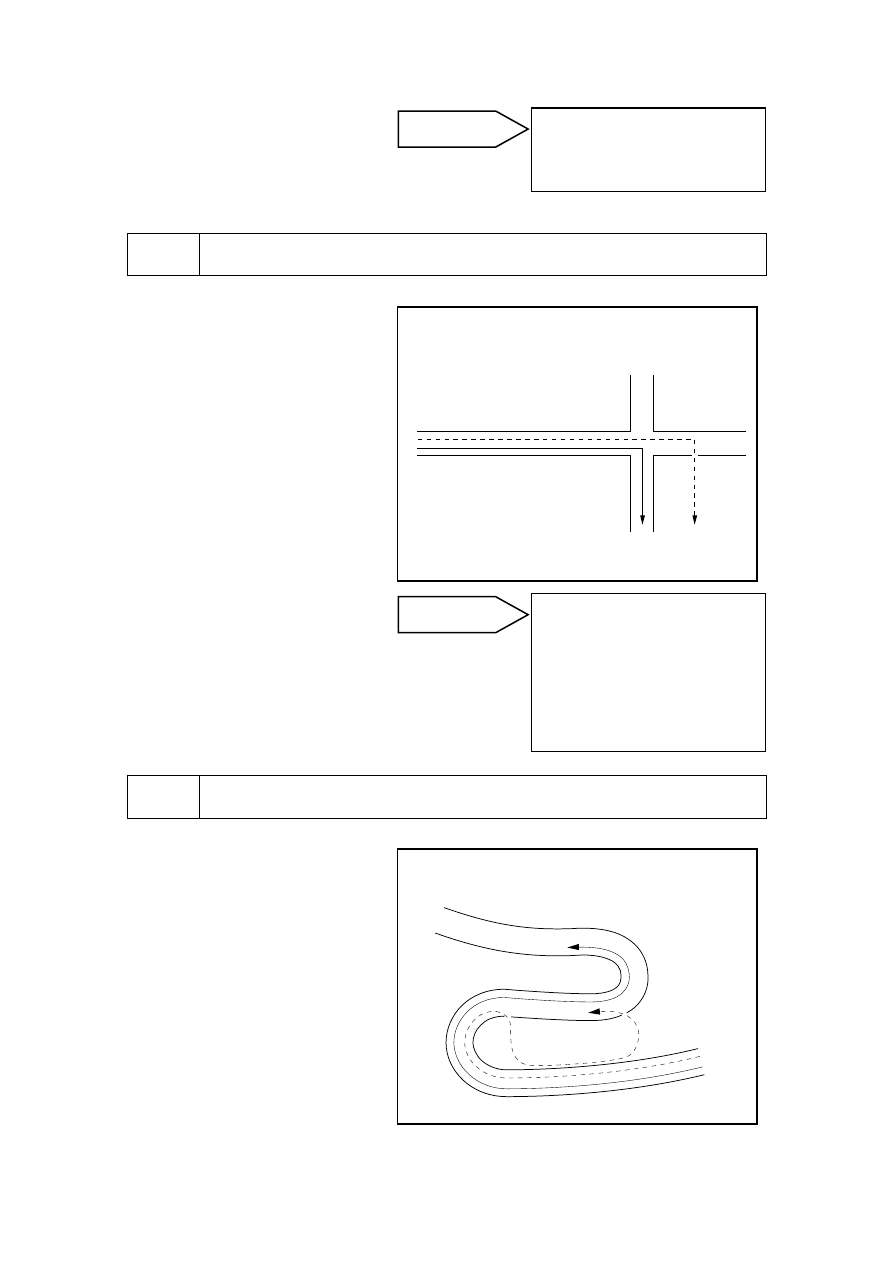

3

When turning a corner after running straightly



When driving on a longer straight
road with smaller stop bending, the
map can not sufficiently and
effectively match, thereby
accumulating the distance error. Thus,
the position mark may be deviated
from the current position when the
vehicle turns a corner.

NL11-2027b



4

Zigzag-shaped round-trip route



When driving one a zigzagged road,
the map may be matched with the
other adjacent road in the same
direction during turning a corner at
every turn, so that the position mark
may be deviated from the current
position.

NL11-2028b

Repair method

When continually running for a
period of time, the vehicle will
be correctly positioned again
after the road is branched.



Repair method

When continually running for a
period of time, the vehicle will
be correctly positioned again
after the road is branched. Keep
running at a lower constant
speed when turning, thereby
reducing the occurrence of such
problems.

Straight road

Zig-Zag arriveanddepart route
