11.2.7.3 Rear speaker replacement

Dismantlement procedure

Warning!

Warning: refer to warning on battery
disconnection in warnings and
precautions.

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

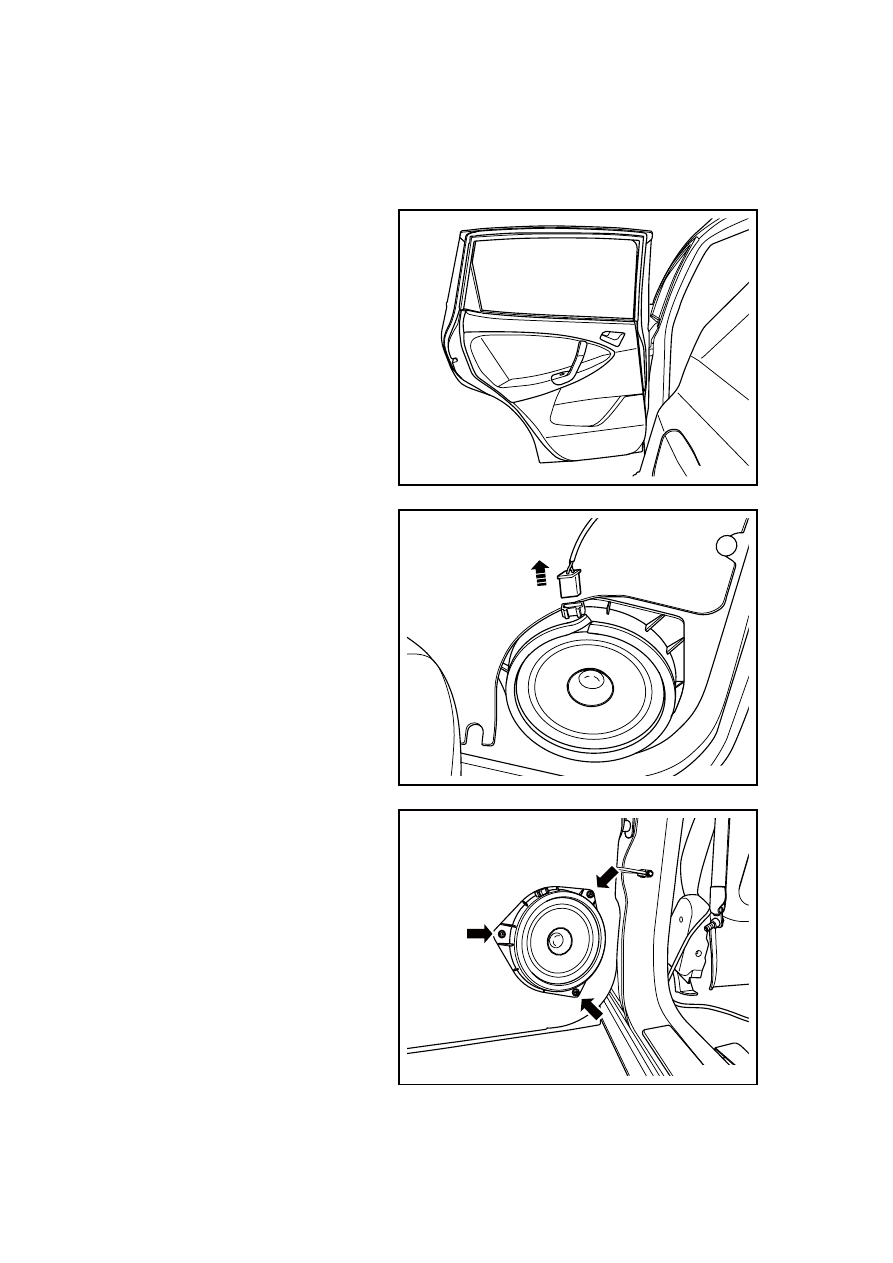

2.  For dismantling of rear door

inner trimming plate, refer to
12.9.1.9 Replacement of rear
door inner trimming plate.

NL11-0220b

3. Disconnect

speaker

harness

connector.

NL11-0212b

4.  Dismantle fixing rivet of speaker.

NL11-0213b

2027

Installation procedure:

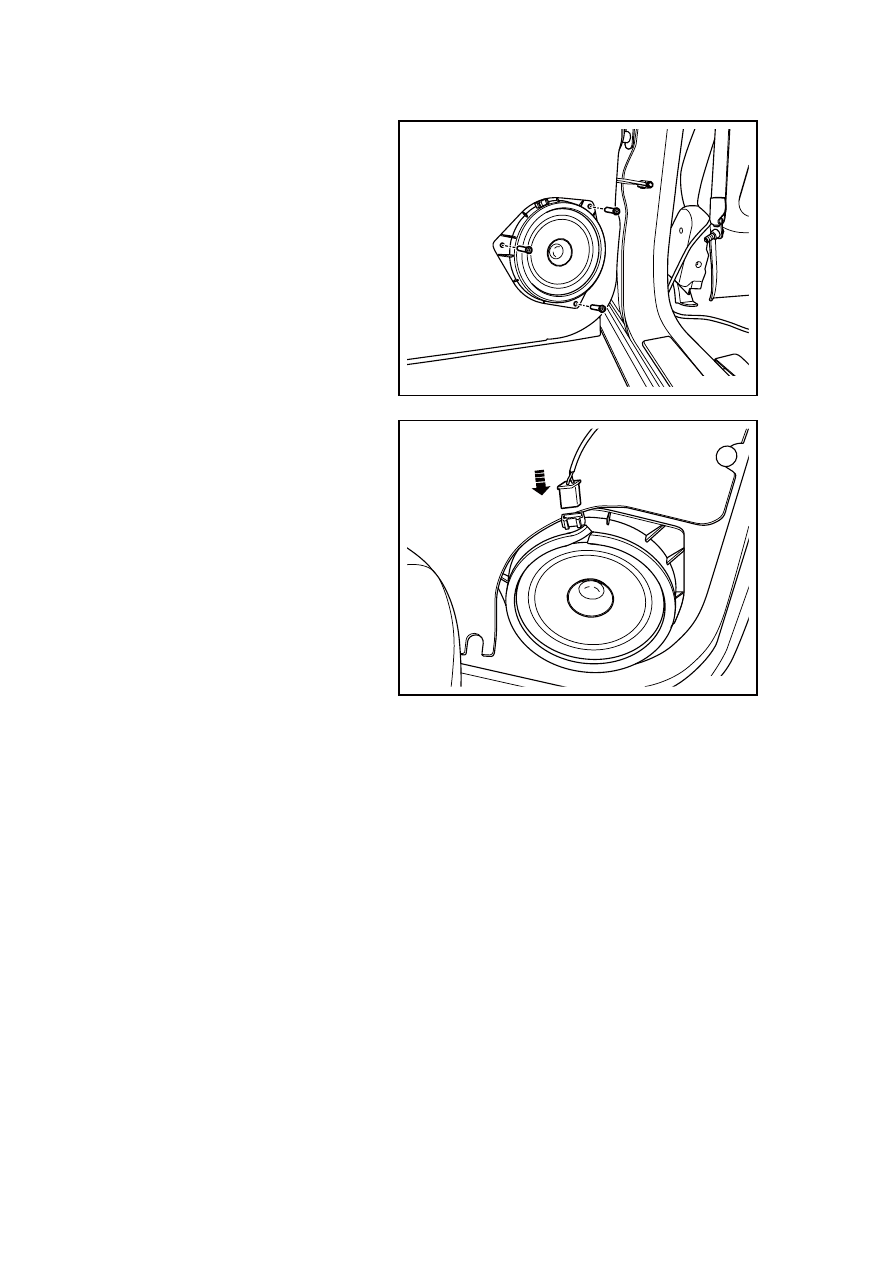

1.  Install speaker.and fasten fixing

screw.

NL11-0214b

2.  Connect speaker wire harness

connector.

3.  Install the rear door internal trim

panel.

4.  Connect the battery negative

cable.

NL11-0215b

2028

11.2.7.4 Replacement of audio head unit

Dismantlement procedure

Warning!

Warning: refer to warning on
battery disconnection in warnings
and precautions.

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

2.  Dismantle the instrument panel

trim panel.

NL11-0221b

3.  Dismantle fixing bolt and fixing

screw of main host of equipment
sound.

NL11-0222b

4.  Disconnect harness connector 1

of the audio unit.

5.  Disconnect harness connector 2

of the audio unit.

6.  Disconnect harness connector 3

of the audio unit.

2

1

3

NL11-0223b

2029

Installation procedure:

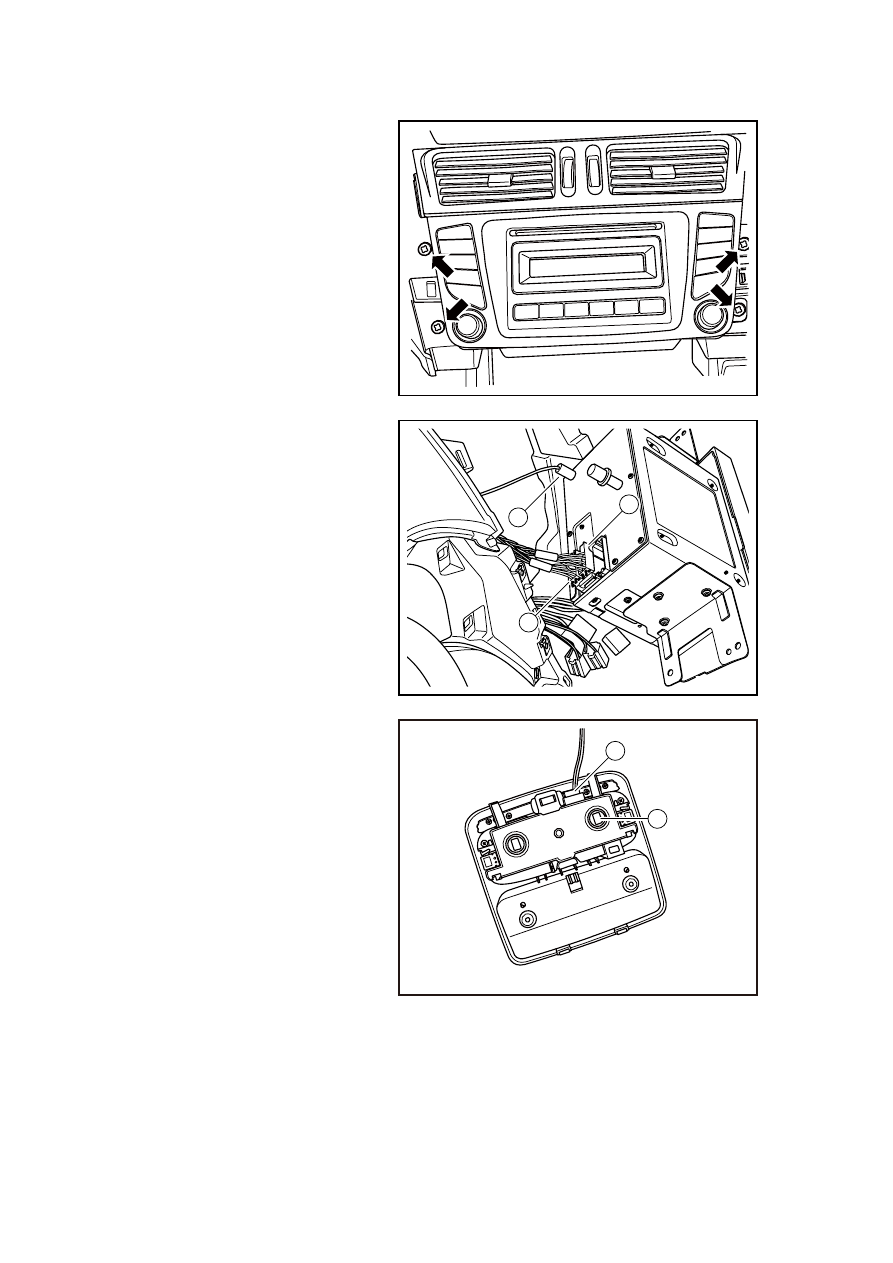

1.  Connect wire harness connector 1

of main host of sound equipment.

2.  Connect wire harness connector 2

of main host of sound equipment.

3. Connect

wire

harness connector 3

of main host of sound equipment.

NL11-0222b

4.  Install main host of sound

equipment, and tighten fixing
bolt and fixing screw.

Torque :4Nm(Metric) 3lb-ft(English
system)

2

1

3

NL11-0223b

5.  Install the dashboard trim panel.

6.  Connect the battery negative

cable.

7.  Connect the battery negative

cable.

1

2

NL11-0240b
