Geely Emgrand X7. Manual part - 421








The change of the revolution speed of the blower at different speeds depends on the blower motor control module
controlled by the blower motor revolution speed control device. If the user selects the maximum A/C mode, the
vast majority of the air entering the blower is from the passenger compartment (inside circulation).

Outside air enters into the vehicle in the following mode under most of operational conditions:

–

Blower motor word breathe the outside atmosphere

–

Vehicle forward running was pressed into outside air

The blower motor blows air along the following line:

–

Pass through evaporator core

–

Pass through heating core

–

Enter into the passenger compartment

B. Heater

core

The heater core is the main part of the heater system. The heater core is located in the A/C head unit. When the
engine is running, the engine coolant is pumped from the engine to the heater core, the heat fro the engine coolant
is transmitted by the heater core to the air flowing through the heater core. The heater core is provided with
special inlet and outlet warm air water pipe. The HVAC water pipeline of the heater core body must be thoroughly
drained during dismantled. During maintenance, the heater core with the independent warm air water pipeline
must have been installed. The heater core is equipped with the temperature sensor; the sensor transmits the surface
temperature signal of the heater core to the A/C control module for providing more compensation parameters to
the automatic A/C.

C. Evaporator

and expansion valve

The evaporator is located at the left of the A/C head unit. When installed on the vehicle, the A/C head unit needs
to be dismantled to dismantle and install the evaporator and the expansion valve. The refrigerant pipeline of the
evaporator must be thoroughly drained during dismantlement. During maintenance, the evaporator with the
independent refrigerant pipeline must have been installed. The expansion valve is connected with the evaporator,
installed at one end of the evaporator and located at the inlet of the evaporator; one side of the expansion valve is
connected with the air inlet pipe and the exhaust pipe of the A/C compressor and the other side thereof is
connected with the air inlet pipe and the exhaust pipe of the evaporator; the high-pressure liquid refrigerant is
limited in the liquid pipeline so that the refrigerant becomes the low-pressure liquid when flowing to the
evaporator.

Expansion valve changes the position from large to small according to the lower limit of the A/C pressure and the
upper limit of the A/C pressure.

The evaporator is cooled and dehumidified before the air enters the passenger compartment. The following
processes are generated in the evaporator:

–

Low pressure temperature fluid /vapor refrigerant enter into evaporator.

–

Refrigerant flows through evaporation pipe.

– Refrigerant

vaporizes.

–

Absorb heat, when refrigerant vaporises, air flow absorb heat by evaporator

–  Refrigerant enters into evaporator in the form of low pressure and low temperature, and leaves from

evaporator in the form of steam.

When the heat in air is transmitted to the evaporator core, moisture in air will be condensed on the outer surface of
the evaporator core to for water to flow outside.

The evaporator is equipped with a temperature sensor to prevent from freezing. The sensor measures the surface
temperature of the radiating fin on the evaporator, the compressor clutch will not continue to work if the
temperature is lower than about 2℃ (36 ºF). If the temperature is increased to above 4℃ (39 ºF), the compressor
will start working again. In the system with automatic temperature control, the sensor signal is firstly transmitted
to the A/C module, and then is transmitted to the A/C pressure switch through a special line; if the A/C pressure

1683




meets requirements, the corresponding A/C starting signal is transmitted to the ECM, and the ECM controls the
on/off of the compressor clutch.

8.  Refrigerant R-134a and lubricating oil

Refrigerant function in the A/C system as follow:

– Absorb

heat

– Carrying

heat.

– Release

of

heat

The vehicle uses the R-134a refrigerant, which is a non-toxci, flame-retardant, transparent and colorleess liquefied
gas.

Please refer to the instruction to the disposal of the refrigerant pipeline and connector as well as the maintenance
of the chemical stability before the maintenance operation needing to open the refrigerating system pipeline or the
part. R-134a is filled with special lubricating oil FD46XG to synthesize refrigerant oil; the refrigerant oil needs to
be stored in an airtight container due to its higher water-absorption. Only the FD46XG synthesized refrigerant
lubricating oil can be used in the internal circulation of the R-134a A/C system. Only use the mineral-based 525
refrigerant oil at the thread and O ring and other lubricating oil used will result in compressor or accesesory
malfunctions.

Be sure to repair as follow in accordance with the steps in the instruction:

Recycle and regeneration of refrigerant

– Added

oil

–

Drain out refrigeration System

– Added

refrigeration

system

again

9.  A/C high pressure pipe. A/C low pressure pipe. A/C pressure switch.

The vehicle uses A/C high pressure and low pressure pipes (A/C rigid pipe and/or hose) to connect the A/C
refrigeration system as a sealed and enclosed system in which the refrigerant and lubricating oil flow to complete
the circulation of the refrigerant. The A/C hard tube consists of an aluminum tube and corresponding adapter; and
the A/C hose consists of rubber hose and corresponding adapter.

A/C pressure switch belongs to three-state pressure switch, which transmits the A/C pressure signal.

Pressures switch value:

Pressure added

Description

Metric (MPa)

Inch (psi)

Signal value

3.2 464.1

High-pressure side

2.6 377.1

OFF

1.15 166.8

midde pressure side

1.55 224.8

ON

0.2 29.0

Low-pressure side

0.23 33.4

OFF



1684




8.2.3 System operating principle

8.2.3.1 Functional description of A/C control panel

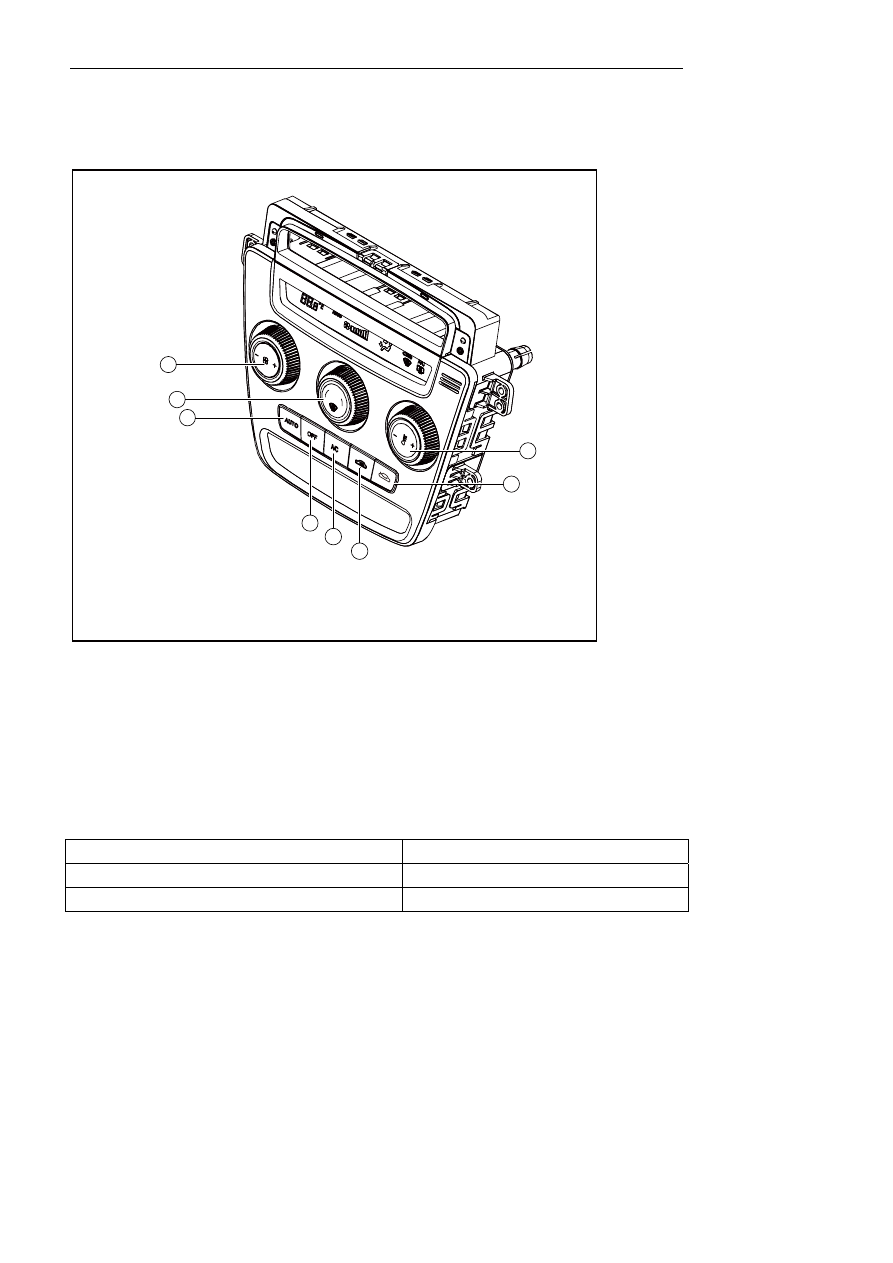

1.  Drawing of control panel.

NL08-2029b

6

7

8

4

5

1

3

2

MODE



2.  Setting of temperature

The temperature setting knob is used for setting the in-vehicle temperature; and the temperature value is used as
the user information to display on the LCD. Temperature can be regulated within 7.5-31.5℃. Temperature
adjustment in each step is 0.5℃; and the set range of the vehicle is 17.5-31.5℃. When the set temperature is
lower than 17.5℃, LCD displays LO; and when higher than 31.5℃, LCD displays HI. Temperature setting does
not change the operation mode of the A/C system.

In the automatic mode, the system will keep running the maximum amount of air supply when entering LO/HI.
The position of the mixed throttle is controlled by certain input variable. The input variable includes driver set
value, internal temperature, external temperature and sunlight intensity. Measure the position of the actuator
(feedback voltage) when the A/C motor is in the Hi and Lo state:

Hot and Cold Air Adjust Motor

Voltage (V)

Low (Lo)

0.3

High (Hi)

4.7

3. Volume

setting

In the automatic control mode, the wind speed is controlled by a number of input variables. According to the set
value of the driver, interior temperature, exterior temperature and sunlight strength, the system automatically
regulates the wind speed.

1685




Display screen displays the blower wind speed bar and fan identification.

In the automatic mode, the wind sped of the blower is not allowed to "jump" to a new set value.

The wind speed increased or decreased to a new set vale needs a period of time (refer to function "gradual
increase of wind speed"). In the mode of automatically adjusting the wind speed, the voltage of the blower motor
is limited by the out-vehicle temperature.

The air adjusting knob is used for manually setting the speed of the blower. The A/C system controls the gears 1-7
of the fan speed in the voltage linear regulating mode.

Under manual control mode, the blower speed is immediately changed to the new one according to the new wind
speed set value. The blower is unable to be closed completely by rotating the wind speed regulating knob (at most
reducing to gear 1). Completely shut down the blower only through the OFF key.

Under the manual control, AUTO is not displayed on the display screen.

Increase the wind speed gradually, start in the automatic mode in IG2, or wake up through the closing of the
system. The wind speed of the blower increased to the set value needs a certain time (increased or decreased speed:
gear 1 to gear 7/9s).

Notes:

When the system is started by manually adjusting the wind speed, the wind speed of the air blower is started by
first manual gear.



Air quantity bar shows

Blower gear

Auto-mode blower end voltage (V)

1 1  4.5(Auto

Min.)

2 2  4.6-5.5

3 3  5.6-6.7

4 4  6.8-7.7

5 5  7.8-8.9

6 6  9.0-10.1

7 7  10.2-11.2(Auto

Max.)

4.  Manually/automatically adjust the air delivery mode.

The automatic A/C controller provides a manual air-out mode and an automatic air-out mode for the user to
choose. The throttle can control the air-out mode through the adjustment of the mode. Different allocation for air
supply to head and feet is for the purpose of supply the feet with warm air and the head with cool air to ensure the
driver can be constantly in a comfortable driving environment. The temperature distribution range is affected by
the space of the vehicle.

The automatic A/C controller determines the temperature of the mixed gas through a heater and an evaporator
temperature sensor.

The user can select 5 air-out modes under the manual state:

1.  Blow to face.

2.  bi-direction (blow to face or foot).

3.  Blow to foot.

4.  Mixture (blow to foot and defrosting)

5. Defrosting.

When the mode knob regulates, the mode will be changed as follows: surface blowing>surface blowing/foot
blowing>foot blowing >foot blowing/defrosting>surface blowing

Under various air-out modes, the LCD displays the corresponding identifications.

1686
