13. Dismantle the radiator output

pipe.

Warning: Refer to "Warning on
Maintenance of Cooling System" in
"Warnings and Precautions".

NL02-0176b



14. Dismantle the radiator inlet

pipes.

NL02-0177b



15.  Dismantle the vacuum booster

vacuum tubes.

NL02-0178b



1007

16. Dismantle the fixing bolts of

clutch fuel tube bracket.

NL02-0179b



17.  Dismantle fixing bolts of clutch

slave cylinder.

NL02-0180b



18. Dismantle the engine wiring

harness to the engine cabin
junction box connecting cables
and connectors.\

NL02-0181b



1008

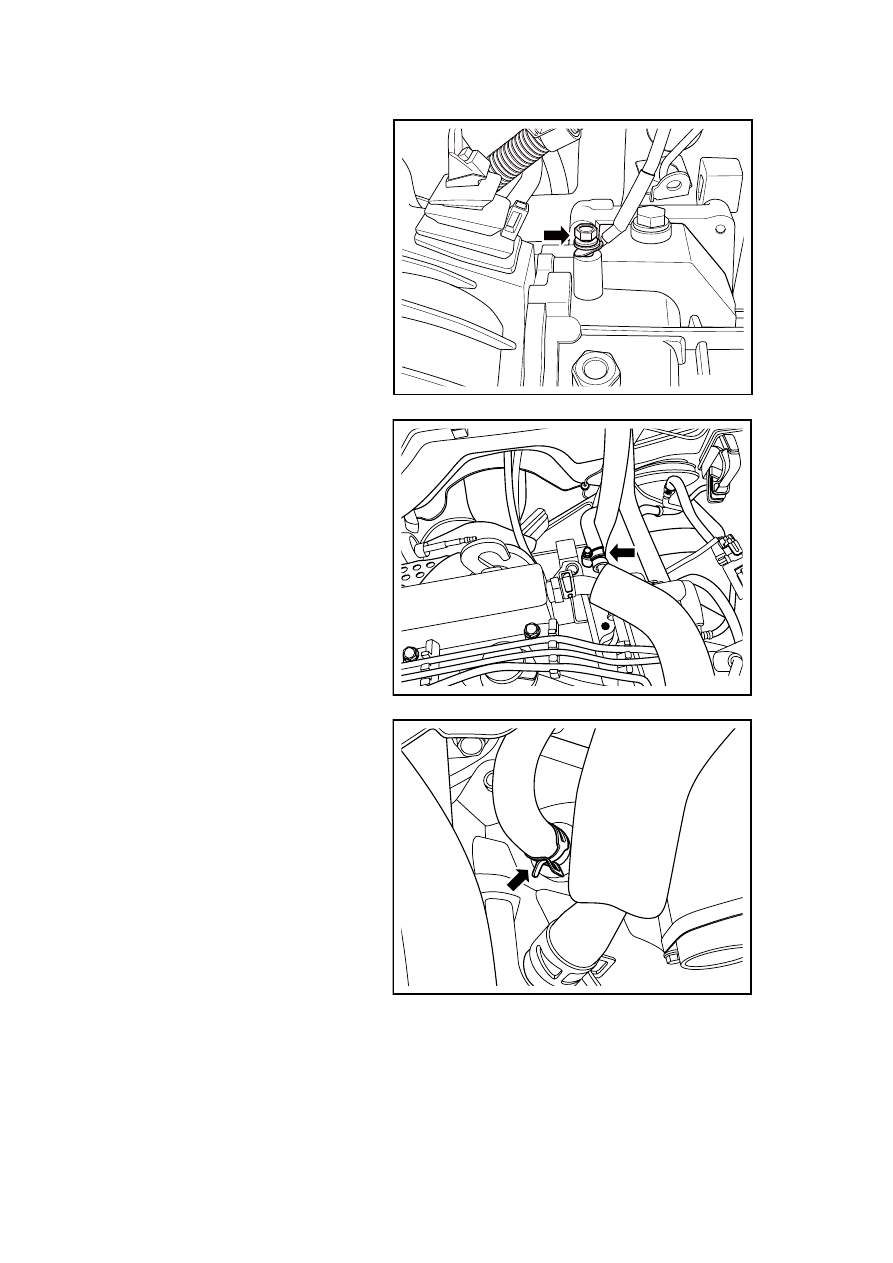

19.  Dismantle battery negative cable

gearbox shell grounding point.

NL02-0182b

20.  Dismantle the fuel pipe.

NL02-0183b



21.  Dismantle the canister vacuum

tubes.

NL02-0184b



1009

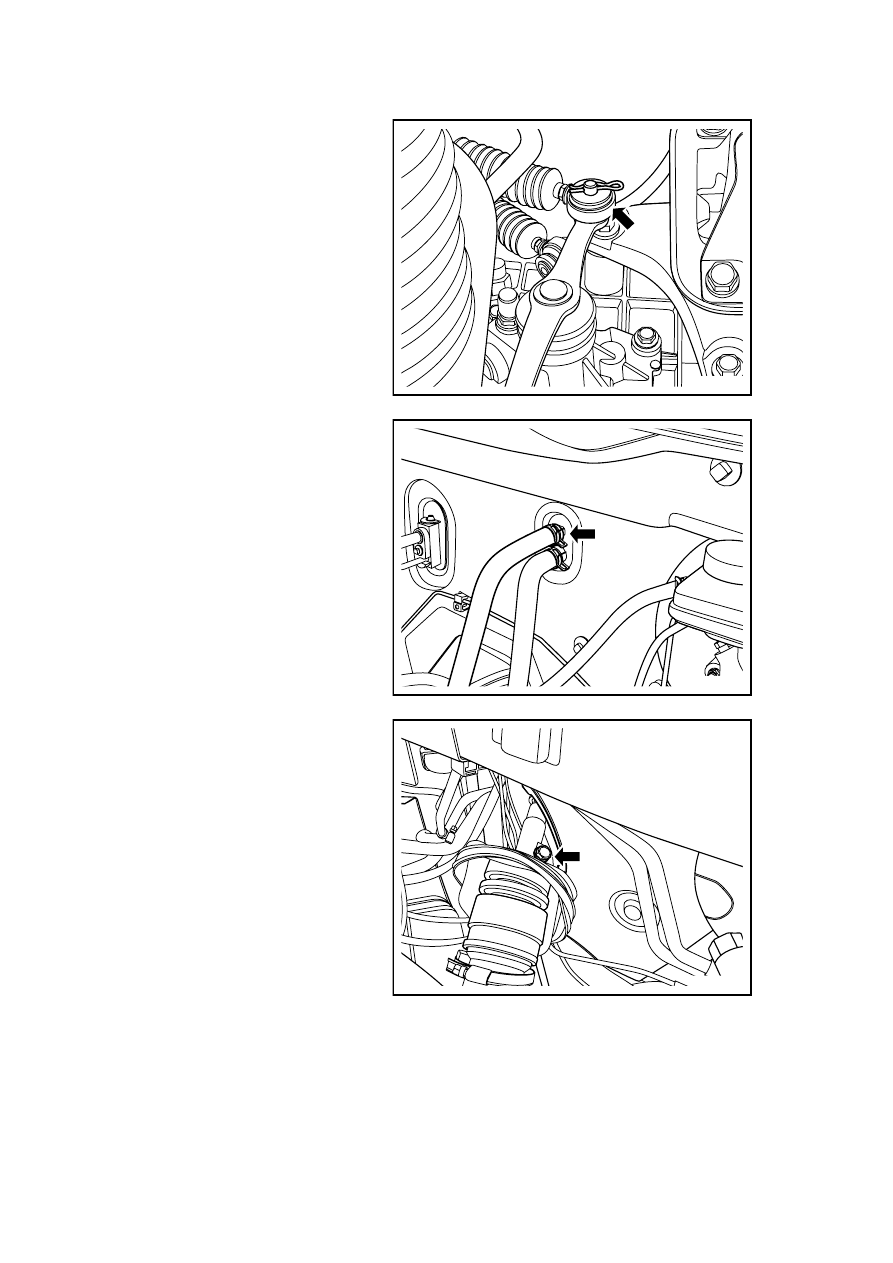

22.  Dismantle gear shift lever cable.

NL02-0185b



23.  Dismantle the heater intake and

outlet pipes.

NL02-0186b



24.  Dismantle the front wheels.

25.  Lifting and Jacking the Vehicle

Warning: Refer to "Warning on
Vehicle Lifting and Jacking" in
"Warnings and Precautions".

26. Dismantle the gearbox oil

discharge bolts until all the
gearbox oil is discharged and
reinstall. Refer to Gearbox Oil
Level Inspection.

27. Dismantle the power steering

gear tie rod lateral pin bolts.

Warning: Before remove the
steering lateral pin bolt, remove the
key from the ignition switch first
and turn the steering wheel to lock
position. Otherwise it will damage
the airbag clock spring.

NL02-0187b



1010
