2.2.7.12 Electronic Throttle Body (ETC) Inspection

Electronic throttle body consists of two throttle position sensors and a throttle body drive motor.

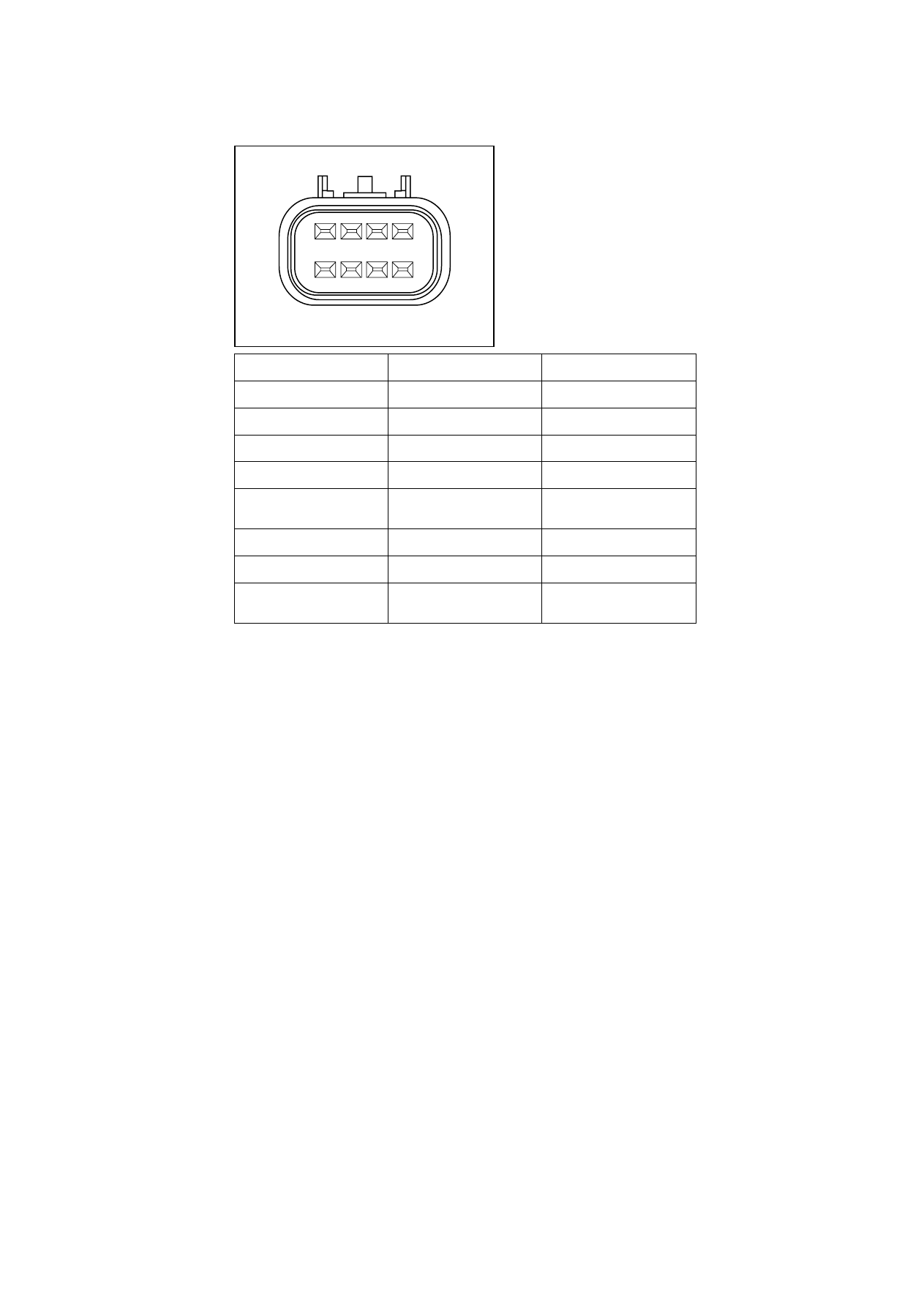

1.  Electronic Throttle Body Connector View and Functions:

A

B

C

D

E

F

G

H

NL02-2163b



Terminal No .

ECM Related Terminal No.

Function

A

EN01(74)

Low Reference Voltage

B EN01(52)

TPS1

Signal

C EN01(27)

TPS2

signal

D EN01(70)

5V

Reference

Voltage

E EN01(21)

Throttle Body Motor Control
(Plus)

F -  Empty

G -  Empty

H EN01(20)

Throttle Body Motor Control
(Minus)

2.  Throttle Position Sensor Technical Specifications

As one of the system security measures, the system consists of dual output throttle position
sensors. One throttle position sensor output voltage signal increases as the throttle body opening
increases, while the other throttle position sensor output voltage signal decreases as the throttle
body opening increases.

Resistance value Between Terminals A and D: 1.9 ± 0.9 kΩ

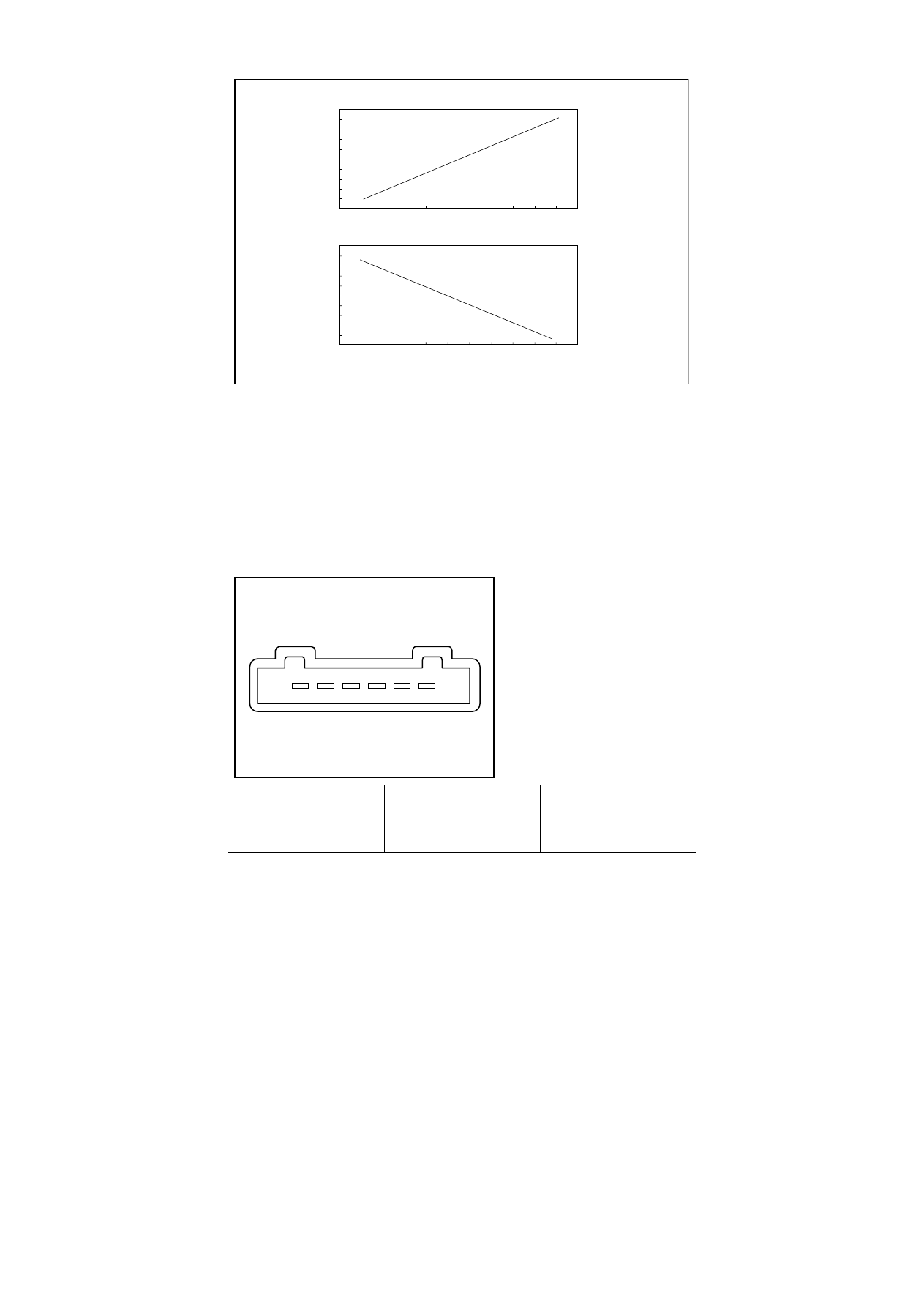

TPS Sensor Output Signal Diagram:

715

FE02-5234b



Notes:

An oscilloscope can be used for detecting the above TPS sensor output signal, and the output
waveform line should be smooth without noise wave! If the output signal zeros or drops
suddenly when throttle body rotates at a certain angel, the ETC assembly shall be replaced.
ETC is an assembly. Do not disassemble it to repair.



2.2.7.13 Acceleration Pedal Position Sensor (APP) Inspection

As one of the system security measures, acceleration pedal position sensor is designed to have
dual outputs. Two sensors output voltage signals increase as the acceleration pedal position
increases.

1.  Acceleration Pedal Position Sensor Connector End View and Function

1

2

3

4

5

6

NL02-2165b



Terminal No .

ECM Related Terminal No.

Function

1 EN01(66)

Sensor No.2 Reference
Voltage

TPS1 Outputsignal

curve

TPS out

put

 (%)

Open angle of throttle

Idling speed:6%-14%
Full open: 81%-93%

TPS2 outputsignal

curve

TPS out

put

 (%)

Open angle of throttle

Idling speed: 86%-94%

Full open:7%-19%

716

2 EN01(70)

Sensor No.1 Reference
Voltage

3 EN01(74)

Sensor No.1 Low Reference
Voltage

4

EN01(41)

Sensor No.1 Output Signal

5 EN01(76)

Sensor No.2 Low Reference
Voltage

6

EN01(42)

Sensor No.2 Output Signal

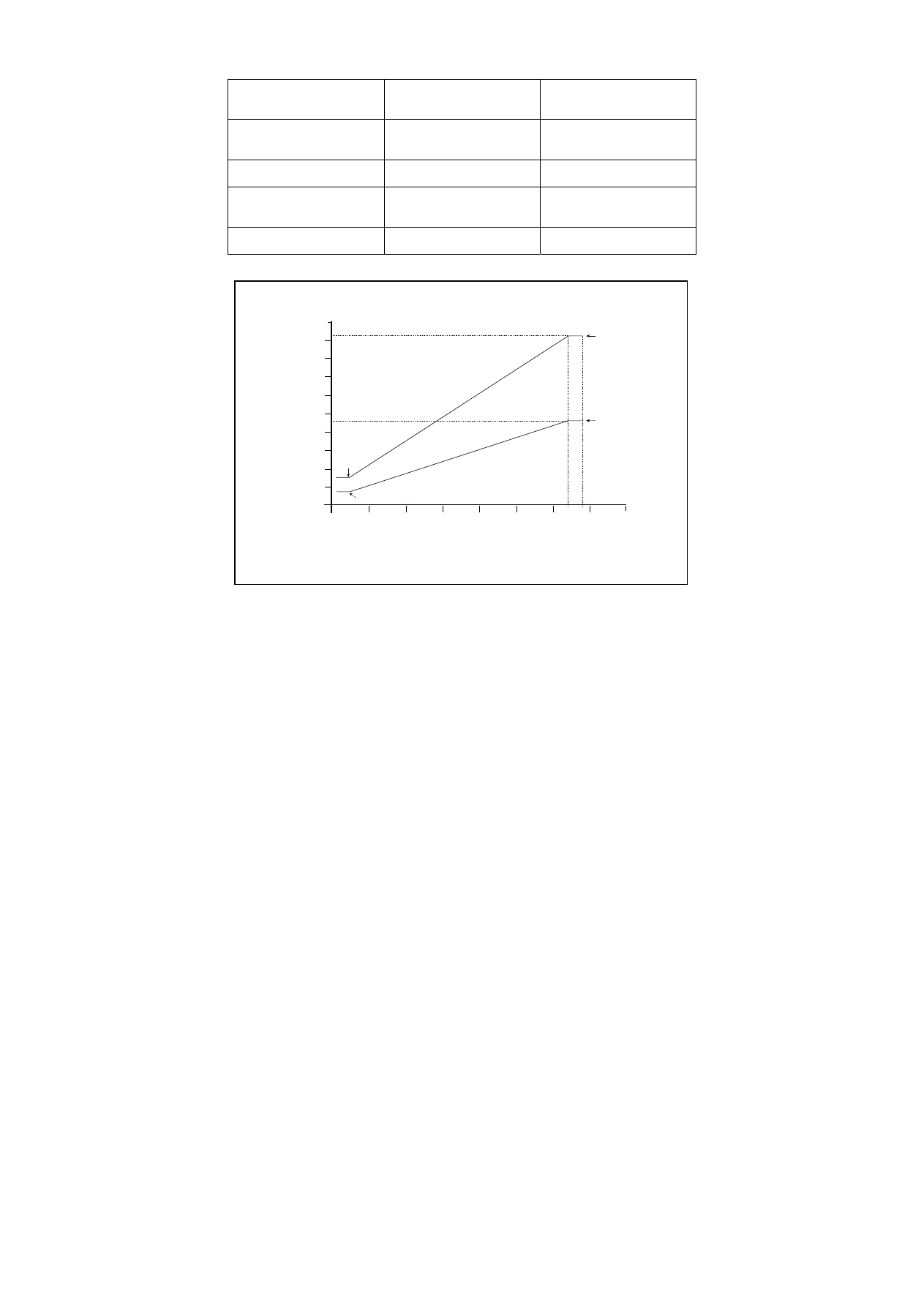

2. Acceleration

Pedal

Position

Sensor Technical Specifications

0

10

20

30

40

50

60

70

80

90

0

5

10

15

20

油门踏板臂转动角度(°)

输出电压
与传感器电
压之比(%)

<92.5%

<46.25%

7.5%

15%

NL02-2166b



Notes:

An oscilloscope can be used for detecting the above APP sensor output signal, and the output
waveform line should be smooth without noise wave! If the output signal zeros or drops
suddenly when accelerator pedal rotates at a certain angel, the APP assembly shall be replaced.
APP is an assembly. Do not disassemble it to repair.

Voltage ratio
of
outputvoltage
and
sensor(%)

Accelerator pedal arm rotating angle (°)

717

2.12.7.14 DTC Chapter Index

DTC Description

Type

P0011

Intake VCP Phase Response Lag Behind

P0012

Intake VCP Camshaft Phase Error is Big

P0016

Intake VCP Camshaft Gear Learn Bias Out of
Range

P0026

Intake VCP Hydraulic Control Valve Clinch

Refer to 2.2.7.15 P0011
P0012 P0016 P0026.

P0076

Intake VCP Hydraulic Control Valve Coil
Low Voltage or Open Circuit

P0077

Intake VCP Hydraulic Control Valve Coil
High Voltage

Refer to 2.2.7.17 DTC
P0076 P0077

P0068

Electronic Throttle Air Flow Error

Refer to 2.2.7.16 DTC
P0068 P0106

P0106

Intake Pressure/Throttle Position Fault

Refer to 2.2.7.18 DTC
P0107 P0108

P0107

Manifold air pressure sensor circuit has low
voltage or is open

Refer to 2.2.7.18 DTC
P0107 P0108

P0108

Intake Air Pressure Sensor Circuit High
Voltage

Refer to 2.2.7.18 DTC
P0107 P0108

P0112

Intake Air Temperature Sensor Circuit Low
Voltage

P0113

Intake Air Temperature Sensor Circuit High
Voltage or Open Circuit

Refer to 2.2.7.19 DTC
P0112 P0113

P0117

Coolant Temperature Sensor Circuit Low
Voltage

Refer to 2.2.7.20 DTC
P0117 P0118

P0118

Coolant Temperature Sensor Circuit High
Voltage or Open Circuit A

Refer to 2.2.7.20 DTC
P0117 P0118

P0122

Electronic Throttle Position Sensor #1 Circuit
Low Voltage

P0123

Electronic Throttle Position Sensor #1 Circuit
High Voltage

Refer to 2.2.7.21 DTC
P0122 P0123

P0131

Front Oxygen Sensor Circuit Short to Low
Voltage

P0132

Front Oxygen Sensor Circuit Short to High
Voltage

P0133

Slow response of front oxygen sensor

P0134

Front Oxygen sensor is open

Refer to 2.2.7.22 DTC
P0131 P0132 P0133P0134
