2.11.6 Removal and installation



2.11. 6 . 1disconnect and connect process of battery cable

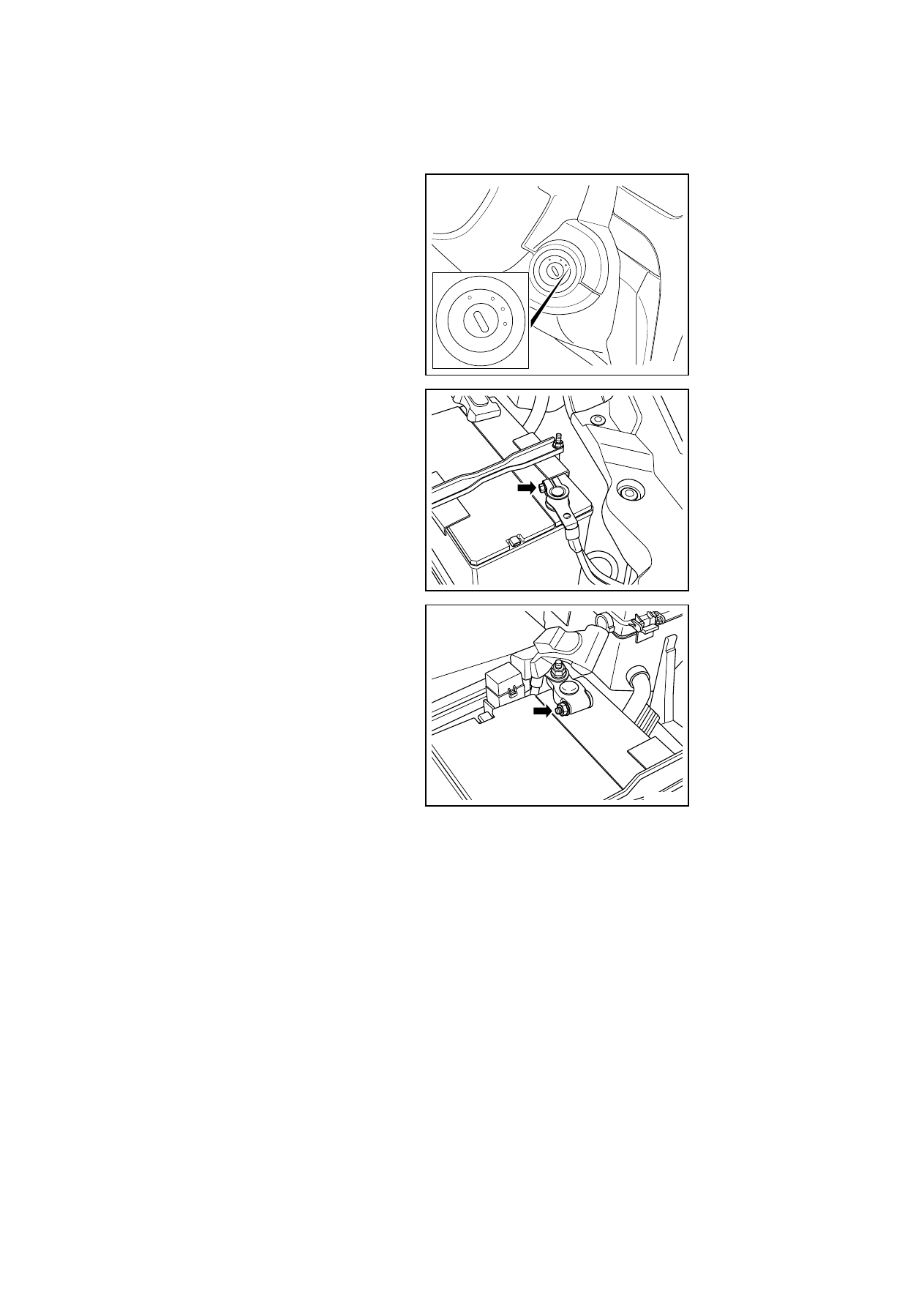

Disconnecting Procedure:

Warning: Refer to "Warning on Battery Disconnection" in "Warning and Precautions"!

1.  Turn off all electrical equipment,

and turn the ignition switch to
"OFF" position.

LOCK

ACC

ON

ST

AR

T

LOC

K

ACC

ON

S

T

A

R

T

NL02-0356b

2.  Release the battery negative

cable fixing bolt and disconnect
the battery negative cable.

NL02-0357b

3.  Release the battery positive cable

fixing bolt and disconnect the
battery positive cable.

NL02-0358b

639

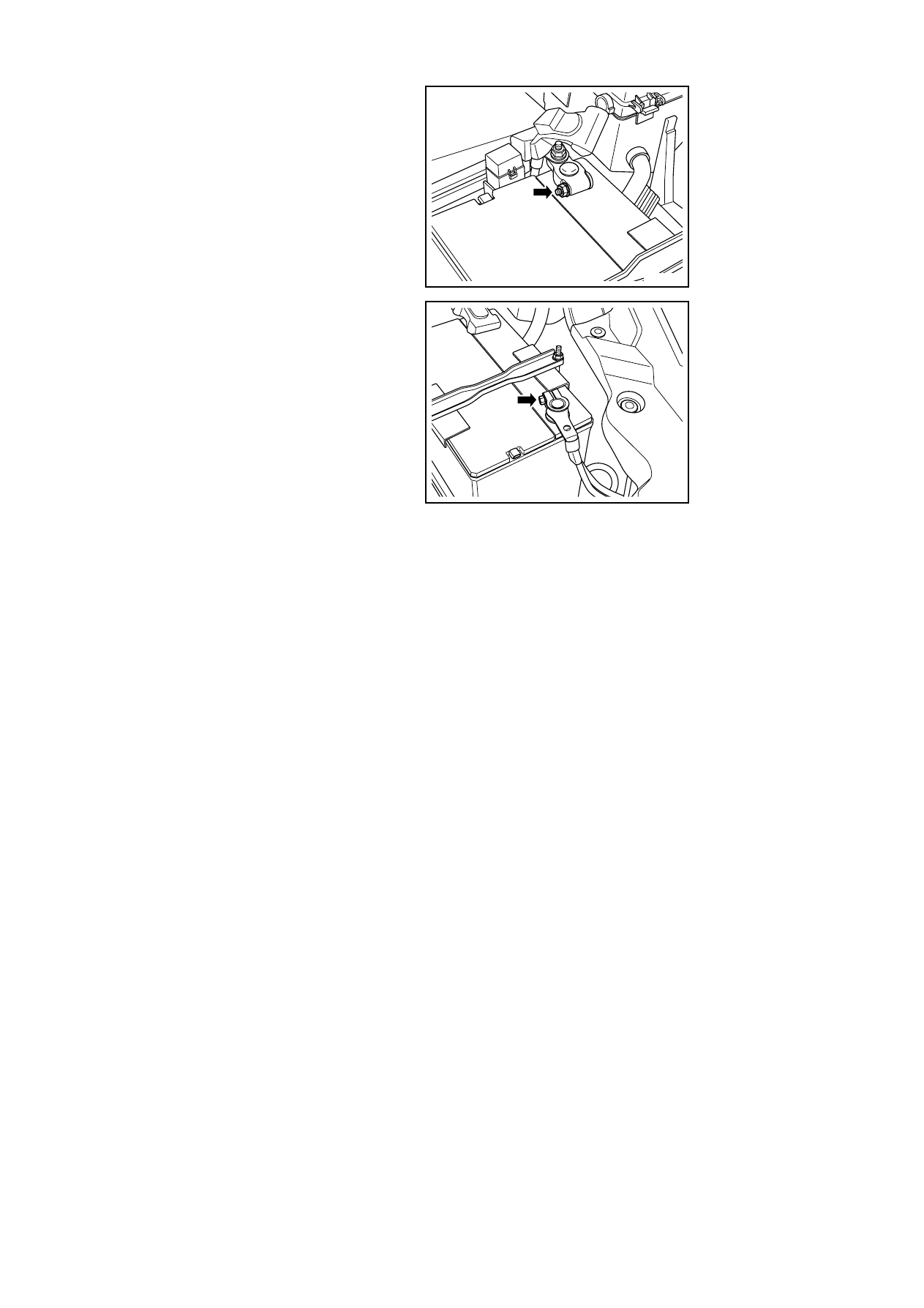

Connecting Procedure:

1.  Connect battery positive cable,

and tighten the fixing nut.

Torque:10 Nm(Metric) 7.4
lb-ft(English system)

2.  Make sure the ignition switch is

turned to "OFF" position.

NL02-0358b

3.  Connect the battery negative

cable.

Torque:10 Nm(Metric) 7.4
lb-ft(English system)

NL02-0357b

640

2.11.6.2 Replacement of Battery

Warning: refer to "warning of battery disconnection" in "warnings and precautions".

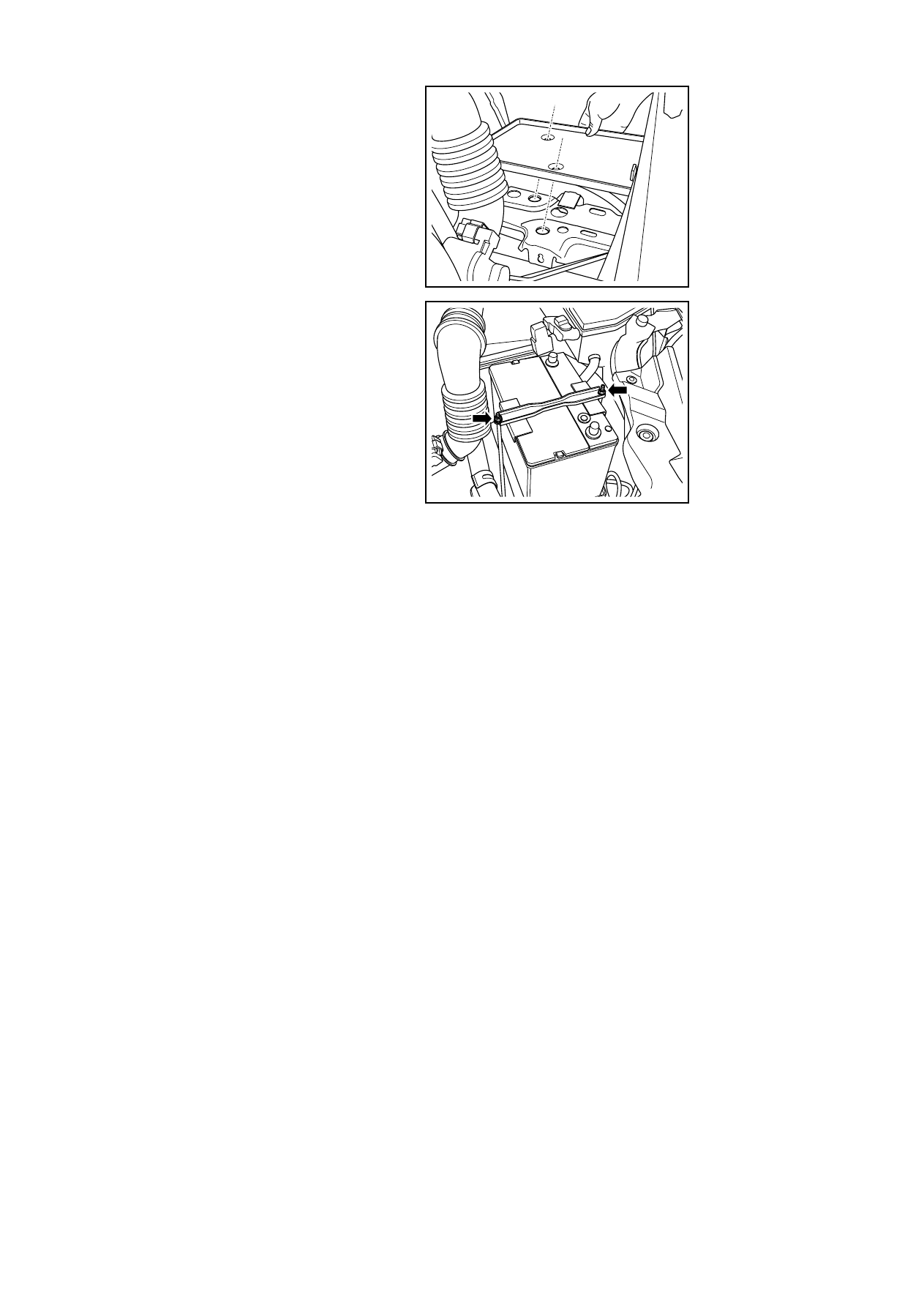

Dismantlement Procedure

1.  Disconnect the battery negative

cable. Refer to 2.12.6.1 Battery
Cable Disconnection/Connection
Procedures.

2.  Dismantle the battery fixing strap

nuts.

NL02-0361b

3.  Remove the battery .

NL02-0362b

4.  Remove the battery base plate.

NL02-0363b

641

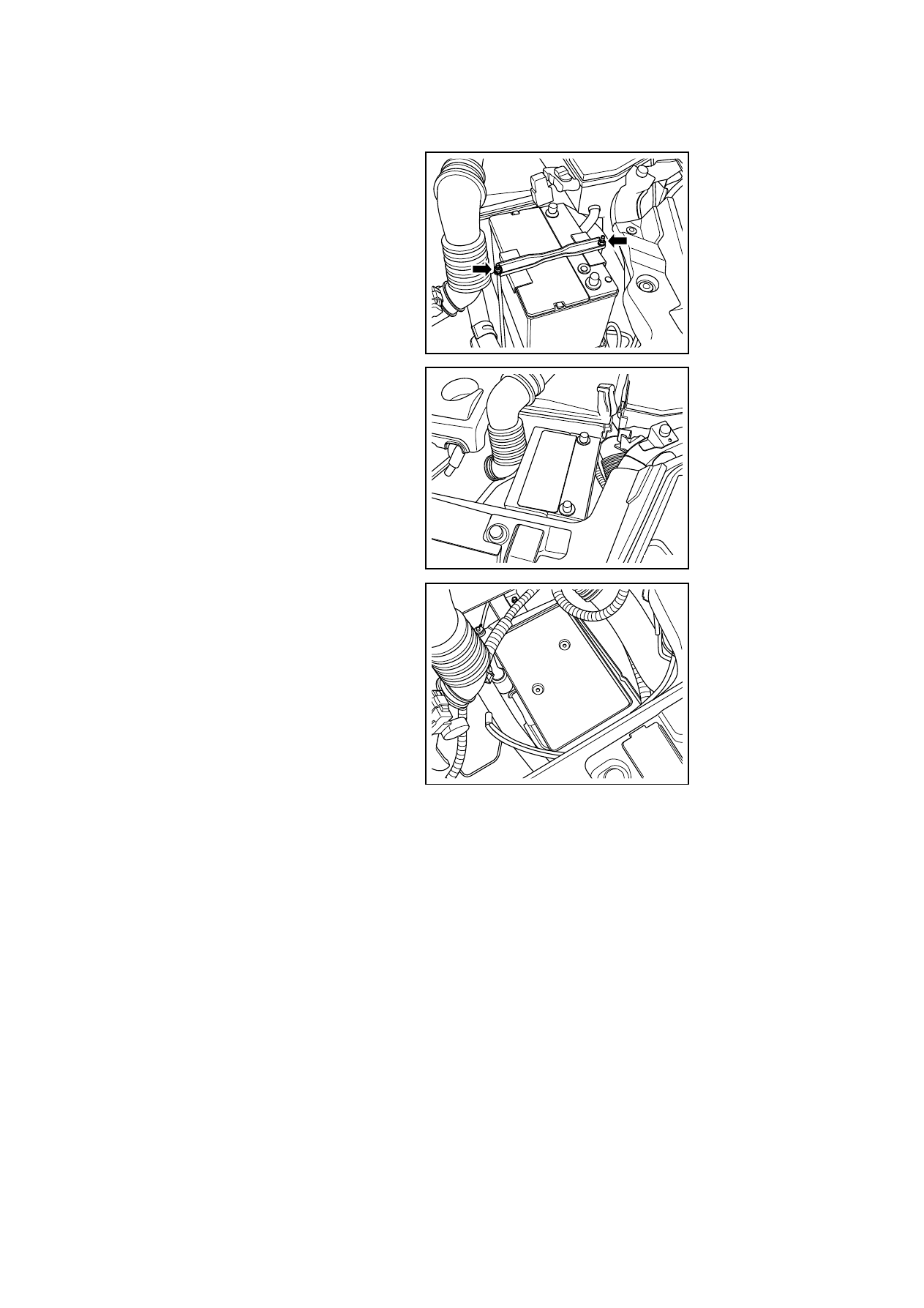

Installation Procedure:

1.  Install the battery base plate.

Note: The battery base plate is
retained by two convex sets, and pay
attention during installation to
aligning the convex with the bracket
holes.

2. Install

the

battery.

NL02-0364b

3.  Install the battery fastening board

and tighten the strap nuts.

Torque:10 Nm(Metric) 7.4
lb-ft(English system)

4.  Connect the battery negative

cable .

NL02-0361b
