Freightliner Coronado 132 / 122SD. Manual - part 29





3.

If present, check the condition of the insulation
material around the exhaust pipe between the
turbocharger and the ATD.

4.

Check the ATD mounting bands for tightness.
Tighten to 30 lbf·ft (41 N·m) if needed. Do not
overtighten.

5.

Check for leaks around the clamps that attach
the ATD in the ATS, and around the clamps that
retain the DPF in the ATD.

6.

Check all sensors attached to the ATS for leaks
or damaged wires. No leaks are allowed. See

Fig. 1

,

Fig. 2

or

Fig. 3

for Detroit Diesel ATS

sensor locations.

7.

Check the DPF exterior surface for dents or
other damage. A dent over 3 inches (76 mm) in
diameter and 1/4-inch (6-mm) deep could cause
internal damage to the DPF, causing it to mal-
function.

8.

Check the SCR catalyst for dents and other
damage.

9.

Check for heat discoloration on the surface of
the ATD. Heat discoloration may indicate internal
damage; especially around the DPF.

NOTE: Diesel exhaust fluid creeps, causing
white crystals to form around the line fittings.
The presence of crystals does not mean the
system has a leak. Replacing fittings or trouble-
shooting components is not necessary unless
there is a system failure or a fault code.

10. Check the DEF tank, pump, metering unit, and

lines for leaks. See Section 49.01 of the 122SD
and Coronado Workshop Manual
for repair pro-
cedures.

11. Check any wires, lines, or hoses within 4 inches

(10 cm) of the exhaust system for heat damage.
Repair or reroute as needed.

Diesel Exhaust Fluid (DEF) Filter
Replacement

The Environmental Protection Agency’s 2010 regula-
tions require lower nitrogen oxide (NOx) exhaust
emissions. Selective catalytic reduction (SCR) uses
diesel exhaust fluid (DEF) to lower NOx emissions in
the vehicle exhaust. A filter in the DEF pump pre-
vents clogging of the DEF metering unit injection
nozzle.

See the engine manufacturer’s maintenance manual
for filter replacement instructions and maintenance
intervals.

ADR2011 Exhaust System
Inspection

IMPORTANT: The Australian Department of In-
frastructure and Transportation regulations for
2011 (ADR2011) require lower exhaust emis-
sions, thus requiring new exhaust system com-
ponents. See

Fig. 4

In particular the aftertreat-

ment device (ATD), which is part of the
aftertreatment system (ATS), requires special
attention during regularly scheduled mainte-
nance inspections. If any discrepancies are dis-
covered, refer to the engine manufacturer’s ser-
vice literature for repair instructions.

Inspection

1.

Check for leakage at the clamp that attaches the
exhaust pipe to the turbocharger exhaust outlet.
If leakage exists, tighten the nut on the clamp to
the required torque. If leakage persists, install a
new clamp.

2.

Check the exhaust pipe, bellows, and each ex-
haust seal clamp for leakage, wear, cracks, or
damage. Replace damaged components as
needed. If leakage exists at a clamp, tighten the
nuts to the required torque. If leakage persists,
install a new exhaust seal clamp. Do not reuse
seal clamps. Once a seal clamp is loosened or
removed, it must be replaced.

3.

If present, check the condition of the insulation
material around the exhaust pipe between the
turbocharger and the ATD.

4.

Check the ATD mounting bands for tightness.
Tighten to 30 lbf·ft (41 N·m) if needed. Do not
overtighten.

5.

Check for leaks around the clamps that attach
the ATD in the ATS, and around the clamps that
retain the DPF in the ATD. No leaks are allowed
anywhere in the system.

6.

Check all sensors attached to the ATD for leaks
or damaged wires. No leaks are allowed.

7.

Check the DPF exterior surface for dents or
other damage. See Item A of

Fig. 4

A dent over

3 inches (76 mm) in diameter and 1/4-inch (6-

Exhaust

49

49/2

mm) deep could cause internal damage to the
DPF, causing it to malfunction.

8.

Check for heat discoloration on the surface of
the ATD. Heat discoloration may indicate internal
damage; especially around the DPF.

9.

Check any wires, lines, or hoses within 4 inches
(10 cm) of the exhaust system for heat damage.
Repair or reroute as needed.

08/20/2009

f490355

1

2

3

4

5

6

7

8

9

10

11

12

13

14

9

15

NOTE: The sensor box (item 8) contains the SCR inlet and outlet NOx sensors, DPF outlet pressure sensor, and the
DOC inlet pressure sensor.

1.

DOC Outlet Temperature
Sensor

2.

DOC Inlet Pressure Sensor
Port

3.

DOC Inlet Temperature Sensor

4.

Front Heat Shield

5.

DEF Nozzle

6.

Exhaust Outlet

7.

DEF Metering Unit

8.

Sensor Box (see note above)

9.

Exhaust Inlet

10. SCR Outlet Temperature

Sensor

11. SCR Outlet NOx Sensor Port
12. SCR Inlet NOx Sensor Port
13. 14-Pin Connectors
14. DPF Outlet Pressure Sensor

Port

15. SCR Inlet Temperature Sensor

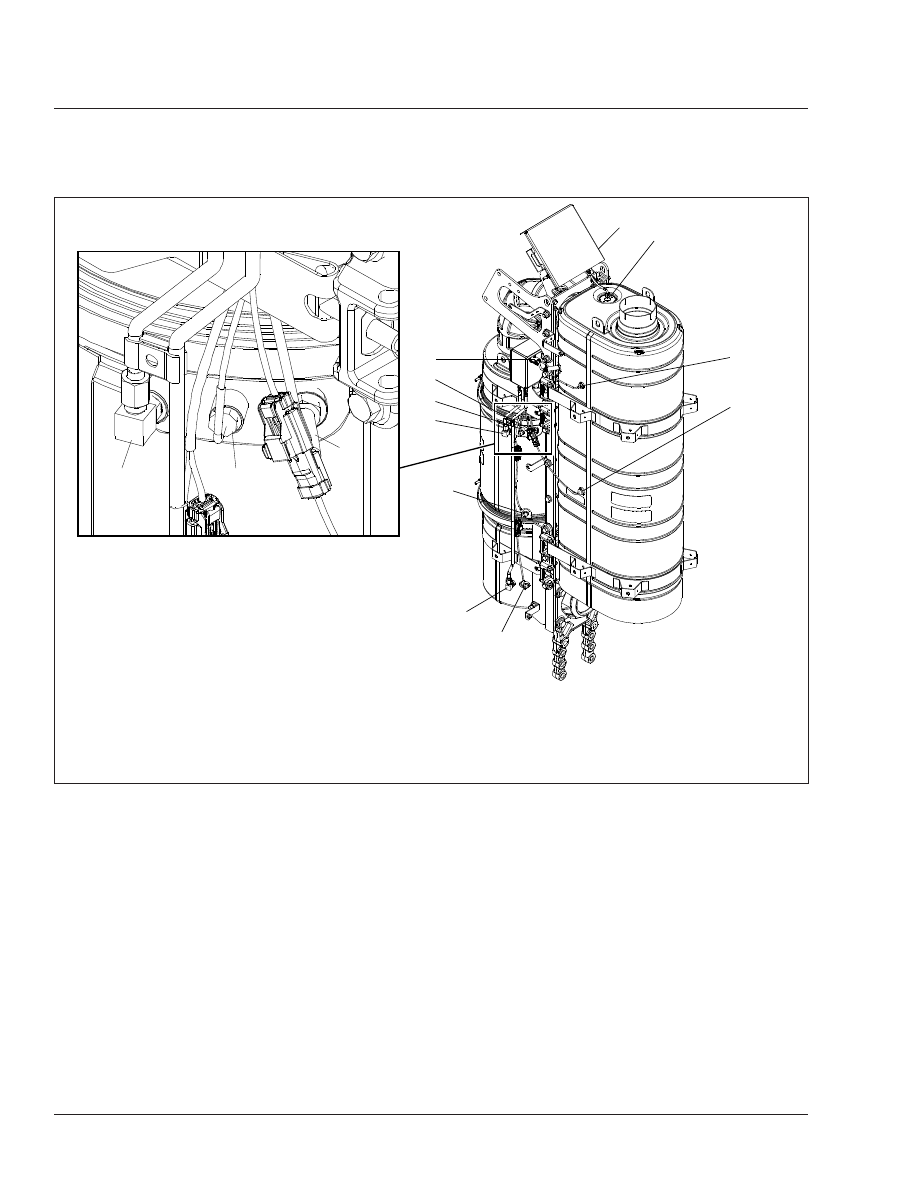

Fig. 1, One-Box ATS Sensor Locations (EPA10)

Exhaust

49

49/3

09/16/2009

1

2

3

4

5

6

7

8

9

10

11

f490353

10

9

8

1.

DEF Metering Unit

2.

DEF Nozzle

3.

SCR Outlet Temperature
Sensor

4.

SCR Inlet Temperature Sensor

5.

DOC Inlet Temperature Sensor

6.

DOC Inlet Pressure Sensor

7.

DPF Inlet Temperature Sensor

8.

DPF Outlet Pressure Sensor

9.

DPF Outlet Temperature
Sensor

10. DPF Outlet NOx Sensor
11. SCR Outlet NOx Sensor

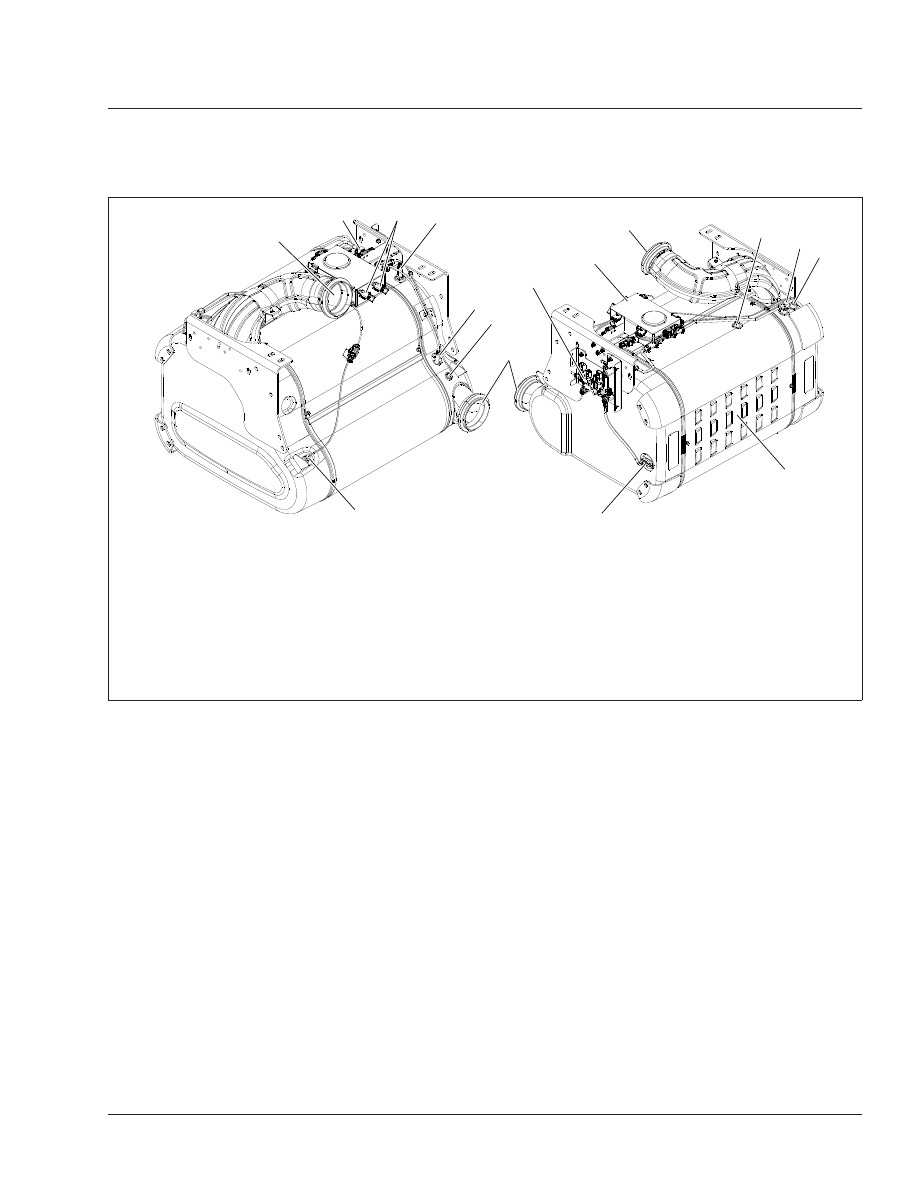

Fig. 2, 2V2 Two-Box ATS Sensor Locations (EPA10)

Exhaust

49

49/4

09/16/2009

f490354

1

2

3

4

5

6

7

8

9

10

11

1.

DPF Inlet Temperature Sensor

2.

DOC Inlet Temperature Sensor

3.

DOC Inlet Pressure Sensor

4.

DPF Sensor Box

5.

DPF Outlet Pressure Sensor

6.

DPF Outlet Temperature
Sensor

7.

DPF Outlet NOx Sensor

8.

SCR Inlet Temperature Sensor

9.

SCR Outlet Temperature
Sensor

10. SCR Sensor Box
11. SCR Outlet NOx Sensor

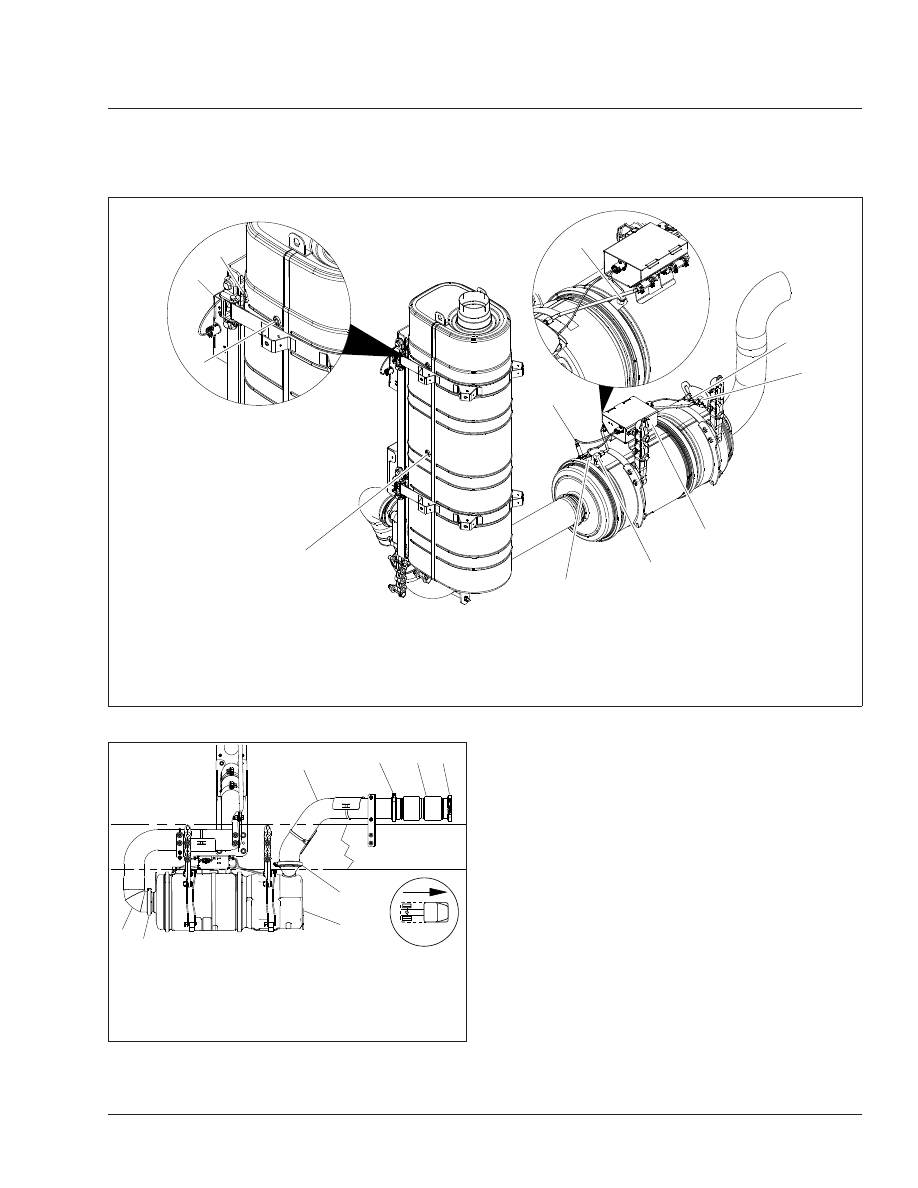

Fig. 3, 2HV Two-Box ATS Sensor Locations (EPA10)

04/11/2012

f490470

1

1

1

1

2

3

4

5

A. Inspect the canister for dents.
1.

Clamp

2.

Bellows

3.

ATD Intake Pipe

4.

ATD

5.

ATD Outlet Pipe

Fig. 4, Typical Aftertreatment Device (ADR2011)

Exhaust

49

49/5
