Fig. 32: Pinpoint Test L: DTC 10 - Low Speed Sensor Resistance - Diagnostic Chart (Steps L1-L2)
Courtesy of FORD MOTOR CO.

NOTE:

Records maintained by the manufacturer show that a module replacement
rarely correct DTC 10.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup



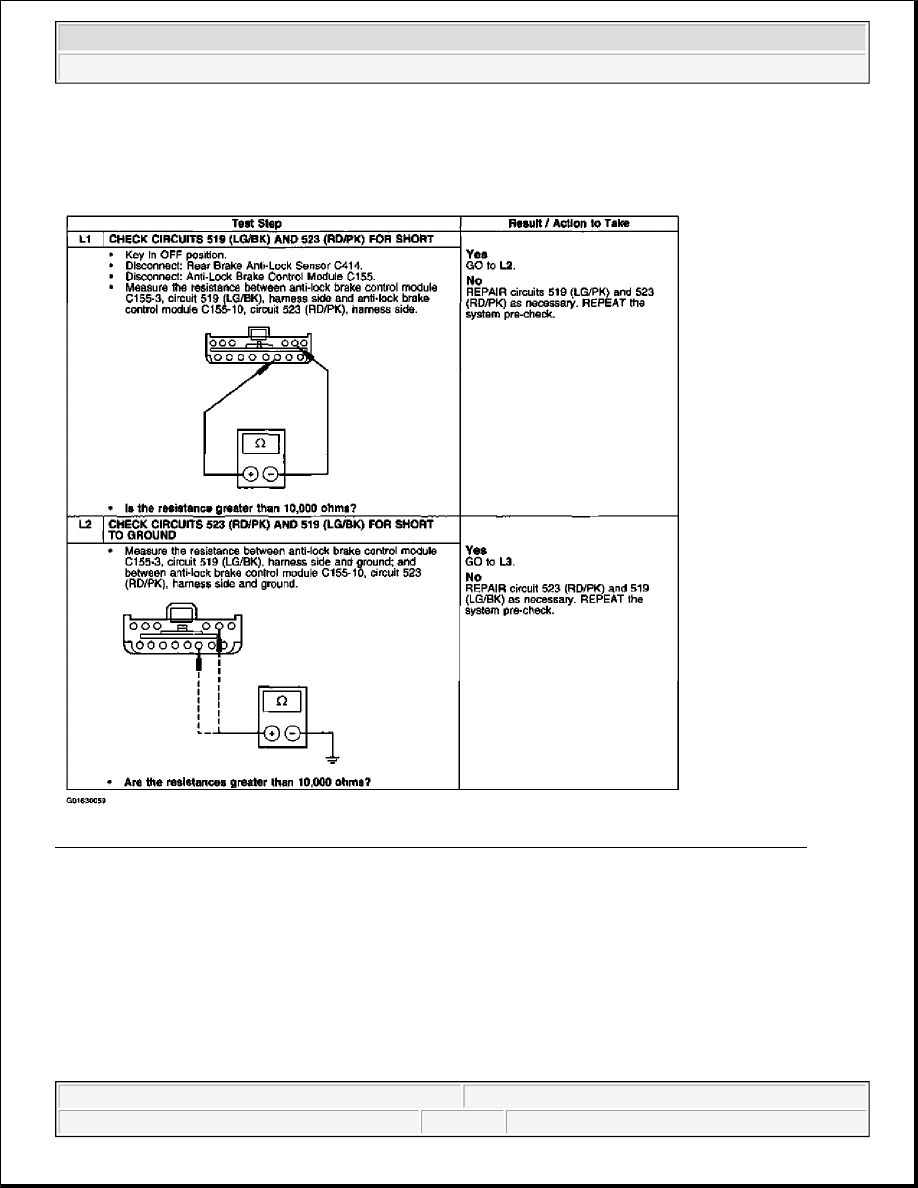

Fig. 33: Pinpoint Test L: DTC 10 - Low Speed Sensor Resistance - Diagnostic Chart (Steps L3-L4)
Courtesy of FORD MOTOR CO.

Pinpoint Test M: Diagnostic Trouble Code (DTC) 11 - Brake Pedal Position (BPP) Switch Always Closed



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup



Fig. 34: Pinpoint Test M: DTC 11 - Brake Pedal Position (BPP) Switch Always Closed - Diagnostic Chart
(Step M1)
Courtesy of FORD MOTOR CO.

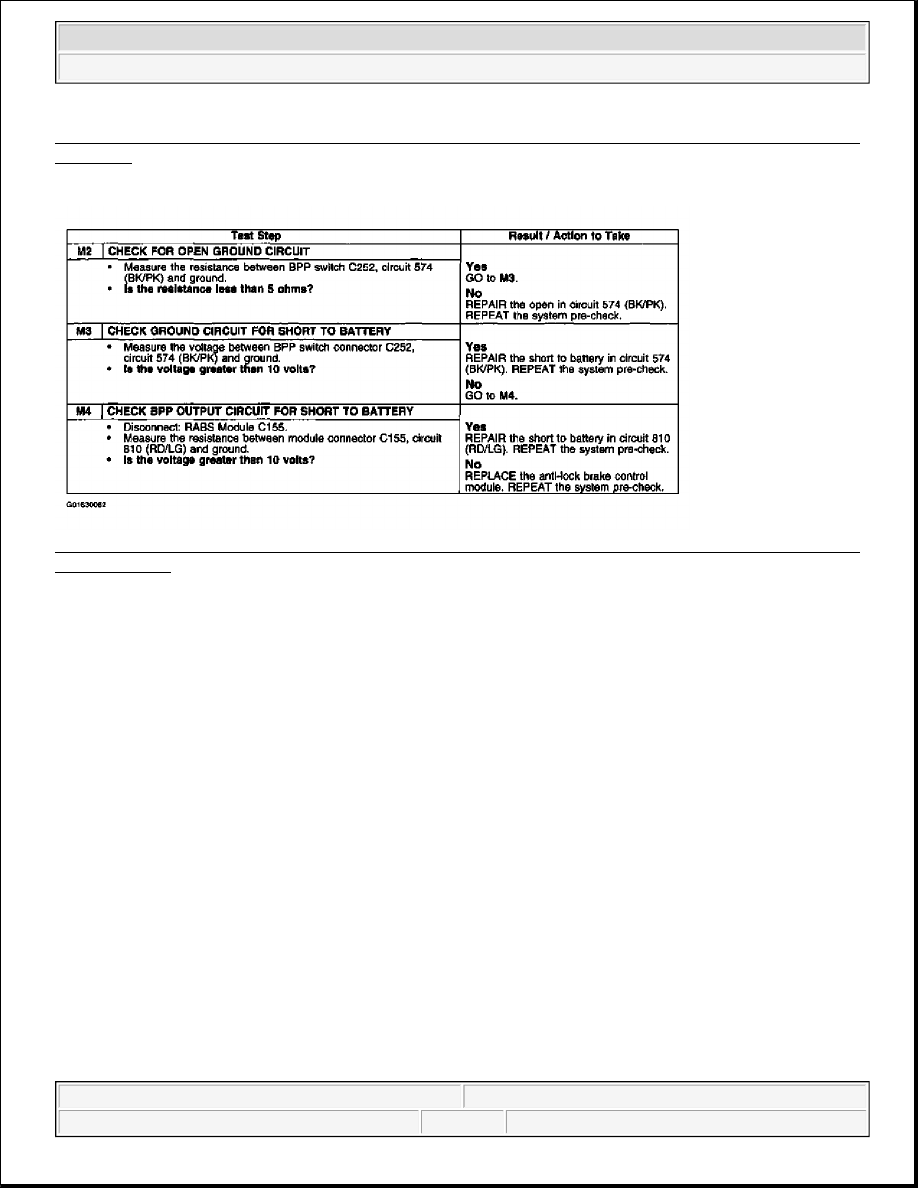

Fig. 35: Pinpoint Test M: DTC 11 - Brake Pedal Position (BPP) Switch Always Closed - Diagnostic Chart
(Steps M2-M4)
Courtesy of FORD MOTOR CO.

Pinpoint N: Diagnostic Trouble Code (DTC) 12 - Loss Of Hydraulic Brake Fluid During An Anti-Lock Stop



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup



Fig. 36: Pinpoint N: DTC 12 - Loss Of Hydraulic Brake Fluid During An Anti-Lock Stop - Diagnostic
Chart (Steps N1-N2)
Courtesy of FORD MOTOR CO.
