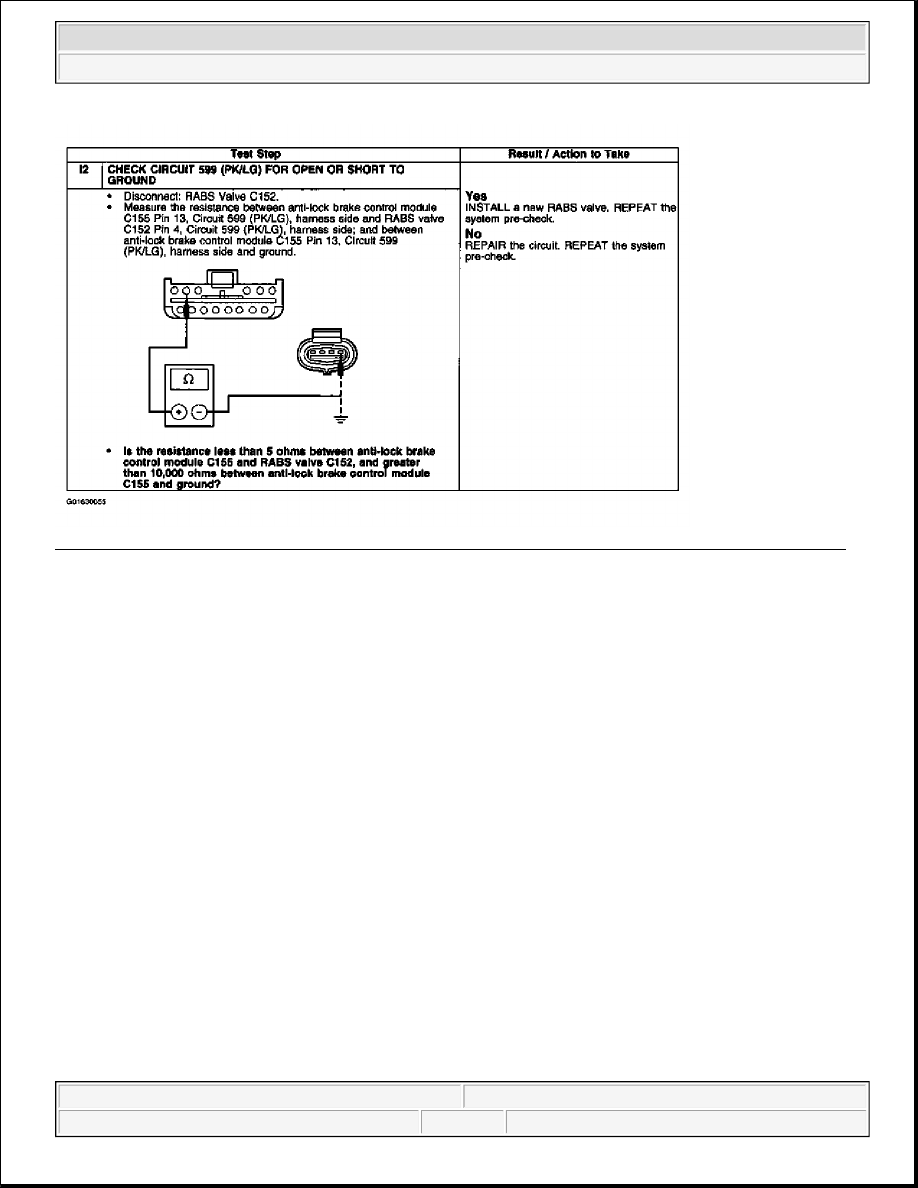

Fig. 28: Pinpoint Test I: DTC 7 - No Isolation Solenoid During Self-Check - Diagnostic Chart (Steps I2)
Courtesy of FORD MOTOR CO.

Pinpoint Test J: Diagnostic Trouble Code (DTC) 8 - No Dump Solenoid During Self-Check



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup

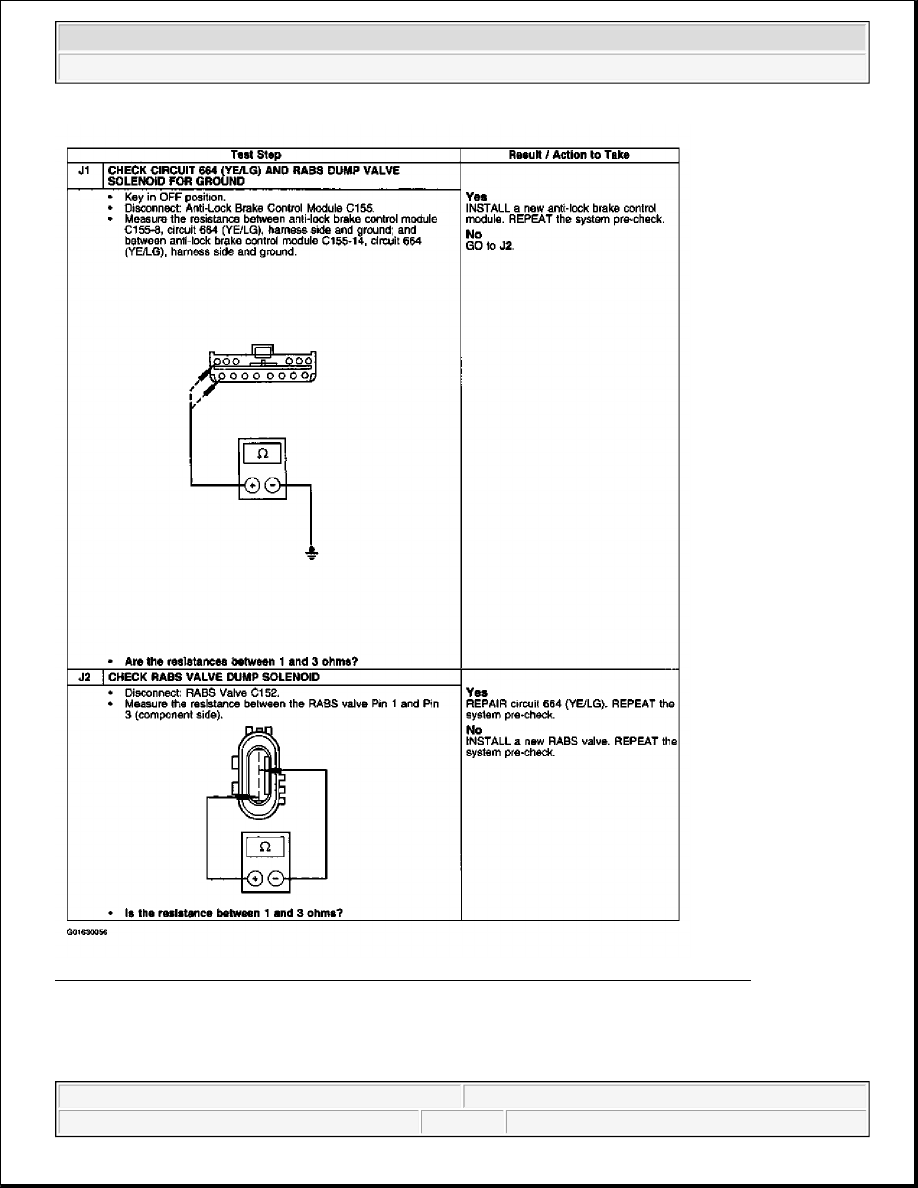

Fig. 29: Pinpoint Test J: DTC 8 - No Dump Solenoid During Self-Check - Diagnostic Chart
Courtesy of FORD MOTOR CO.

Pinpoint Test K: Diagnostic Trouble Code (DTC) 9 - Speed Sensor High Resistance/Open Circuit



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup



Fig. 30: Pinpoint Test K: DTC 9 - Speed Sensor High Resistance/Open Circuit - Diagnostic Chart (Steps
K1-K2)
Courtesy of FORD MOTOR CO.

NOTE:

Records maintained by the manufacturer show that a module replacement
rarely correct DTC 9.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup



Fig. 31: Pinpoint Test K: DTC 9 - Speed Sensor High Resistance/Open Circuit - Diagnostic Chart (Steps
K3-K4)
Courtesy of FORD MOTOR CO.

Pinpoint Test L: Diagnostic Trouble Code (DTC) 10 - Low Speed Sensor Resistance



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup
