Ford F150 Pickup. Instruction - part 352

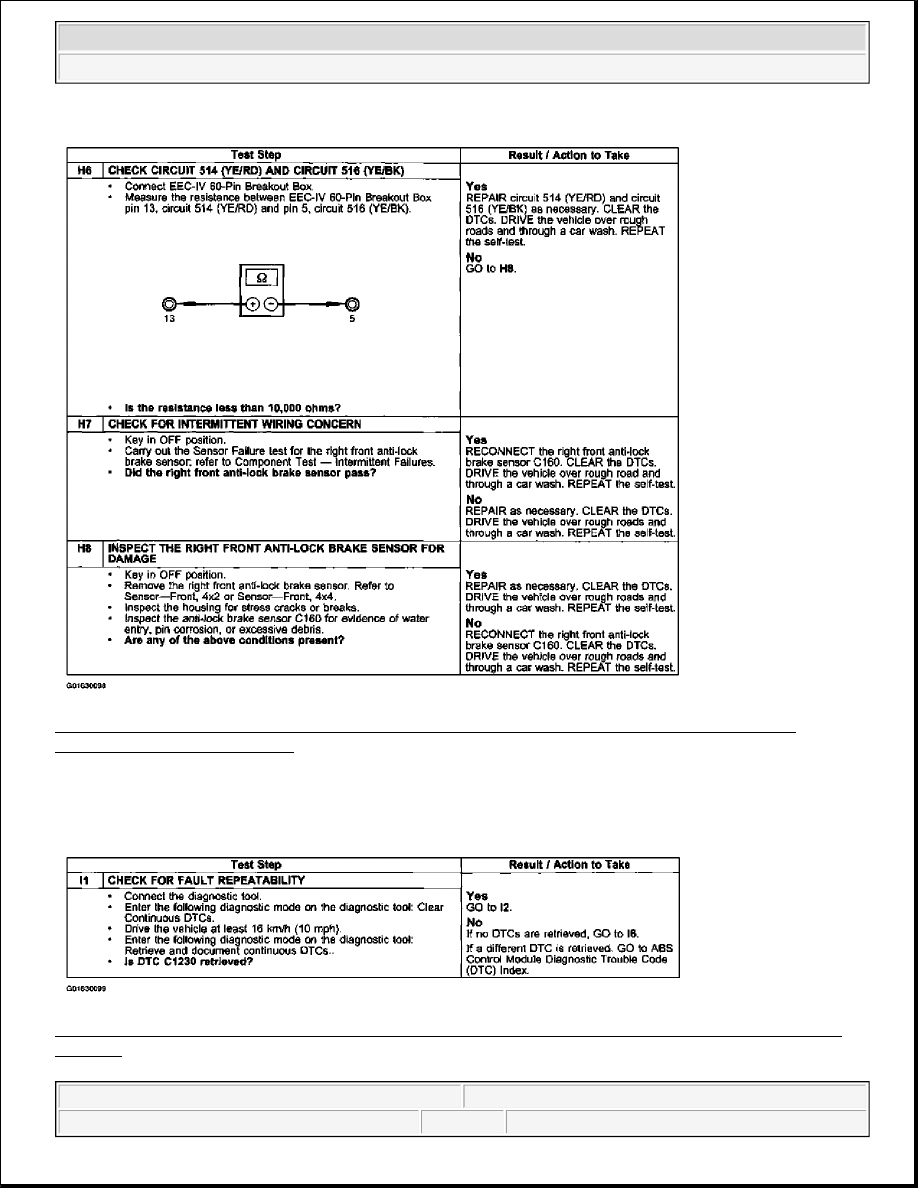

Fig. 25: Pinpoint Test H: DTCs C1148, C1234: Right Front Anti-Lock Brake Sensor (Dynamic) -
Diagnosis Chart (Steps H6-H8)
Courtesy of FORD MOTOR CO.

Pinpoint Test I: DTC 1230: Rear Anti-Lock Brake Sensor (Electrical-Static)

Fig. 26: Pinpoint Test I: DTC 1230: Rear Anti-Lock Brake Sensor (Electrical-Static) - Diagnosis Chart
(Step I1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup

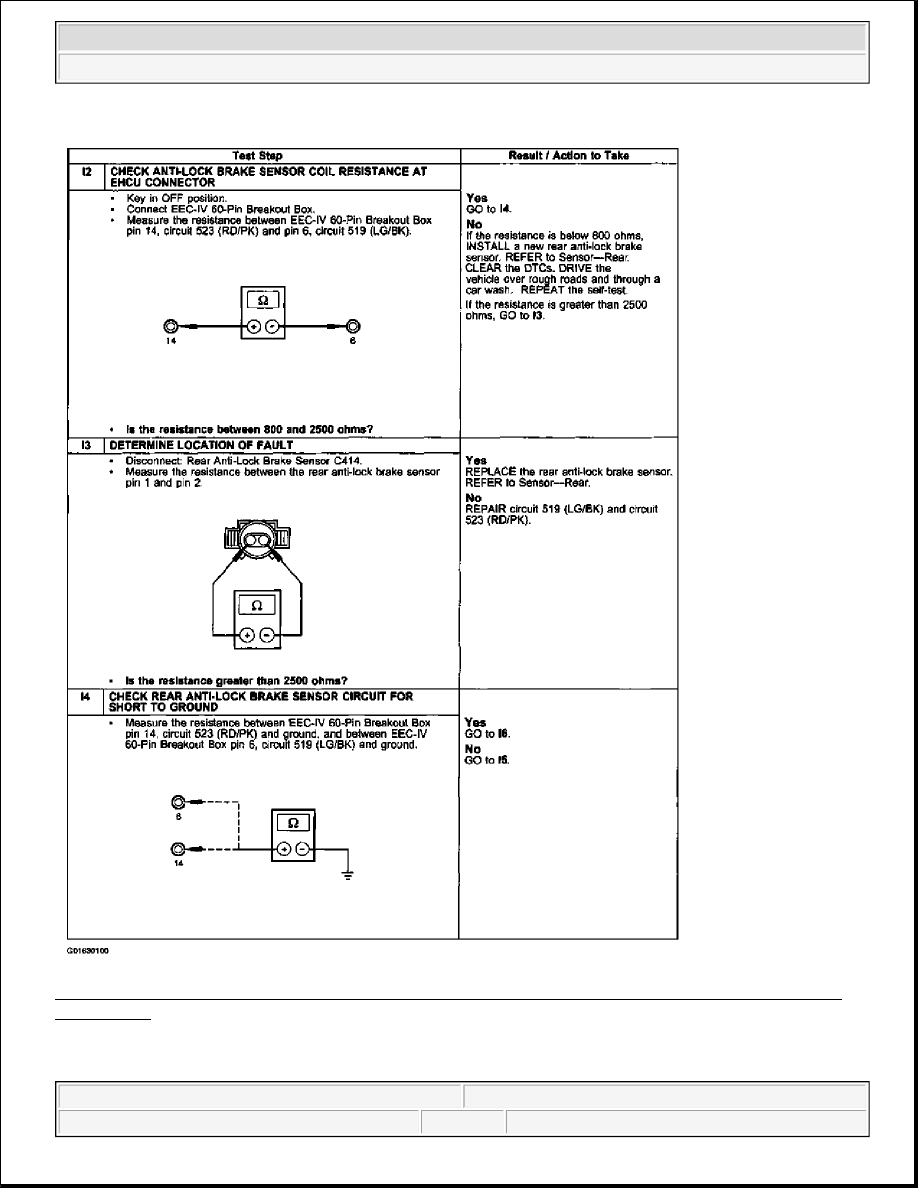

Fig. 27: Pinpoint Test I: DTC 1230: Rear Anti-Lock Brake Sensor (Electrical-Static) - Diagnosis Chart
(Steps I2-I4)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup



Fig. 28: Pinpoint Test I: DTC 1230: Rear Anti-Lock Brake Sensor (Electrical-Static) - Diagnosis Chart
(Steps I4 Cont.-I6)
Courtesy of FORD MOTOR CO.

Pinpoint Test J: DTCs C1229, C1237: Rear Anti-Lock Brake Sensor Diagnosis (Dynamic)

Fig. 29: Pinpoint Test J: DTCs C1229, C1237: Rear Anti-Lock Brake Sensor Diagnosis (Dynamic) -



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup



Diagnosis Chart (Steps J1-J2)
Courtesy of FORD MOTOR CO.

Fig. 30: Pinpoint Test J: DTCs C1229, C1237: Rear Anti-Lock Brake Sensor Diagnosis (Dynamic) -
Diagnosis Chart (Steps J3-J6)



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup
