Ford F150 Pickup. Instruction - part 351

Fig. 20: Pinpoint Test F: DTCs C1158, C1233: Left Front Brake Anti-Lock Sensor (Dynamic) - Diagnosis
Chart (Steps F6-F8)
Courtesy of FORD MOTOR CO.

Pinpoint Test G: DTC C1145: Right Front Anti-Lock Brake Sensor (Electrical/Static)

Fig. 21: Pinpoint Test G: DTC C1145: Right Front Anti-Lock Brake Sensor (Electrical/Static) - Diagnosis
Chart (Step G1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup

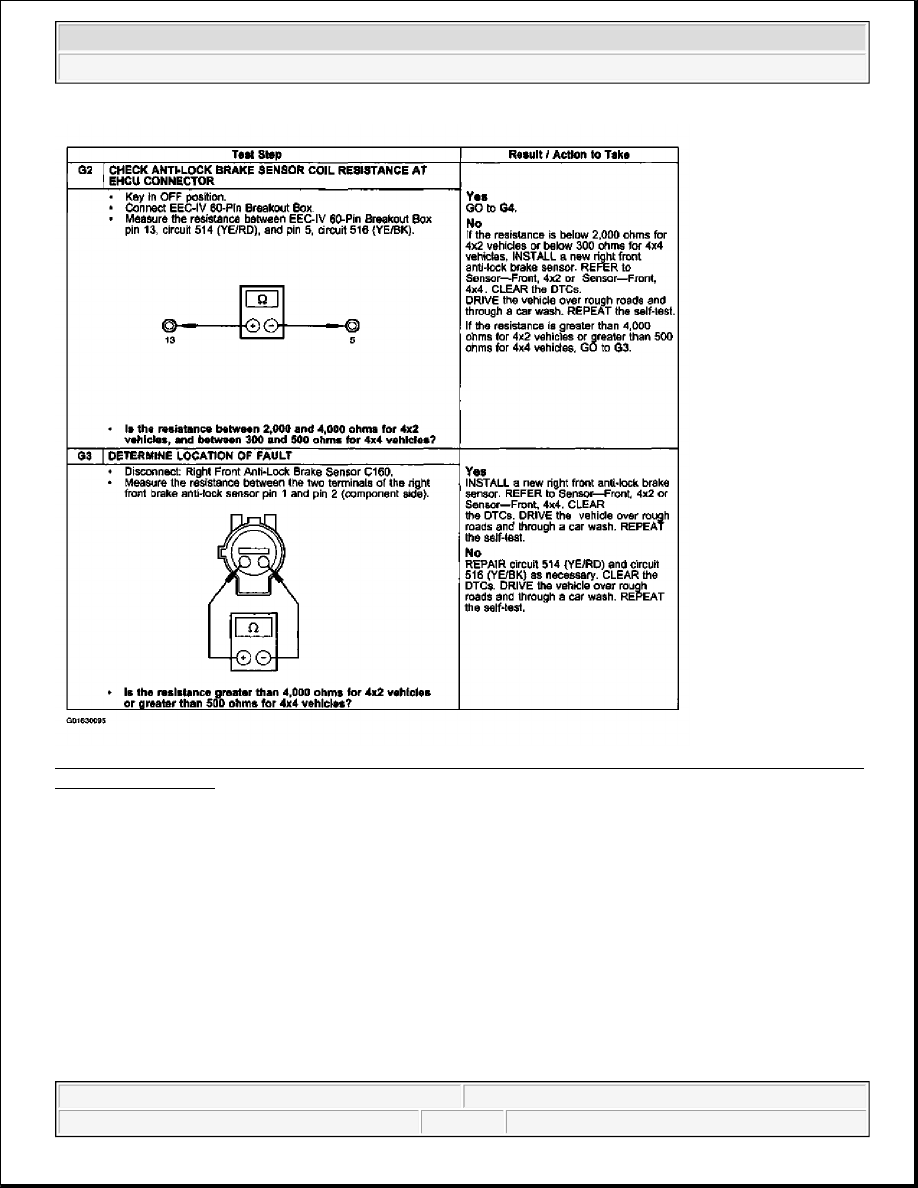

Fig. 22: Pinpoint Test G: DTC C1145: Right Front Anti-Lock Brake Sensor (Electrical/Static) - Diagnosis
Chart (Steps G2-G3)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup

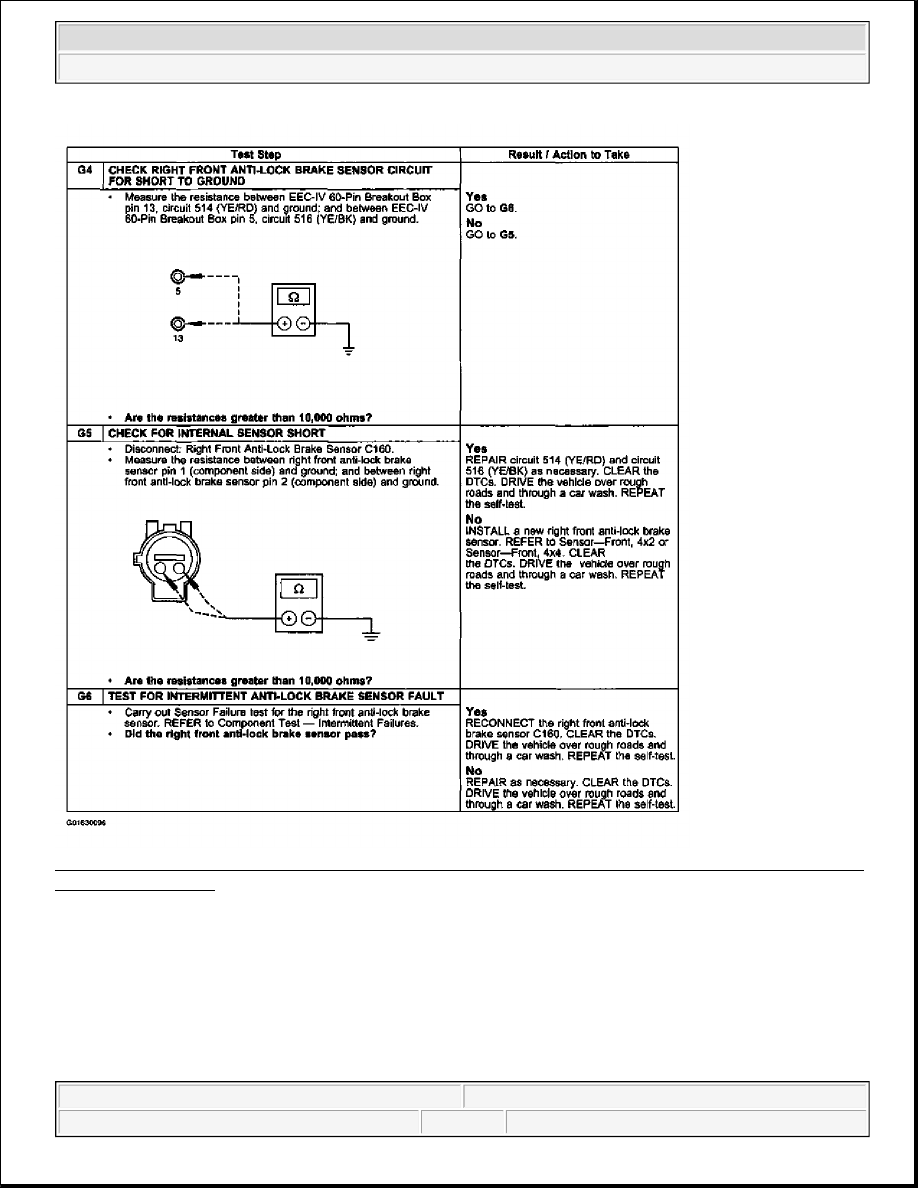

Fig. 23: Pinpoint Test G: DTC C1145: Right Front Anti-Lock Brake Sensor (Electrical/Static) - Diagnosis
Chart (Steps G4-G6)
Courtesy of FORD MOTOR CO.

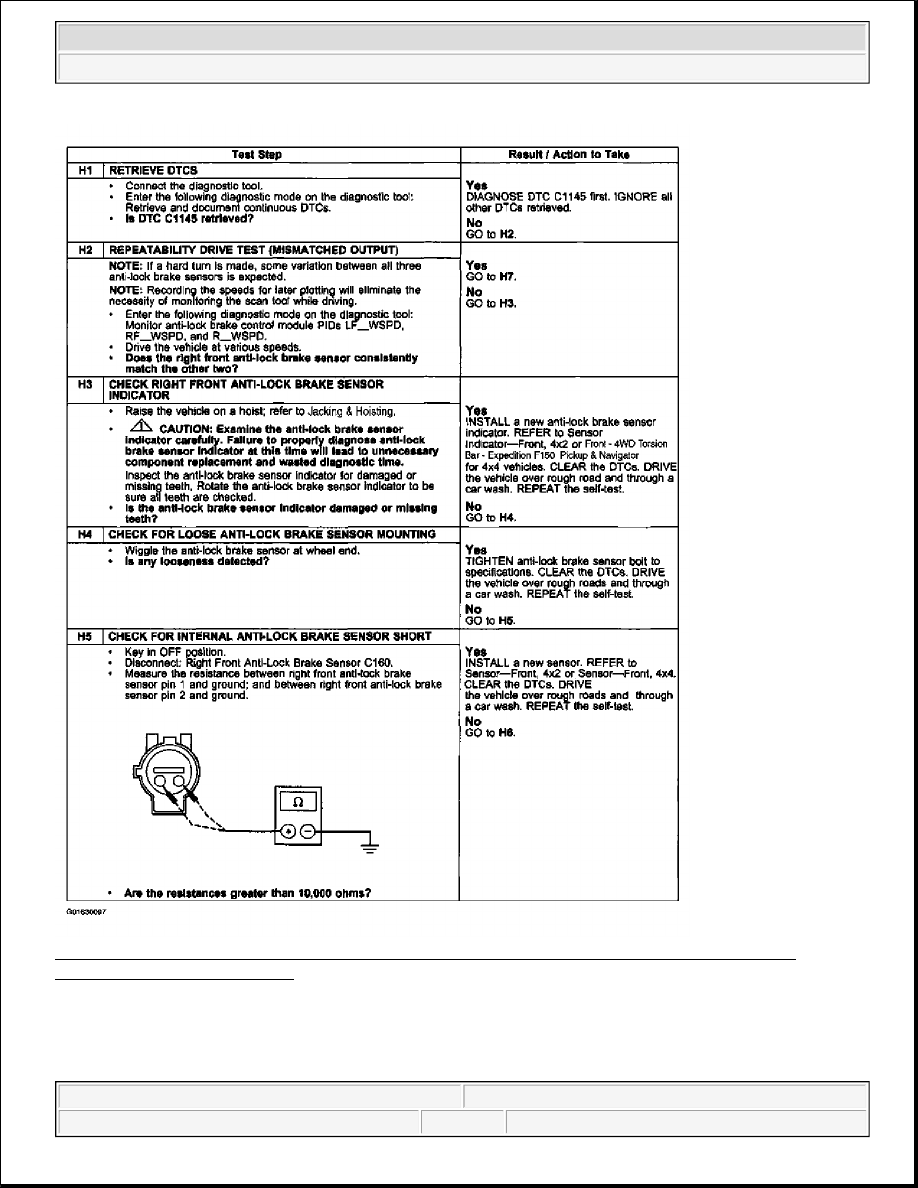

Pinpoint Test H: DTCs: C1148, C1234: Right Front Anti-Lock Brake Sensor (Dynamic)



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup



Fig. 24: Pinpoint Test H: DTCs C1148, C1234: Right Front Anti-Lock Brake Sensor (Dynamic) -
Diagnosis Chart (Steps H1-H5)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup
