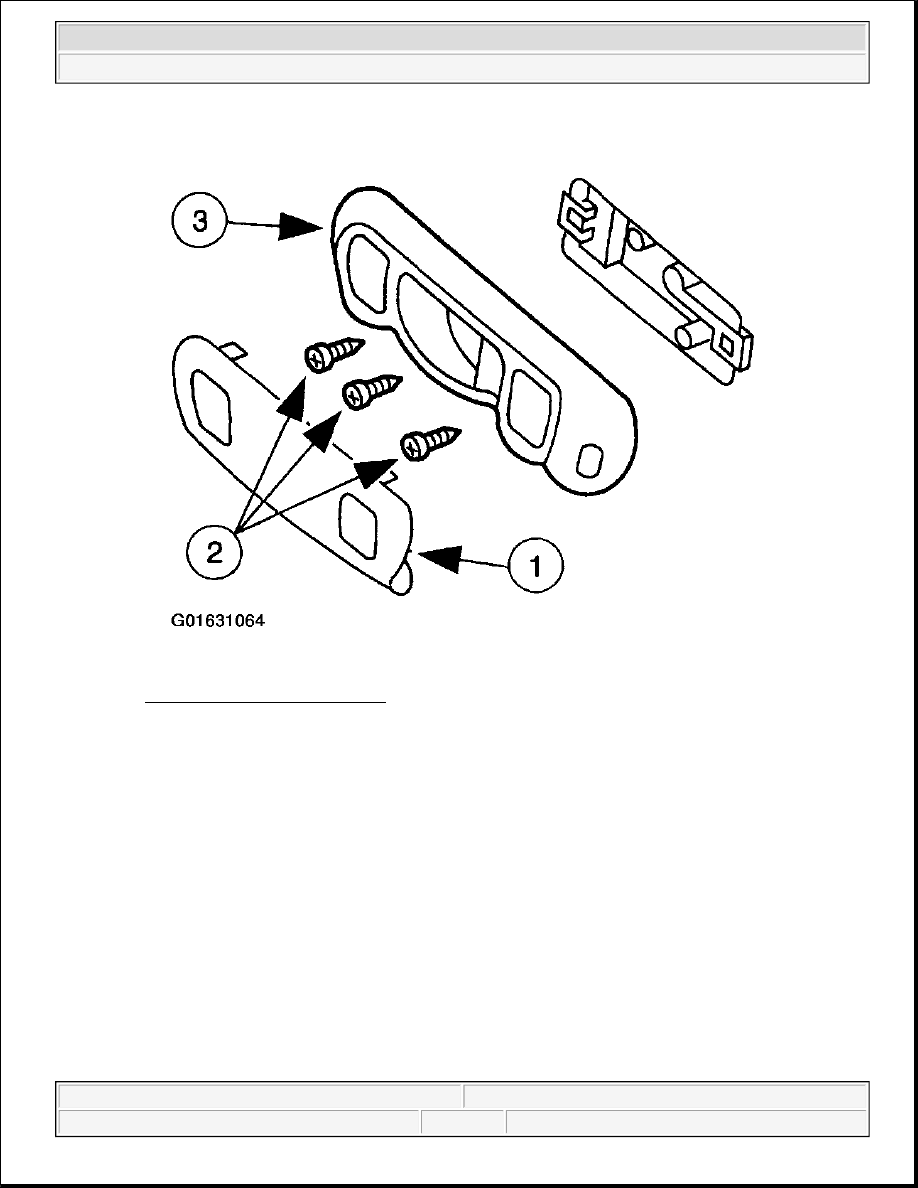

Fig. 78: Removing Dome Lamp
Courtesy of FORD MOTOR CO.

9. Remove the pin-type retainers from the headliner.

10. Lower the back half of the headliner.

Vehicles with power sliding window

NOTE:

RH side shown, LH side similar.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

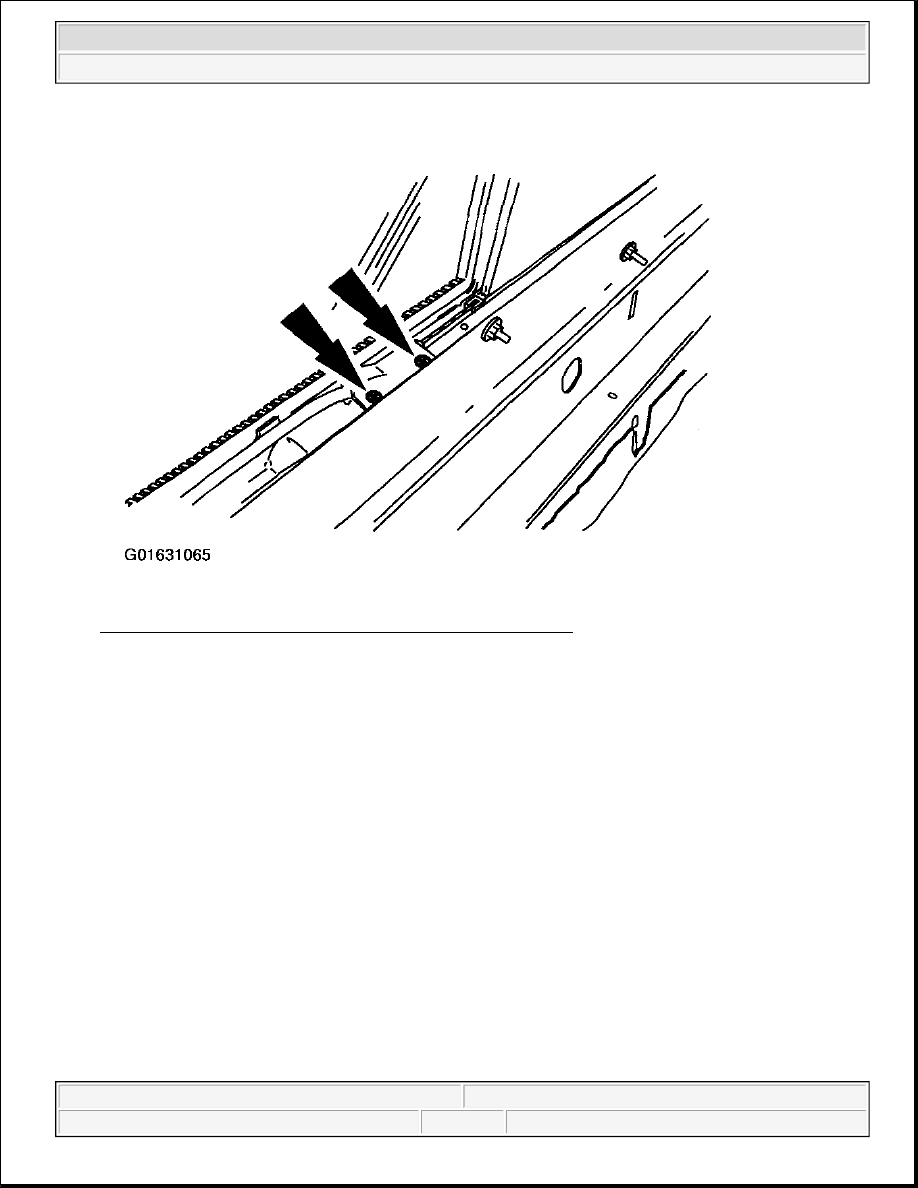

Fig. 79: Removing Rear Power Sliding Window Cable Screws
Courtesy of FORD MOTOR CO.

11. Remove the LH and RH rear power sliding window cable screws.

12. Disconnect the LH and RH rear power sliding window cable.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



Fig. 80: Disconnecting Rear Power Sliding Window Cable
Courtesy of FORD MOTOR CO.

All vehicles

13. If equipped, disconnect the rear window defrost connectors.

14. Cut the foam butyl from around the back window glass.

15. Remove the back window glass.

1. Remove the 12 nuts.

2. Remove the back window glass.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



Fig. 81: Removing Back Window Glass
Courtesy of FORD MOTOR CO.

16. Remove any remaining foam butyl from the window glass frame.

Installation

All vehicles

1. Clean the back window glass with an alcohol-free cleaner.

2. Apply 8 mm foam butyl, or equivalent meeting Ford specification WSB-M3G143-B to the back window

glass.

z

Start at the bottom middle and work around.

3. Install the back window glass.

1. Position the back window glass.

2. Install the 12 nuts.
