Ford F150 Pickup. Instruction - part 1978

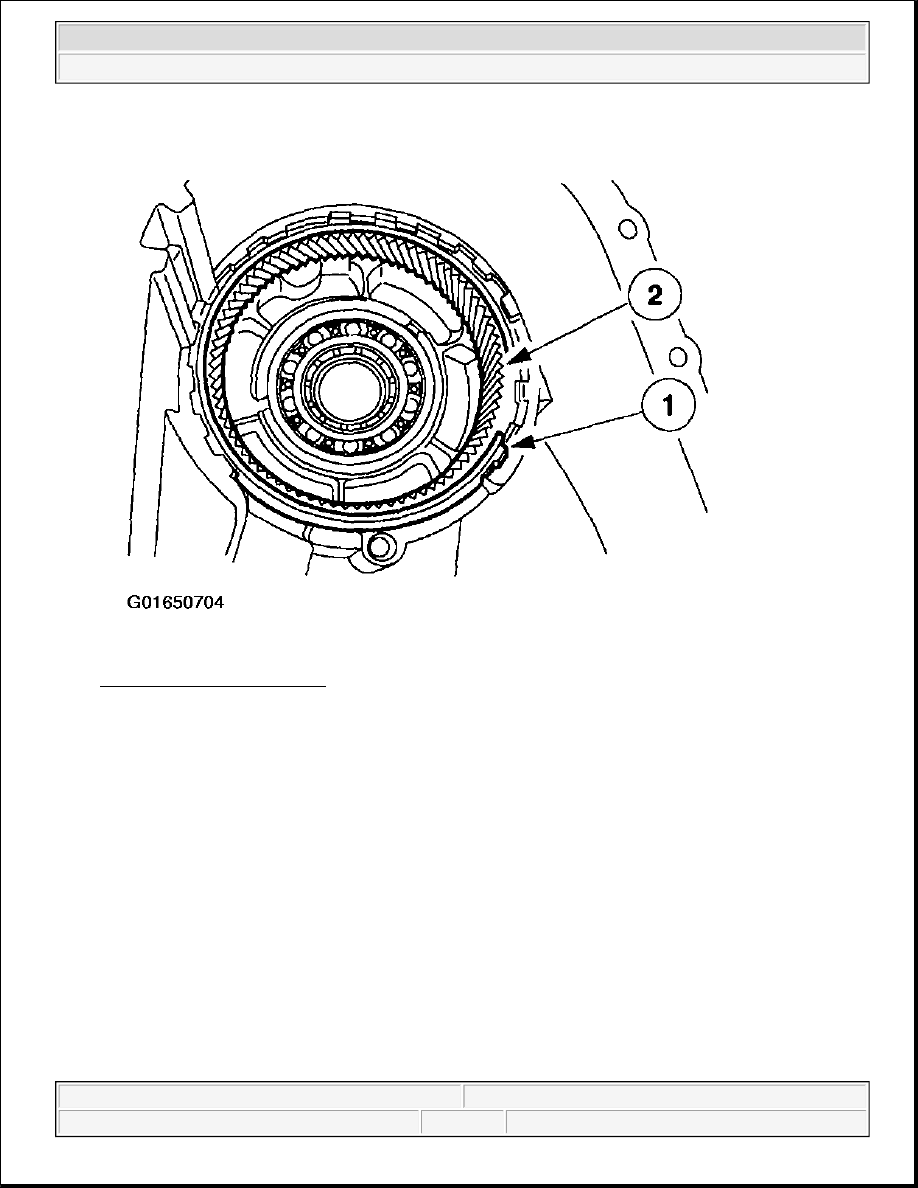

Fig. 71: Removing Ring Gear
Courtesy of FORD MOTOR CO.

32. Remove the front planet carrier bearing snap ring. Then, using the special tools, remove the front planet

carrier bearing.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



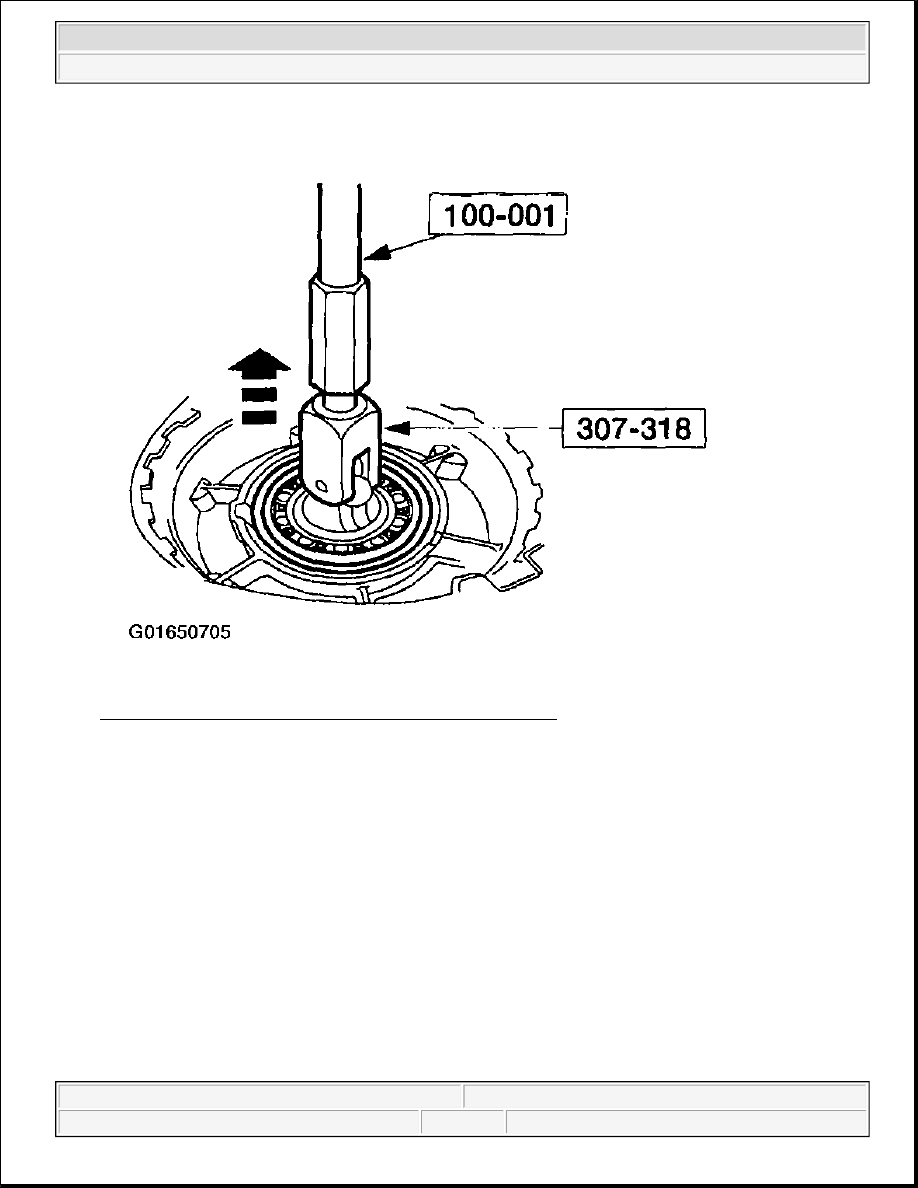

Fig. 72: Removing Front Planet Carrier Bearing Using SST
Courtesy of FORD MOTOR CO.

CAUTION: Do not let the front output shaft fall while removing the snap ring.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 73: Removing Front Output Shaft
Courtesy of FORD MOTOR CO.

33. Remove the front output shaft.

1. Remove the front output shaft snap ring.

2. Remove the front output shaft.

34. Using the special tools, remove the front output shaft bearing.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



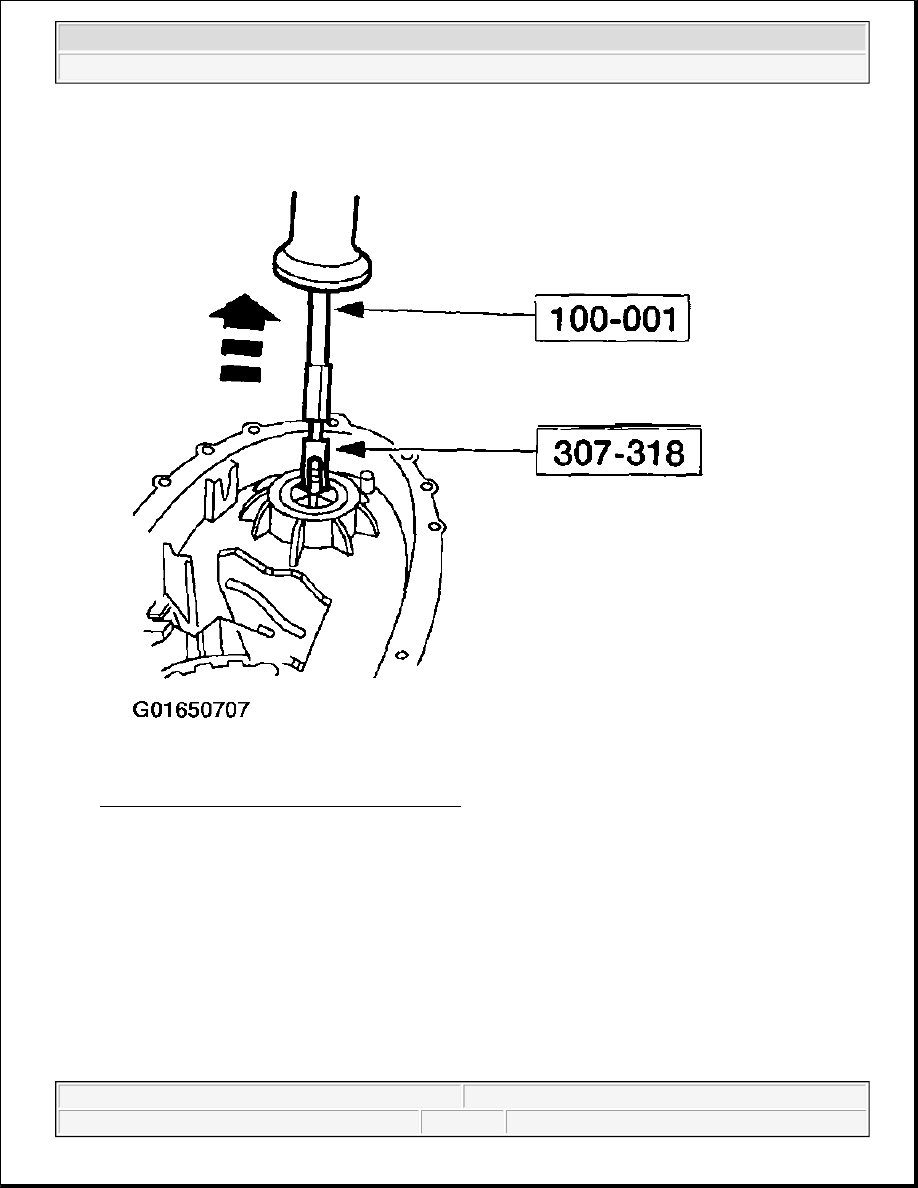

Fig. 74: Removing Front Output Shaft Bearing
Courtesy of FORD MOTOR CO.

35. Using the special tools, remove the front yoke to flange seal.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup
