Fig. 63: Removing Oil Pump & Output Shaft
Courtesy of FORD MOTOR CO.

23. Remove the oil pump and the output shaft as an assembly.

z

Remove the oil pump from the output shaft.

24. Remove the shift rail.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup





2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



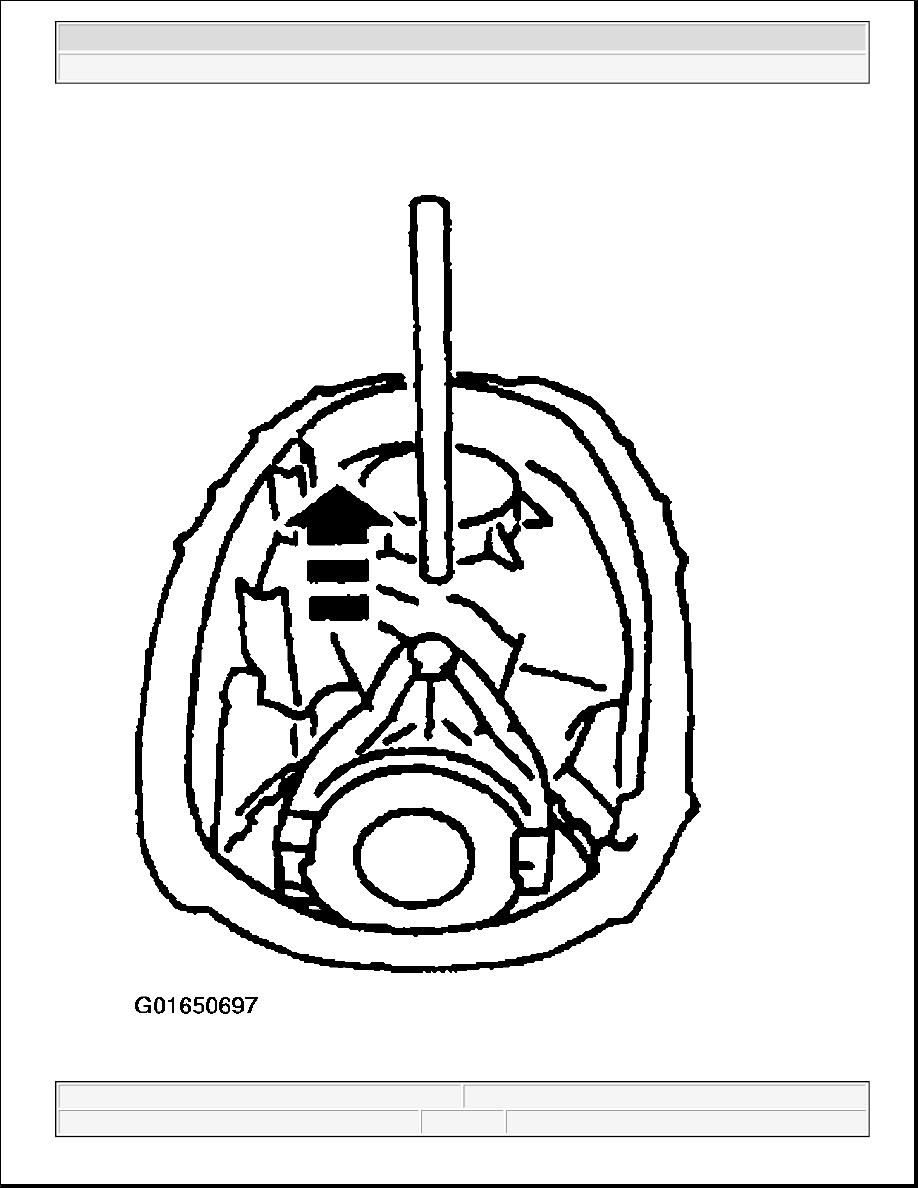

Fig. 64: Removing Shift Rail
Courtesy of FORD MOTOR CO.

25. Remove the shift fork and the reduction hub.

1. Remove the shift fork.

2. Remove the reduction hub.

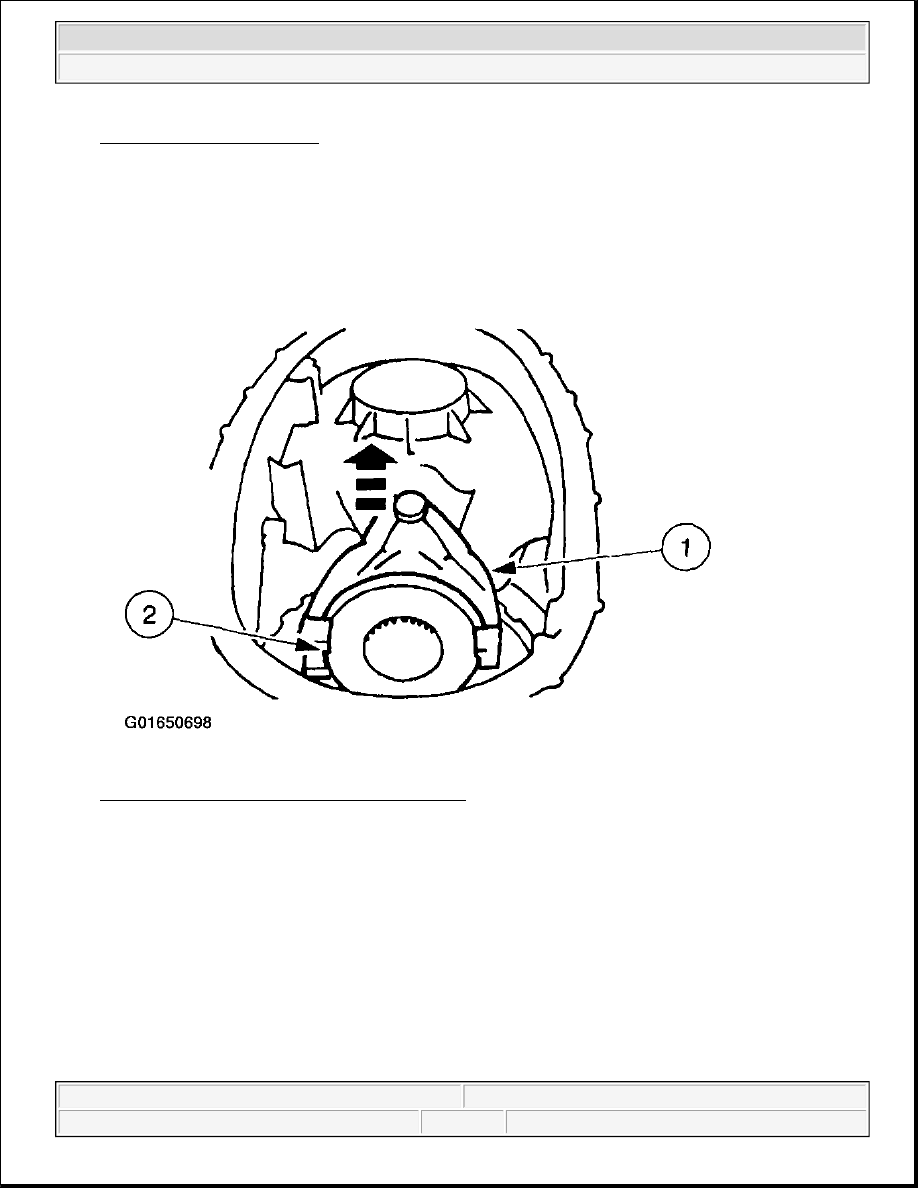

Fig. 65: Removing Shift Fork & Reduction Hub
Courtesy of FORD MOTOR CO.

WARNING:

Do not disassemble shift cam assembly.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

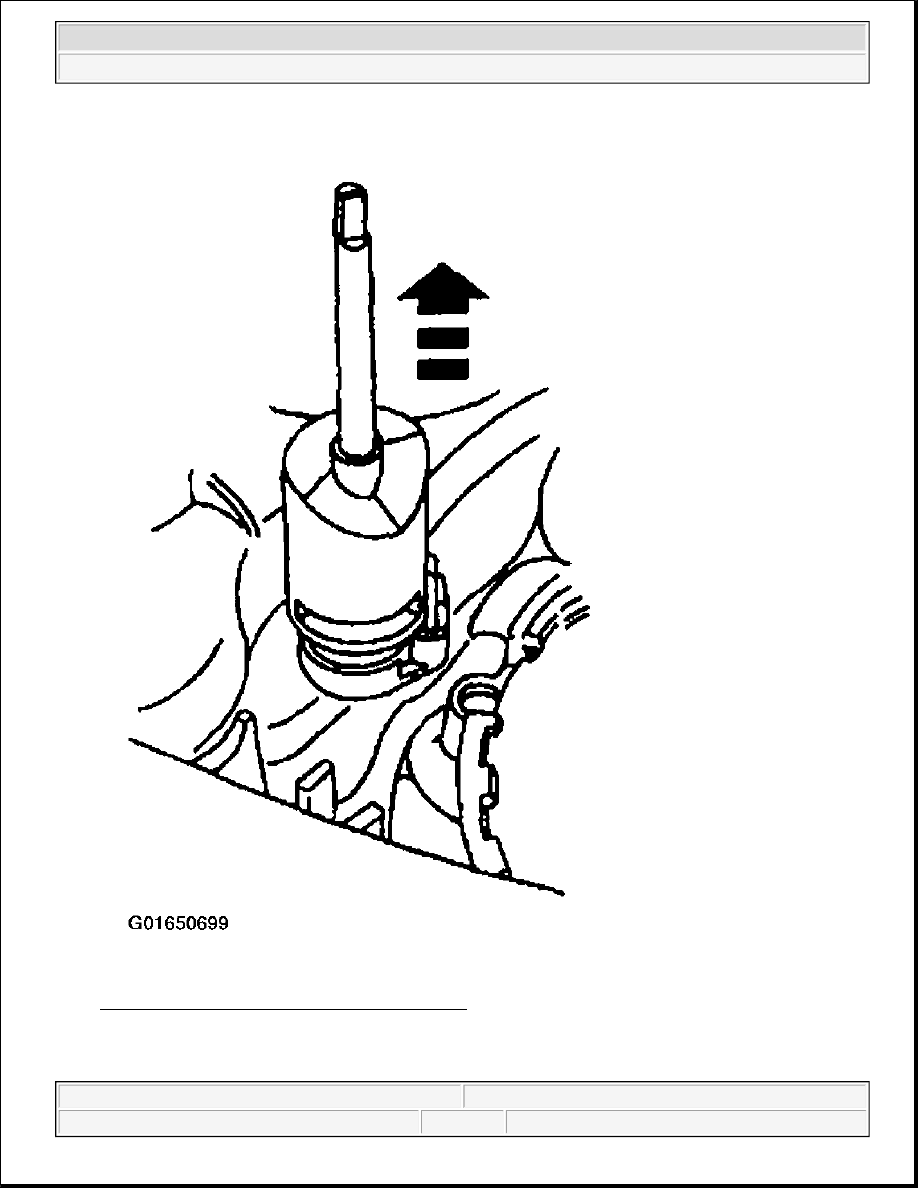

Fig. 66: Removing Electric Shift Cam Assembly
Courtesy of FORD MOTOR CO.

26. Remove the electric shift cam assembly, if equipped.
