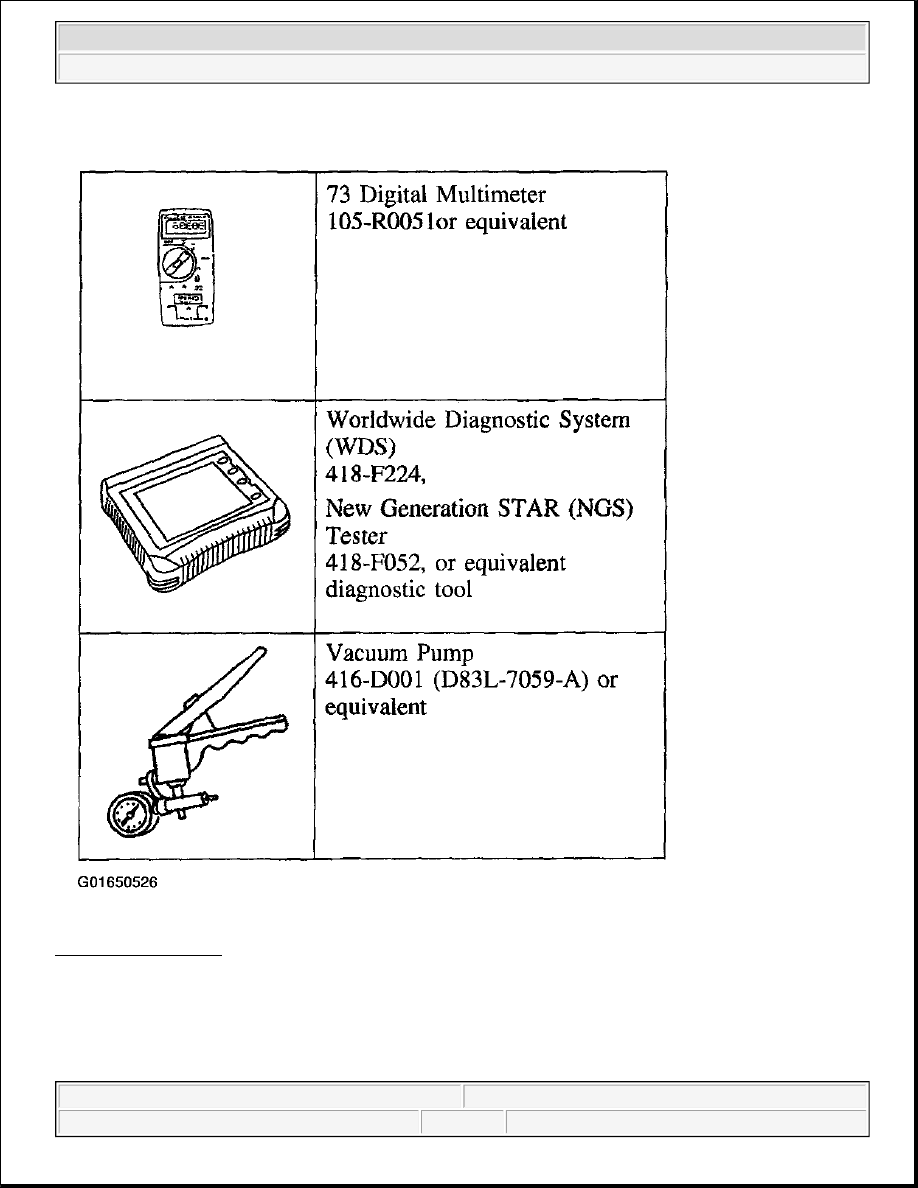

Fig. 4: Special Tool(s)
Courtesy of FORD MOTOR CO.

Electrical Shift On The Fly (ESOF) Vacuum Schematic



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup



Fig. 5: ESOF Vacuum Schematic Diagram
Courtesy of FORD MOTOR CO.

4X4 TABLES

Table 1 - 4WD Mode Switch Input Resistances



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup

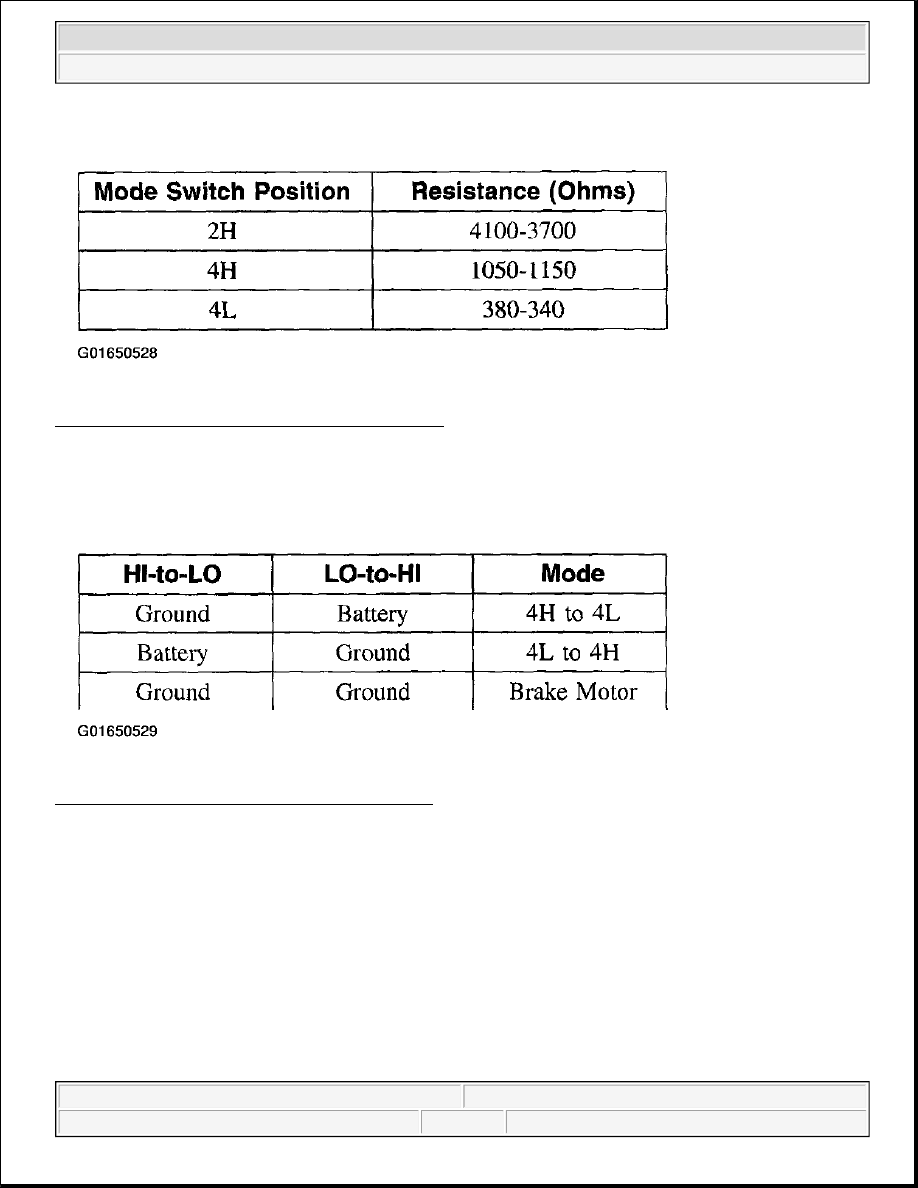

Fig. 6: 4WD Mode Switch Input Resistances Chart
Courtesy of FORD MOTOR CO.

Table 2 - Transfer Case Shift Relays Outputs

Fig. 7: Transfer Case Shift Relays Outputs Chart
Courtesy of FORD MOTOR CO.

Table 3 - Neutral Safety Switch Input Conditions



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup

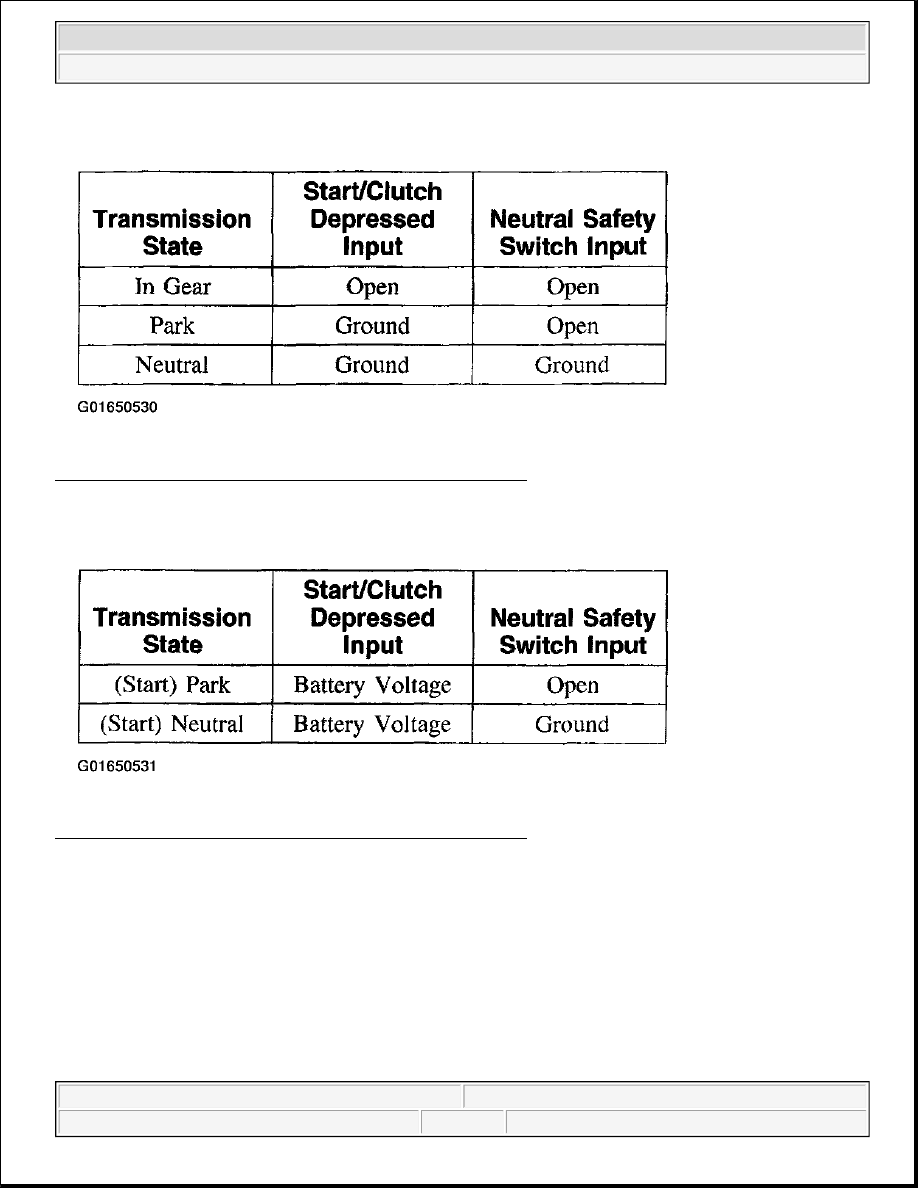

Fig. 8: Neutral Safety Switch Input Conditions Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

Fig. 9: Neutral Safety Switch Input Conditions Chart (2 Of 2)
Courtesy of FORD MOTOR CO.

Table 4 - Contact Plate Sensor Position Codes

NOTE:

The contact plate sensor position codes for 2H, 4H and 4L indicate what is
displayed by the diagnostic tool. Actual probing with a multimeter will result in
readings opposite of what is displayed.
