Fig. 31: Removing Gearshift Lever
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission External Controls - F150 Pickup



4. To install, reverse the removal procedure.

TRANSMISSION CONTROL SWITCH

Removal and Installation

1. Remove the Transmission Control Switch (TCS).

1. Remove the TCS cover.

2. Remove the TCS.

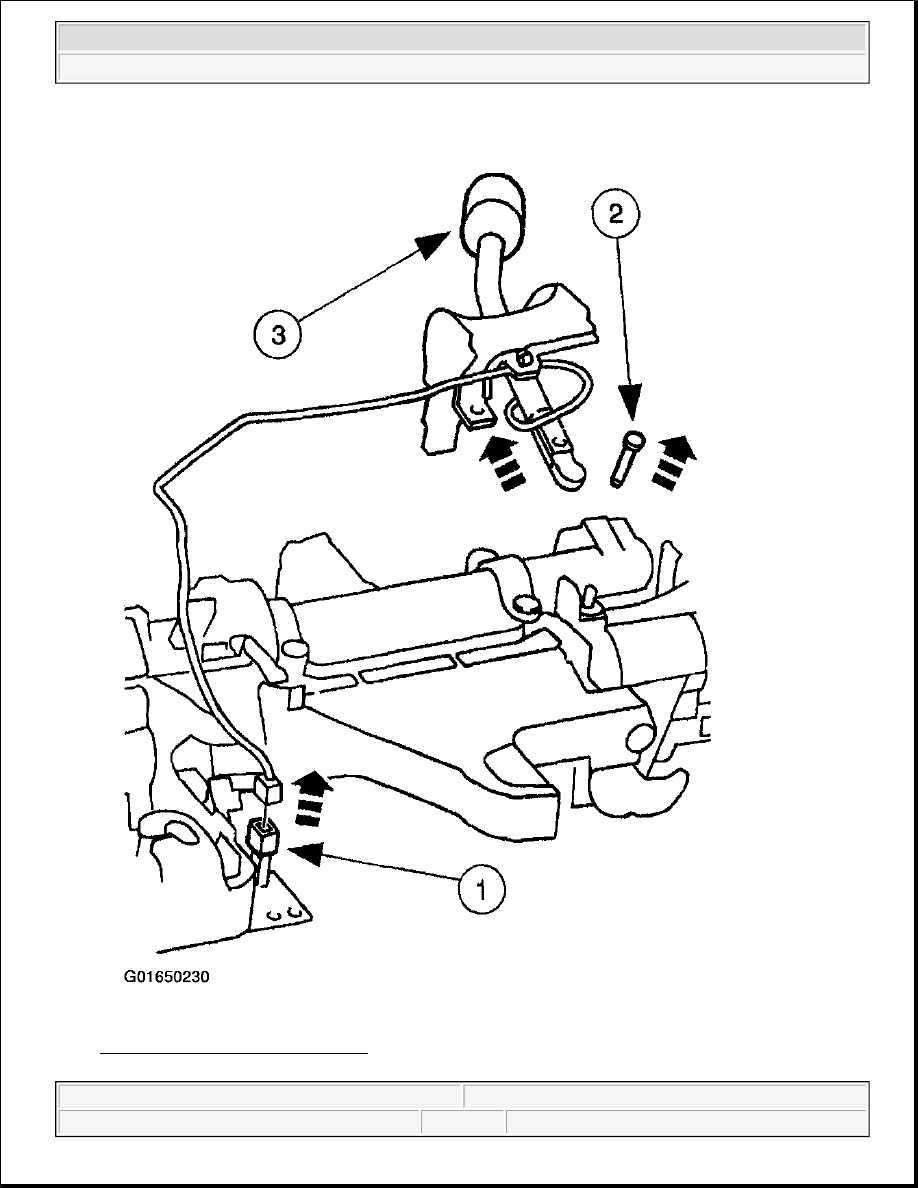

Fig. 32: Removing Transmission Control Switch
Courtesy of FORD MOTOR CO.

2. To install, reverse the removal procedure.

NOTE:

The gearshift lever pin must be replaced whenever removed.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission External Controls - F150 Pickup



2003 TRANSMISSIONS

Transfer Case - General Information - F150 Pickup

DESCRIPTION & OPERATION

TRANSFER CASE

The transfer case external components consist of the following:

z

coil electrical connector (instruction shift only)

z

electronic shift motor (electronic shift only)

z

extension housing

z

front output shaft

z

input shaft

z

output shaft

z

output shaft speed sensor

z

shift lever (instruction shift only)

z

three-position switch (instruction shift only)

z

transfer case

z

transfer case cover

z

vent tube

The Borg-Warner 44-06 instruction shift and electronic shift transfer cases are a three-piece magnesium design.
The unit transfers engine power from the transmission to the front and rear axles. Under normal driving
conditions the unit is in 2-wheel drive high (2H), but when desired, the operator may shift into 4-wheel drive
high (4H) or 4-wheel drive low (4L). The operator may shift from 2H to 4H or from 4H to 2H at any speed up
to 88 km/h (55 MPH). The vehicle speed must be less than 5 km/h (3 MPH), the brake applied, and the
transmission in NEUTRAL to shift into 4L. The transfer case is shifted either manually or electronically. The
unit is lubricated by a positive displacement fluid pump that channels fluid flow through holes in the rear output
shaft.

TRANSFER CASE - POWER FLOW

In the neutral position, no power is transmitted to the front or rear drivetrain.

Power Flow In 2H



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup





2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup

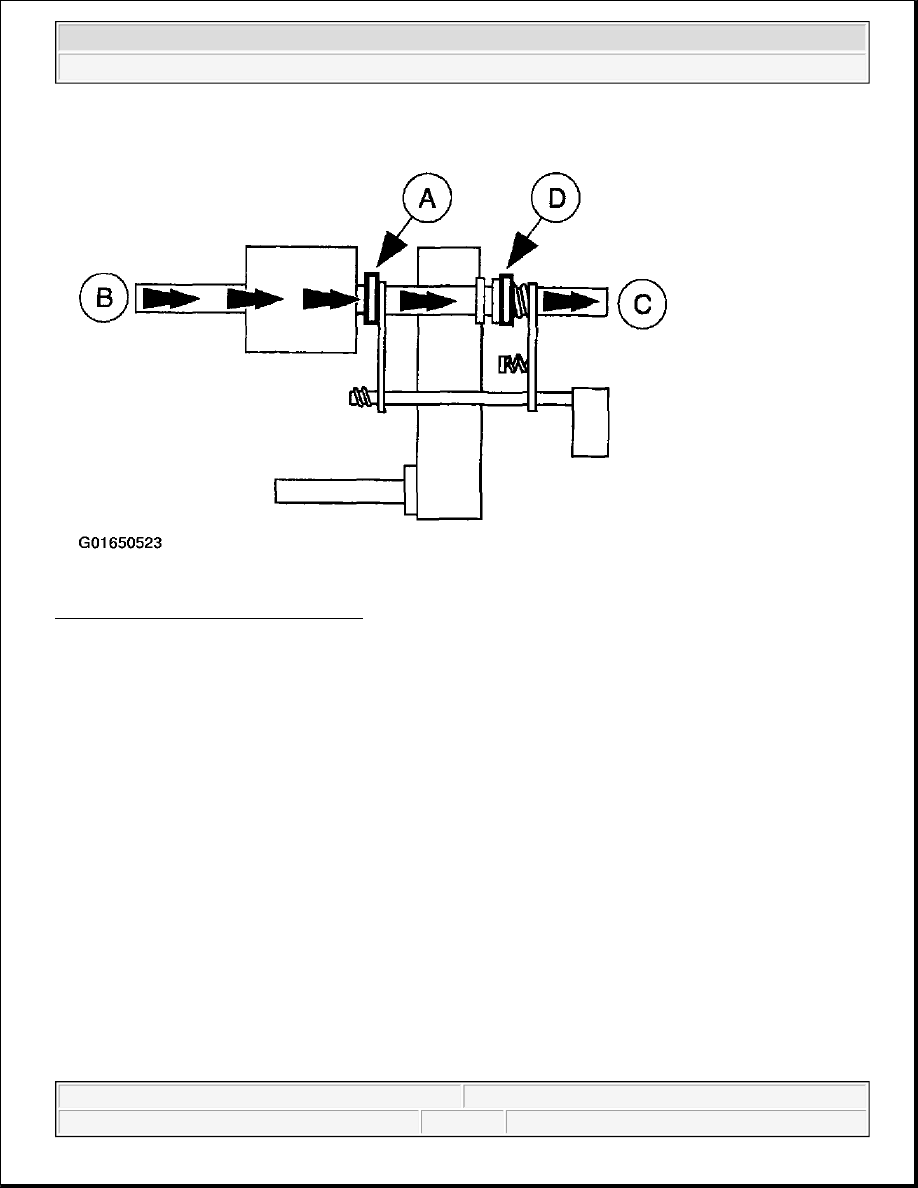

Fig. 1: Transfer Case Power Flow In 2H
Courtesy of FORD MOTOR CO.

When the driver selects 2H, the (A) reduction hub is in the forward position and puts the transfer case into
direct drive. The (B) input shaft and (C) rear output shaft are locked together. The (D) 4-wheel drive lockup hub
is in the forward position disengaging the front driveline.

Power Flow In 4H
