Fig. 64: Removing Safety Belt Guide Nut And Safety Belt Guide



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Courtesy of FORD MOTOR CO.

40. Remove the weather-stripping from the passenger side B-pillar.

Fig. 65: Removing Weather-stripping From Passenger Side B-Pillar
Courtesy of FORD MOTOR CO.

41. Remove the passenger B-pillar assist handle.

1. Remove the caps.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



2. Remove the screws.

3. Remove the assist handle.

Fig. 66: Removing Passenger B-Pillar Assist Handle
Courtesy of FORD MOTOR CO.

42. Pull outward to release the clips. Position the passenger side B-pillar trim panel away from the B-pillar.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

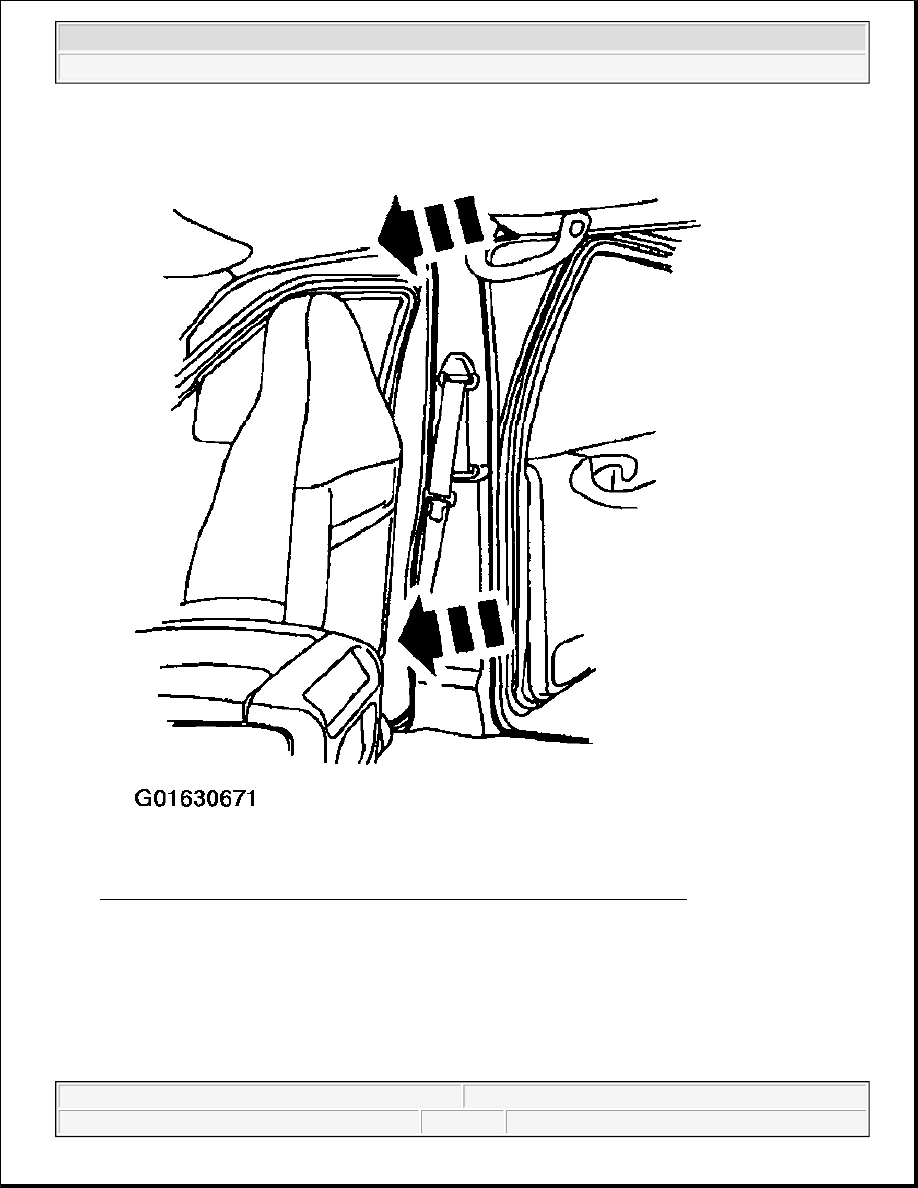

Fig. 67: Positioning Passenger Side B-Pillar Trim Panel Away From B-Pillar
Courtesy of FORD MOTOR CO.

NOTE:

The safety belt retractor pretensioner electrical connector has been
removed for clarity.
