Fig. 60: Attaching Restraint System Diagnostic Tool To Driver Seat Safety Belt Buckle
Courtesy of FORD MOTOR CO.

SuperCrew with safety belt retractor pretensioners

36. Remove the passenger side front door scuff plate.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

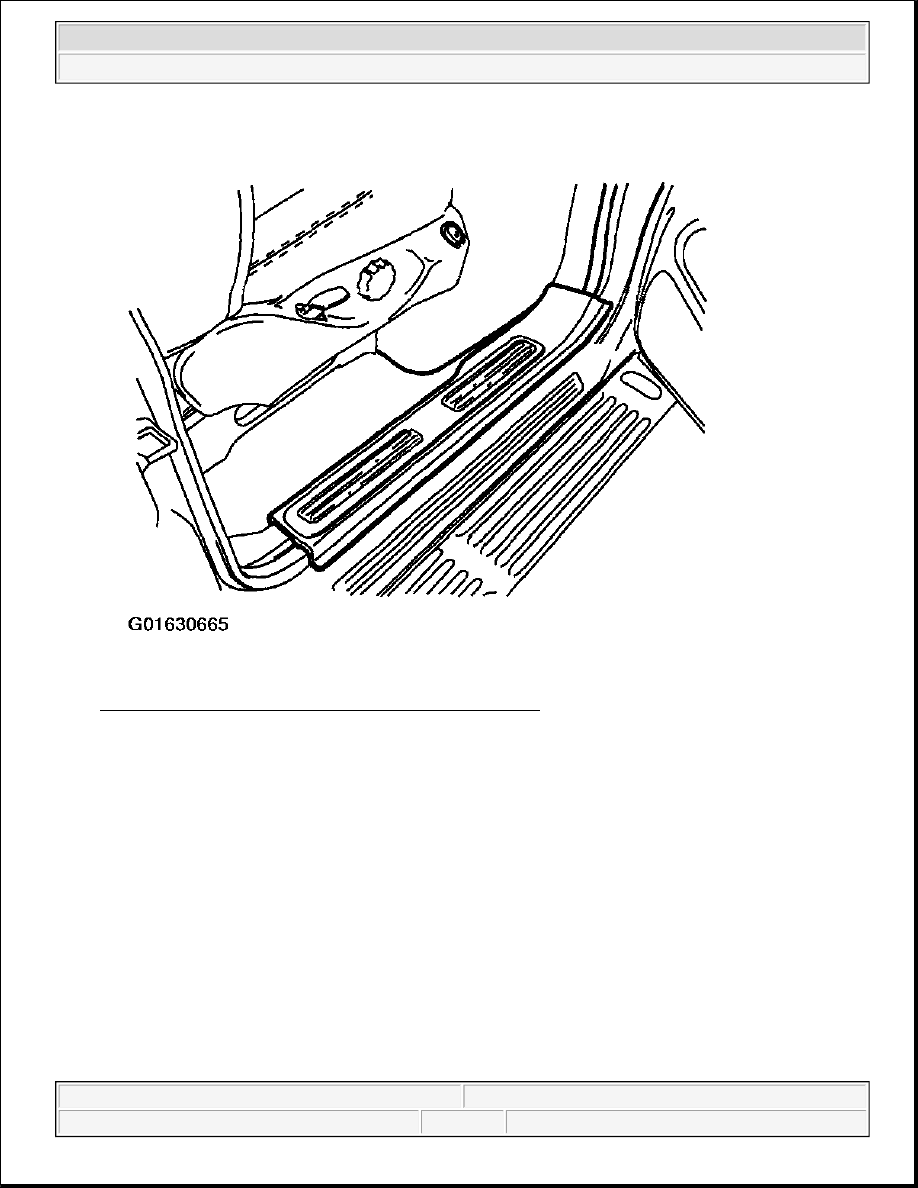

Fig. 61: Removing Passenger Side Front Door Scuff Plate
Courtesy of FORD MOTOR CO.

37. Remove the passenger side rear door scuff plate.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

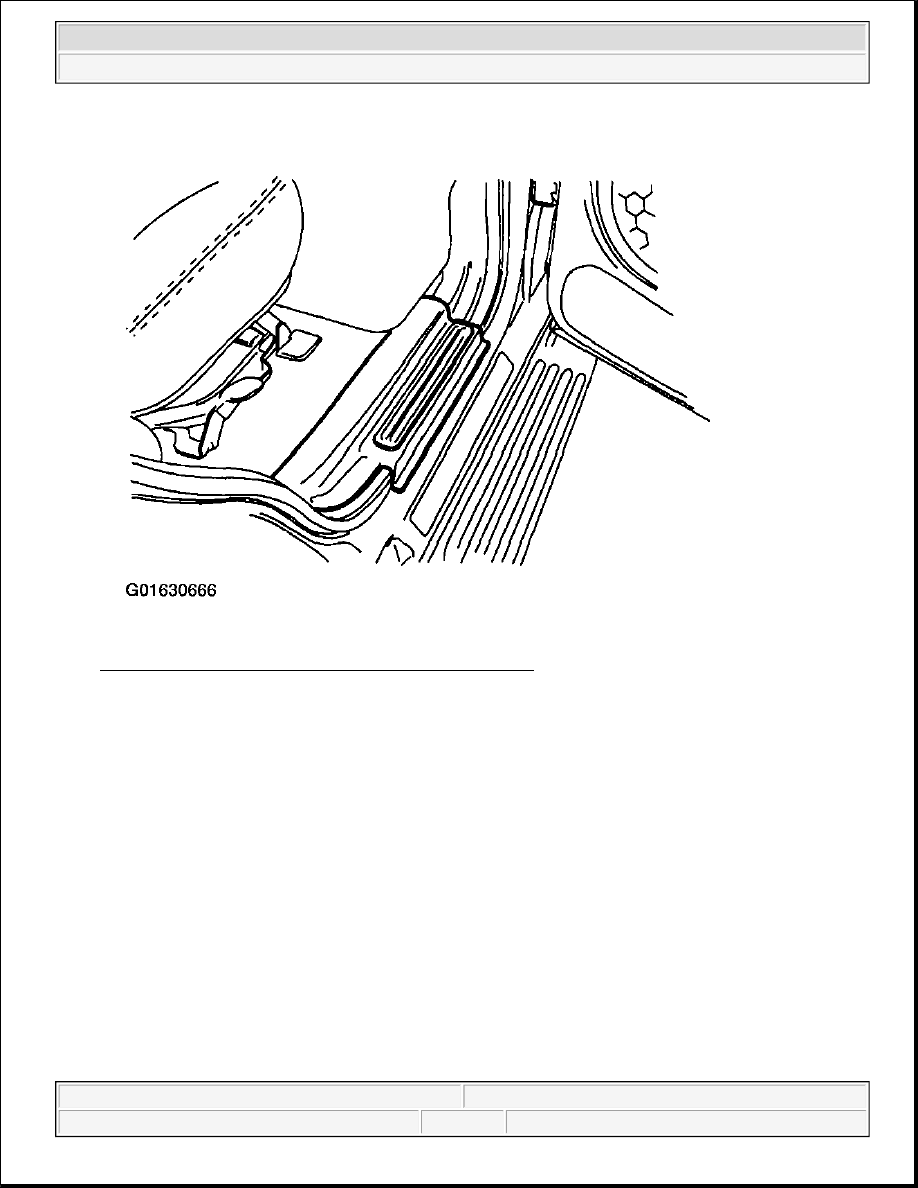

Fig. 62: Removing Passenger Side Rear Door Scuff Plate
Courtesy of FORD MOTOR CO.

NOTE:

The safety belt guide has been removed for clarity.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

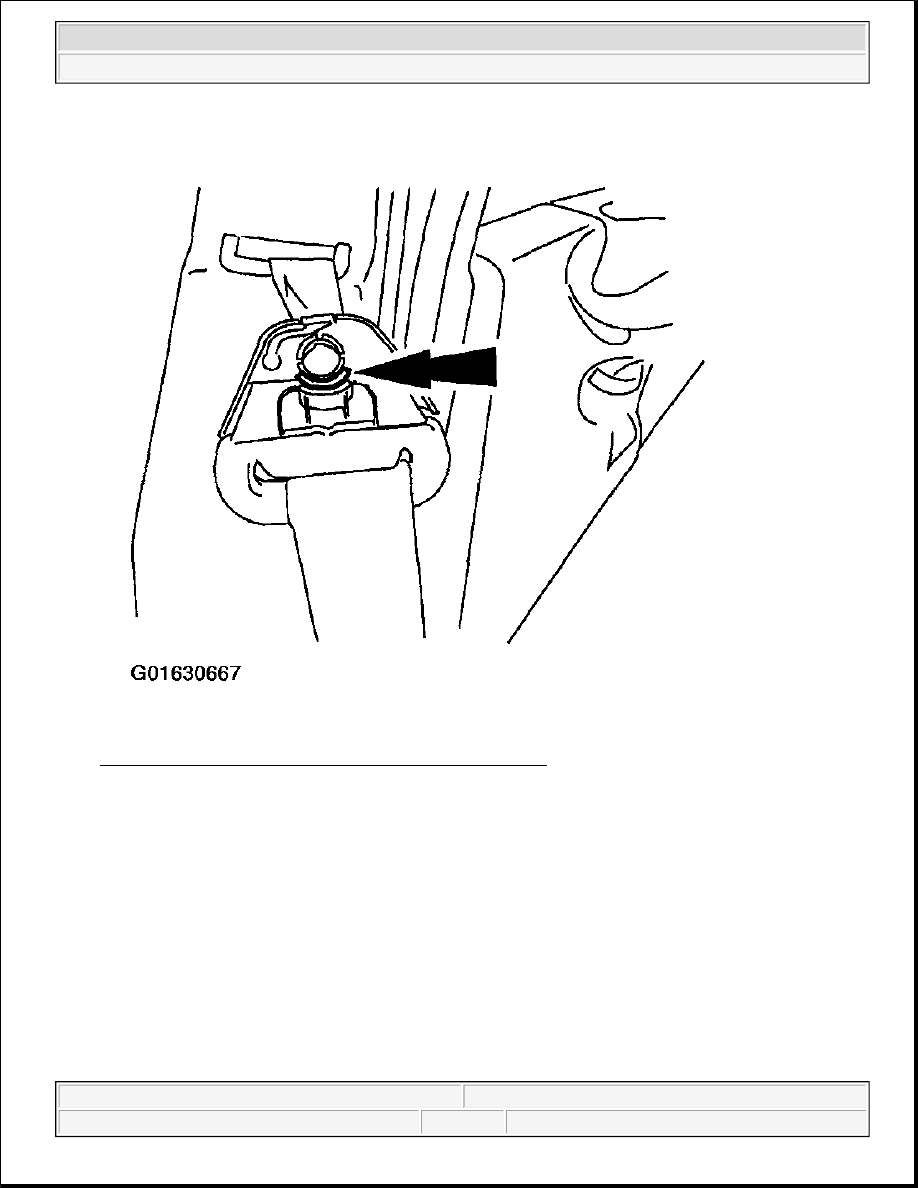

Fig. 63: Releasing Tab And Open Safety Belt Guide Cover
Courtesy of FORD MOTOR CO.

38. Release the tab and open the safety belt guide cover.

39. Remove the safety belt guide nut. Remove the safety belt guide.
