Ford F150 Pickup. Instruction - part 1696

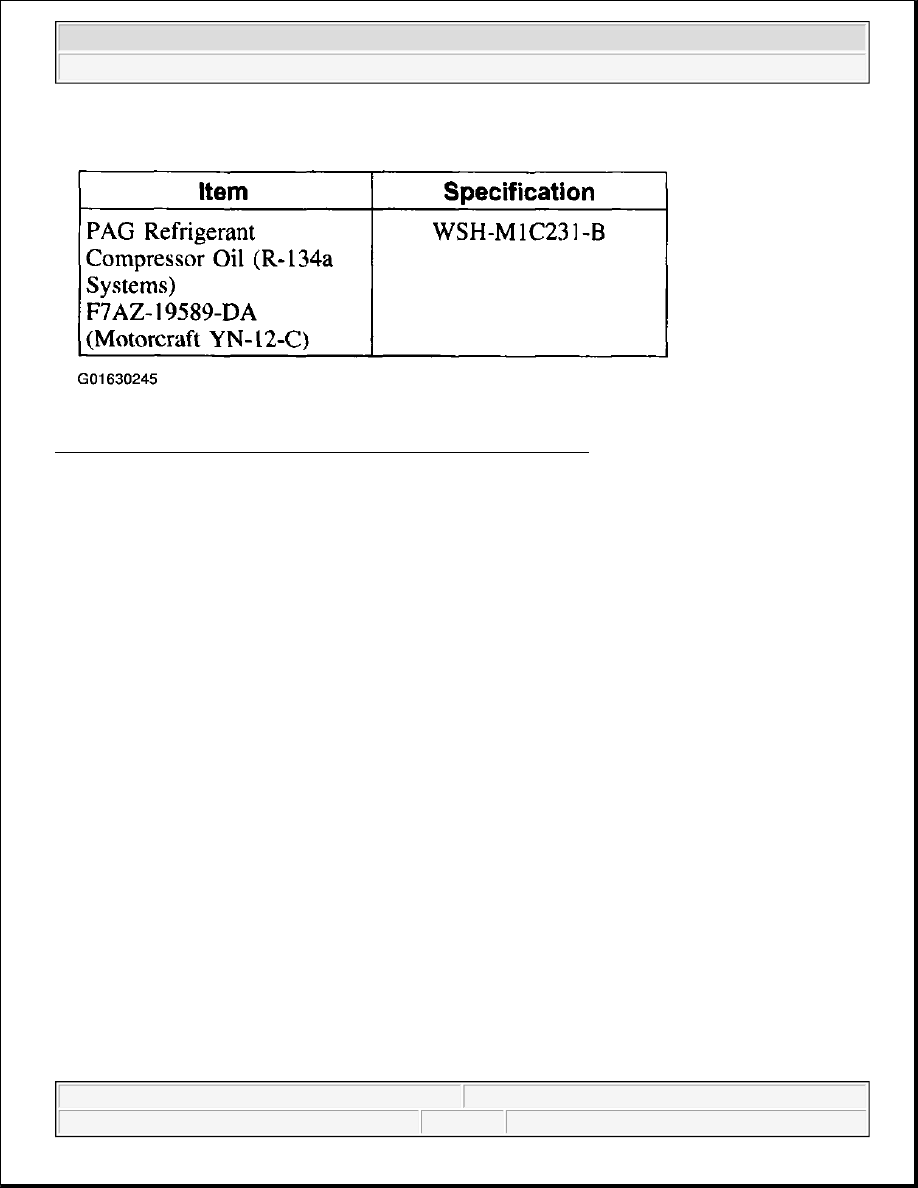

Fig. 71: Suction Accumulator - 4.6L And 5.4L Material Specifications
Courtesy of FORD MOTOR CO.

Removal and Installation

1. Disconnect the battery ground cable.

2. Remove the junction block splash shield.

3. Remove the two cable ends from the starter relay.

NOTE:

Installation of a new suction accumulator is not required when repairing the air
conditioning system except when there is physical evidence of system
contamination from a failed A/C compressor or damage to the suction
accumulator.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

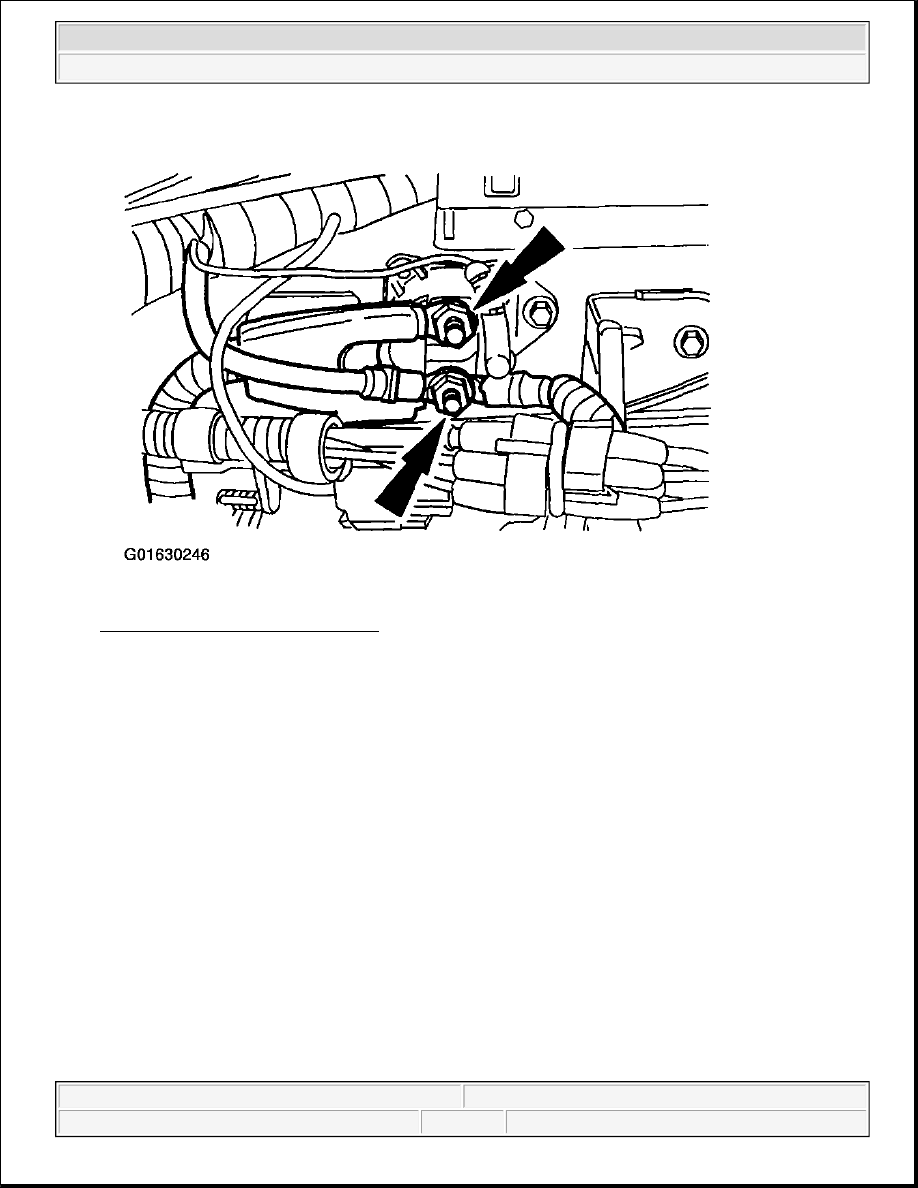

Fig. 72: Identifying Two Cable Ends
Courtesy of FORD MOTOR CO.

4. Remove the two bolts and reposition the junction block bracket.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

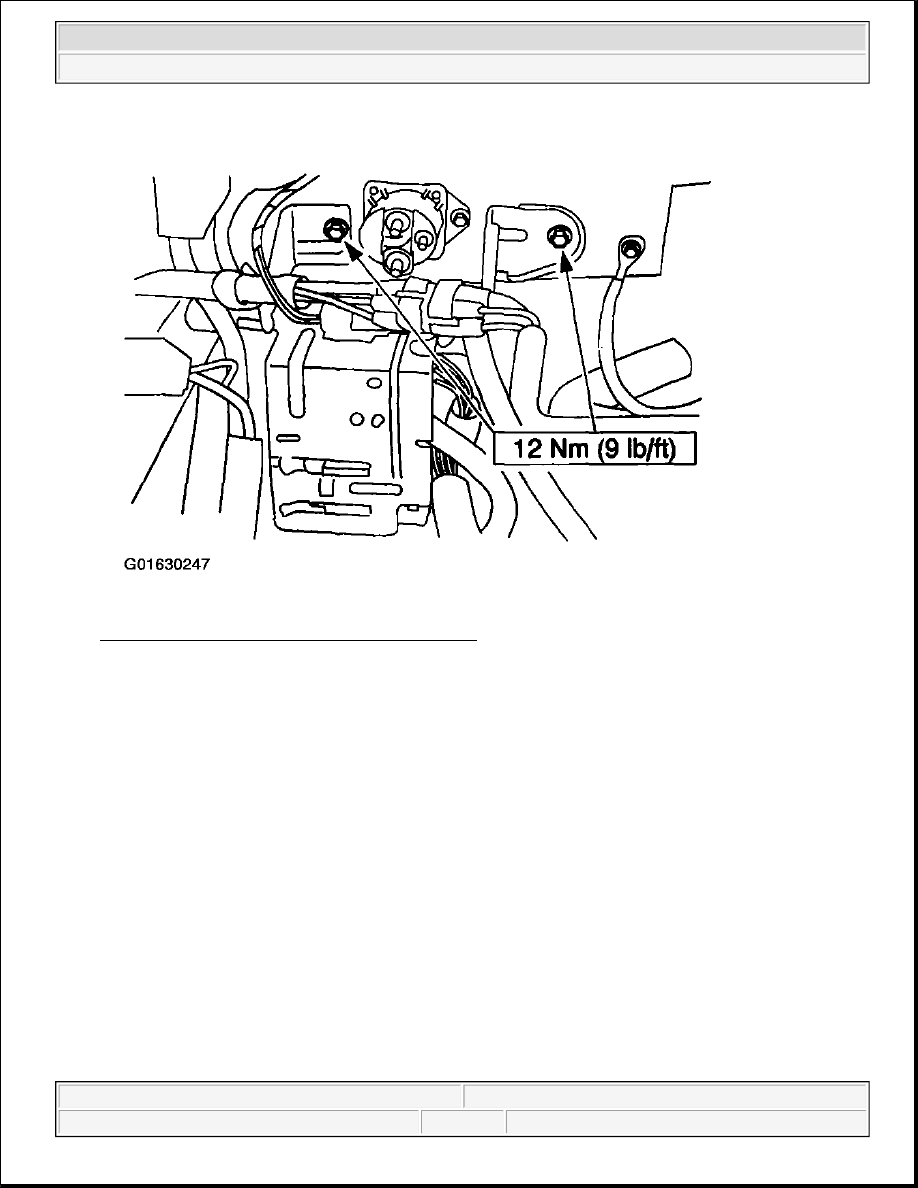

Fig. 73: Identifying Junction Block Bracket Bolts
Courtesy of FORD MOTOR CO.

5. Recover the refrigerant. Refer to CLIMATE CONTROL SYSTEM .

6. Disconnect the A/C cycling switch electrical connector.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



Fig. 74: View Of Disconnecting A/C Cycling Switch Electrical Connector
Courtesy of FORD MOTOR CO.

7. Disconnect the manifold and tube fitting.

z

Discard the O-ring seal.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup
