Ford F150 Pickup. Instruction - part 1540







2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

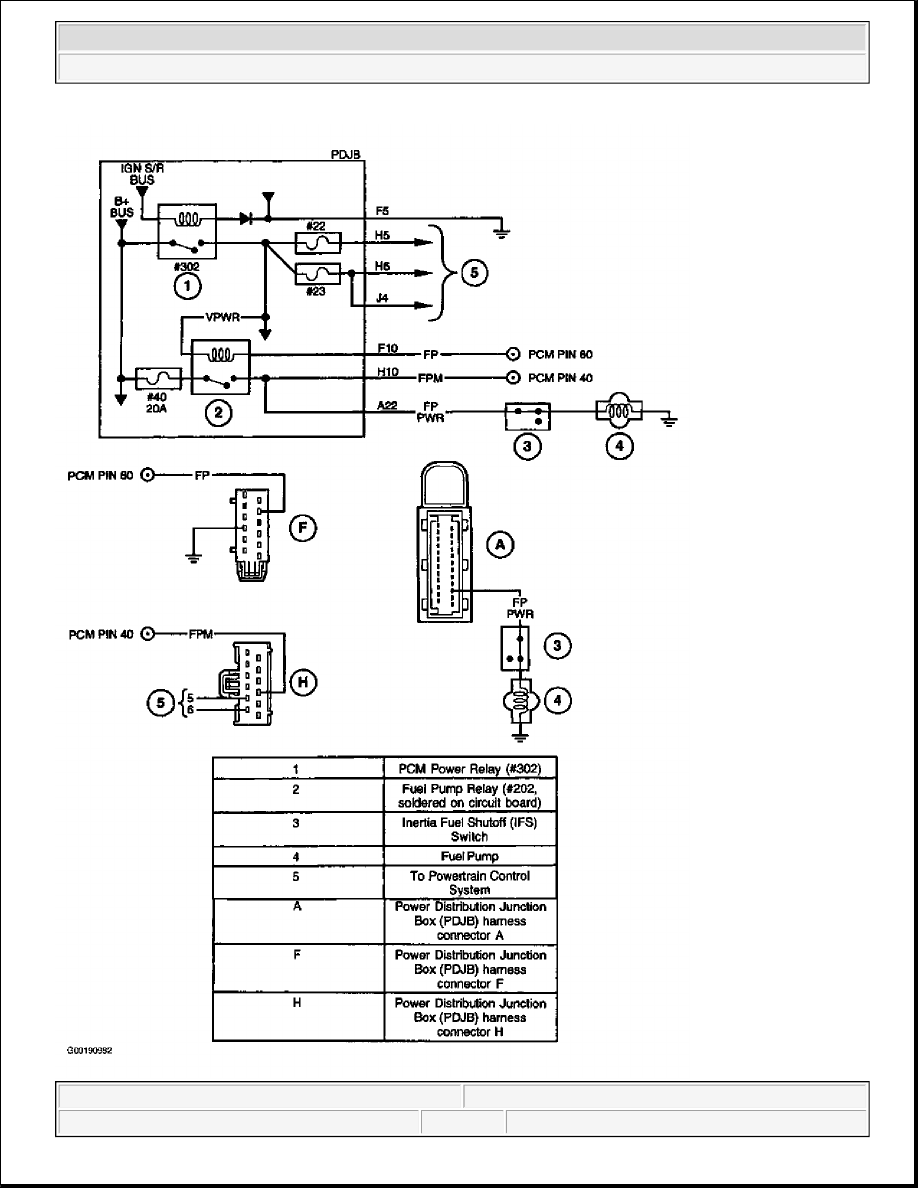

Fig. 301: Identifying Fuel System Circuits & Connector Terminals (Excursion & F250-F550)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline





2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

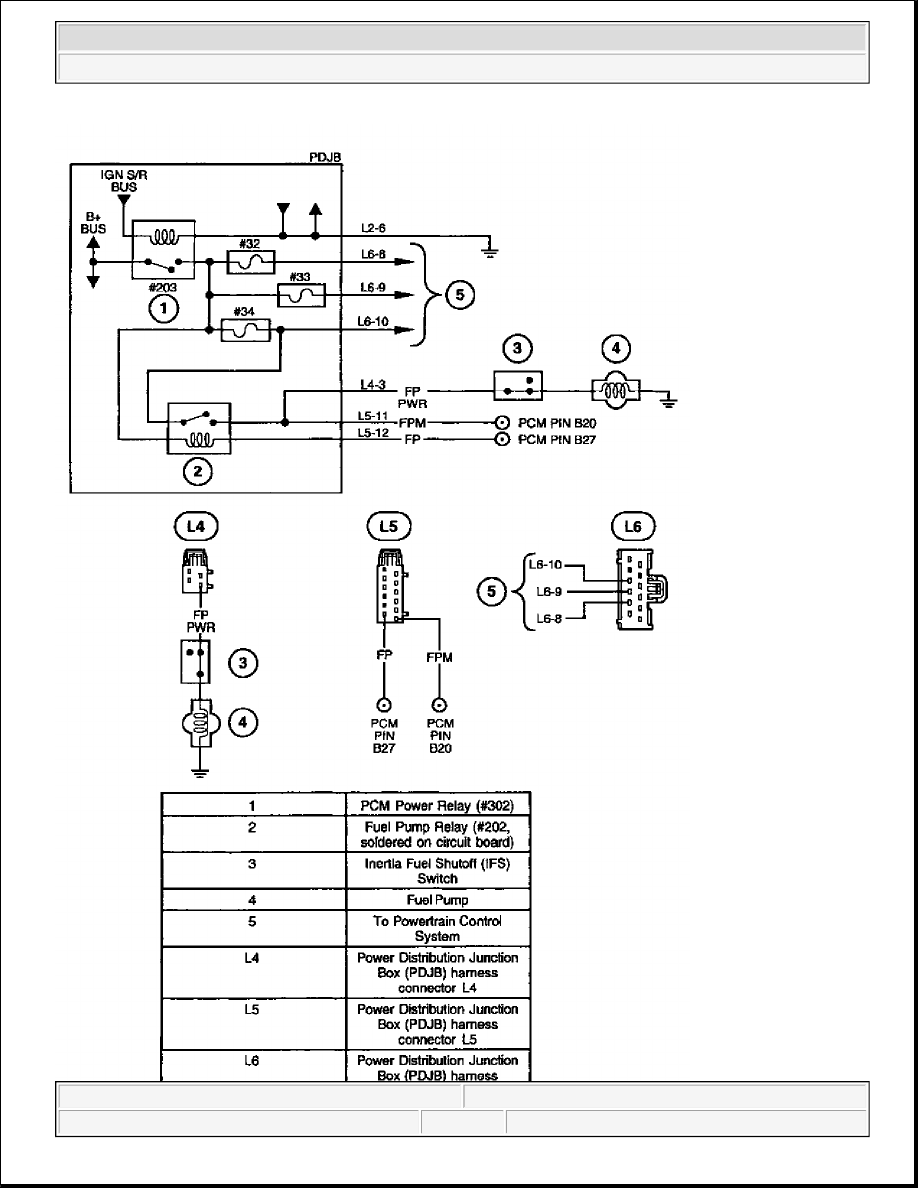

Fig. 302: Identifying Fuel System Circuits & Connector Terminals (Expedition & Navigator)
Courtesy of FORD MOTOR CO.

Fig. 303: Identifying Fuel System Circuits (Ranger & Windstar)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline
