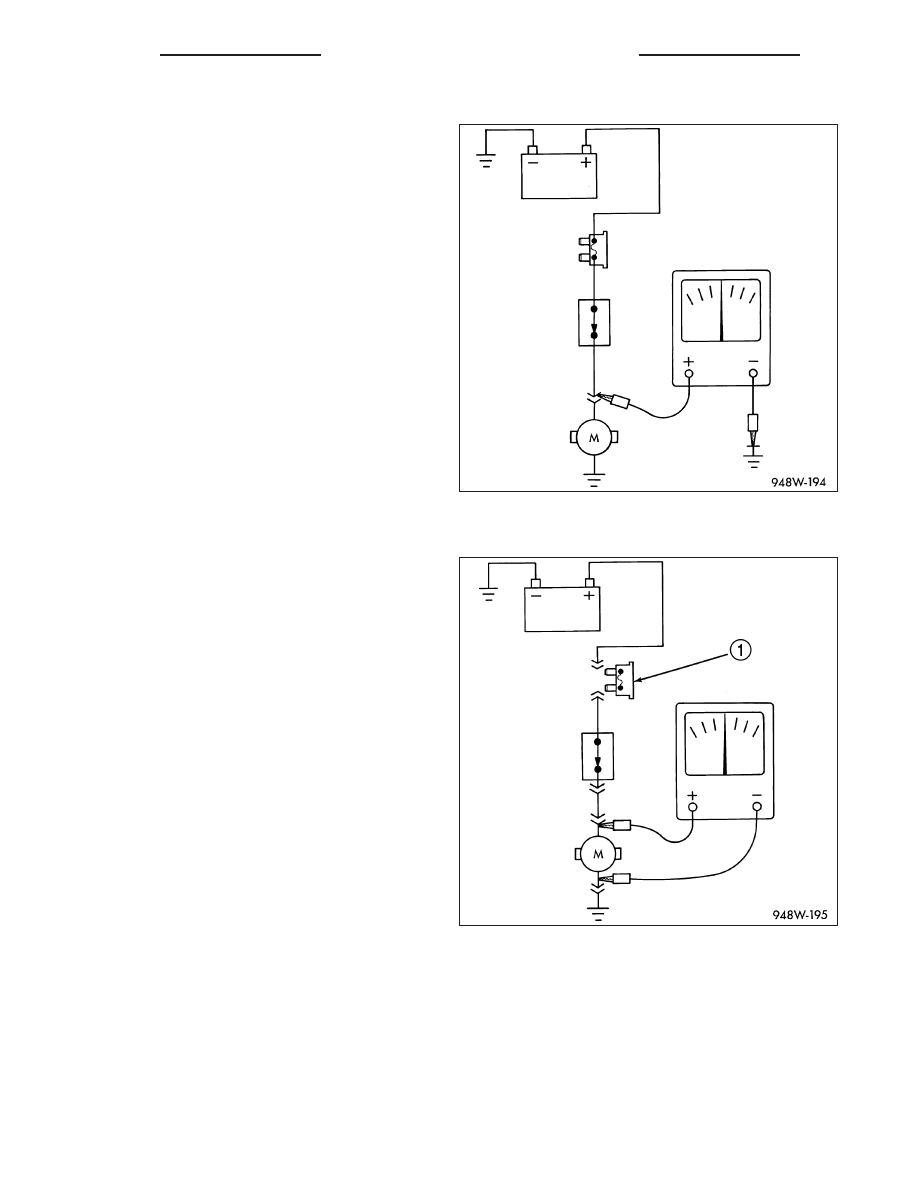

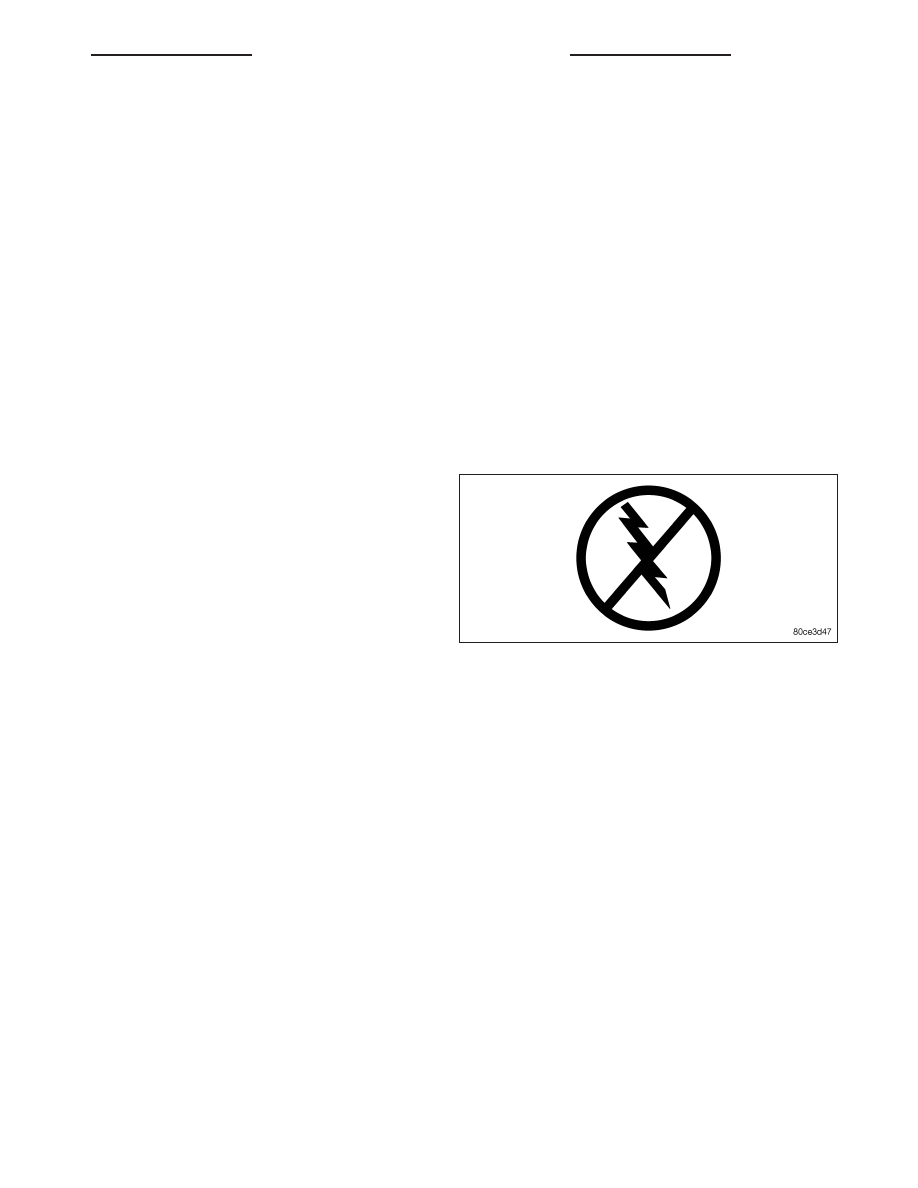

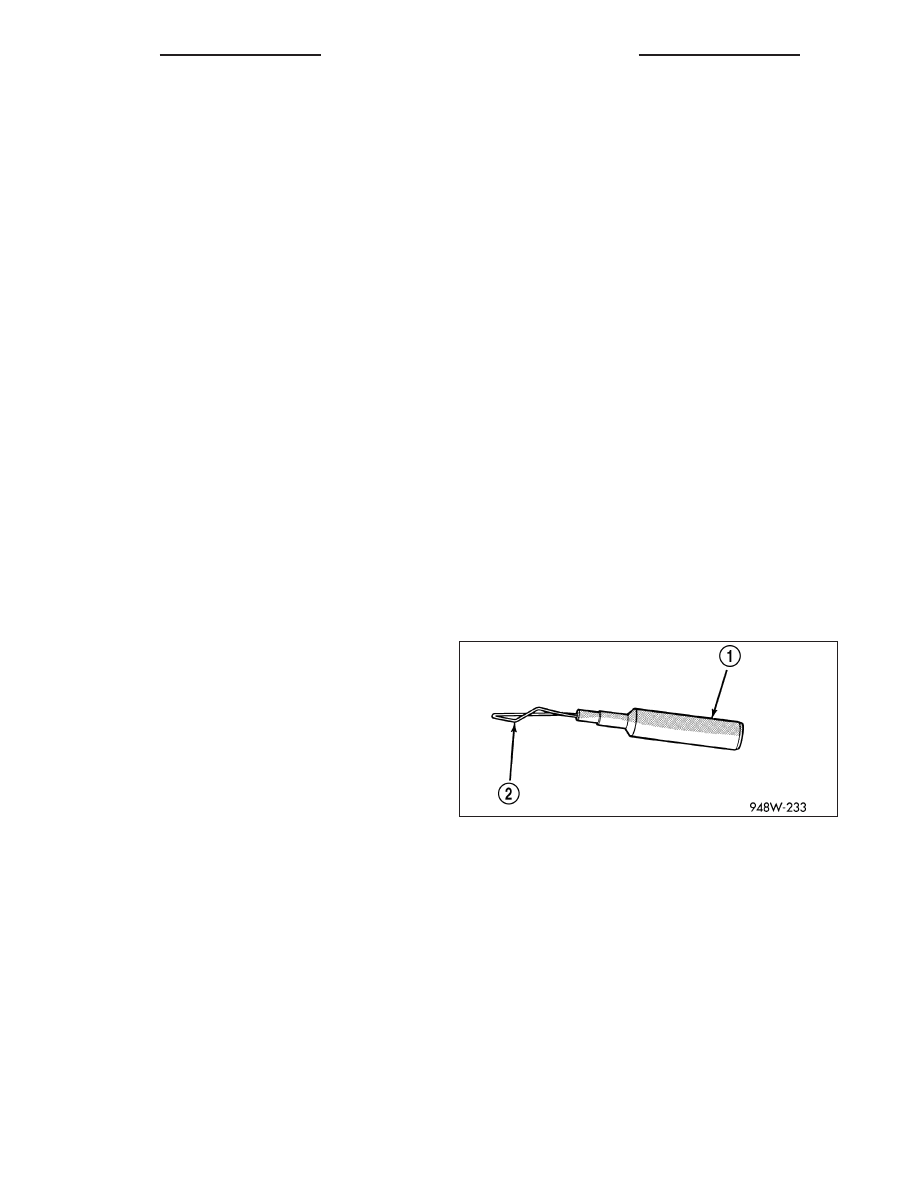

DESCRIPTION - CONNECTOR, GROUND AND SPLICE INFORMATION CAUTION: Not all connectors are serviced. Some connectors are serviced only with a harness. A typical IDENTIFICATION In-line connectors are identified by a number, as follows: • In-line connectors located in the engine compartment are C100 series numbers. • In-line connectors located in the instrument panel area are C200 series numbers. • In-line connectors located in the body are C300 series numbers. • Jumper harness connectors are C400 series numbers. • Grounds and ground connectors are identified with a “G” and follow the same series numbering as the in-line • Splices are identified with an “S” and follow the same series numbering as the in-line connectors. In addition, • Component connectors are identified by the component name instead of a number. Multiple connectors on a LOCATIONS Section 8W-91 contains connector/ground/splice location illustrations. The illustrations contain the connector name The abbreviation T/O is used in the component location section to indicate a point in which the wiring harness WARNING WARNINGS - GENERAL WARNINGS provide information to prevent personal injury and vehicle damage. Below is a list of general warnings WARNING: Always wear safety glasses for eye protection. WARNING: Use safety stands anytime a procedure requires being under a vehicle. WARNING: Be sure that the ignition switch always is in the off position, unless the procedure requires it to WARNING: Set the parking brake when working on any vehicle. An automatic transmission should be in WARNING: Operate the engine only in a well-ventilated area. WARNING: Keep away from moving parts when the engine is running, especially the fan and belts. WARNING: To prevent serious burns, avoid contact with hot parts such as the radiator, exhaust manifold(s), PM 8W-01 WIRING DIAGRAM INFORMATION 8W - 01 - 9 |
