1. Remove differential fill plug.

2. Remove differential cover and drain lubricant.

3. Remove pinion mate shaft (1) lock screw (2) from differential case.

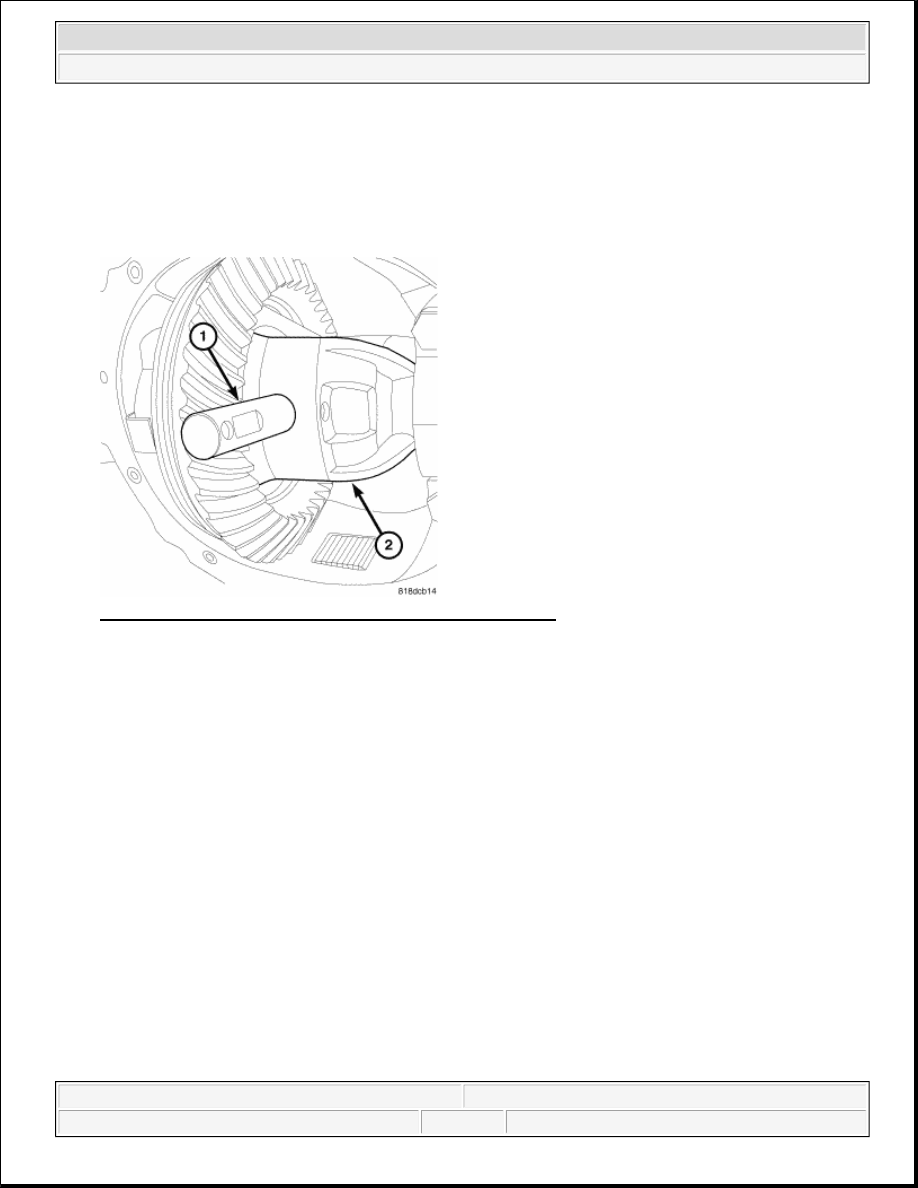

Fig. 293: Identifying Pinion Mate Shaft & Differential Case
Courtesy of CHRYSLER LLC

4. Remove pinion mate shaft (1) from differential case (2).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

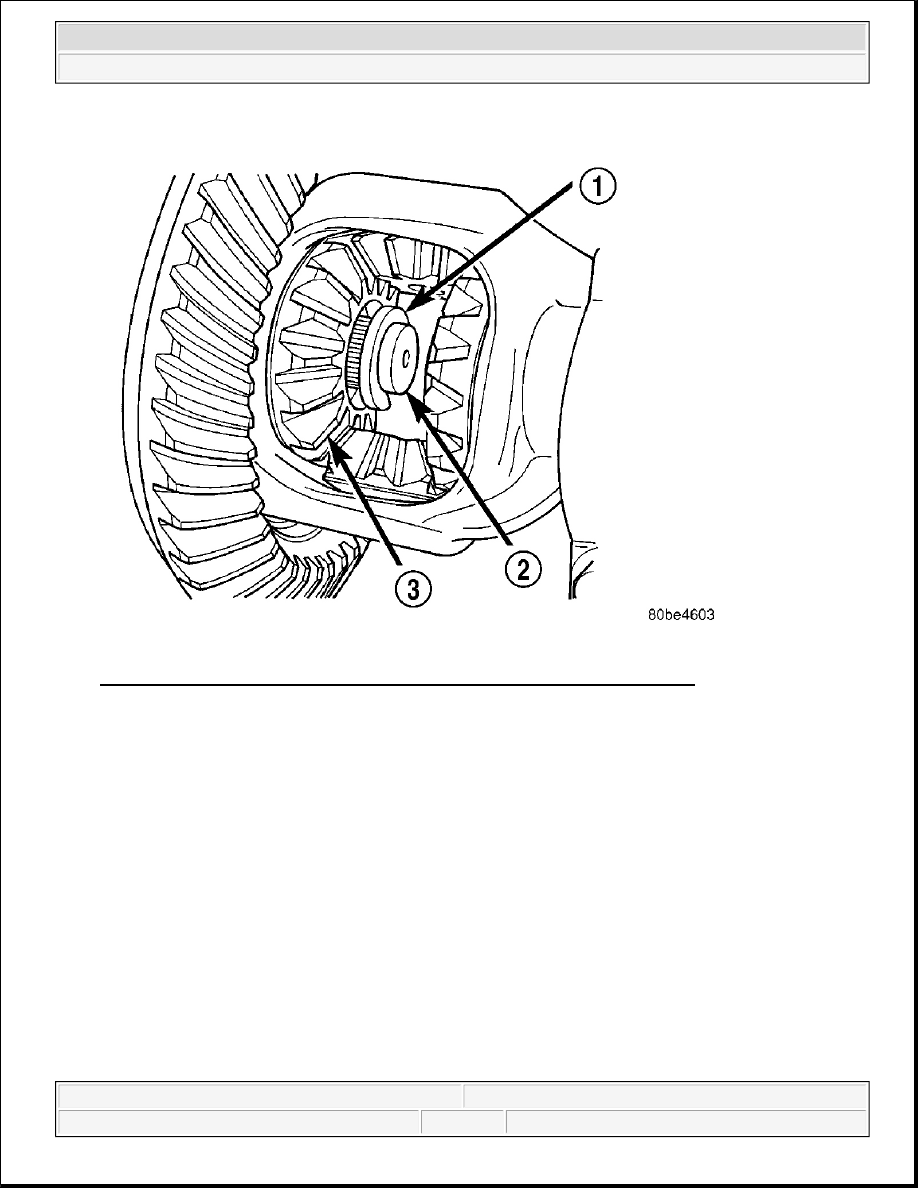

Fig. 294: Identifying Axle Shaft C-Lock, Axle Shaft & Differential Side Gears
Courtesy of CHRYSLER LLC

5. Push axle shaft inward and remove axle shaft C-lock (1) from the axle shaft (2). Slide axle shafts (2) out

of differential side gears (3).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

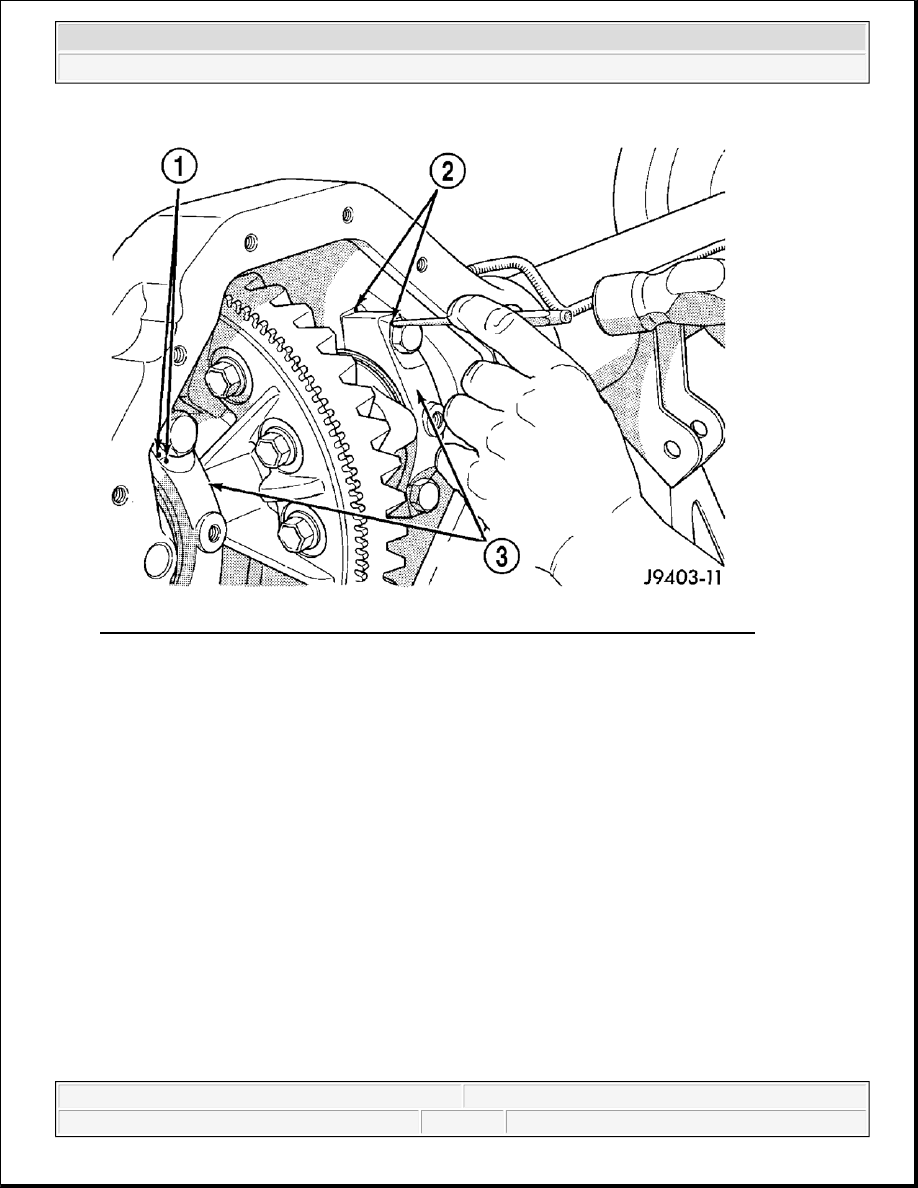

Fig. 295: Marking Differential Housing And Bearing Caps For Installation Reference
Courtesy of CHRYSLER LLC

6. Mark (1) (2) differential housing and bearing caps (3) for installation reference.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

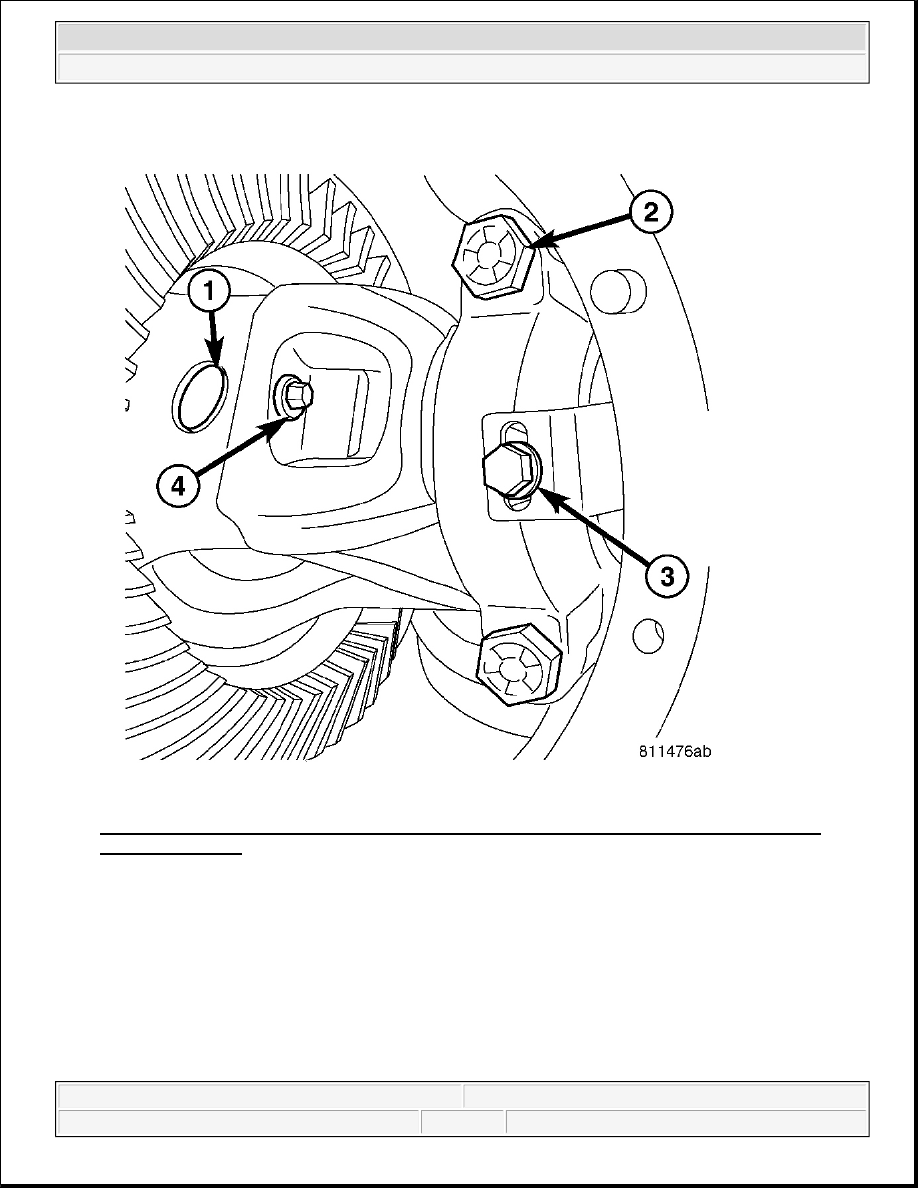

Fig. 296: Removing Bearing Adjuster Lock Bolt From Bearing Caps & Loosening Differential
Bearing Cap Bolts
Courtesy of CHRYSLER LLC

7. Remove bearing adjuster lock bolt (3) from bearing caps.

8. Loosen differential bearing cap bolts (2).
