Fig. 281: Identifying Installer C-4198 & Handle C-4171
Courtesy of CHRYSLER LLC

1. Remove any old sealer/burrs from axle tube.

2. Install axle shaft bearing with Installer C-4198 (1) and Handle C-4171 (2). Drive bearing in until tool

contacts the axle tube.

3. Coat new axle seal lip with axle lubricant. Install seal with Installer 8493 and Handle C-4171.

NOTE:

Bearing is installed with the bearing part number against installer.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



Fig. 282: Identifying Axle Shaft & Axle Tube
Courtesy of CHRYSLER LLC

4. Install axle shaft (1) in axle tube (2).

SEAL-PINION

REMOVAL

SEAL-PINION



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



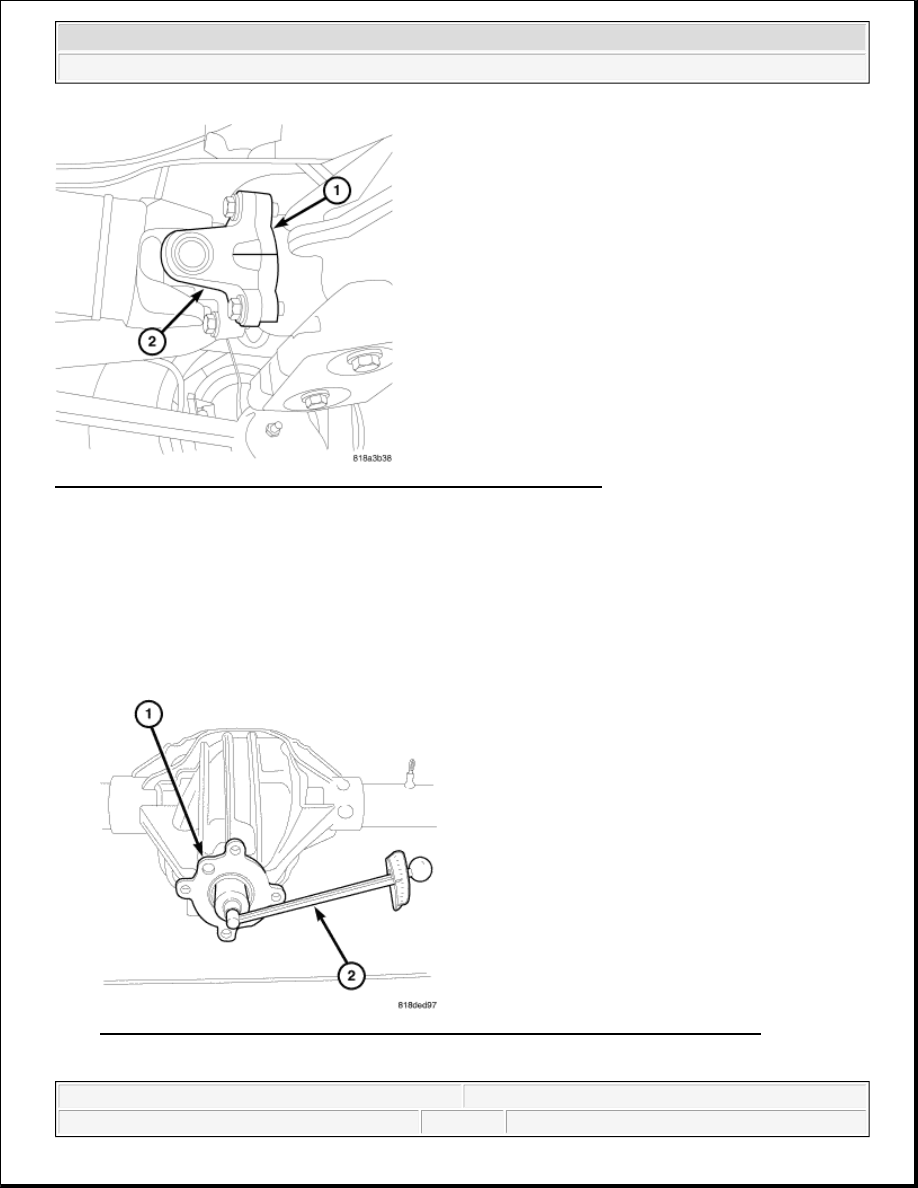

Fig. 283: Identifying Line Across Axle Flange & Propeller Shaft Flange
Courtesy of CHRYSLER LLC

1. With vehicle in neutral, position vehicle on hoist.

2. Remove wheel and tire assemblies.

3. Mark a reference line across the axle flange (1) and propeller shaft flange (2).

4. Remove companion flange bolts and remove propeller shaft.

5. Remove brake calipers and rotors to prevent any drag.

Fig. 284: Measuring Pinion Torque To Rotating With An Inch Pound Torque Wrench
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



6. Rotate companion flange three or four times and verify flange rotates smoothly.

7. Record pinion torque to rotating (1) with an inch pound torque wrench (2) for installation reference.

Fig. 285: Holding Pinion Flange With Holder C-3281
Courtesy of CHRYSLER LLC

8. Hold pinion flange (1) with Holder C-3281 (2) and remove pinion nut.

9. Mark a line across the pinion shaft and flange for installation reference.

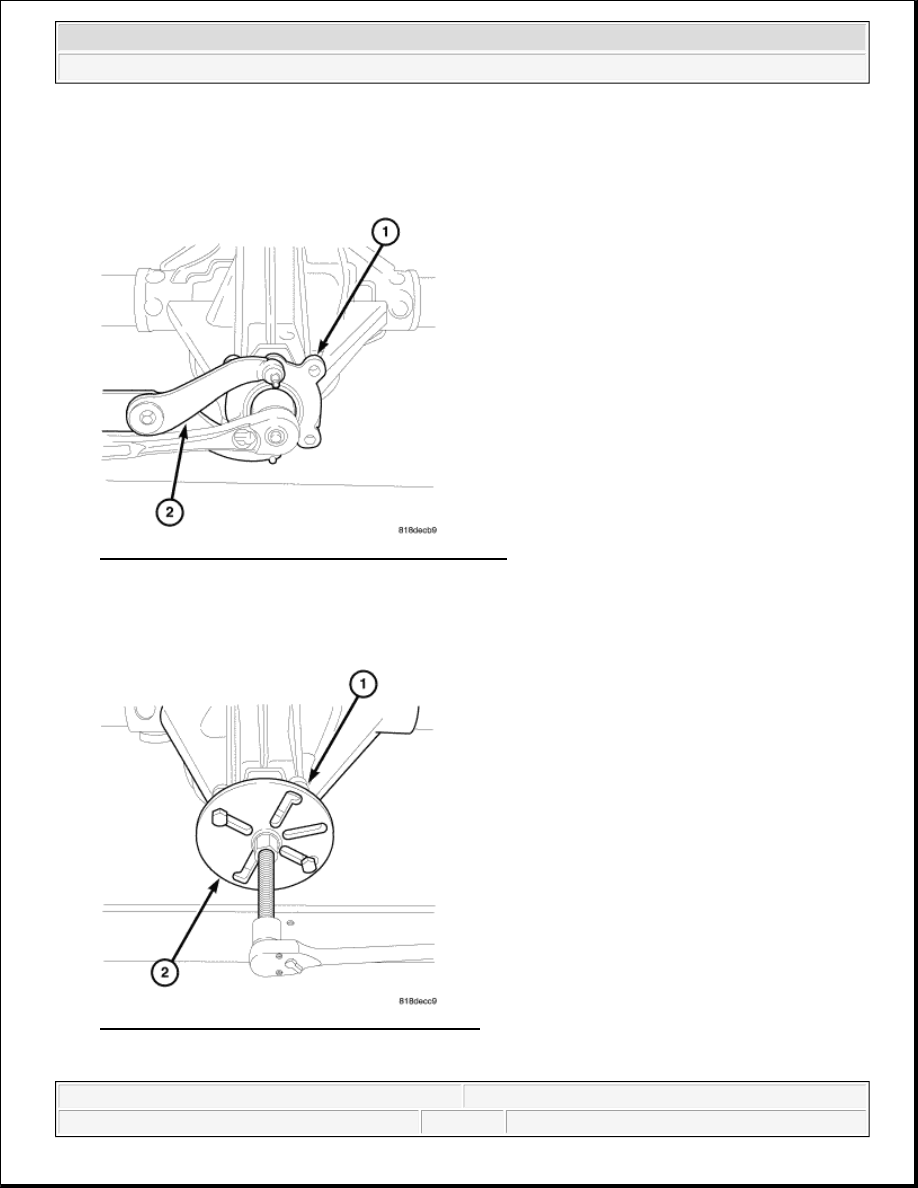

Fig. 286: Identifying Pinion Flange & Puller 8992
