Dodge Dakota (ND). Manual - part 424





B1BB8-SRS WARNING INDICATOR STATUS MISMATCH

8O - 292

RESTRAINTS - ELECTRICAL DIAGNOSTICS

ND

B1BB8-SRS WARNING INDICATOR STATUS MISMATCH (CONTINUED)

For the Airbag circuit diagram (Refer to 8 - ELECTRICAL/RESTRAINTS - SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:

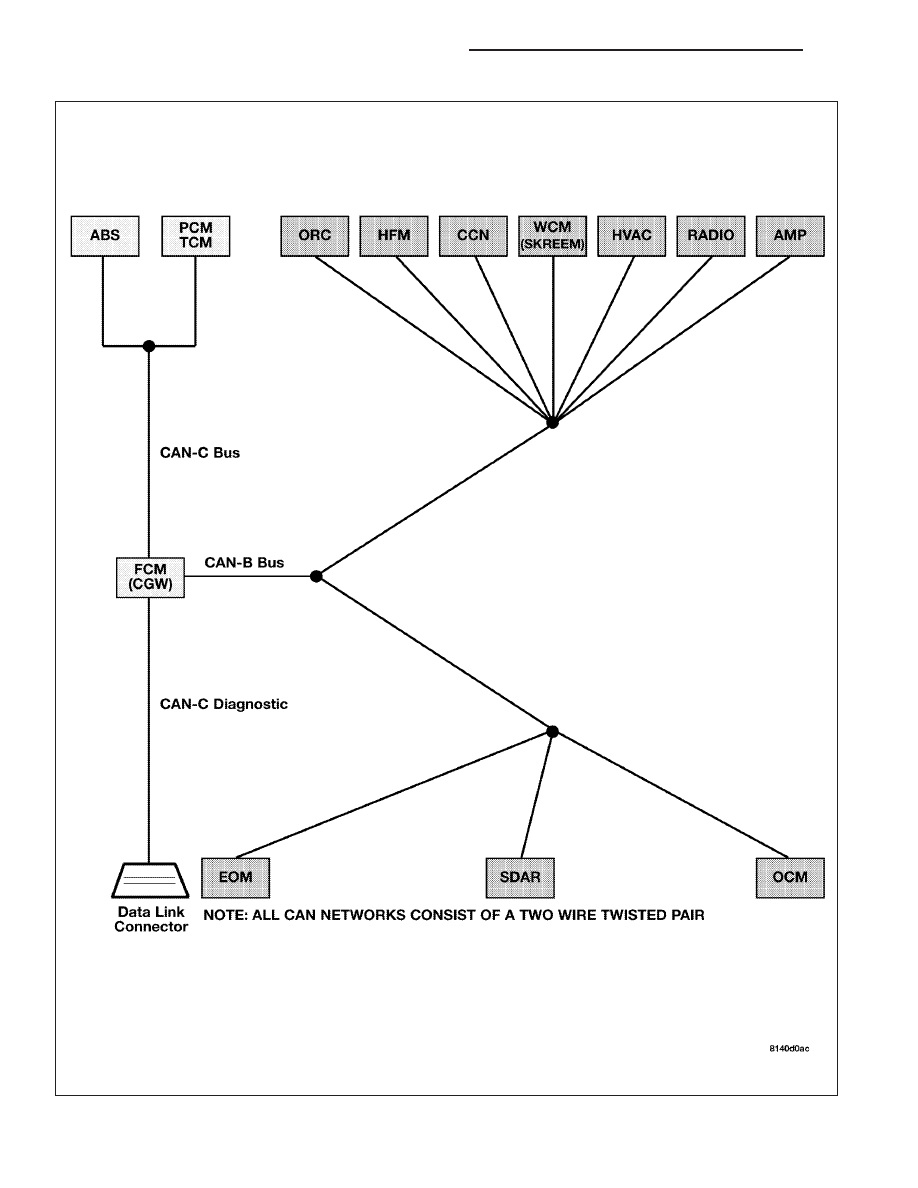

After the Instrument Cluster bulb check is completed, the ORC compares the lamp request by the ORC (On or
Off) and the Lamp On request by the Instrument Cluster (On or Off) Can bus messages. Each message is
transmitted one time per second or when a change in the lap state occurs.

Set Condition:
If the lamp request by the ORC (On or Off), and the Lamp On by the Instrument Cluster (On or Off), messages
do not match, this code will set.

Possible Causes

OCCUPANT RESTRAINT CONTROLLER, INSTRUMENT CLUSTER MESSAGE MISMATCH

INSTRUMENT CLUSTER

OCCUPANT RESTRAINT CONTROLLER

Diagnostic Test

1.

CHECK FOR AN ACTIVE DTC

NOTE: Ensure the battery is fully charged.

NOTE: When reconnecting Airbag system components, the ignition must be turned off and the battery must
be disconnected.
Turn the ignition on, then off, and then on again.

With the scan tool, read Occupant Restraint Controller (ORC) DTCs.

Select DTC type.

Active

Go To 2

Stored

Go To 5

2.

CHECK FOR ACTIVE INSTRUMENT CLUSTER DTCs

With the scan tool, read Instrument Cluster DTCs.

Does the scan tool display and active Instrument Cluster DTCs?

Yes

>> Refer to symptom list for problems related to the Instrument Cluster.

Perform the ORC VERIFICATION TEST-VER 1.

No

>> Go To 3

ND

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 293

B1BB8-SRS WARNING INDICATOR STATUS MISMATCH (CONTINUED)

3.

CHECK THE ORC AND INSTRUMENT CLUSTER FOR LAMP STATUS

With the scan tool view the Instrument Cluster Data Display.

Cycle the ignition key and observe the SRS Indicator Lamp Request status (Set/Not Set) during the Instrument
Cluster bulb check.

With the scan tool view the ORC Data Display.

Cycle the ignition key and observe the SRS Indicator Lamp Status (Lamp On/Lamp Off) during the Instrument Clus-
ter bulb check.

Did the Data Display information match the operation of the lamp?

Yes

>> Go To 4

No

>> Replace the Instrument Cluster in accordance with the service information.

Perform the ORC VERIFICATION TEST-VER 1.

4.

REPLACE THE OCCUPANT RESTRAINT CONTROLLER

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.

WARNING: If the airbag control module is dropped at any time, it must be replaced. Failure to take the
proper precautions could result in accidental airbag deployment and personal injury or death.

If there are no possible causes remaining, view repair.

Repair

Replace the Occupant Restraint Controller in accordance with the service information.

Perform the ORC VERIFICATION TEST-VER 1.

5.

TEST FOR INTERMITTENT CONDITION

With the scan tool, record and erase all DTCs from all Airbag modules.

If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

Look for chaffed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or
contaminated terminals.

The following additional checks may assist you in identifying a possible intermittent problem.

Reconnect any disconnected components and harness connector.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool, monitor active codes as you work through the following steps.

WARNING: To avoid personal injury or death, maintain a safe distance from all airbags while performing the
following steps.
Wiggle the wiring harness and connectors of the related airbag circuit or component.

If codes are related to the Driver Airbag circuits, rotate the steering wheel from stop to stop.

If only stored codes return, continue the test until the problem area has been isolated.

In the previous steps you have attempted to recreate the conditions responsible for setting the active DTC in ques-
tion.

Does the scan tool display any ACTIVE DTCs?

Yes

>> Select appropriate symptom from Symptom List.

No

>> No problem found at this time. Erase all codes before returning vehicle to customer.

8O - 294

RESTRAINTS - ELECTRICAL DIAGNOSTICS

ND

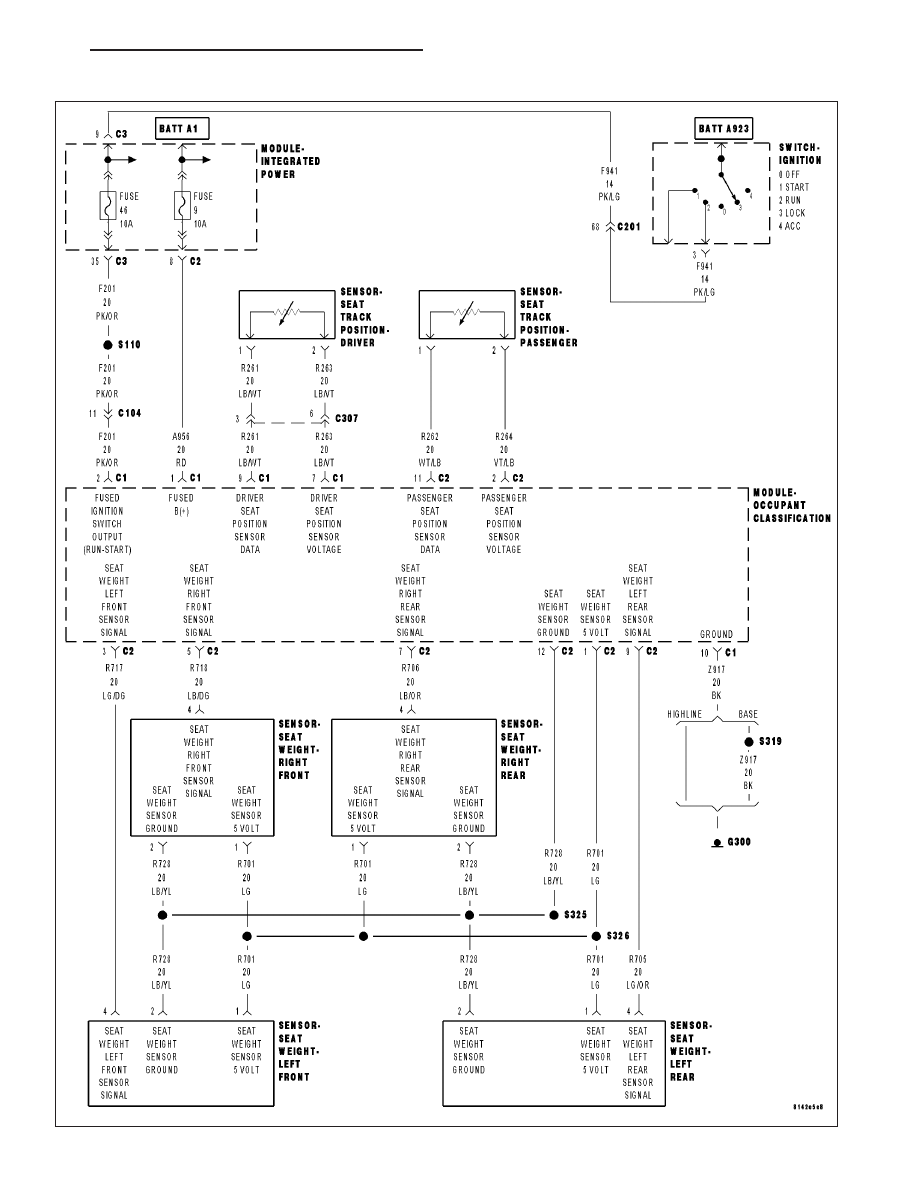

B1BBA-PASSENGER SEAT WEIGHT SENSOR SUPPLY CIRCUIT

ND

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 295
