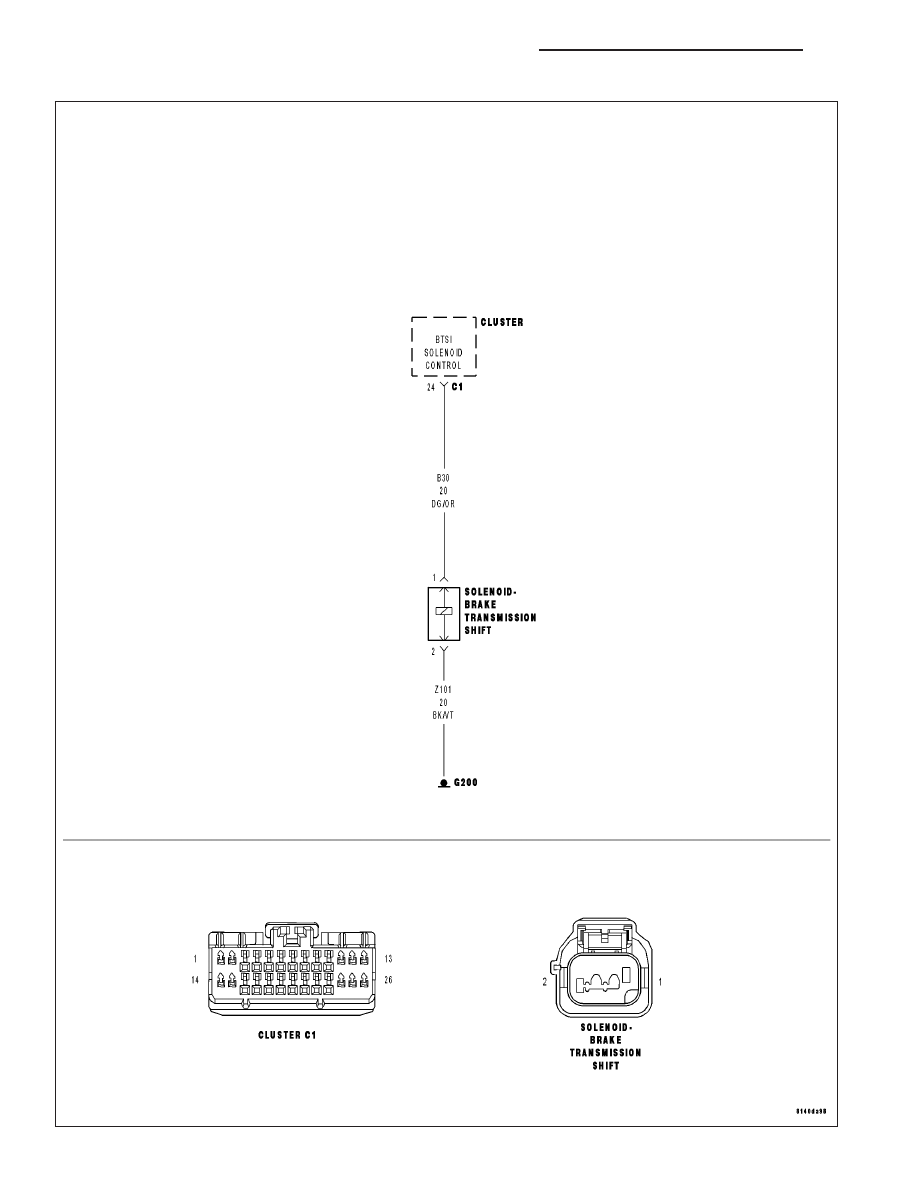

P0930-BTSI CONTROL CIRCUIT LOW (CONTINUED) 2. CHECK THE (B30) BTSI SOLENOID CONTROL CIRCUIT FOR A SHORT TO THE (Z101) BTSI SOLENOID Turn the ignition off. Disconnect the BTSI solenoid harness connector. Disconnect the Instrument Cluster C1 harness connector. Measure the resistance between the (B30) BTSI Solenoid Control Cir- Is the resistance below 5.0 ohms? Yes >> Repair the (B30) BTSI Solenoid Control circuit for a short to the (Z101) BTSI Solenoid Ground Circuit. Perform the BODY VERIFICATION TEST-VER 1. (Refer to No >> Go To 3 3. CHECK THE (B30) BTSI SOLENOID CONTROL CIRCUIT FOR A SHORT TO GROUND Measure the resistance between ground and the (B30) BTSI Solenoid Is the resistance below 5.0 ohms? Yes >> Repair the (B30) BTSI Solenoid Control circuit for a short to ground. Perform the BODY VERIFICATION TEST-VER 1. (Refer to No >> Go To 4 8J - 26 INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS ND |
