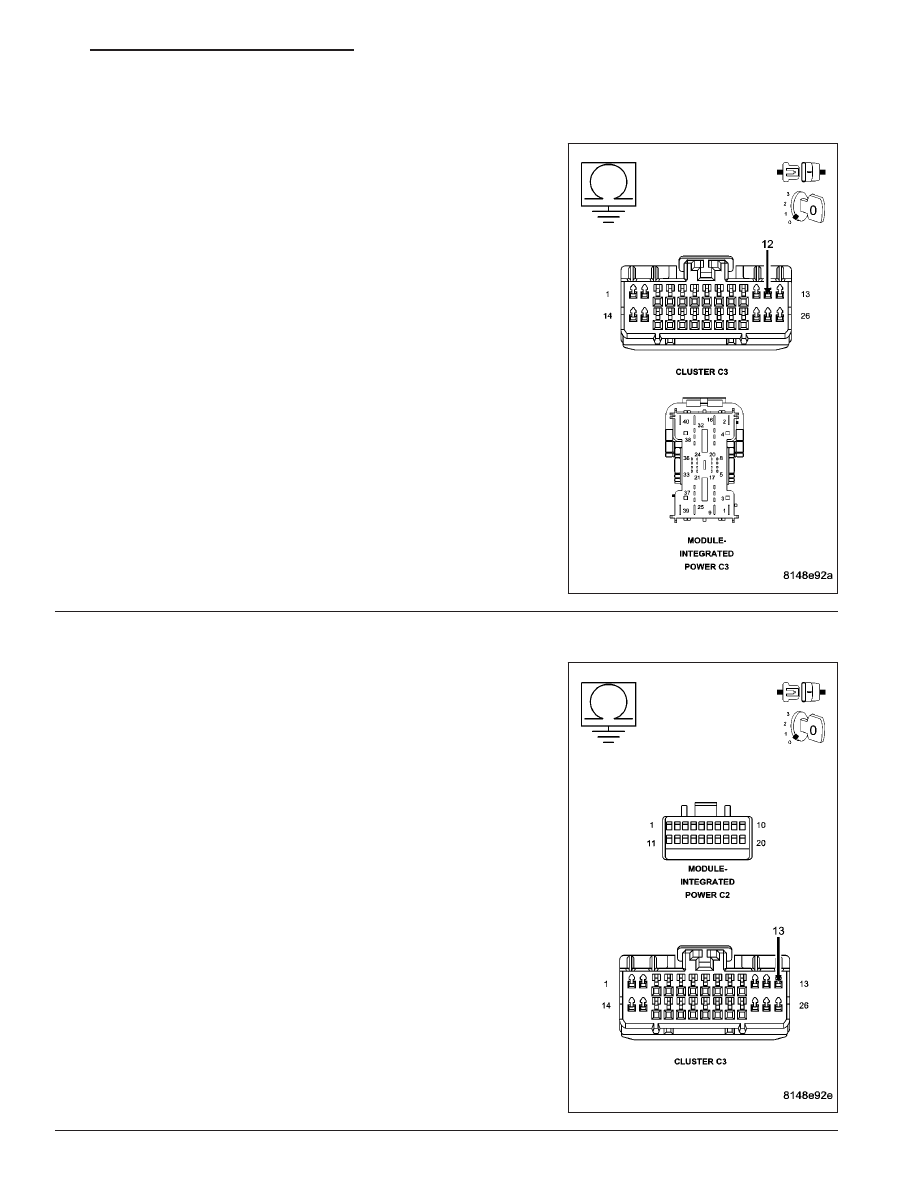

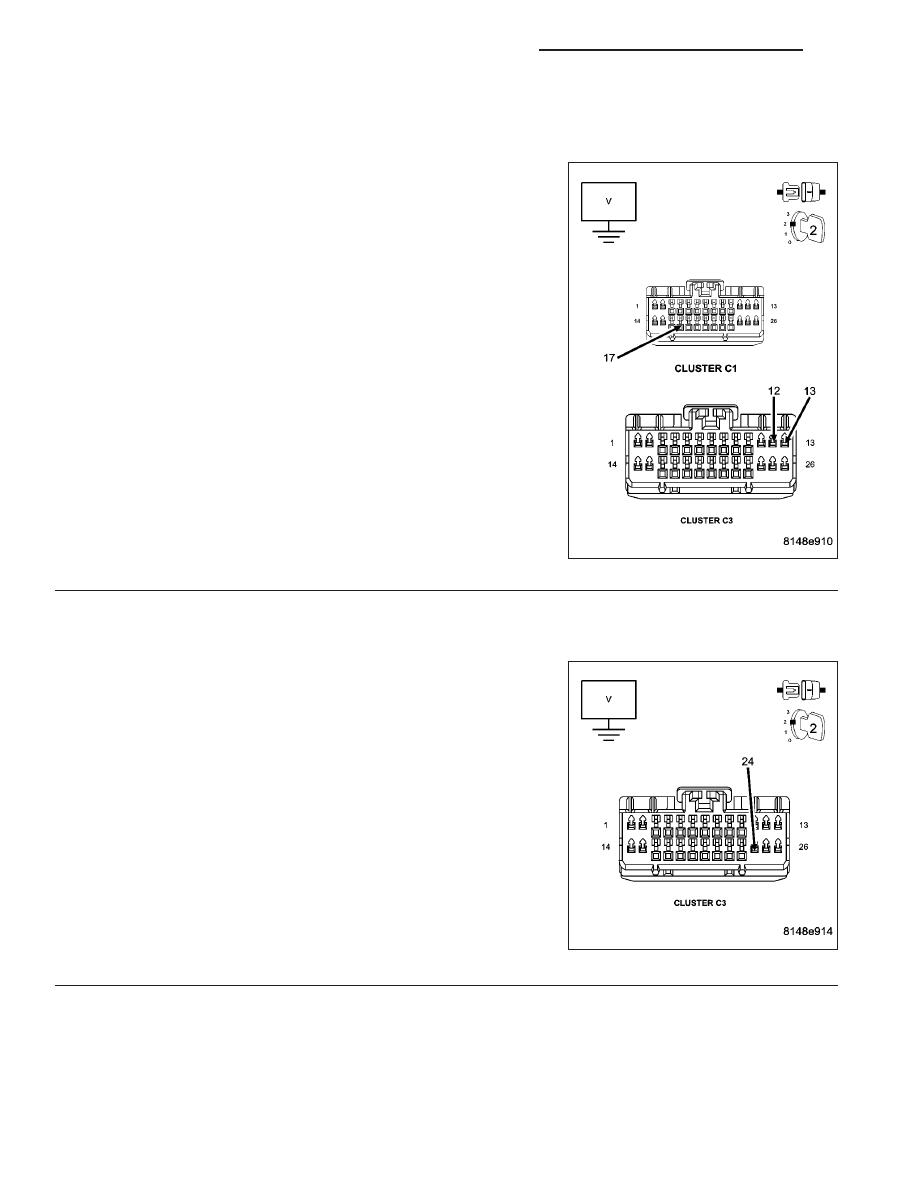

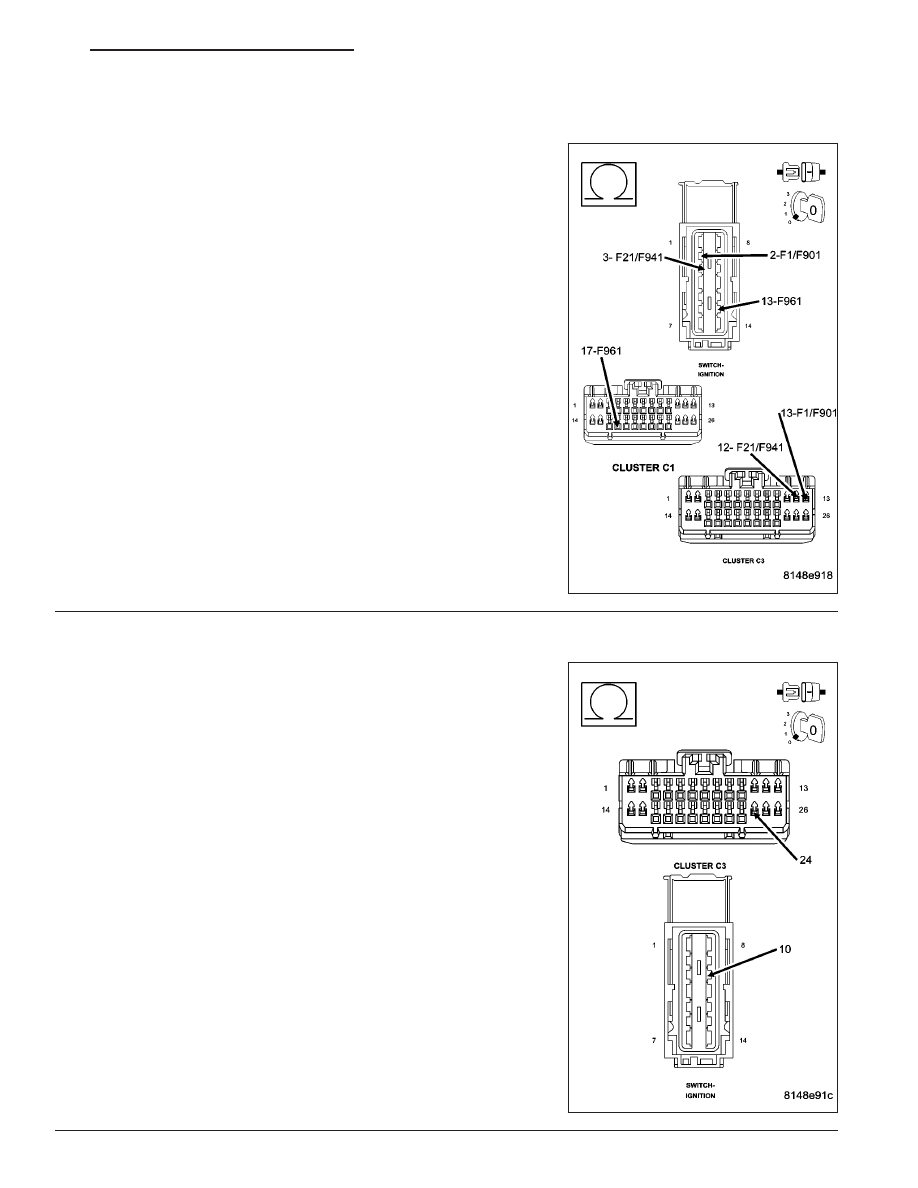

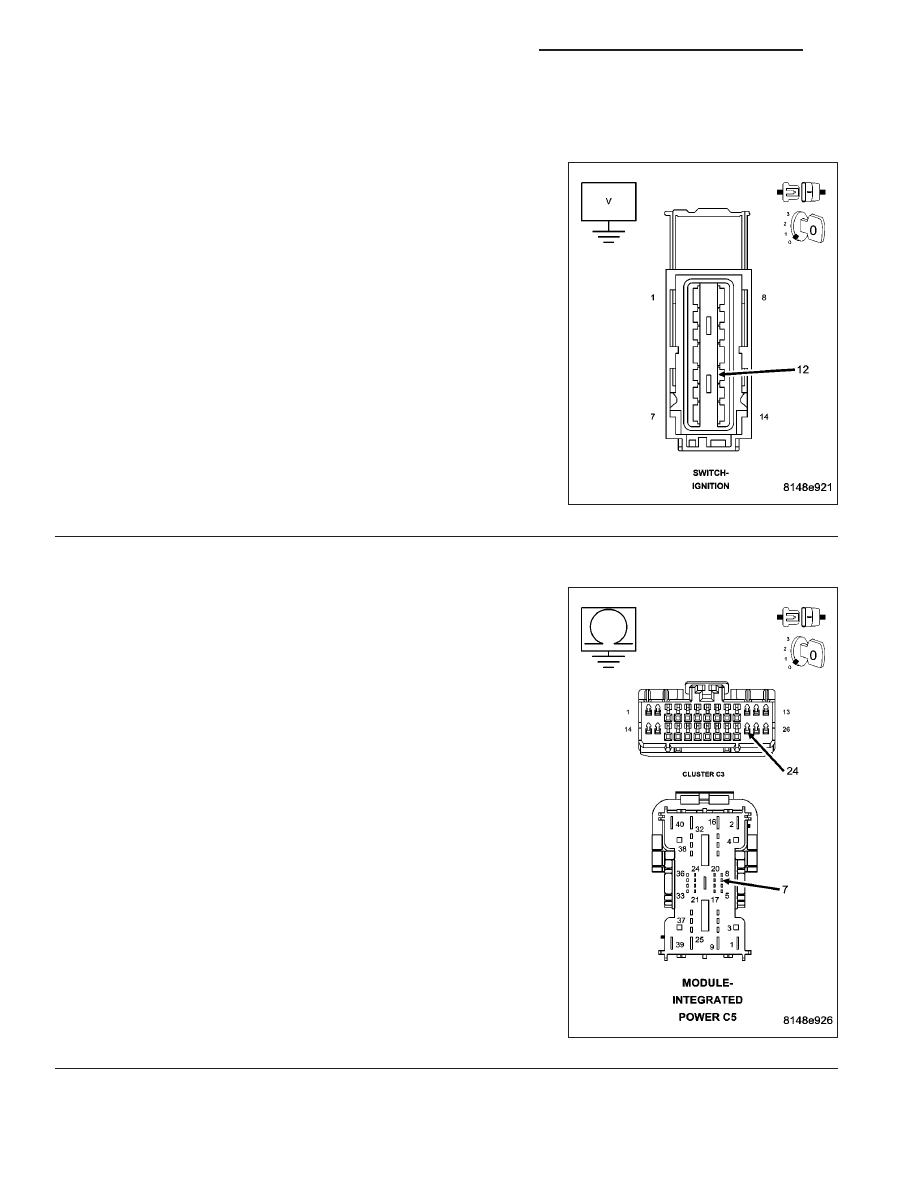

B2107–IGNITION SWITCH SENSE INPUT CIRCUIT/PERFORMANCE (CONTINUED) 4. CHECK VOLTAGE OF THE IGNITION SWITCH OUTPUT CIRCUITS AT THE INSTRUMENT CLUSTER C1 NOTE: Remove the starter relay. Turn the ignition on. Measure the voltage of the following circuits: • (F21) Ignition Switch Output (RUN/START) circuit with the ignition • (F1) Ignition Switch Output (RUN/START) circuit with the ignition • (F961) Ignition Switch Output (START) circuit with the ignition in Is the voltage above 10.0 volts on each circuit? Yes >> Go To 5 No >> Go To 5 5. CHECK VOLTAGE OF THE (F983) IGNITION SWITCH OUTPUT (RUN/ACC) CIRCUIT AT THE INSTRUMENT NOTE: Reinstall the Starter Relay. Is the voltage above 10.0 volts on all the circuits tested in steps Yes >> Replace the Instrument Cluster in accordance with the ser- vice information. Perform the BODY VERIFICATION TEST-VER 1. (Refer to No: (F21) (F961) or (F1) below 10.0 volts Go To 6 No: (F983) below 10.0 volts Go To 7 8J - 14 INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS ND |
