Dodge Dakota (ND). Manual - part 257





HORN SYSTEM - SERVICE INFORMATION

TABLE OF CONTENTS

page

page

HORN SYSTEM - SERVICE INFORMATION

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 14

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 14

DIAGNOSIS AND TESTING

HORN SYSTEM

. . . . . . . . . . . . . . . . . . . . . . . 14

HORN

DIAGNOSIS AND TESTING

HORN

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 16

SWITCH-HORN

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 16

DIAGNOSIS AND TESTING

HORN SWITCH

. . . . . . . . . . . . . . . . . . . . . . . 16

HORN SYSTEM - SERVICE INFORMATION

DESCRIPTION

The dual-note horn system features two electromag-
netic horn units. The horn system includes the follow-
ing major components:

Horn - The two horns are located on the left side
of the engine compartment near the battery.

Horn Switch - The horn switch is molded into
the driver airbag trim cover.

OPERATION

The horn system operates on battery current received through a fuse in the Integrated Power Module (IPM). The
horn system circuit is designed so that the system will remain operational, regardless of the ignition switch position.

DIAGNOSIS AND TESTING

HORN SYSTEM

The most reliable, efficient, and accurate means to diagnose the horn system requires the use of a scan
tool and the proper Diagnostic Procedures information.

Refer to the appropriate wiring information.

In most cases, any problem involving continually sounding horns can be quickly alleviated by removing the horn
fuse from the Integrated Power Module (IPM).

8H - 14

HORN SYSTEM - SERVICE INFORMATION

ND

WARNING: DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, SEAT BELT TENSIONER, SIDE AIRBAG, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR
SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MIN-
UTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNO-
SIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE
THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE
PERSONAL INJURY.

HORN

DIAGNOSIS AND TESTING

HORN

The most reliable, efficient, and accurate means to diagnose the horn system requires the use of a scan
tool and the proper Diagnostic Procedures information.

Refer to the appropriate wiring information.

WARNING: DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, SEAT BELT TENSIONER, SIDE AIRBAG, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR
SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MIN-
UTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNO-
SIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE
THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE
PERSONAL INJURY.

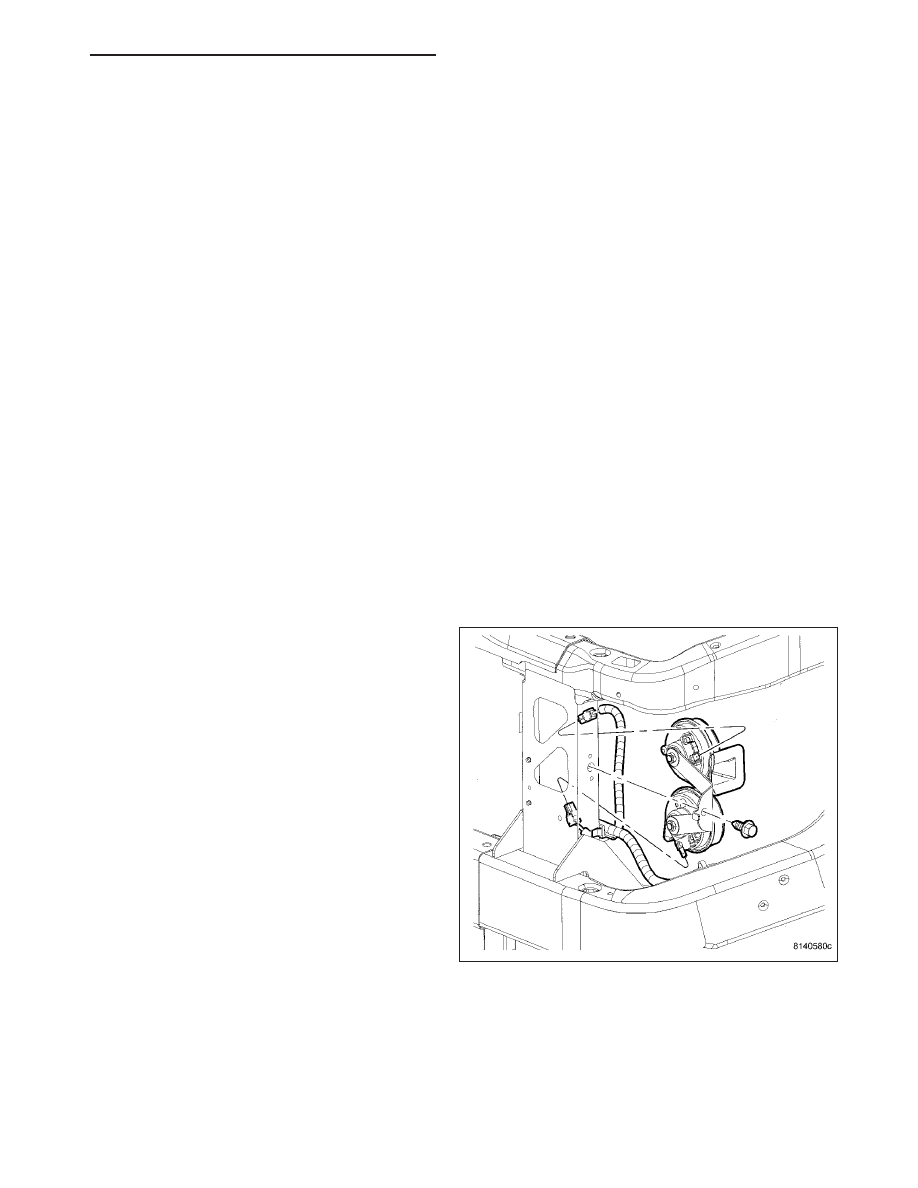

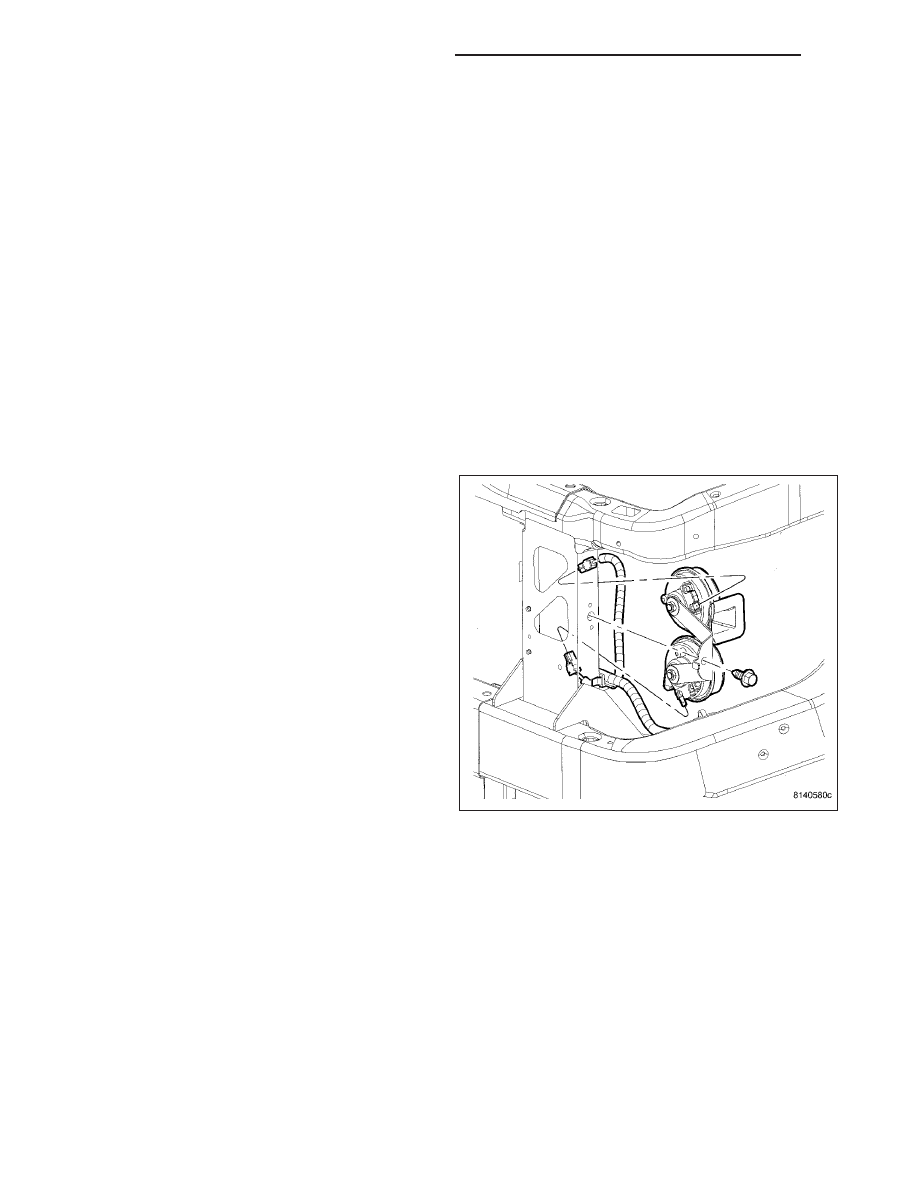

REMOVAL

1. Disconnect and isolate the battery negative cable.

2. Remove the horn mounting fasteners.

3. Disconnect the electrical harness connector and

remove the horns.

ND

HORN SYSTEM - SERVICE INFORMATION

8H - 15

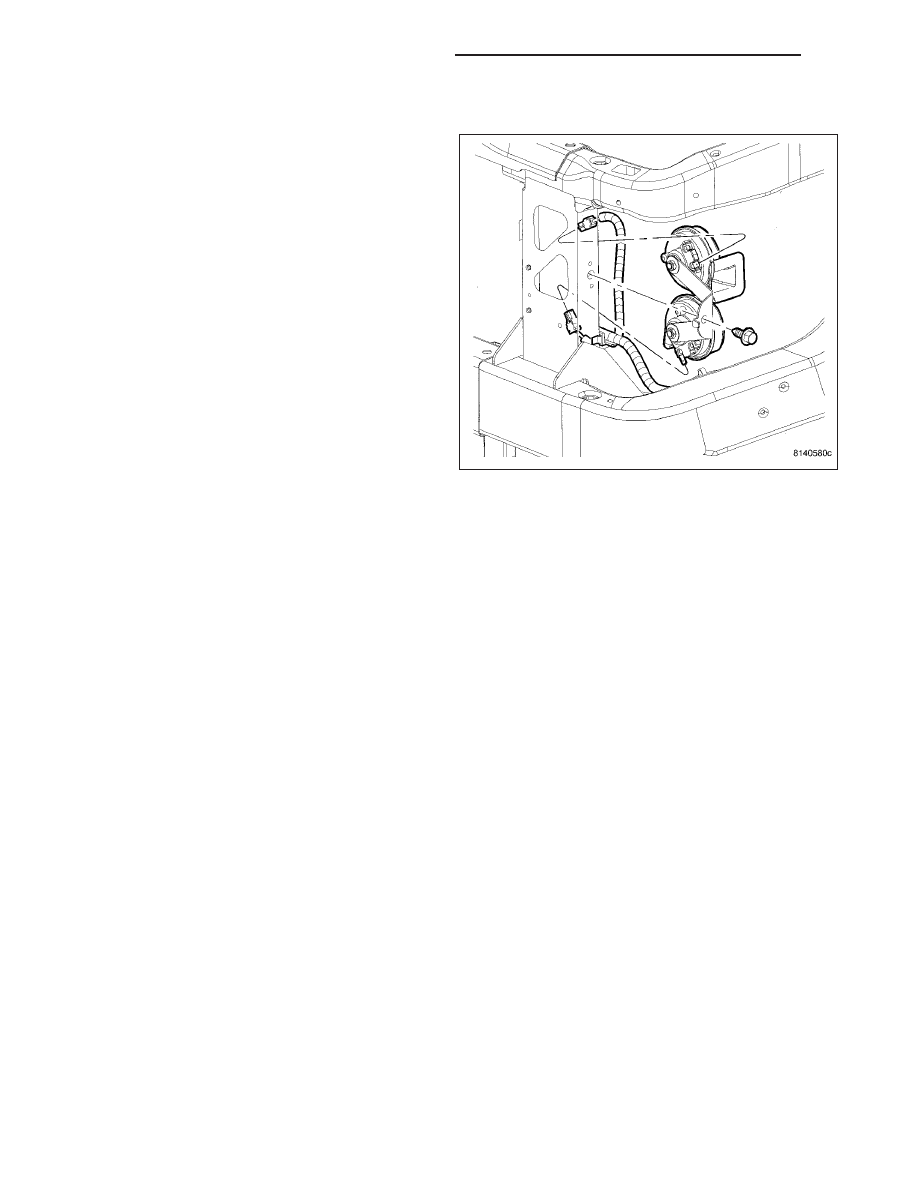

INSTALLATION

1. Connect the electrical harness connector to the

horns.

2. Position

horns

and

install

mounting

fastener.

Tighten fastener.

3. Connect battery negative cable.

SWITCH-HORN

DESCRIPTION

The horn switch is molded into the driver airbag cover. The horn switch can not be serviced separately (Refer to 8
- ELECTRICAL/RESTRAINTS/DRIVER AIRBAG - DESCRIPTION).

DIAGNOSIS AND TESTING

HORN SWITCH

The most reliable, efficient, and accurate means to diagnose the horn system requires the use of a scan
tool and the proper Diagnostic Procedures information.

For complete circuit diagrams, refer to the appropriate wiring information.

WARNING: DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, SEAT BELT TENSIONER, SIDE AIRBAG, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR
SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MIN-
UTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNO-
SIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE
THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE
PERSONAL INJURY.

8H - 16

HORN SYSTEM - SERVICE INFORMATION

ND

IGNITION CONTROL

TABLE OF CONTENTS

page

page

IGNITION SYSTEM - ELECTRICAL

DIAGNOSTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

IGNITION SYSTEM - SERVICE INFORMATION. . . . 5

IGNITION SYSTEM - ELECTRICAL DIAGNOSTICS

TABLE OF CONTENTS

page

IGNITION SYSTEM - ELECTRICAL

DIAGNOSTICS
DIAGNOSIS AND TESTING

B2100-IGNITION RUN/START INPUT

CIRCUIT PERFORMANCE . . . . . . . . . . . . . . . . 2

IGNITION SYSTEM - ELECTRICAL DIAGNOSTICS

DIAGNOSIS AND TESTING

ND

IGNITION CONTROL

8I - 1
