Dodge Dakota (ND). Manual - part 226





MODULE-FRONT CONTROL

DESCRIPTION

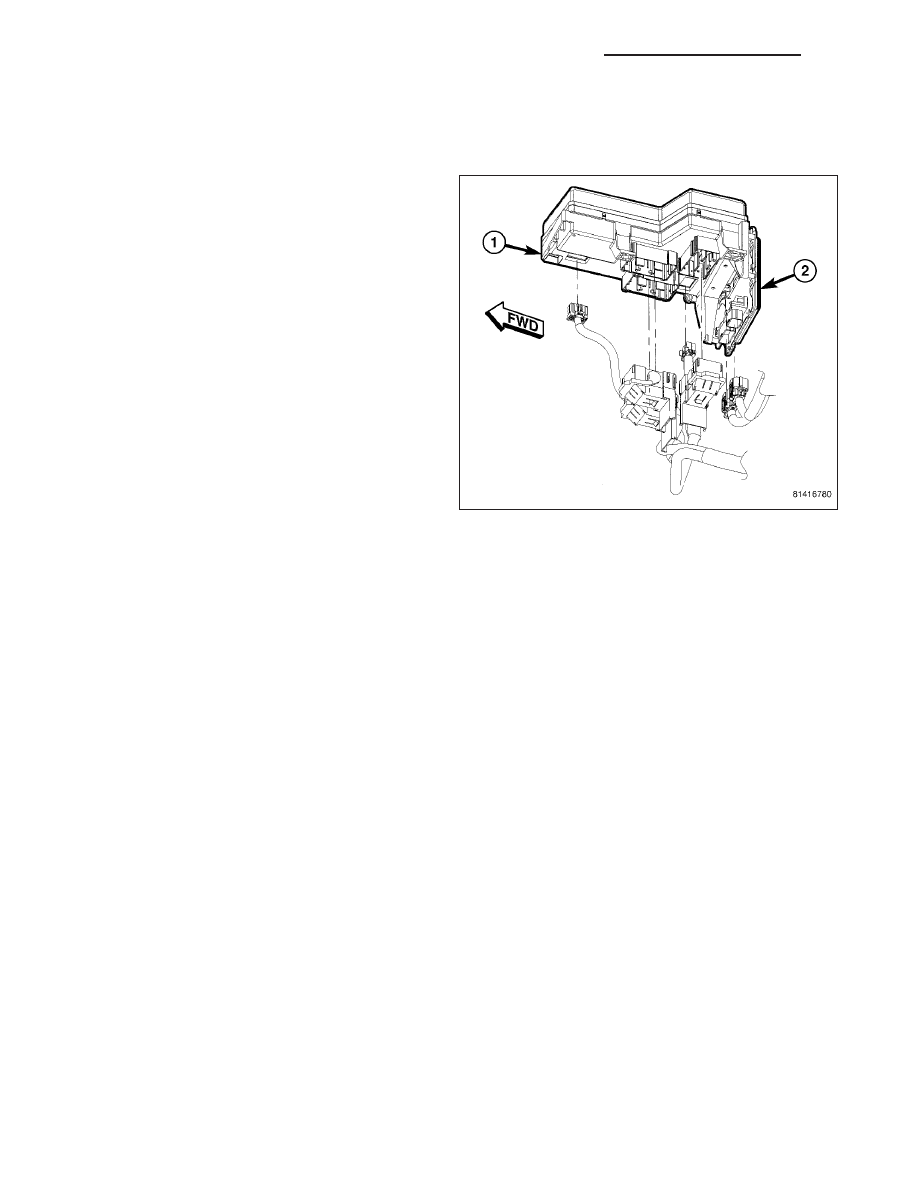

The Front Control Module (FCM) (2) is a micro con-
troller based module located in the left front corner of
the engine compartment. The FCM mates to the
Power Distribution Center (PDC) (1) to form the Inte-
grated Power Module (IPM). The IPM connects
directly to the battery and provides the primary means
of circuit protection and power distribution for all vehi-
cle electrical systems. The front control module con-
trols power to some of these vehicle systems electrical
and electromechanical loads based on inputs received
from hard wired switch inputs and data received on
the Controller Area Network (CAN) bus circuit.

OPERATION

As messages are sent over the Controller Area Network (CAN) bus circuit, the Front Control Module (FCM) reads
these messages and controls power to some of the vehicles electrical systems by completing the circuit to ground
(low side driver) or completing the circuit to 12 volt power (high side driver). The following functions are controlled
by the FCM:

Front turn signals

Stop, turn signal and tail lamps

Front and rear hazard warning lamps

Headlamps

Fog Lamps

Daytime running lamps - if equipped

Horn

Windshield and liftgate wiper and washer systems

Transfer case shifting

Trailer tow wiring output

Rear window defroster power and timing

The FCM provides the following features for the above function:

It operates the electric transfer case mechanism, replacing a stand-alone module.

It flashes lamps in response to turn signal, Remote Keyless Entry and Vehicle Theft Security Alarm inputs.

It sounds the horn in response to Remote Keyless Entry and Vehicle Theft Security Alarm inputs.

It turns off the horn in the event of excessively long operation that could otherwise damage the horn.

It minimized voltage variations to the headlamps to extend bulb life and to equalize the light output from the
lamps, which might otherwise differ due to variations in wiring resistance.

If the headlamps are left on, it automatically turns them off after eight minutes to protect the battery from dis-
charge.

It monitors battery voltage and turns off non-essential functions such as the fog lamps, rear window defogger
and heated seats if necessary to conserve battery power.

It operates the high-beam headlamps at reduced intensity by pulse-width modulation of the power supply to
provide the daytime running lamps.

8E - 160

ELECTRONIC CONTROL MODULES - SERVICE INFORMATION

ND

It provides the variable delay intermittent windshield and liftgate wiper time delay features, and the vehicle
speed sensitive windshield wiper delay variation.

It acts as a gateway between the CAN-C network for critical powertrain and anti-lock brake systems and the
CAN-B network for body and interior modules. For example it collects battery temperature data and relays it to
the PCM.

DIAGNOSIS AND TESTING

ND

ELECTRONIC CONTROL MODULES - SERVICE INFORMATION

8E - 161

BODY VERIFICATION TEST – VER 1

Diagnostic Test

1.

Perform Body Verification Test

Disconnect all jumper wires and reconnect all previously disconnected components and connectors.

Ensure that all accessories are turned off.

Ensure that the battery is fully charged.

Turn the ignition on.

With the scan tool, record and erase DTCs from all modules.

If an electronic control module was replaced, select the applicable module from the scan tool menu and press “Misc.
Functions”. If the module has programable features, program as necessary.

If repairs were made to any of the HVAC door actuator circuits, with the scan tool in HVAC, select System Tests and
then select Actuator DTC Detection. The test must pass before proceeding to the next step.

If repairs were made to any of the HVAC doors, linkage, door actuators, or door actuator circuits, with the scan tool
in HVAC, select System Tests and then select Actuator Calibration Test. The test must pass before proceeding to
the next step.

Turn the ignition off, wait 10 seconds, and then turn the ignition on.

Operate all functions of the system that caused the original concern.

With the scan tool, select ECU View.

Check for DTCs in the modules.

Are DTCs present in any of the modules or is the original condition still present?

Yes

>> The repair is not complete. Refer to the related category for the DTC or symptom that is still present.

No

>> The repair is complete.

8E - 162

ELECTRONIC CONTROL MODULES - SERVICE INFORMATION

ND

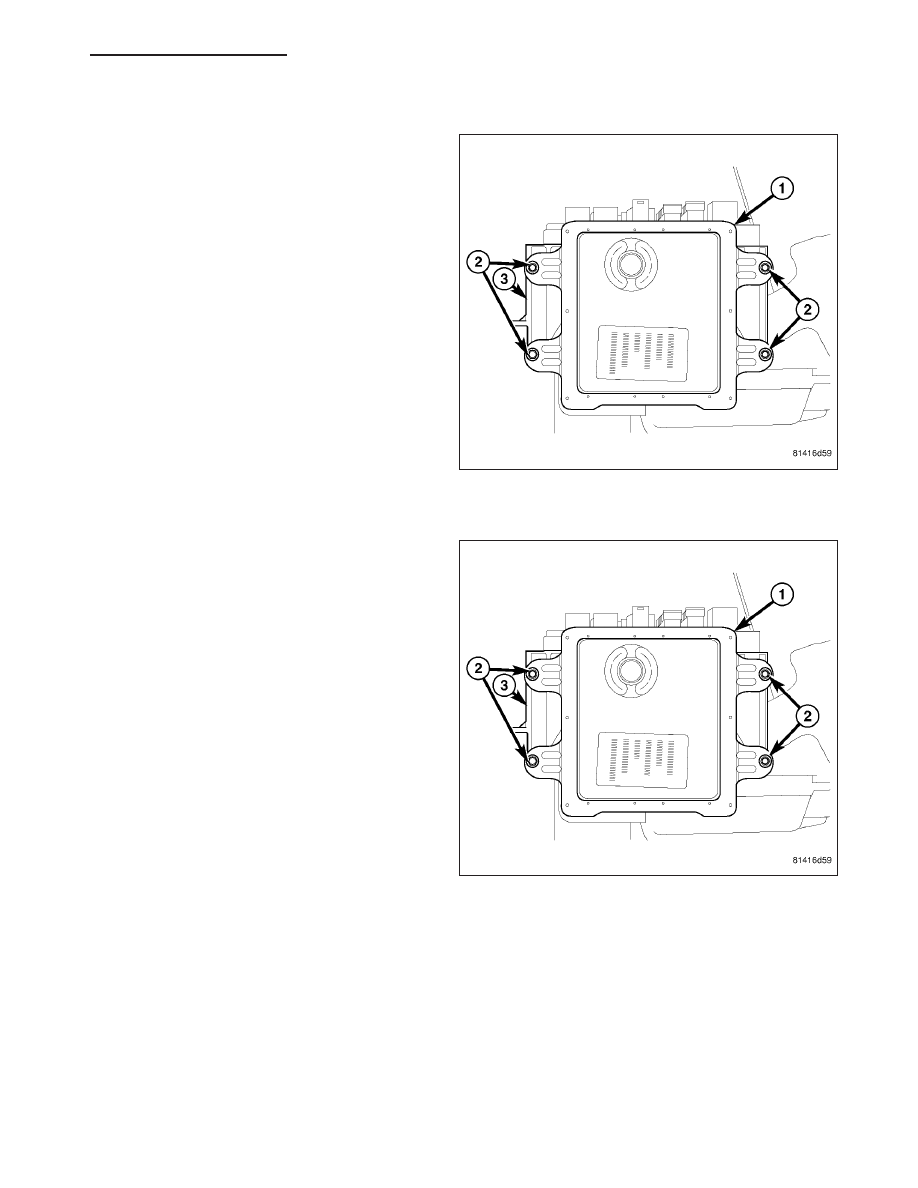

REMOVAL

1. Disconnect and isolate the battery negative cable.

2. Remove the Integrated Power Module (IPM) from

the engine compartment, (Refer to 8 - ELECTRI-
CAL/POWER

DISTRIBUTION/INTEGRATED

POWER MODULE - REMOVAL).

3. Remove the four fasteners (2) securing the Front

Control Module (FCM) (1) to the Power Distribution
Center (PDC) (3).

4. Separate the FCM from the PDC by pulling the two

straight away from each other to disengage the
electrical connector.

INSTALLATION

1. Connect the Power Distribution Center (PDC) (3) to

the Front Control Module (FCM) by lining up the
electrical connector and pushing the two together.

2. Install the four fasteners (2) securing the FCM (1)

to the PDC (3).

3. Install the Integrated Power Module (IPM), (Refer

to 8 - ELECTRICAL/POWER DISTRIBUTION/IN-
TEGRATED POWER MODULE - INSTALLATION).

4. Connect the battery negative cable.

ND

ELECTRONIC CONTROL MODULES - SERVICE INFORMATION

8E - 163
