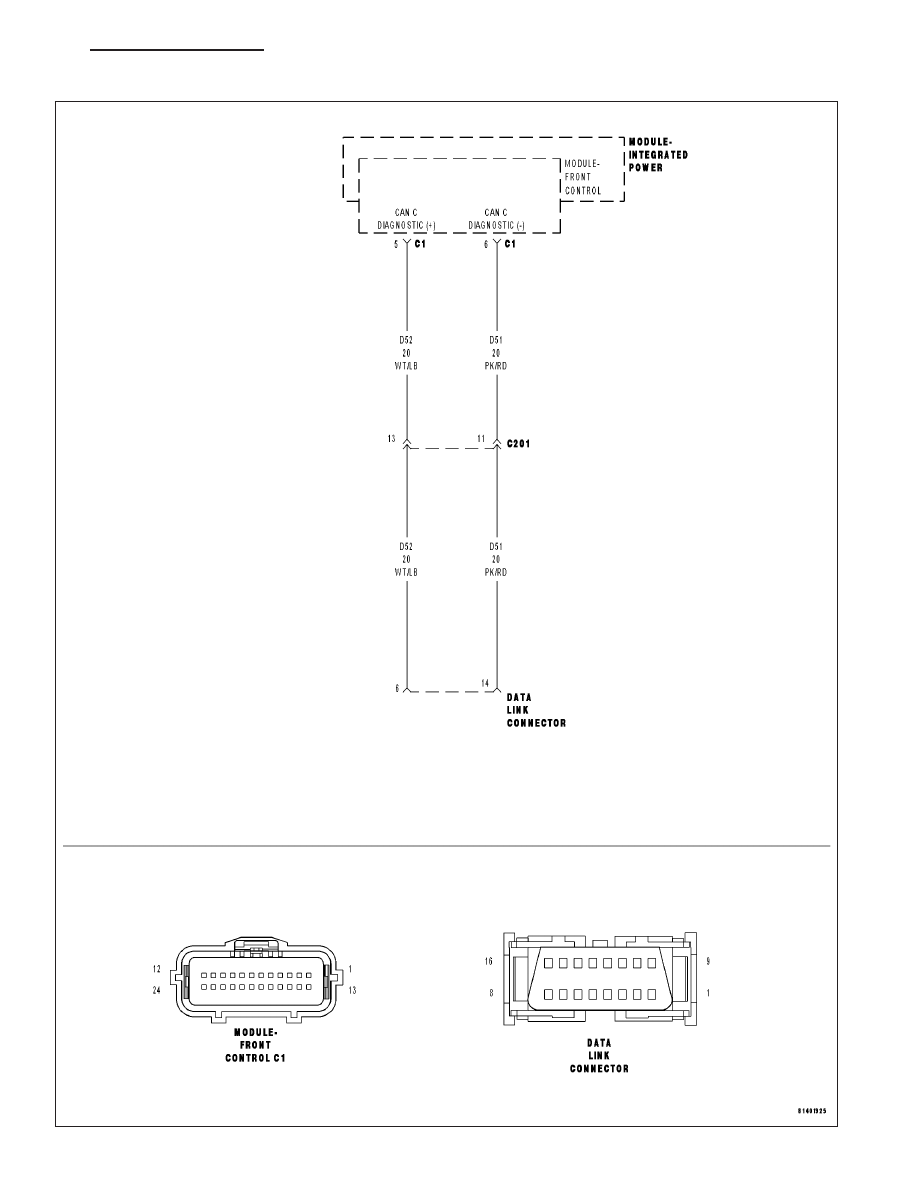

*CAN C DIAGNOSTIC (+) CIRCUIT OPEN (CONTINUED) 2. (D52) CAN C DIAGNOSTIC (+) CIRCUIT OPEN Turn the ignition off. Disconnect the Front Control Module C1 harness connector. Disconnect the scan tool from the DLC. Measure the resistance of the (D52) CAN C Diagnostic (+) circuit Is the resistance below 5.0 ohms? Yes >> Inspect the wiring and connectors for damage or shorted circuits. If ok, replace the Front Control Module in accor- Perform BODY VERIFICATION TEST - VER 1. (Refer to No >> Repair the (D52) CAN C Diagnostic (+) circuit for an open. Perform BODY VERIFICATION TEST - VER 1. (Refer to 8E - 100 ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS ND |
